Mini LED Work & Amber Warning Light — 9W Dual Function

The 9W LED Work & Warning Light is a powerful and versatile lighting solution designed for areas where space is limited. Ideal for step lights, trailers or as additional reversing light, these compact lamps have a high-performance work light (850 actual lumens) with a high-intensity warning light (5W).

This Swedstuff lamp is built to the highest standards and  has a durable aluminium housing, stainless steel bracket and IP68 waterproof rating, this light is built to withstand demanding working environments. It is ECE R65 and R10 Certified and has one flash pattern and comes pre-wired with 300mm cable.

Features

• Dual-function light:
  • White LED work light
  • Amber LED warning light
• Wide beam pattern for excellent area illumination
• Compact and durable design
• E-approved for road use
• Suitable for 10–32V DC systems
• Heavy-duty construction for commercial applications
• Excellent resistance to water, dust and vibration

Performance

• Theoretical Power: 18W
• Actual Power Consumption:
  • Work Light: 8.2W
  • Warning Light: 5W
• Theoretical Output: 1380 Lumens
• Actual Output: 840 Lumens
• Beam Distance:
  • 1 Lux @ 42m
• Colour Temperature: 5700K
• Beam Pattern: Wide Beam

Technical Specifications

• Operating Voltage: 10–32V DC
• Functions:
  • Work Light
  • Warning Light
• LED Colours:
  • White
  • Amber
• Cable Length: 450mm
• Connection Type: Cable

Construction

• Housing Material: Aluminium
• Lens Material: Polycarbonate
• Bracket Material: Stainless Steel
• Housing Colour: Black
• Lens Colour: Clear

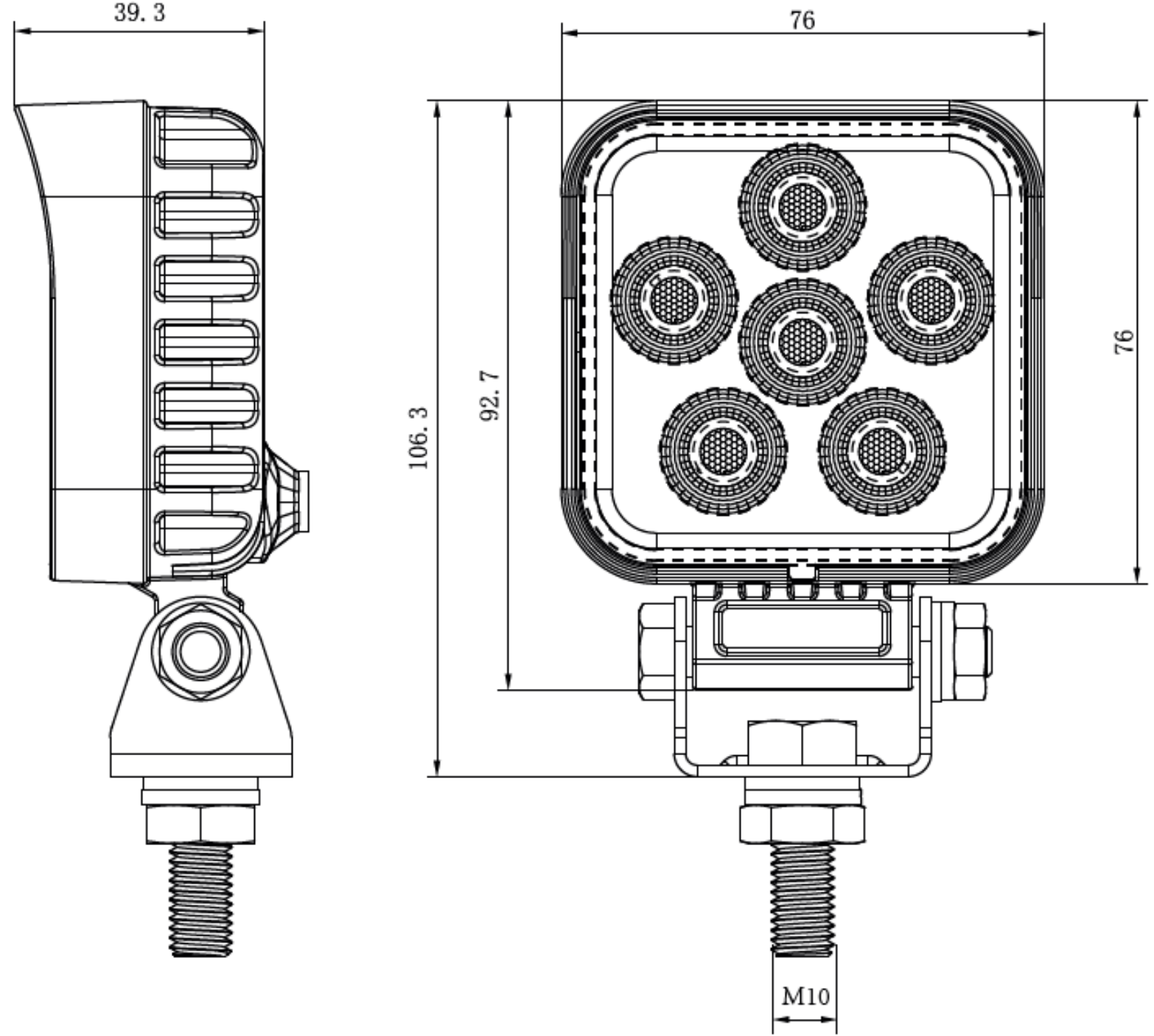

Dimensions

• Length: 76mm
• Depth: 39.3mm
• Height: 92.7mm
• Height Including Bracket: 106.3mm
• Weight: 0.355kg

Approvals & Protection

• ECE R10.06 Approved
• ECE R65 Approved
• IP68 Waterproof Rating

Operating Temperature

• -35°C to +50°C

Ideal For

• Recovery vehicles
• Agricultural machinery
• Construction equipment
• Commercial vehicles
• Utility vehicles
• Service and maintenance fleets
