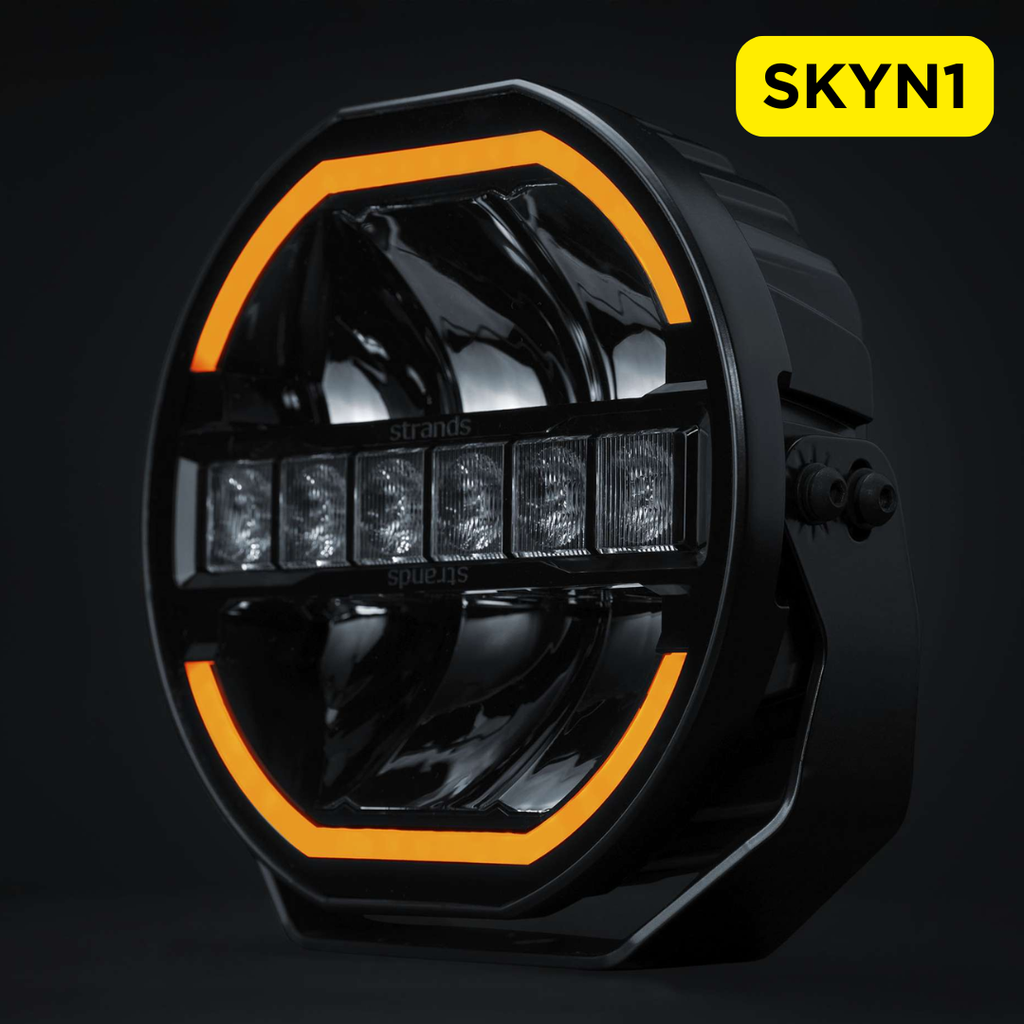

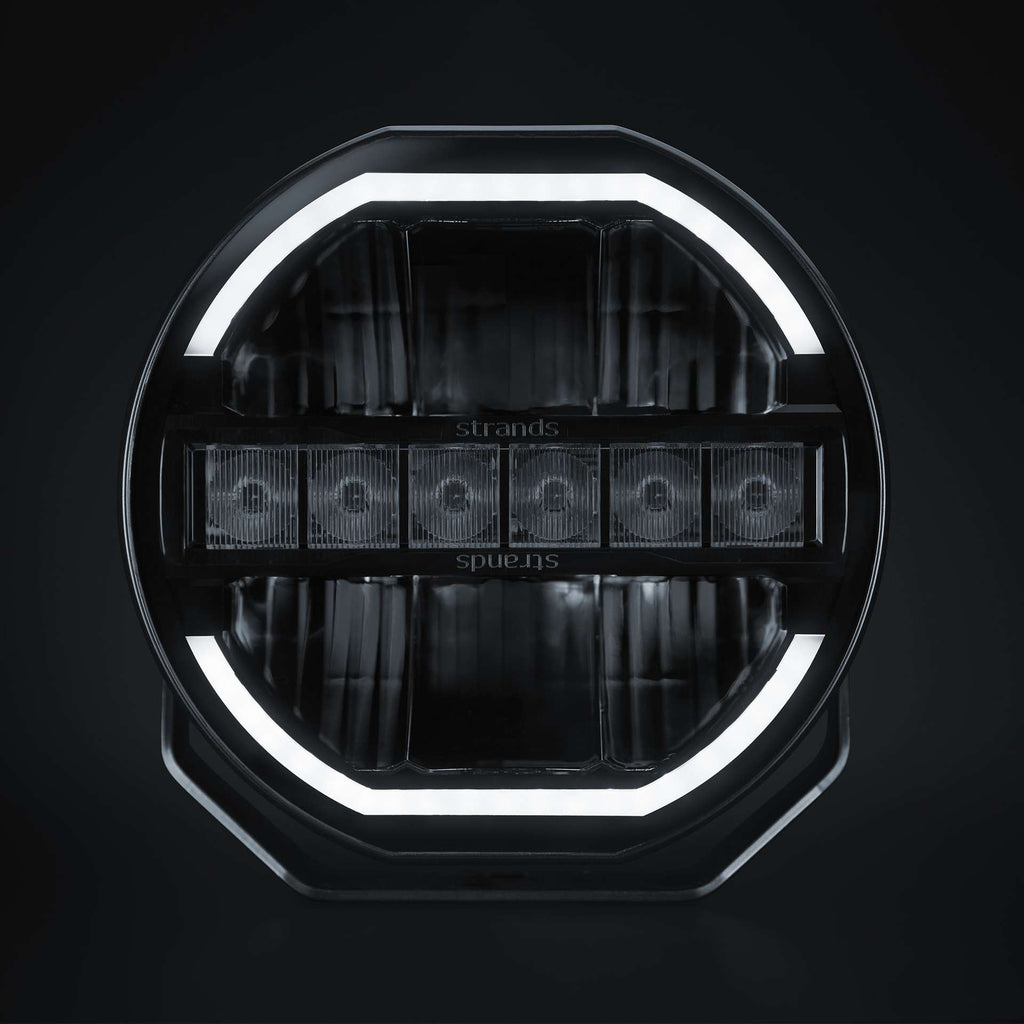

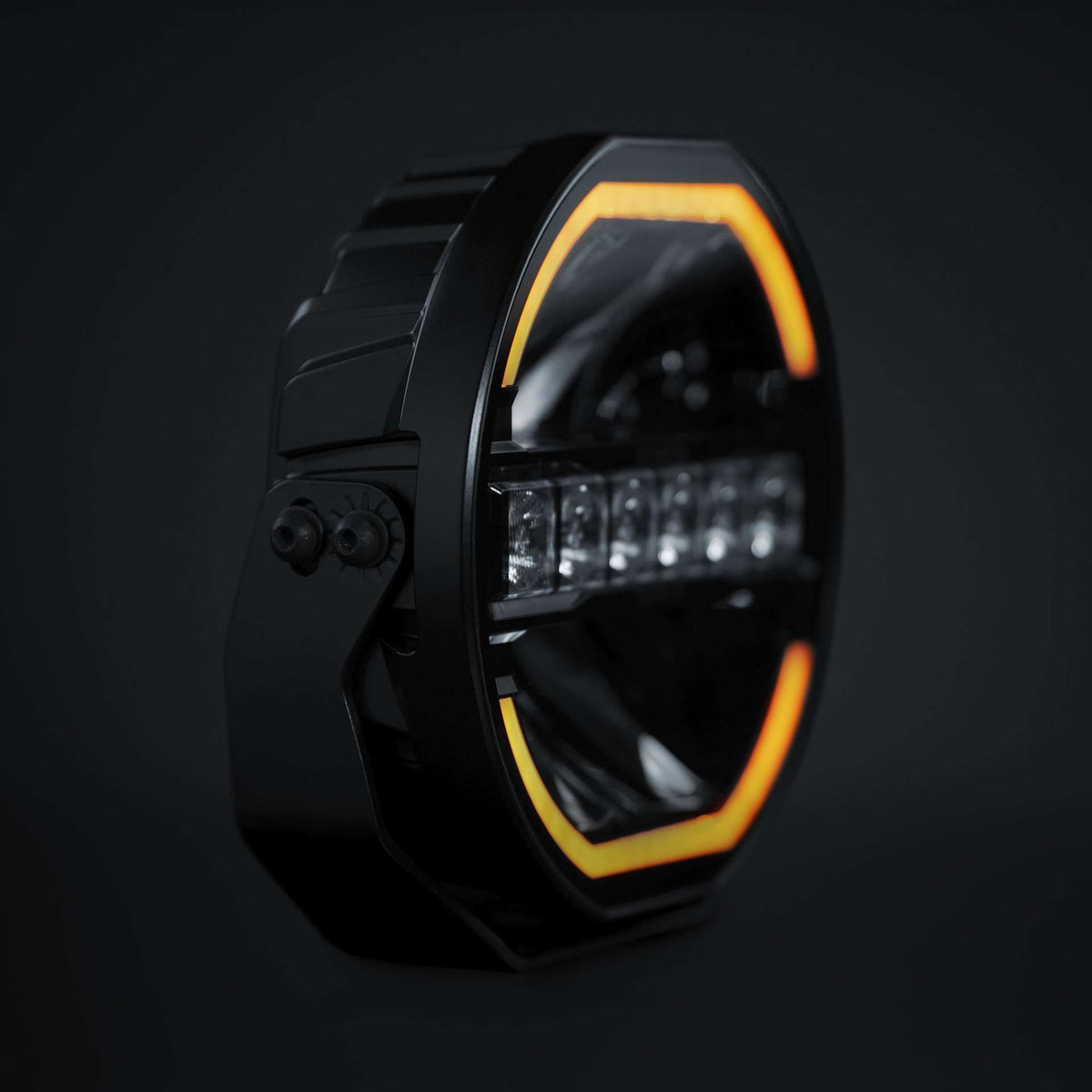

SKYN1 EXP Strands Skylord LED Driving Light / 9"

Designed for the SKYN1 EXP wireless system - click here for the datasheet

The Skylord EXP 9” driving light is developed for drivers who demand powerful long-range visibility, smarter installation, and seamless wireless control. Delivering up to 13,300 lumens, a reach of 785 meters in Xperience mode, E-approved R148/R149 in E-Mode, IP68/IP69K protection, and backed by a 3-year warranty, this driving light combines high-performance illumination with next-generation functionality. Designed exclusively for use with the SKYN1 EXP control box (Part No. 907851S1), the Skylord EXP connects wirelessly via Bluetooth® technology[i] and will not operate without the EXP system.

Designed for the SKYN1 EXP wireless system

The Skylord EXP 9” is part of the SKYN1 EXP lighting range, designed for faster, cleaner, and more intuitive vehicle installations. Using Bluetooth, the driving light automatically connects to the EXP control box, where its functions are detected and assigned.

• Bluetooth integration: Connects wirelessly to the SKYN1 EXP control box (Part No. 907851S1).
• EXP system required: The driving light is designed exclusively for the SKYN1 EXP platform and requires the control box to operate.
• Automatic function assignment: Functions are automatically mapped to the correct controls.
• Minimal wiring: Reduces installation complexity and creates a cleaner vehicle setup.
• Unified lighting control: Works seamlessly alongside other SKYN1 EXP-compatible driving lights, work lights, LED bars, and warning lights.
• Easy operation: Control multiple lighting functions directly from inside the vehicle using the wireless EXP control box.

Extreme light output for demanding driving conditions

The Skylord EXP 9” is engineered to deliver exceptional visibility in all driving conditions. With a powerful long-distance beam pattern and dual operating modes, it provides both road-legal performance and maximum output when conditions require it.

• 13,300 lumens in Xperience mode: Powerful illumination for dark roads and demanding environments.
• 785-meter reach in Xperience mode: Outstanding long-distance visibility.

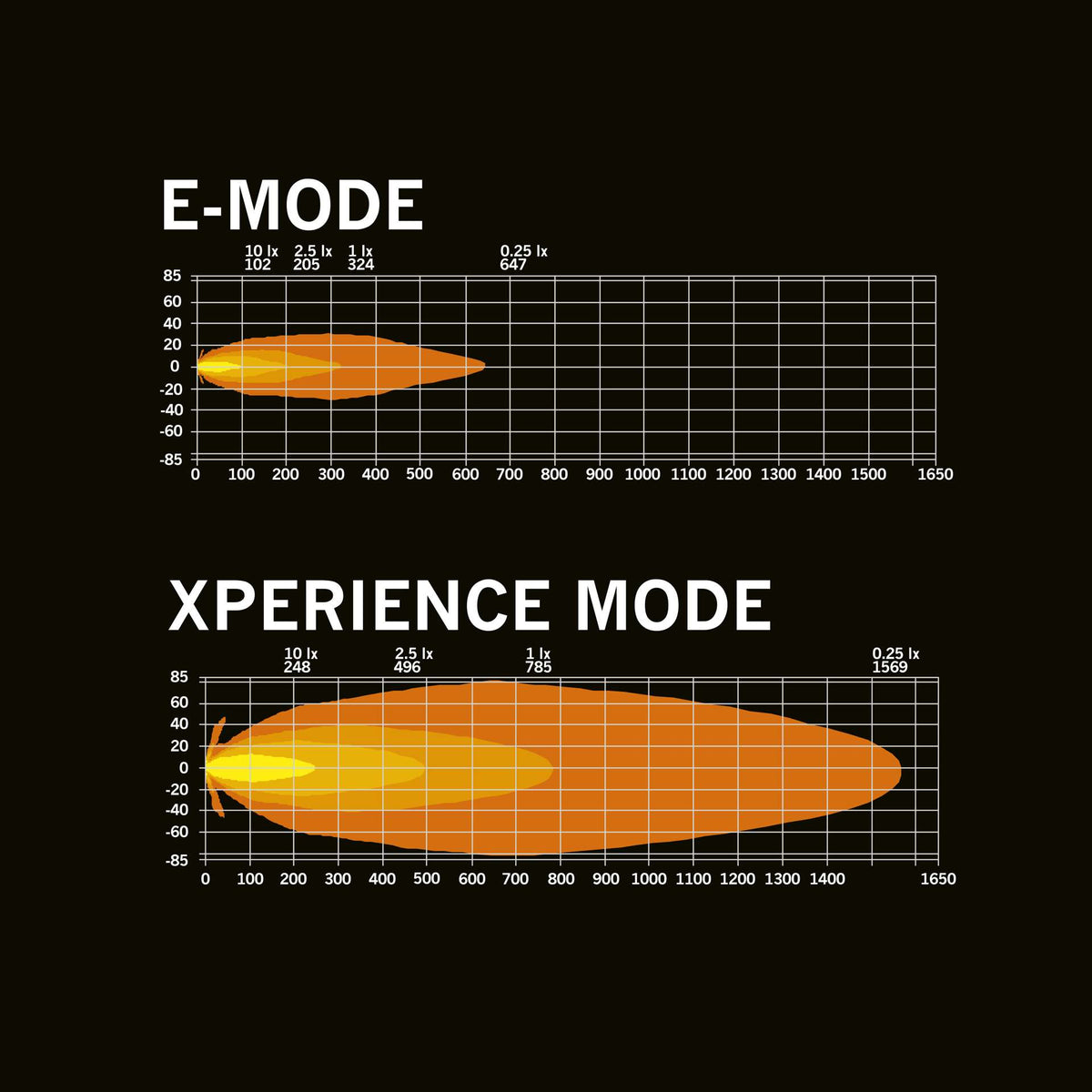

• Long-distance beam pattern: Optimized for maximum forward visibility and extended reach.
• 5700 K color temperature: Crisp, clear light that improves contrast and visibility.

Road-legal performance with dual operating modes

The Skylord EXP 9” combines high-performance lighting with approved road use, allowing drivers to switch between E-mode and Xperience mode depending on driving conditions.

• E-approved E-Mode according to R148 and R149
• EMC approved according to R10
• Reference number 25

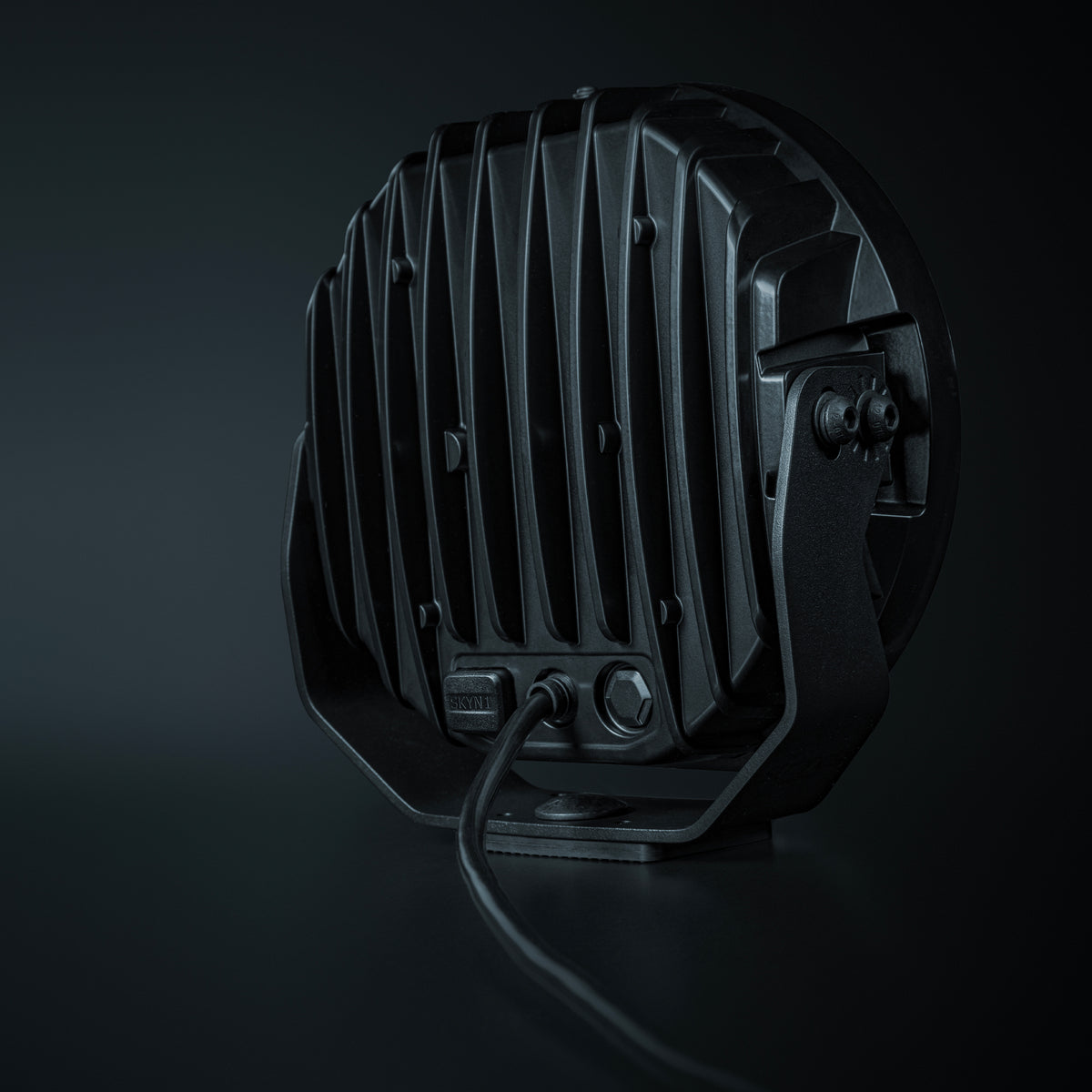

Built for heavy-duty use and long-term durability

Designed for professional use and harsh environments, the Skylord EXP 9” combines durable materials with advanced protection against weather, dirt, and vibration. This light also features a built-in relay.

• Aluminium housing: Strong and durable construction for demanding applications.
• Polycarbonate lens: Excellent impact resistance and long-term clarity.
• IP68/IP69K-rated: Maximum protection against water, dust, and dirt intrusion.
• Clear lens design: Optimized light output and visibility.
• 3-year warranty: Reliable performance backed by Strands.

Installation and fitment

The Skylord EXP 9” is supplied with everything needed for a straightforward installation and seamless integration into the SKYN1 EXP ecosystem.

• 10–40V DC
• 2000 mm cable
• Bracket included
• Screws, washers, bolts, and rubber pad included
• Pigtail with DT-4 plug included

Why choose the Skylord EXP 9”?

The Skylord EXP 9” is the ideal choice for drivers seeking maximum visibility and modern wireless control. By integrating directly with the SKYN1 EXP system, it eliminates unnecessary wiring, simplifies installation, and delivers intuitive control via a single wireless platform. The result is a cleaner installation, faster setup, and a smarter lighting experience for professional and demanding vehicle applications.

[i] The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Strands Lighting Division is under license. Other trademarks and trade names are those of their respective owners.

Specifications:

• Voltage (DC): 10–40 V DC
• Theoretical power: 165 W
• Power consumption: 156 W
• Functions:
  • Amber position light
  • White position light
  • Xperience mode
  • E-approved mode
• Consumption by function:
  • White position: 6 W
  • Amber position: 6 W
  • E-mode: 25 W
  • X-mode: 156 W
• Theoretical luminous flux: 15,000 lm
• Actual luminous flux: 13,300 lm
• 1 lux at: 785 m
• Colour temperature: 5,700 K
• Beam pattern: Long-distance beam
• Beam angle: 16.6°

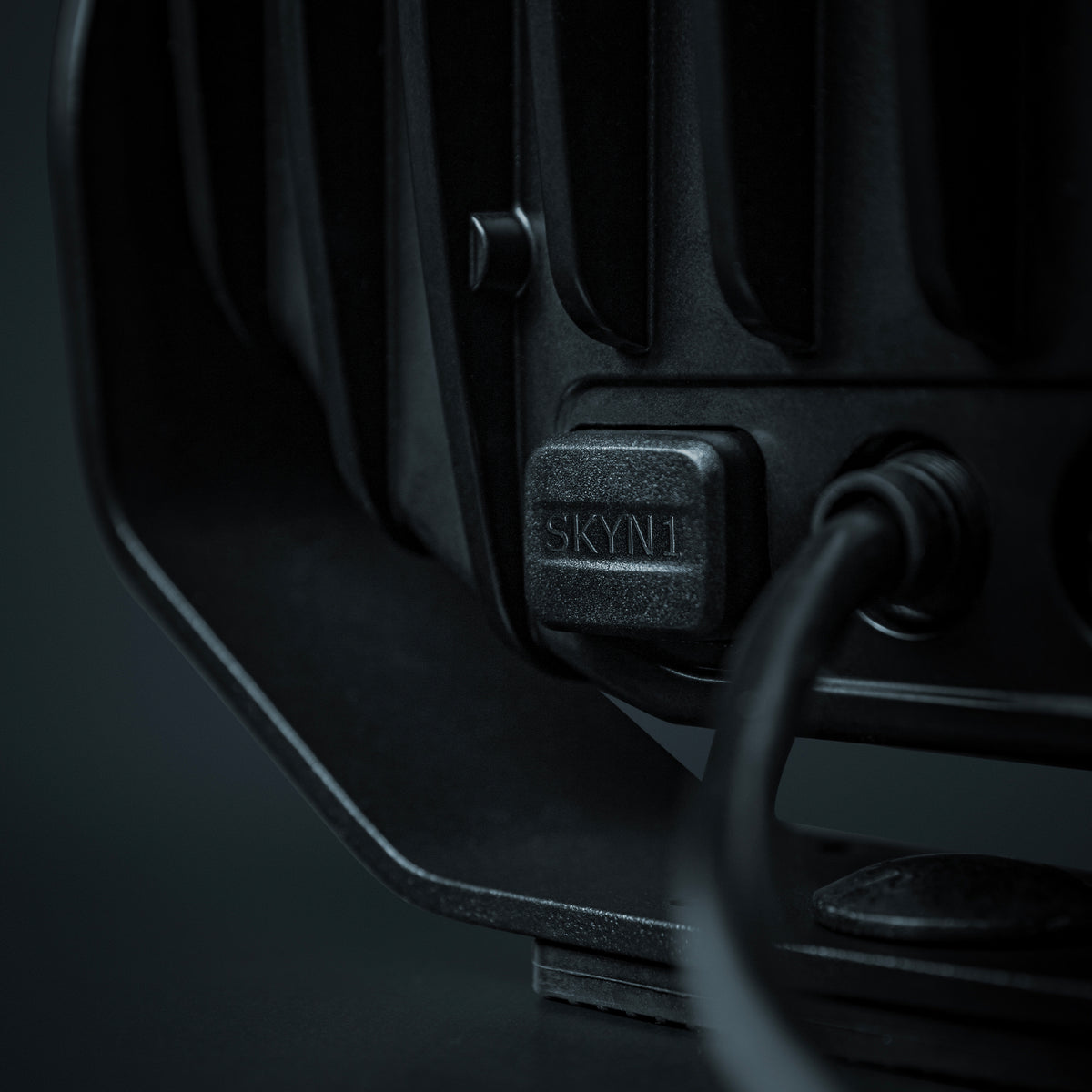

• Connection: Cable
• Cable length: 2,000 mm
• Housing colour: Black
• Lens colour: Clear
• LED colours: White / amber
• Bracket material: Stainless steel
• Housing/chassis material: Aluminium
• Lens material: Polycarbonate
• Length: 228 mm
• Depth: 80.7 mm
• Height: 217.9 mm
• Height including bracket: 232.9 mm
• Weight: 3.4 kg
• Diameter: 228 mm
• IP rating: IP68 / IP69K
• Operating temperature: −30 to +65 °C
• E-approved: Yes
• ECE approvals: R10.06; R148; R149; CE-RED
• Reference number: 25
• Other approvals/features: CISPR 25 Class 3; SIG Bluetooth
• Additional information: Compatible with SKYN1 EXP Controller (907851S1)
