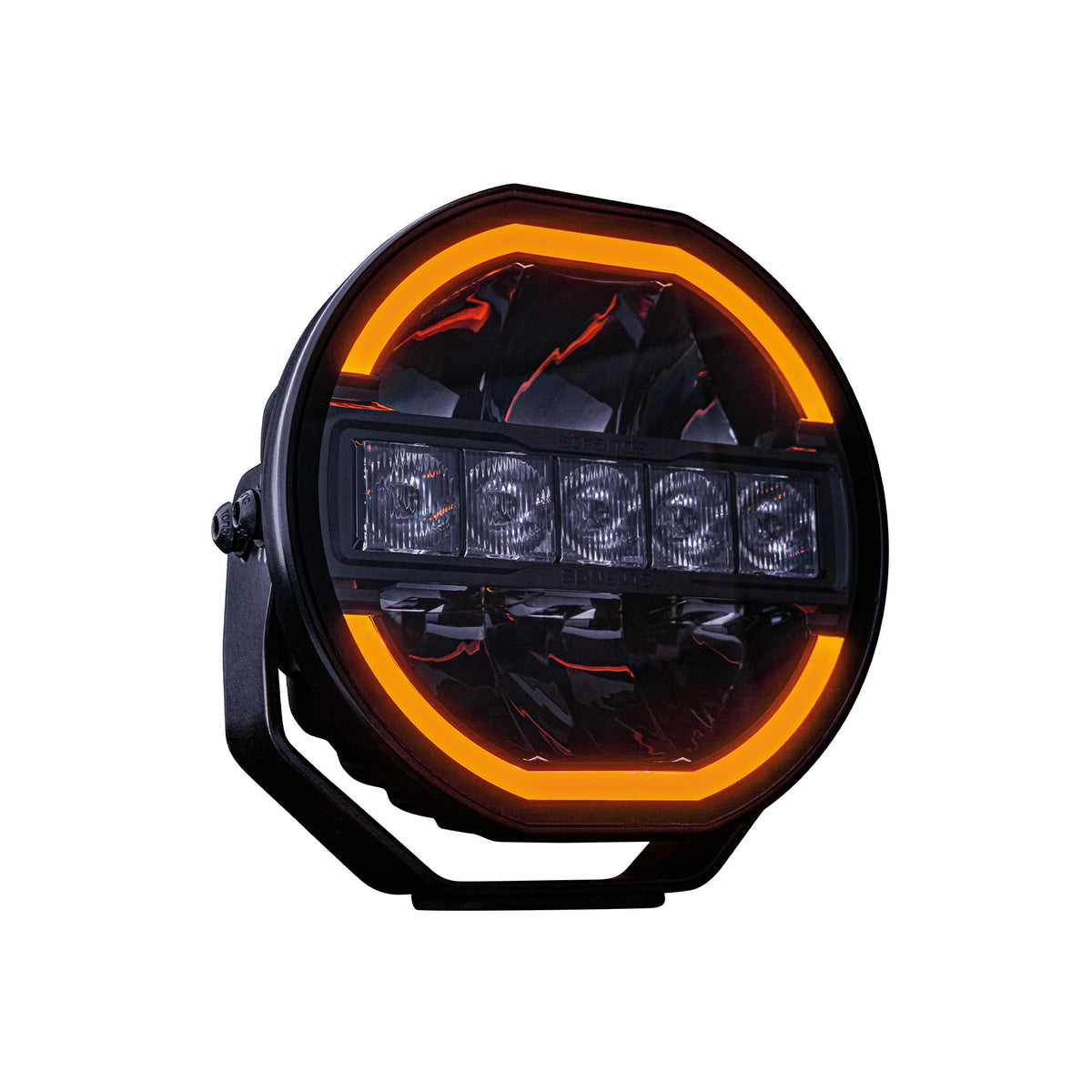

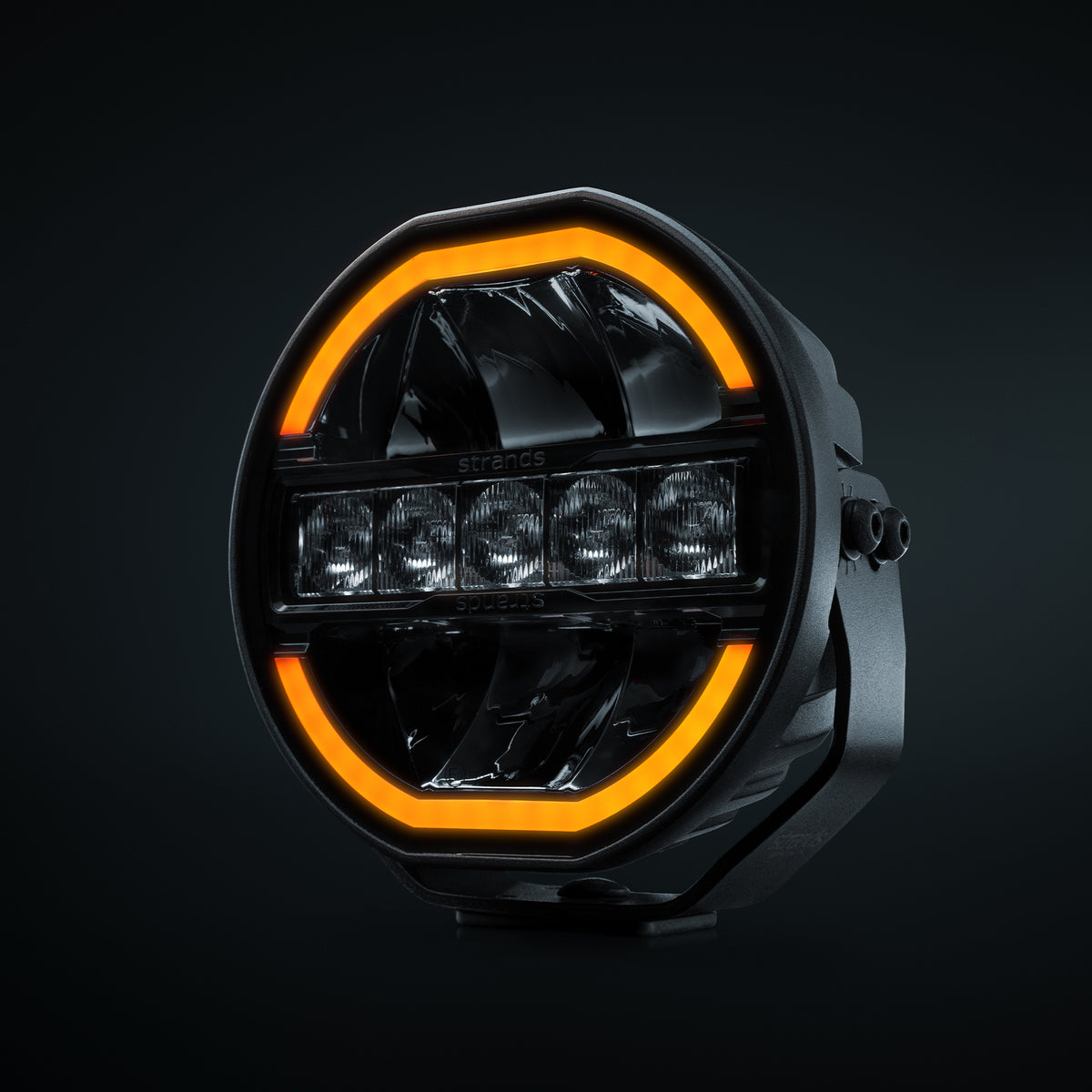

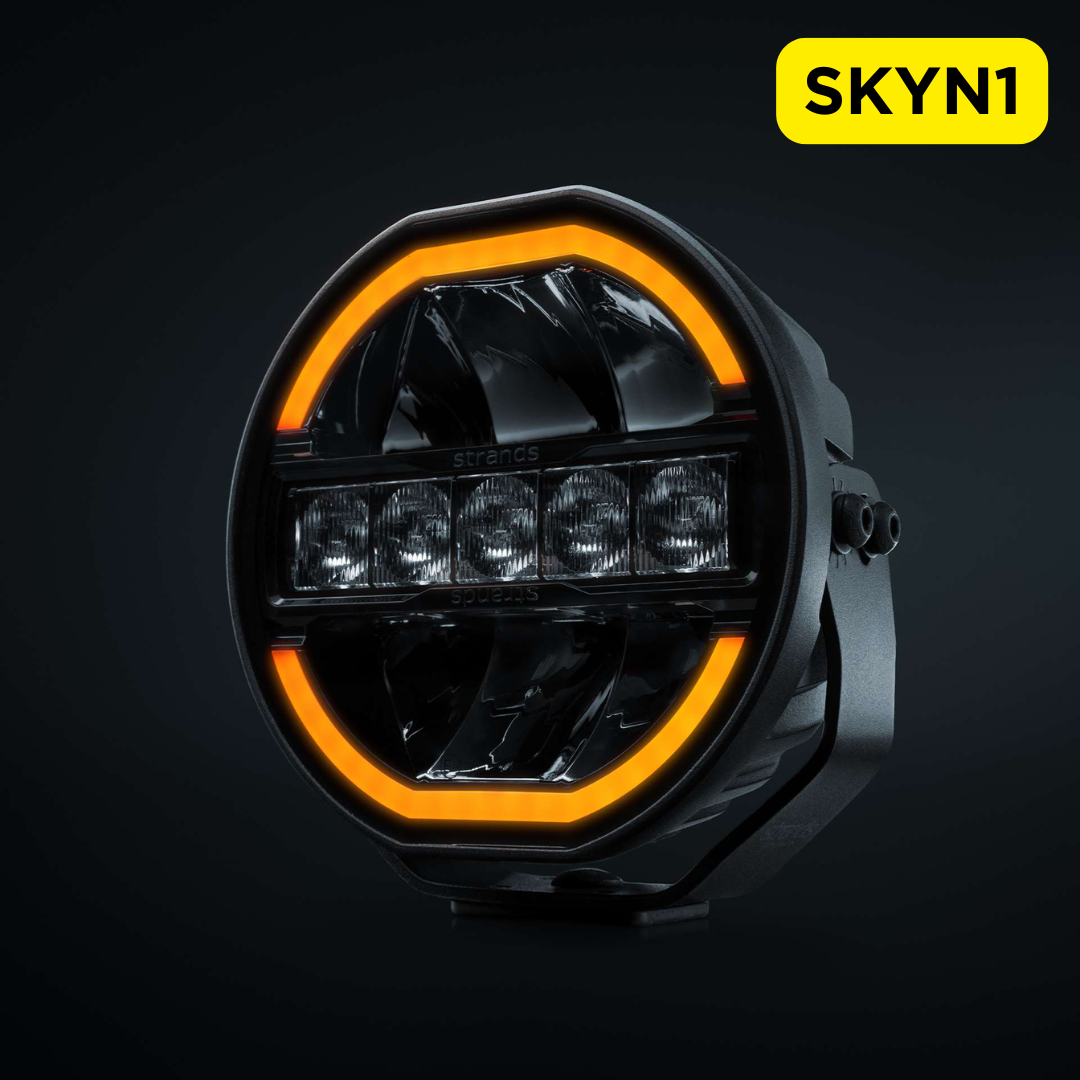

SKYN1 EXP Strands Skylord LED Driving Light / 7"

Designed for the SKYN1 EXP wireless system - click here for the datasheet

The Skylord EXP 7” is part of the SKYN1 EXP lighting range, developed for faster, cleaner, and more intuitive vehicle installations. Using Bluetooth communication, the driving light automatically connects to the EXP control box, where its functions are identified and assigned automatically.

• Bluetooth integration: Connects wirelessly to the SKYN1 EXP control box (Part No. 907851S1).
• EXP system required: The driving light is designed exclusively for the SKYN1 EXP platform and requires the control box to operate.
• Automatic function assignment: Functions are automatically mapped to the correct controls.
• Minimal wiring: Reduces installation complexity and creates a cleaner vehicle setup.
• Unified lighting control: Works seamlessly alongside other SKYN1 EXP-compatible driving lights, work lights, LED bars, and warning lights.
• Easy operation: Control multiple lighting functions directly from inside the vehicle using the wireless EXP control box.

The Beam Pattern on the Strands Skylord Driving Light offers extraordinary Length and Width (measures 1 lux @ 628 Metres on Xperience Mode). Probably the brightest 7" Driving Light on the market today.

This lamp has 2 Modes:

1. E-Approved Mode: For everyday use on the roads
2. Xperience Mode: This mode can be activated by flashing the headlights 3 times. This mode emits a staggering 8,400 Lumens! One of the brightest spot lights on the market today.

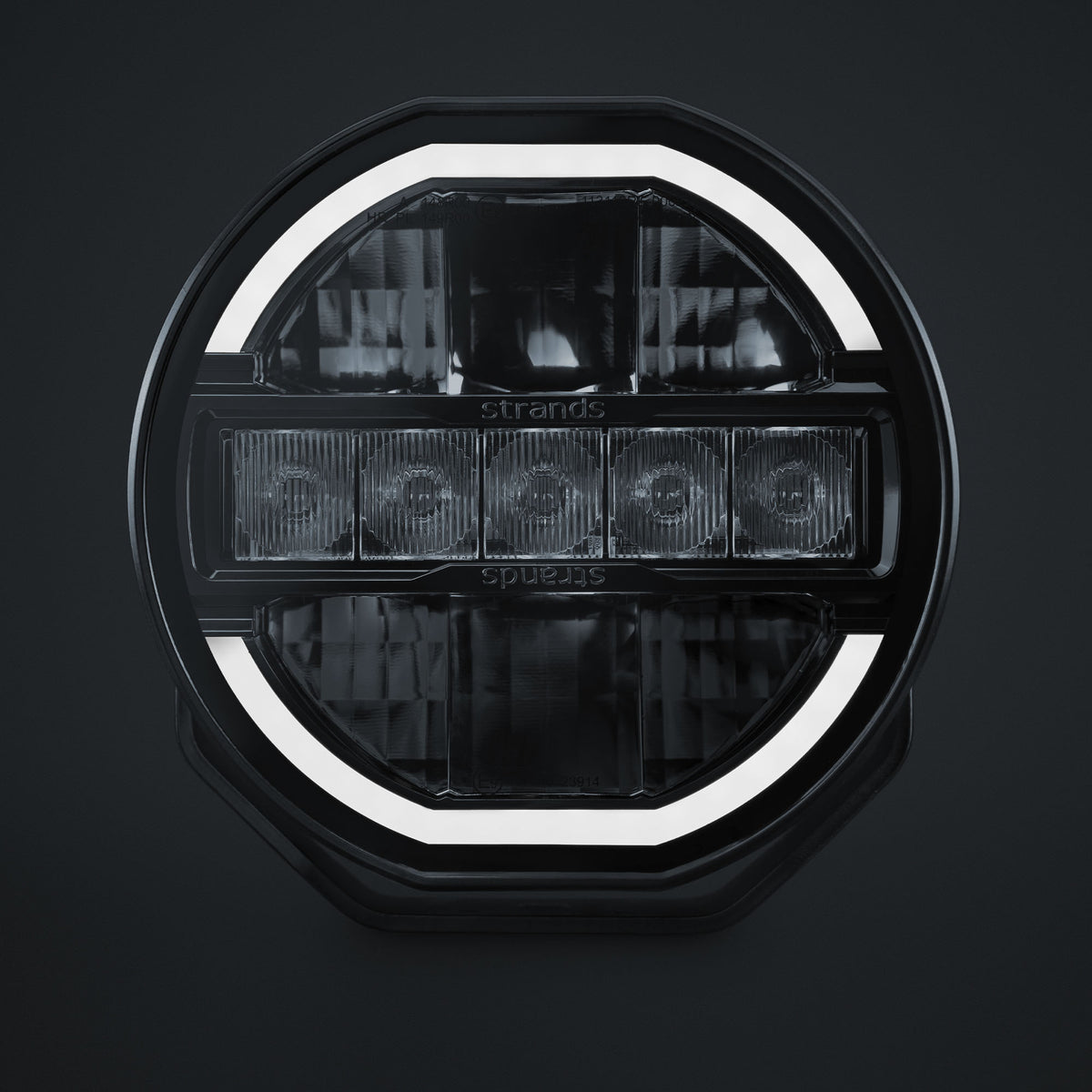

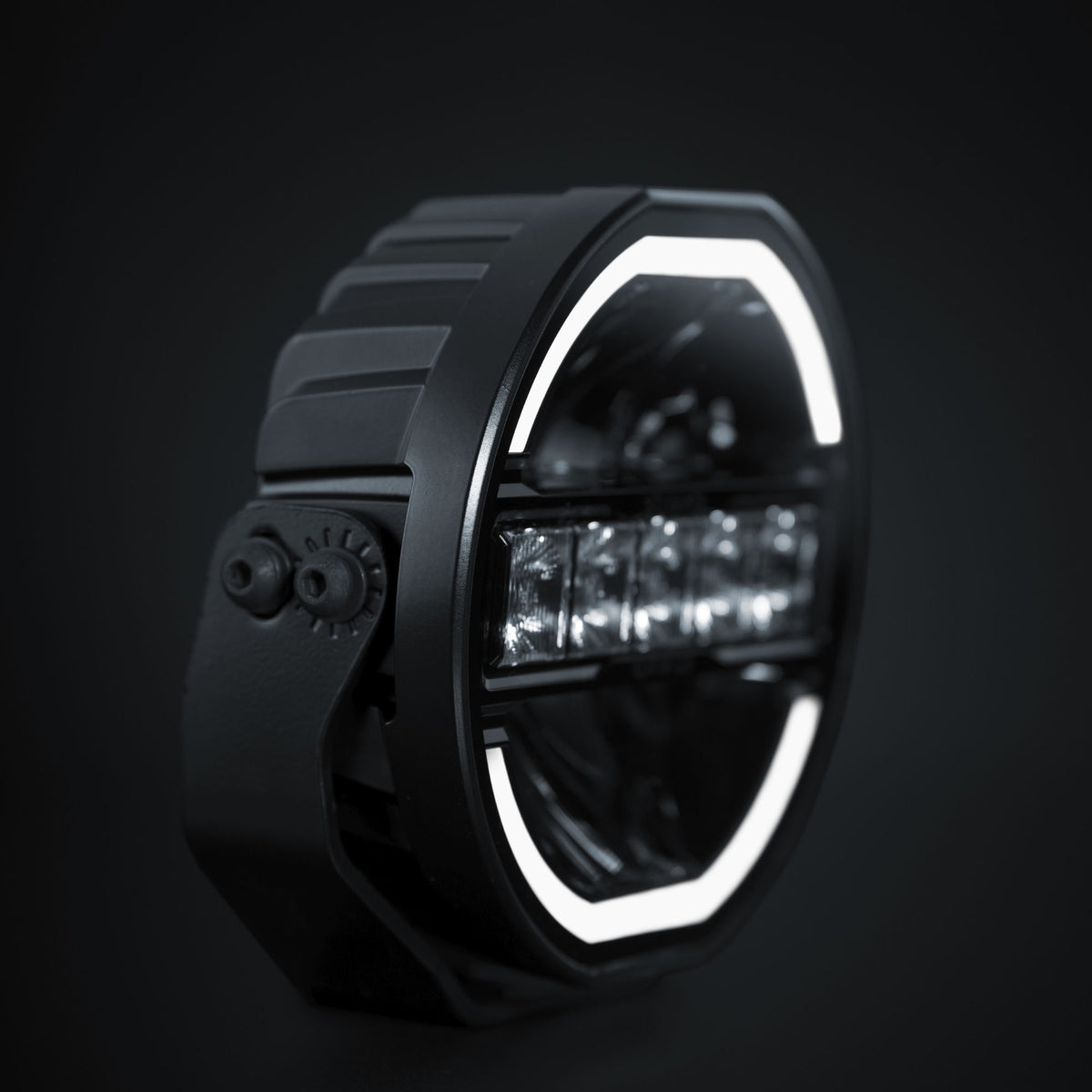

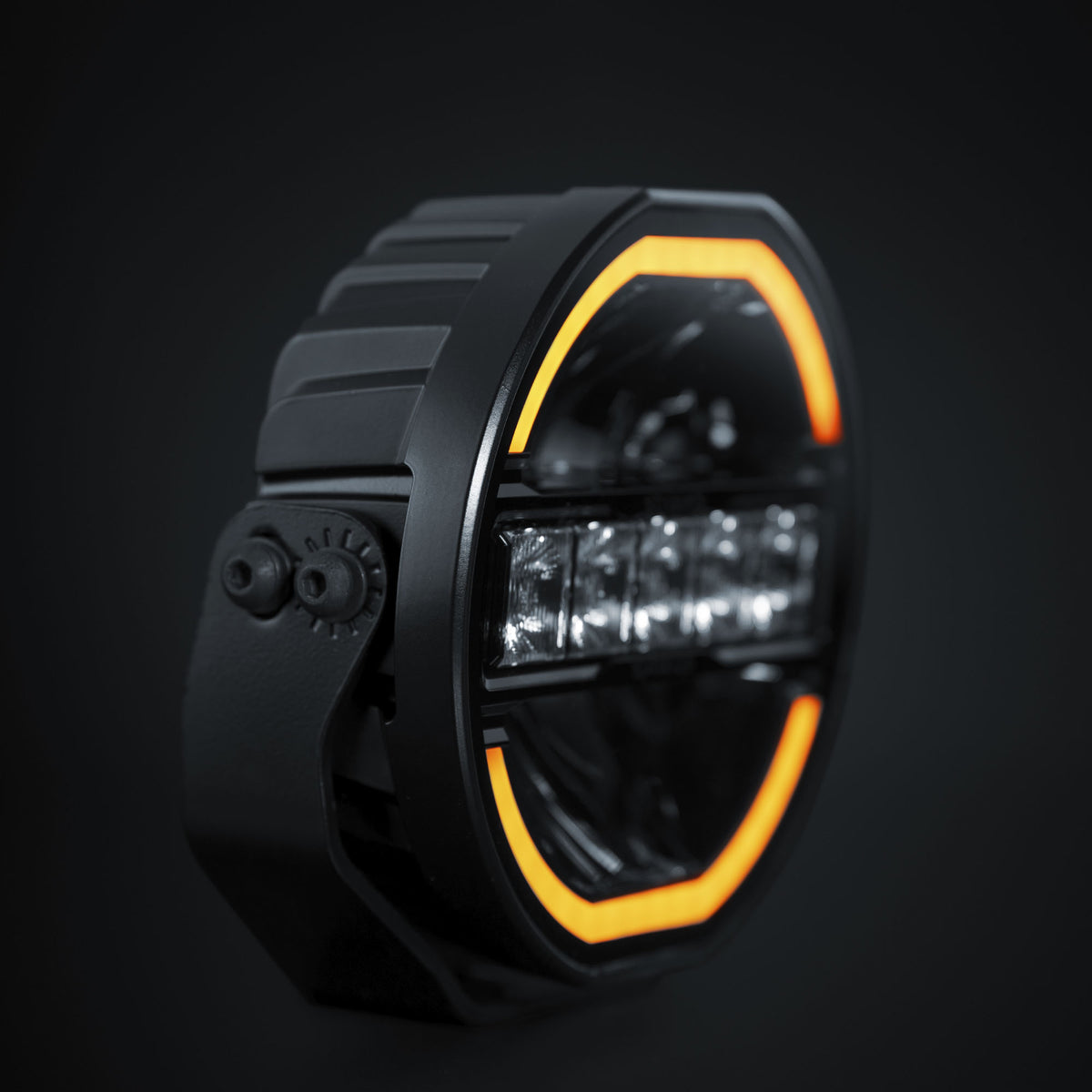

The Skylord has a unique position light that can be set to Amber or White. It's also built for the harshest environments. It IP68/69K Waterproof and has an extremely durable black paint finish. It is also reinforced for shock absorption and comes with the Strands 3 Year Warranty.

Extreme light output for demanding driving conditions

The Skylord EXP 7” is engineered to provide exceptional visibility in all driving environments. With a powerful extended beam pattern and dual operating modes, it offers both road-legal performance and maximum output when conditions require it.

• 8,400 lumens in Xperience mode: Powerful illumination for dark roads and demanding environments.
• 639-meter reach in Xperience mode: Outstanding long-distance visibility.
• Extended beam pattern: Designed to deliver visibility far ahead while maintaining excellent width and foreground illumination.
• 5700 K color temperature: Crisp, clear light that improves contrast and visibility.

Road-legal performance with dual operating modes

The Skylord EXP 7” combines high-performance lighting with approved road use, allowing drivers to switch between E-mode and Xperience mode depending on driving conditions.

• E-approved E-mode according to R148 and R149
• EMC approved according to R10
• Reference number 20
• Dual operating modes for flexible performance

Built for heavy-duty use and long-term durability

Designed for professional use and harsh environments, the Skylord EXP 7” combines durable materials with advanced protection against weather, dirt, and vibration. This light also features a built-in relay.

• Aluminium housing: Strong and durable construction for demanding applications.
• Polycarbonate lens: Excellent impact resistance and long-term clarity.
• IP68/IP69K-rated: Maximum protection against water, dust, and dirt intrusion.
• Clear lens design: Optimized light output and visibility.
• 3-year warranty: Reliable performance backed by Strands.

Installation and fitment

The Skylord EXP 7” is supplied with everything needed for a straightforward installation and seamless integration into the SKYN1 EXP ecosystem.

• 10–40V DC
• 2000 mm cable
• Bracket included
• Screws, washers, bolts, and rubber pad included
• Pigtail with DT-4 plug included

Why choose the Skylord EXP 7”?

The Skylord EXP 7” is the ideal choice for drivers who want powerful driving light performance combined with modern wireless control. By integrating directly with the SKYN1 EXP system, it eliminates unnecessary wiring, simplifies installation, and provides intuitive control through a single wireless platform. The result is a cleaner installation, faster setup, and a smarter lighting experience for professional and demanding vehicle applications.

[i] The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Strands Lighting Division is under license. Other trademarks and trade names are those of their respective owners.

Specifications:

• Voltage (DC): 10–40 V DC
• Theoretical power: 120 W
• Power consumption: 109 W
• Functions:
  • Amber position light
  • White position light;
  • Xperience mode
  • E-approved mode
• Consumption by function:
  • White position: 5 W
  • Amber position: 5 W
  • E-mode: 22 W
  • X-mode: 109 W
• Theoretical luminous flux: 10,000 lm
• Actual luminous flux: 8,400 lm
• 1 lux at: 639 m
• Colour temperature: 5,700 K
• Beam pattern: Extended Beam
• Beam angle: 18.4°
• Connection: Cable
• Cable length: 2,000 mm
• Housing colour: Black
• Lens colour: Clear
• LED colours: White / amber
• Bracket material: Stainless steel
• Housing/chassis material: Aluminium
• Lens material: Polycarbonate
• Length: 178 mm
• Depth: 71.9 mm
• Height: 170.3 mm
• Height including bracket: 182.8 mm
• Weight: 2.2 kg
• Diameter: 178 mm
• IP rating: IP68 / IP69K
• Operating temperature: −30 to +65 °C
• E-approved: Yes
• ECE approvals: R10.06; R148; R149; CE-RED
• Reference number: 25
• Other approvals/features: CISPR 25 Class 3; SIG Bluetooth
• Additional information: Compatible with SKYN1 EXP Controller (907851S1)
