7" Strands Siberia Night Ranger XPA Driving Light with Amber & White Position Light

The Night Ranger Driving Light by Strands has a huge 5700 actual lumen output, a 660 Metre range and selectable Amber / White Position Light illuminating the edges and dividing the centre of the lamp. This 7" lamp is ideal for vans and 4x4s looking for style and function.

It features the Hello function. With a quick double flash of your high beam, the position lights will signal a Hello sequence. Its durable materials and new powder coating make this driving light a long-lived addition to any vehicle, and it has an IP rating of IP68/IP69K. Enjoy an effortless installation thanks to the DT-4 connector and 550 mm cable, saving you the hassle of connecting cables. The E-mode is E-approved ECE R149/148 with reference number 20. Backed by a 3 Year Warranty.

Product Features:

Electrical Parameters

• Voltage (DC): 10–40 V DC
• Theoretical power: 80 W
• Power consumption: 77 W

Functions

• Amber position light
• Warm white position light
• Xperience mode
• E-approved mode

Power Consumption by Function

• White position light: 5.5 W
• Amber position light: 5.5 W
• E-mode: 22 W
• X-mode: 77 W

Lighting Performance

• Luminous flux: 6720 lm (theoretical) / 5710 lm (actual)
• 1 lux @: 662 m
• Color temperature: 5700 K
• Beam pattern: Extended beam
• Beam angle: 9.9°

Connection

• Type: DT-4PIN
• Cable length: 550 mm

Construction & Materials

• Housing colour: Black
• Lens colour: Clear
• LED colours: White / Amber
• Bracket material: Stainless steel
• Housing material: Aluminium
• Lens material: Polycarbonate

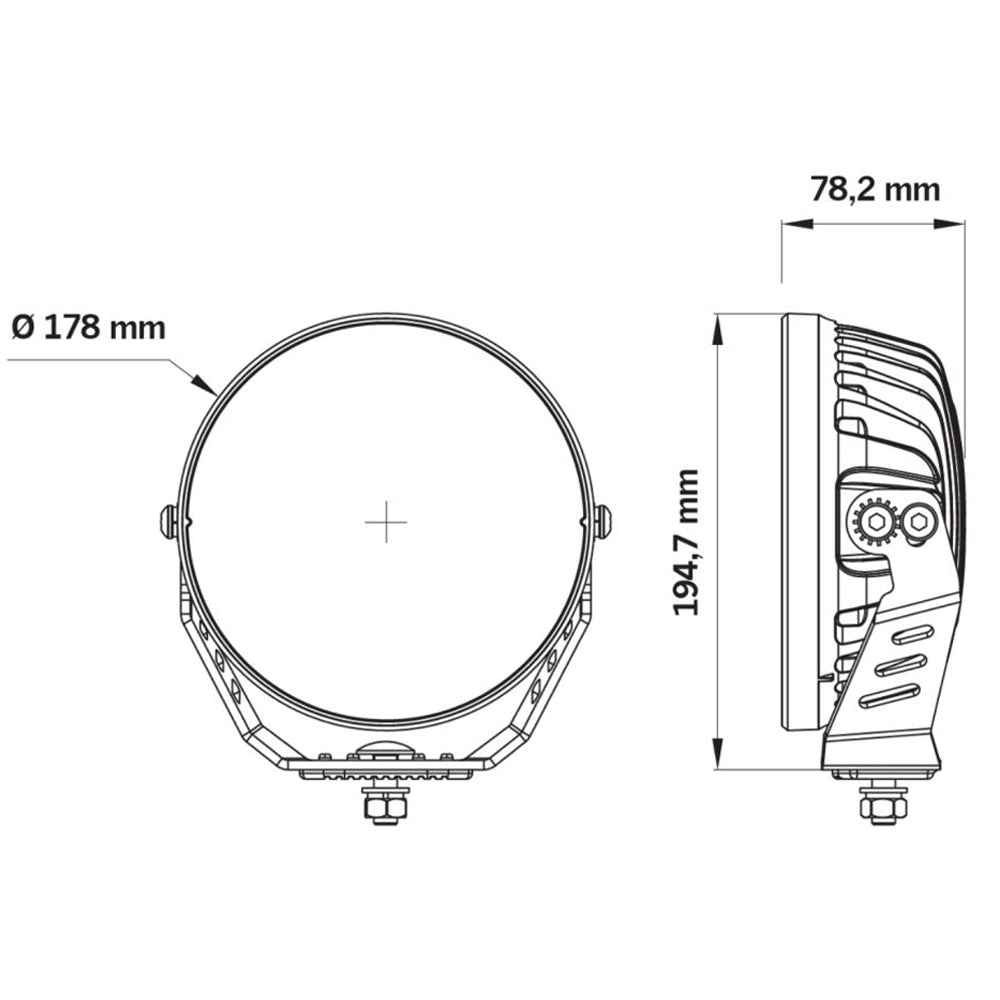

Dimensions & Weight

• Length: 178 mm
• Depth: 78.2 mm
• Height: 178 mm
• Height (including bracket): 194.1 mm
• Diameter: 178 mm
• Weight: 2.3 kg

Environmental & Compliance

• IP rating: IP68 / IP69K
• Operating temperature: -30°C to +65°C
• E-approved: Yes
• ECE approvals: R10.06, R148, R149
• Reference number: 20
