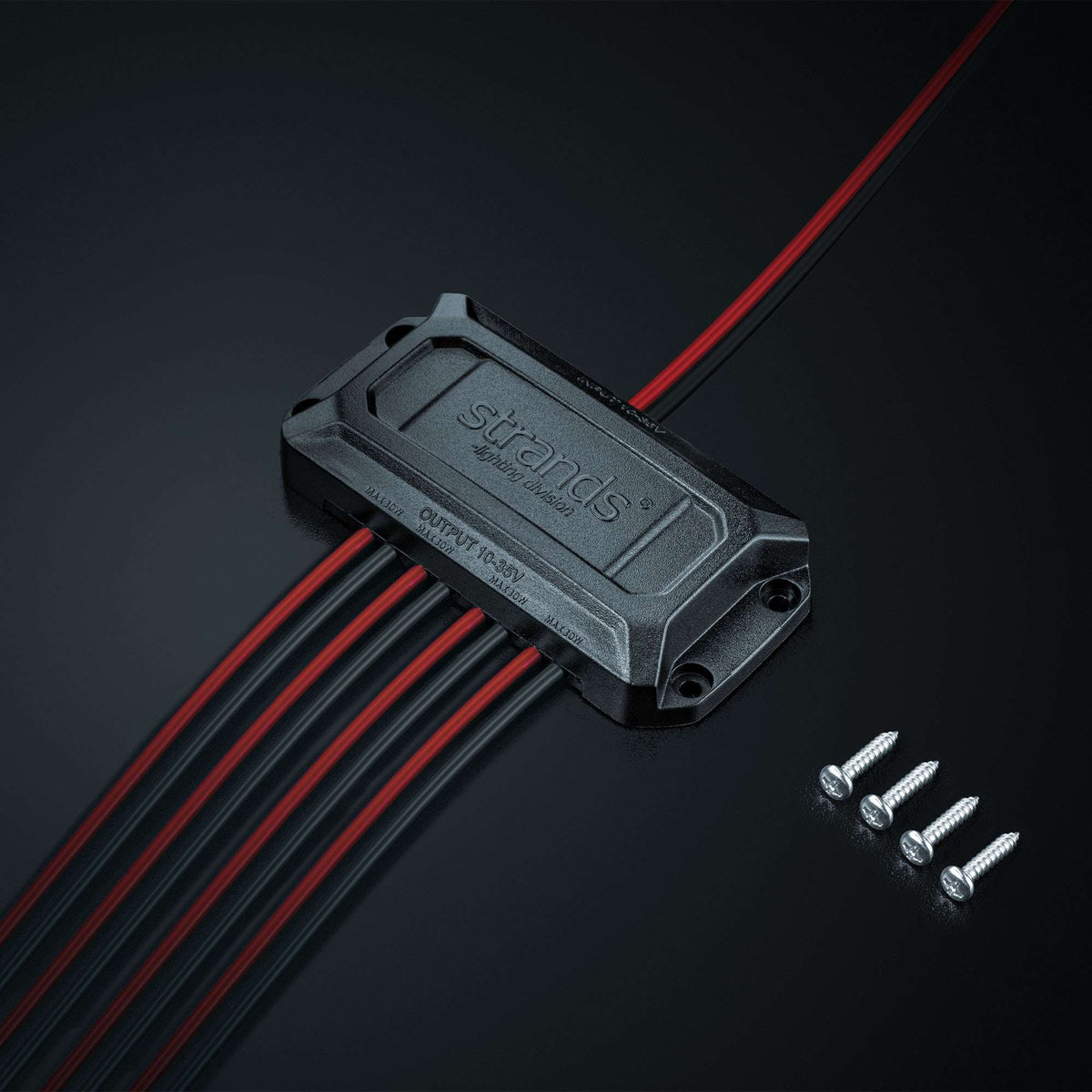

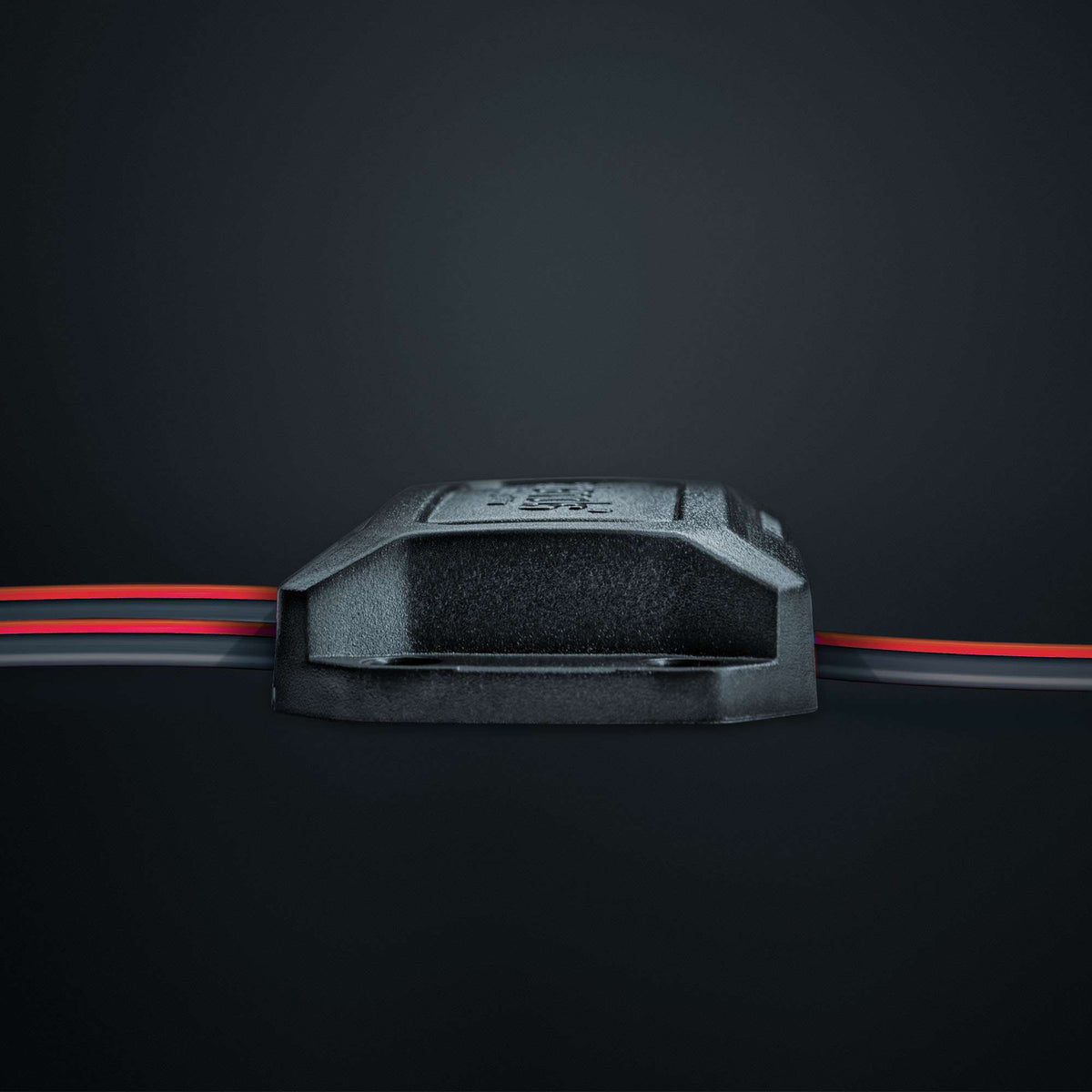

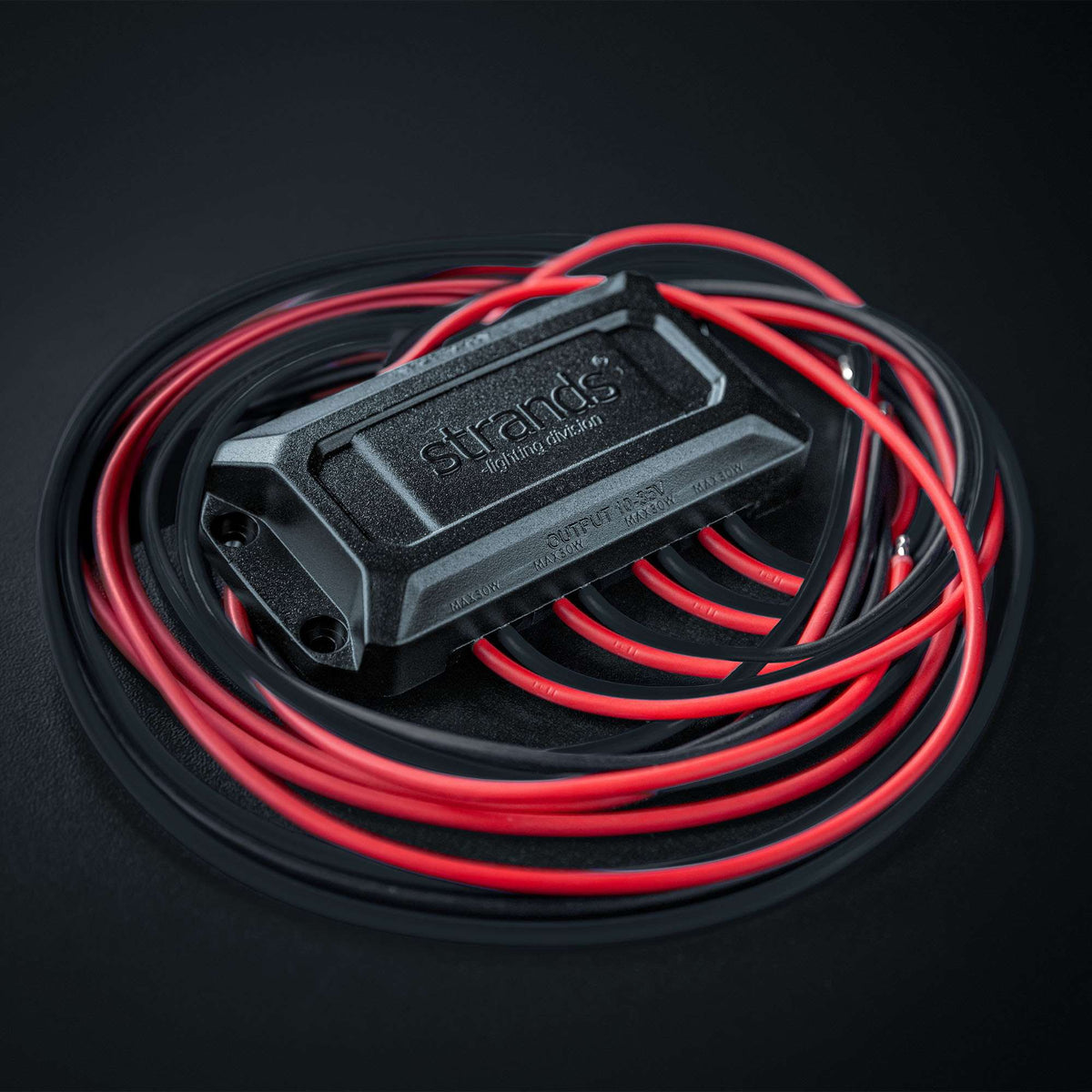

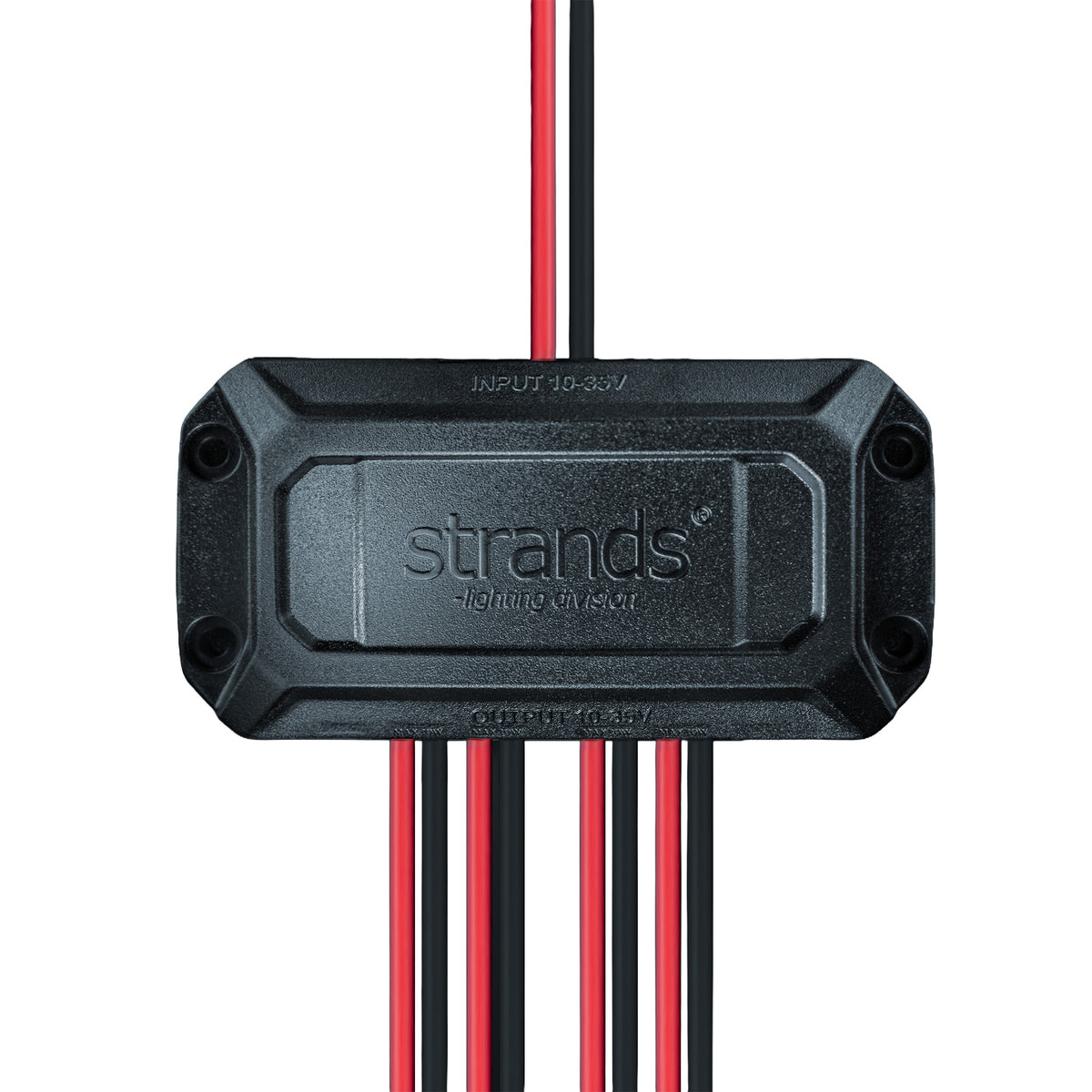

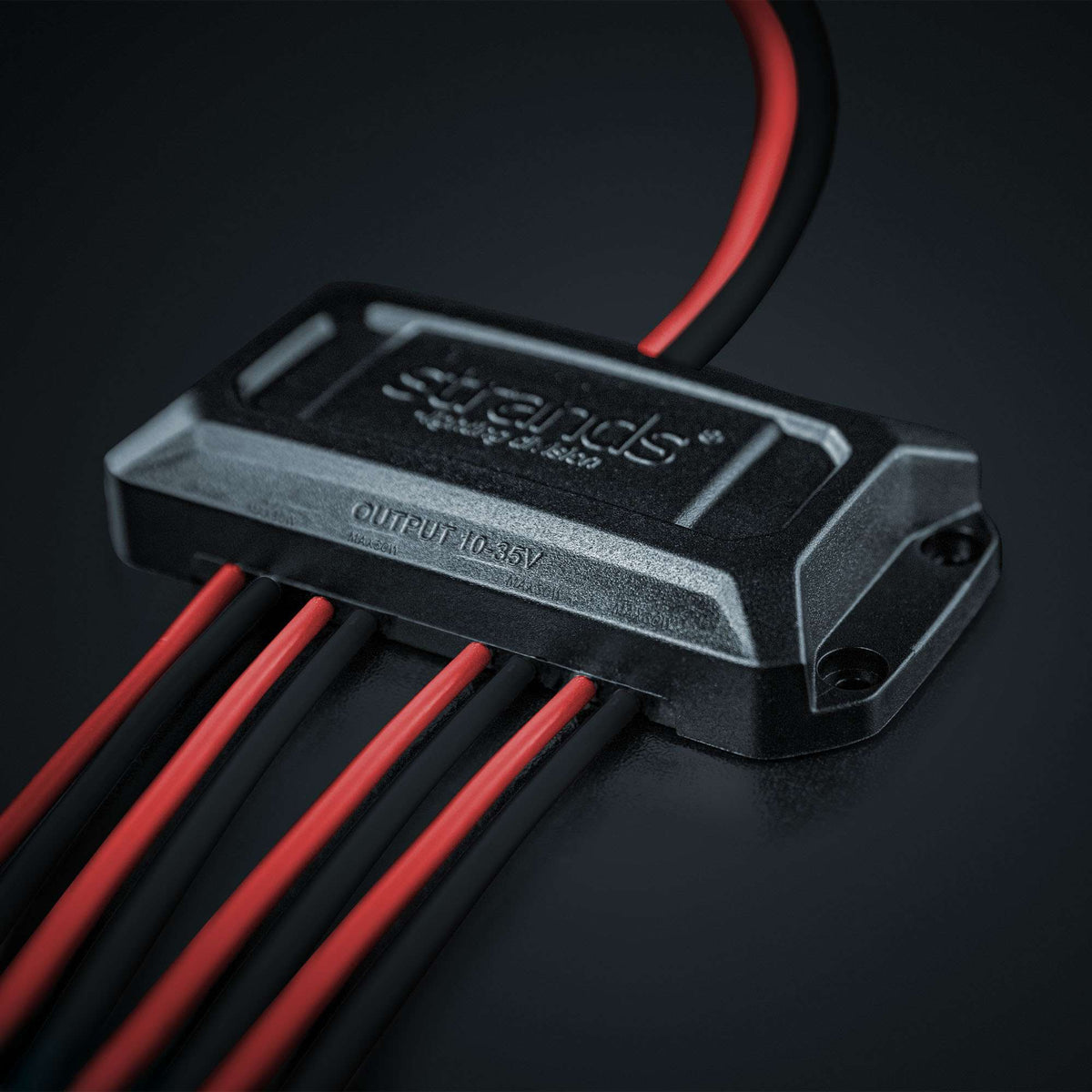

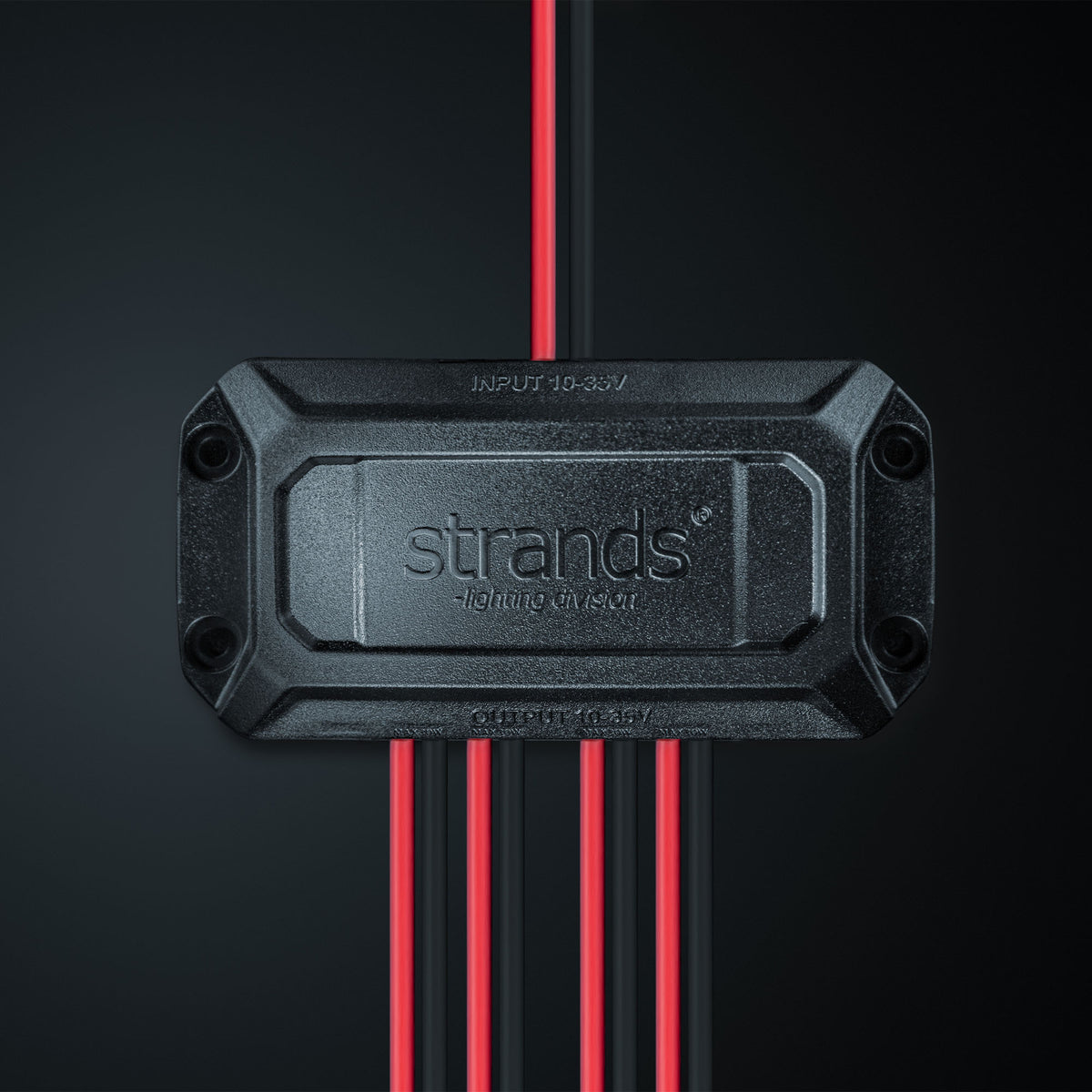

Strands Pro Dynamic Indicator Relay

The Strands Pro dynamic indicator relay transforms your existing tail light indicators into dynamic indicators, creating a distinctive sequence that moves from the inside out. With 4 x 30 W channels, 2 inputs, 8 outputs, and compatibility with 10–35 V systems, it provides a flexible styling solution for trucks, excavators, and other vehicles. The relay is a perfect match for the FOR9T, Freedom, and IZE LED series, among others, and can also be connected to side indicators for an additional dynamic effect.

Click here for the wiring manual

Transform your indicators with a dynamic sequence

Why settle for a standard indicator sequence? Strands Pro synchronizes your existing indicator units to create a dynamic movement from the inside out, allowing you to change your vehicle's expression without replacing the taillights.

• Dynamic indicator sequence: Creates a synchronized movement from the inside out.
• 4 x 30 W channels: Controls the connected indicators to create the dynamic effect.
• Existing tail lights: Adds dynamic functionality without replacing the existing lights.
• Side indicator compatibility: Can also be used to create a dynamic styling effect along the side of the vehicle.

Made to elevate your vehicle’s style

The Strands Pro dynamic indicator relay is a perfect match for lights such as the FOR9T, Freedom, and IZE LED series. Its flexible configuration makes it suitable for different vehicles and lighting setups.

• 2 inputs: Provides connection flexibility for the system.
• 8 outputs: Supports the connected indicator configuration.
• 10–35 V compatibility: Suitable for a wide range of vehicle electrical systems.
• Versatile applications: Designed for trucks, excavators, and other vehicles.
• FOR9T, Freedom, and IZE LED: Developed as a complementary solution for these Strands series.

Compact installation

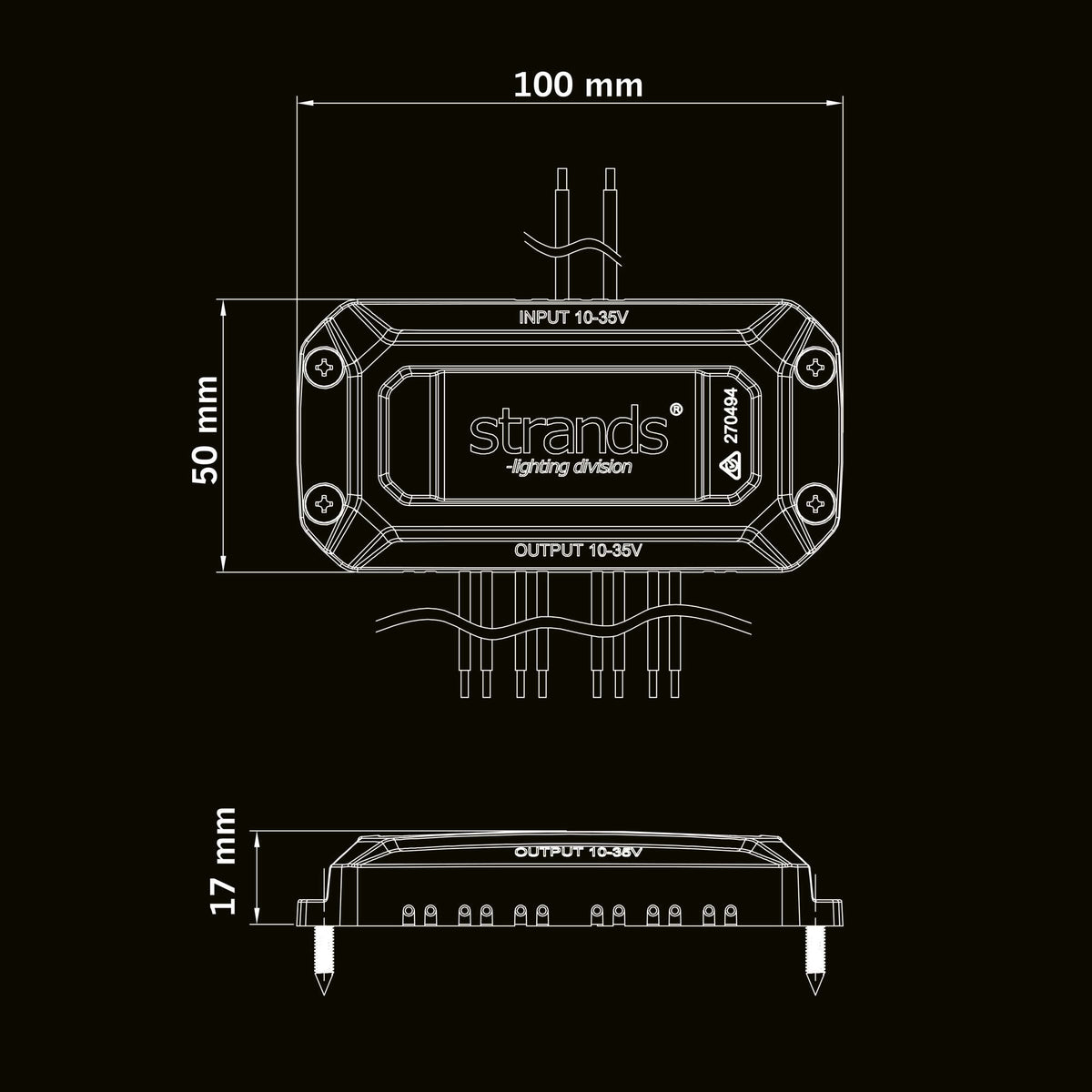

With compact dimensions of only 100 x 50 x 17 mm, the relay is easy to position within the vehicle. Connection is made using 500 mm cables.

• Dimensions: 100 x 50 x 17 mm.
• CC measurement: 25/90 mm.
• Cable length: 500 mm.
• Protected installation: The relay should be installed in a protected location to avoid exposure to water and dirt.

Important E-approval information

The use of this type of dynamic indicator relay is not E-approved, even when the individual lights connected to the relay are E-approved.

Part of the Strands Pro series

Strands Pro is a professional accessory series developed to maximize the performance of Strands Lighting Division products. Reliable connectors, cables, and durable mounting solutions help create a complete system designed for long-term reliability in demanding environments.

With Strands Pro, every component is developed to work as part of the complete lighting installation, supporting both performance and service life from day one.

Why choose the Strands Pro dynamic indicator relay?

The Strands Pro dynamic indicator relay is designed for drivers who want to transform existing indicators into a distinctive dynamic sequence without replacing the tail lights. With 4 x 30 W channels, 2 inputs, 8 outputs, and compatibility with 10–35 V systems, it provides a flexible solution for creating a more individual vehicle style.

• Voltage (DC): 10–35V DC
• Consumption: 30W
• Connection: Cable
• Cable length: 500 mm
• Housing colour: Black
• Housing/chassis material: Polycarbonate
• Length: 100 mm
• Depth: 50 mm
• Height: 17 mm
• Weight: 0.33 kg
• IP rating: IP67
• Operating temperature: −30°C to +65°C
• Additional information: CC 25/90 | Number of channels: 4
