Strands E-Line Low Profile LED Light Bar with 7800 Actual Lumens
The Nuuk E-Line 20” LED bar has an optimized beam with a range of more than 417 meters and 7800 actual lumens in Xperience mode (XP). The position light strip can be set to white or amber.
Easy installation
It’s easy to use, lightweight, has a built-in relay, and everything you need for installation is included.
⭐Like all Strands products, this kit comes with a 3 Year Warranty⭐
Strands Nuuk E Line 20" Specifications:
-
Voltage (DC): 10-36V DC
-
Theoretical effect: 108W
-
Consumption: 77W
-
Functions: Driving beam
-
Consumption specific function: Driving 77W
-
Theoretical lumen: 8800lm
-
Actual lumen: 7800lm
-

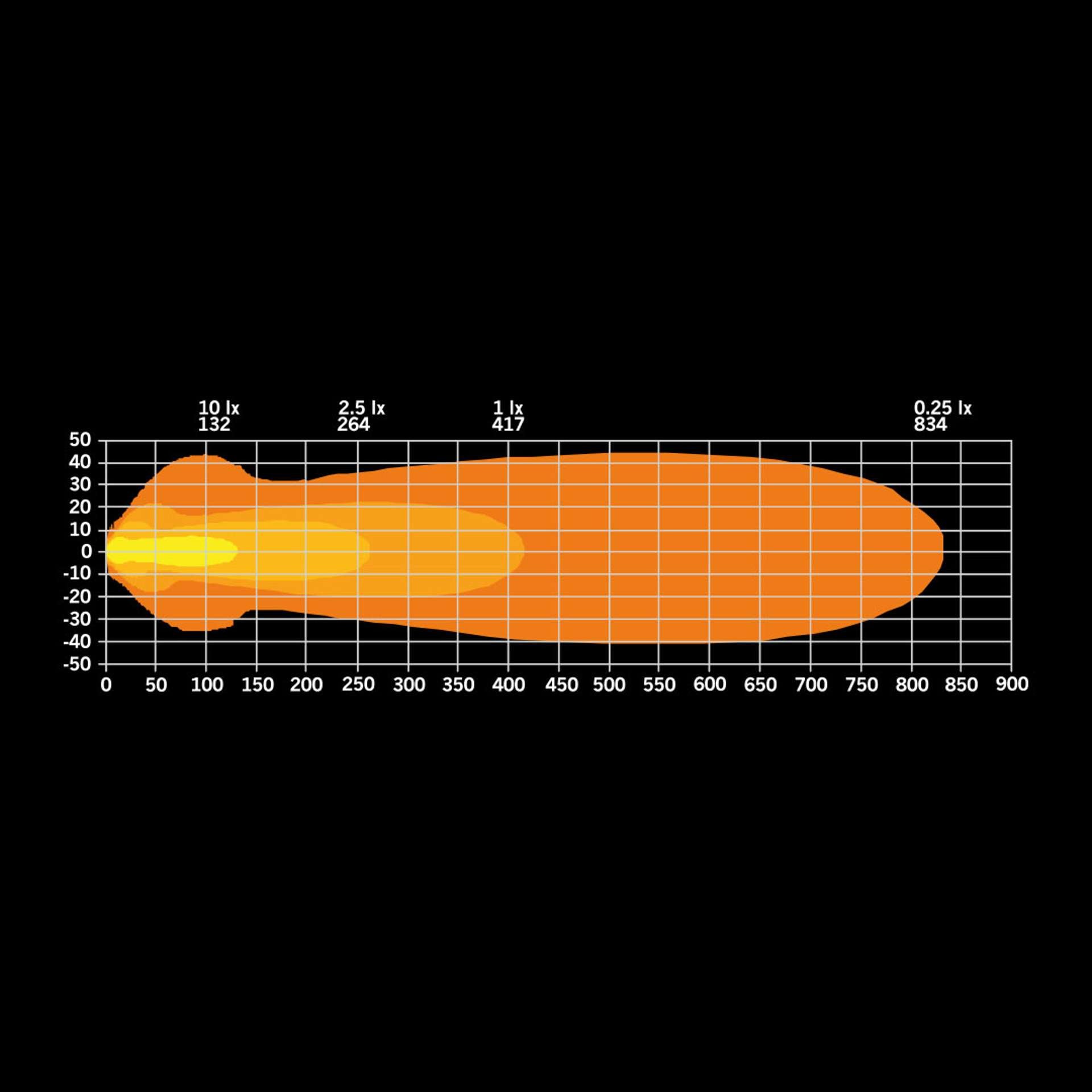

1 lux @: 417m
-
Color temperature: 5000K
-
Beam pattern: Optimized beam
-
Beam angle: 14.7°
-
Connection: DT-3PIN
-
Cable length: 2500mm
-
Color housing: Black
-
Color lens: Clear
-
Material bracket: Aluminium
-
Material housing/chassi: Aluminium
-
Material lens: Polycarbonate
-

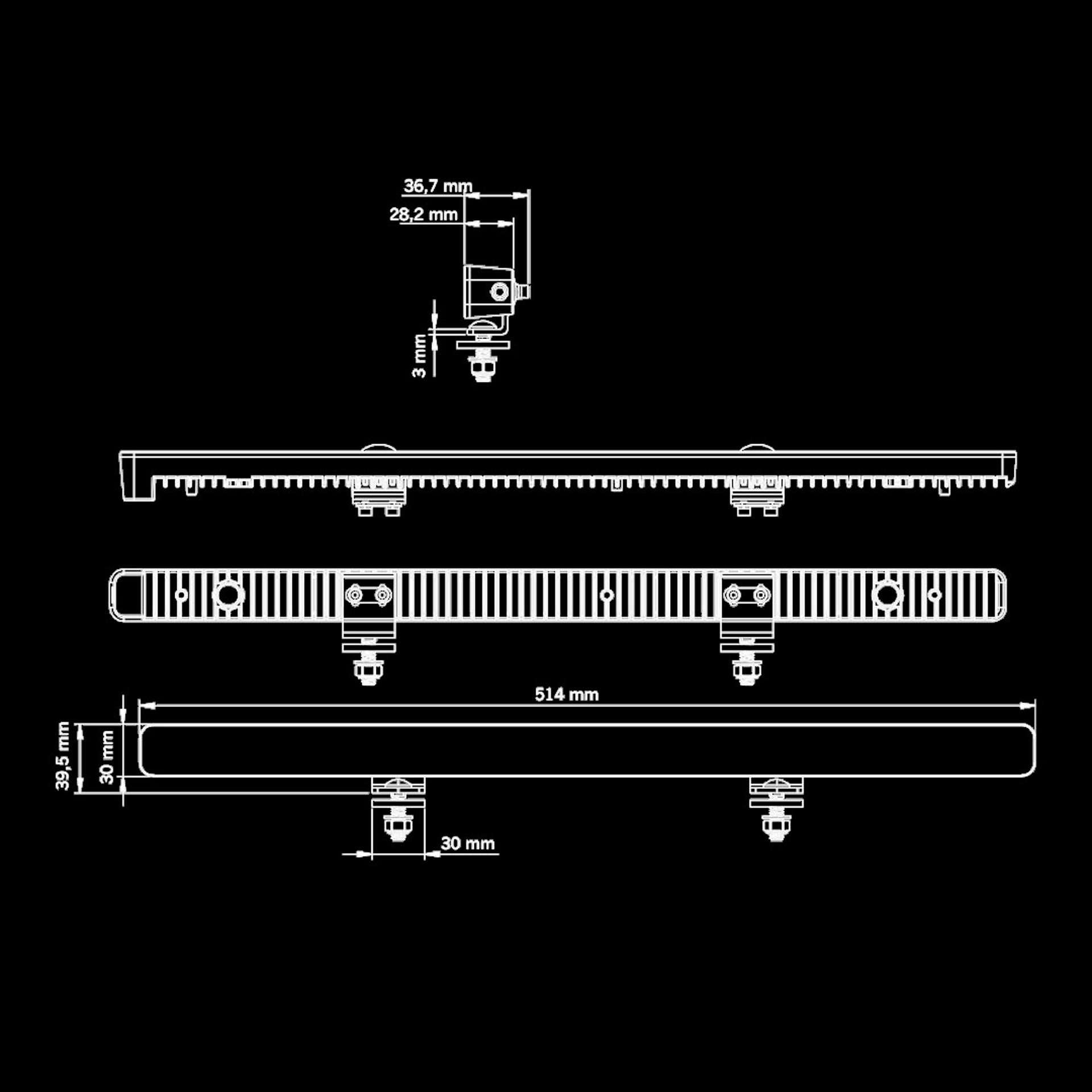

Length: 514mm
-
Depth: 36.7mm
-
Height: 30mm
-
Height including bracket: 39.5mm
-
Weight: 0.57kg
-
IP-class: IP68/69K
-
Operating temperature: -40 - +61°C
-
E-approved: Yes
-
ECE approval: R10.06, R149
-
Reference number: 40
-
Variable size: 20"
