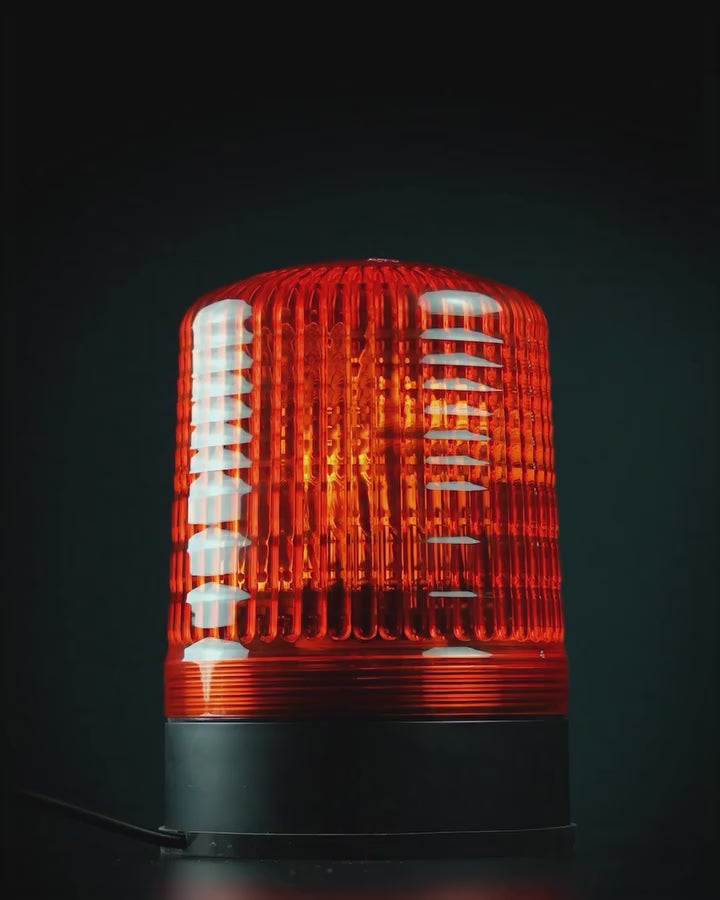

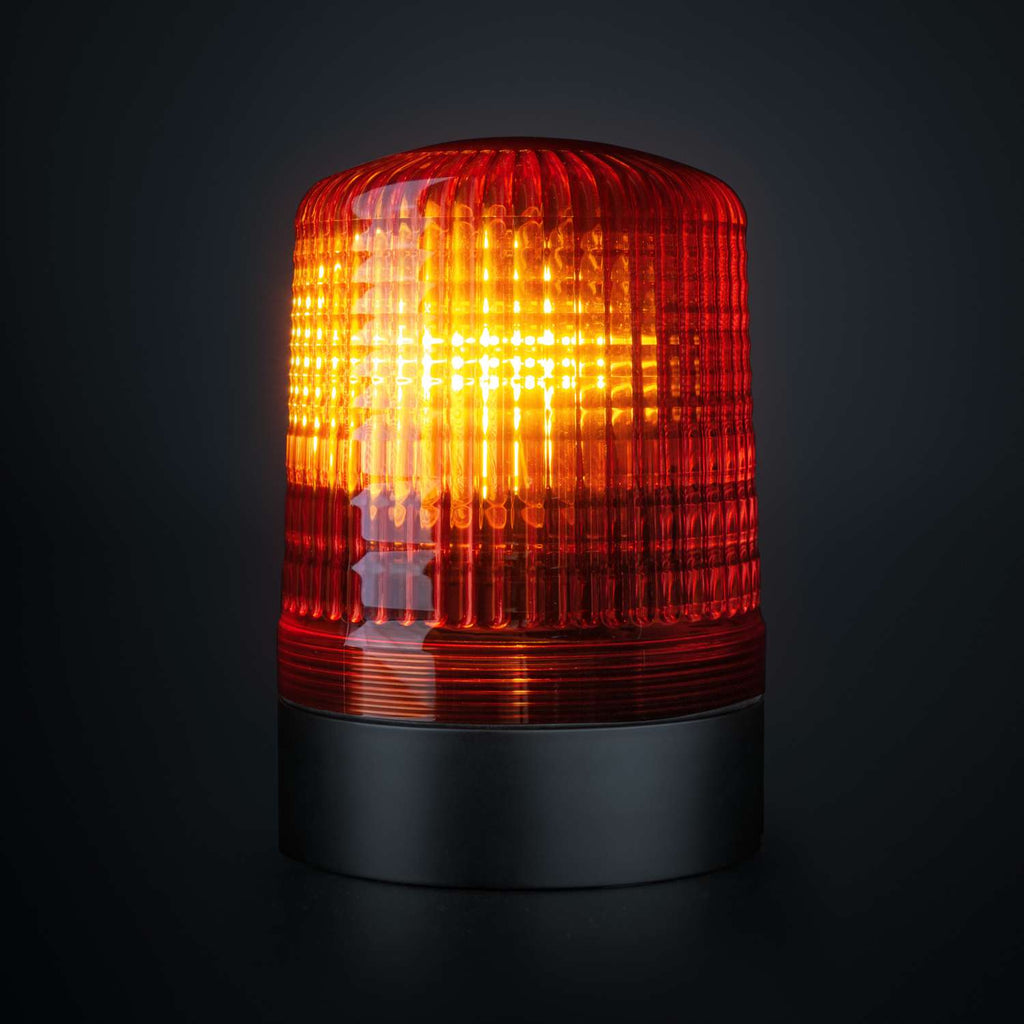

Strands LED Light House IZE Beacon with Rotating Reflector

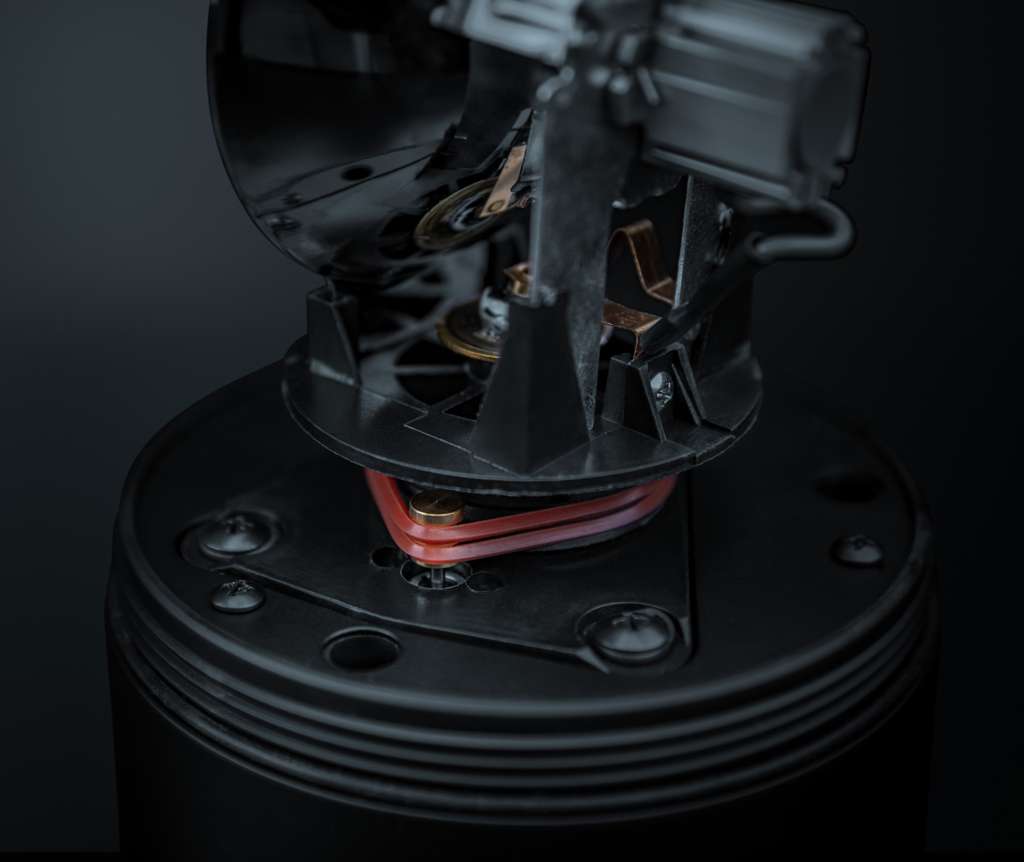

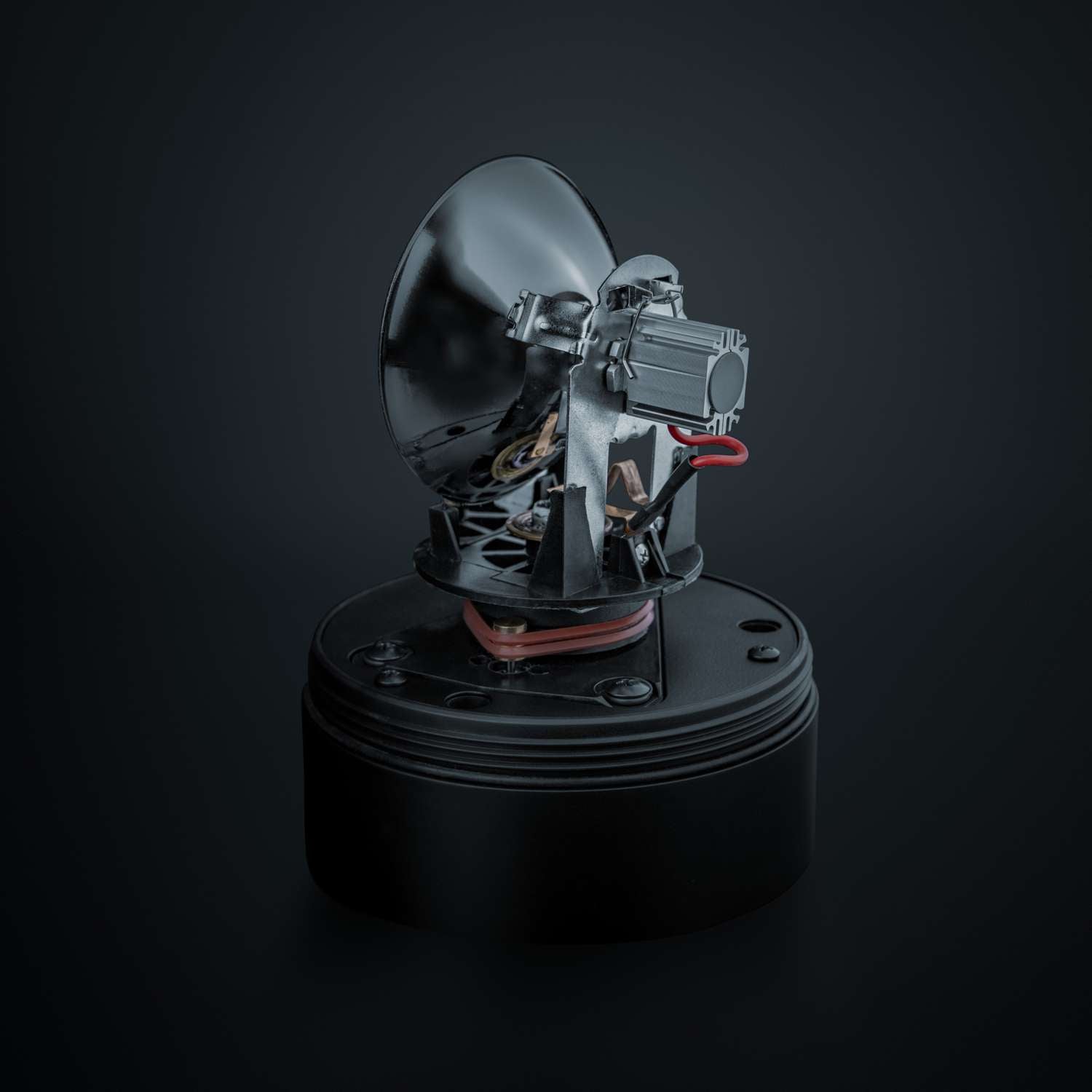

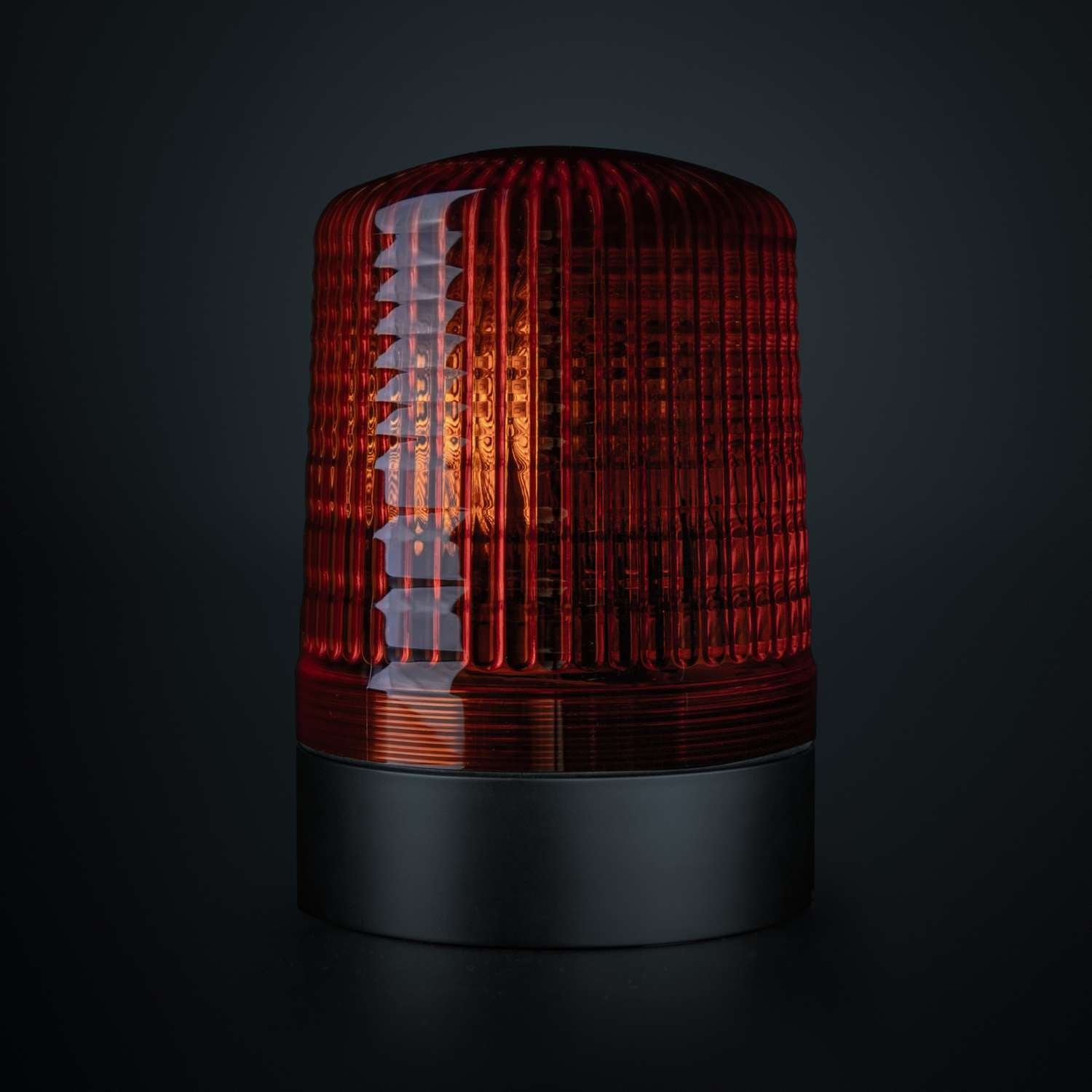

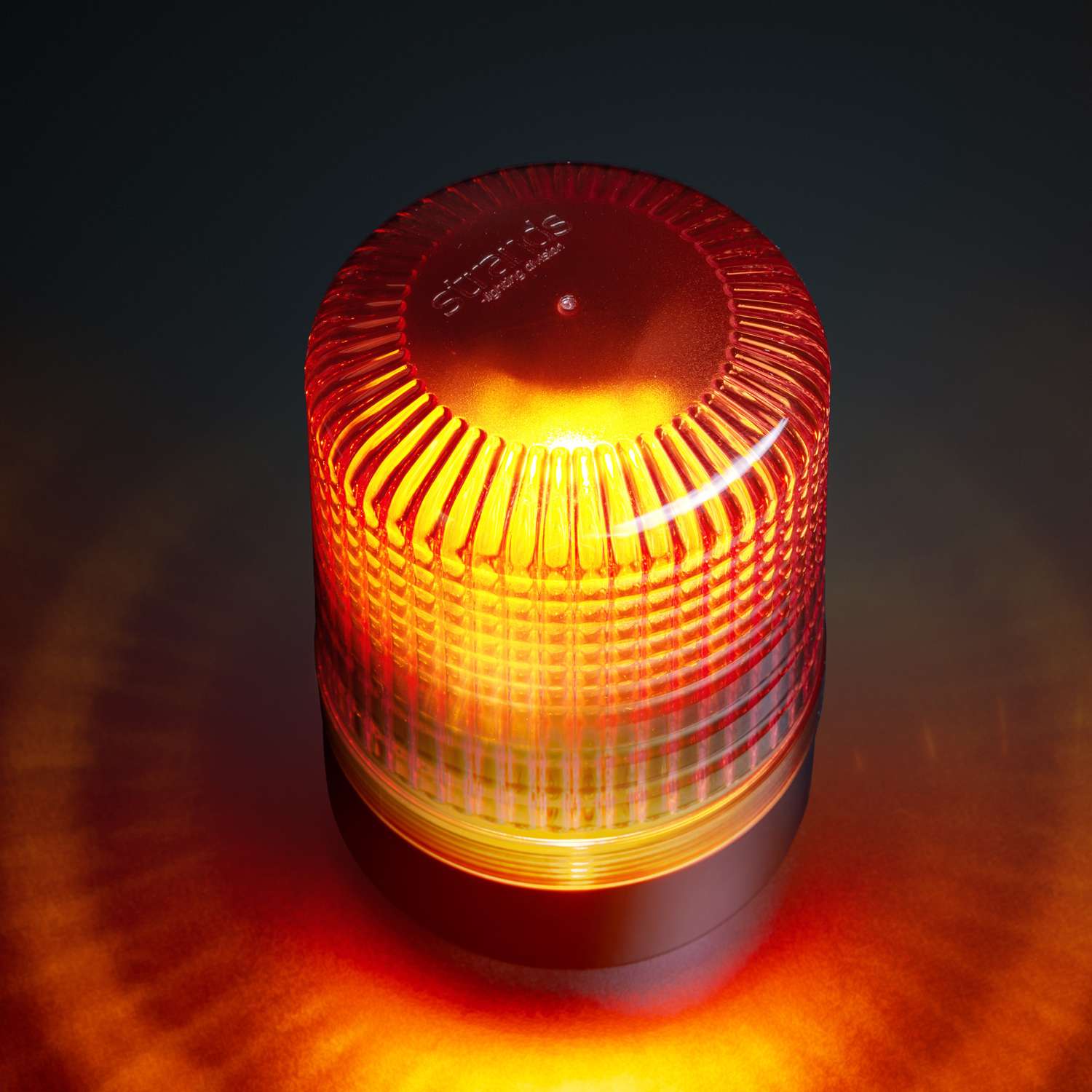

Finally, one of our most requested products - an old school beacon with a rotating reflector... in LED! The IZE LED Lighthouse rotating beacon combines timeless design with modern, reliable performance. Most modern rotating beacons have LEDs that light up in sequence around the light. The IZE LED Lighthouse has powerful LEDs and a rotating reflector, just like the original beacons.

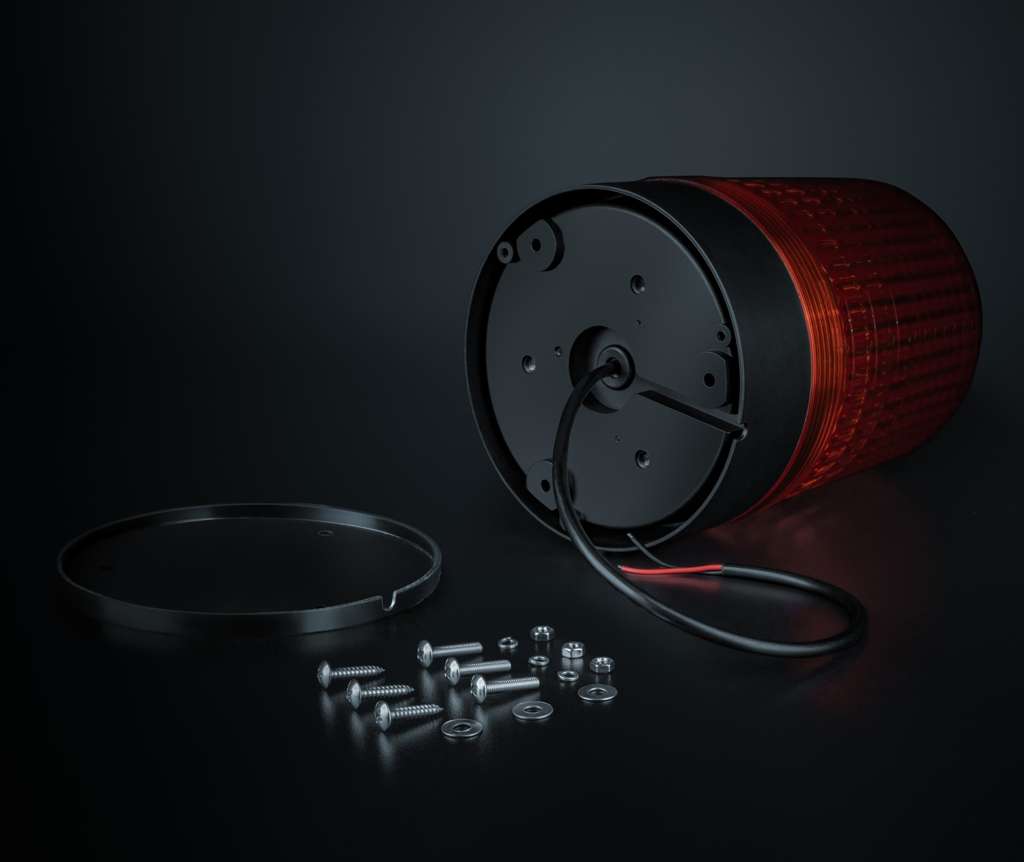

With an IP66 rating and durable materials, it’s protected against water, dirt, and corrosion. Measuring 191.5 mm in height with a 135 mm diameter and 90.9/103.9 mm CC, it has a sturdy feel that looks good on any vehicle. It’s installed with a 300 mm cable, and the package includes all mounting parts—M4 screws, ST4 self-tapping screws, nuts, washers, and a rubber pad. It has a low power consumption of 13 W and operates on 12-24 V.

Strands XL Big Energy Beacon Specs:

⚙️ Specifications

• Voltage: 12–24 V DC
• Theoretical Effect: 18 W
• Power Consumption: 13.0 W
• Functions: Rotating warning light
• Flash Patterns: 1
• Connection Type: Cable
• Cable Length: 300 mm

---

🎨 Design & Materials

• Housing Color: Black
• Lens Color: Amber
• LED Color: Warm white
• Housing Material: Polycarbonate
• Lens Material: Polycarbonate

---

📏 Dimensions & Weight

• Height: 193.5 mm
• Diameter: 134.5 mm
• CC (Mounting Centers): 90.9 mm / 103.9 mm
• Weight: 0.74 kg

---

🌧️ Performance & Standards

• IP Rating: IP66
• Operating Temperature: –20 °C to +60 °C
• E-Approved: Yes
• Regulation: ECE R65
• EMC Compliance: ECE R10

---

ℹ️ Additional Information

• LED Type: H1 LED
