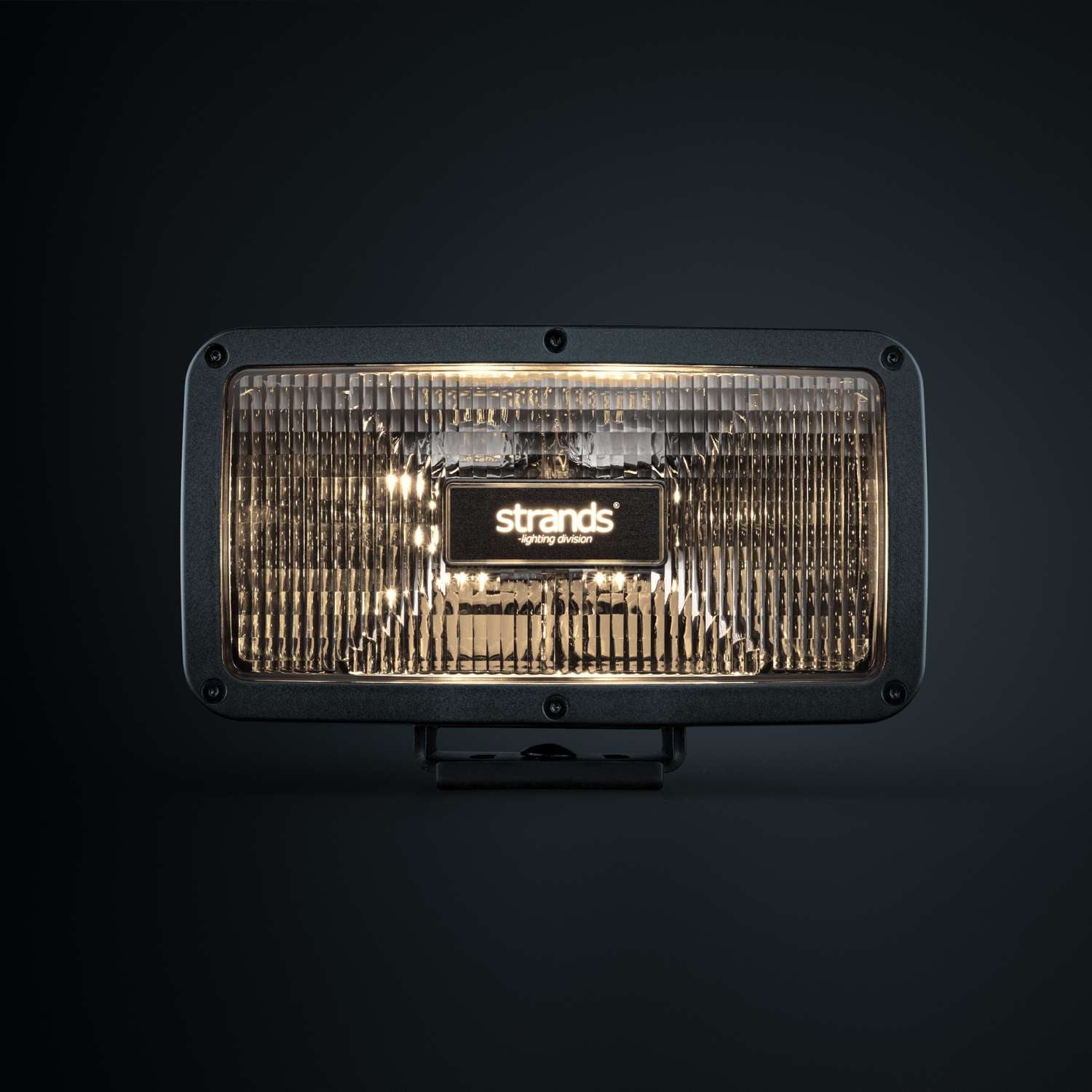

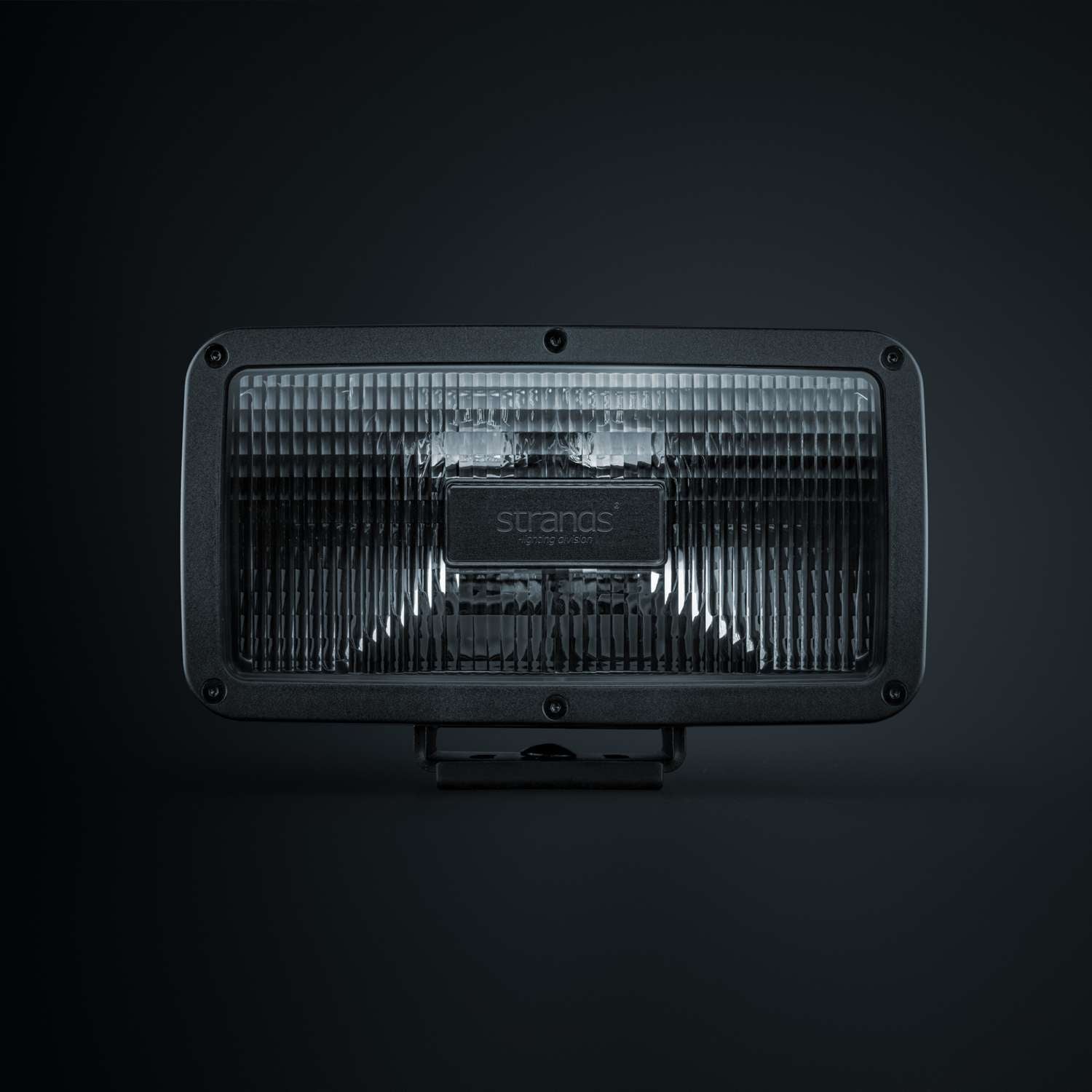

Strands IZE Old School OG REX Driving Light with Dual Position Light

This versatile and customizable OG driving light has everything you need to complete the oldschool look. The IZE LED OG Rex driving light boasts a powerful, optimized beam with 9400 actual lumens and a range of over 410 metres in Xperience mode. This gives a balanced view of the distance and width of the road. The E-mode is E-approved R148/149 with reference number 20, perfect for European roads and bad weather.

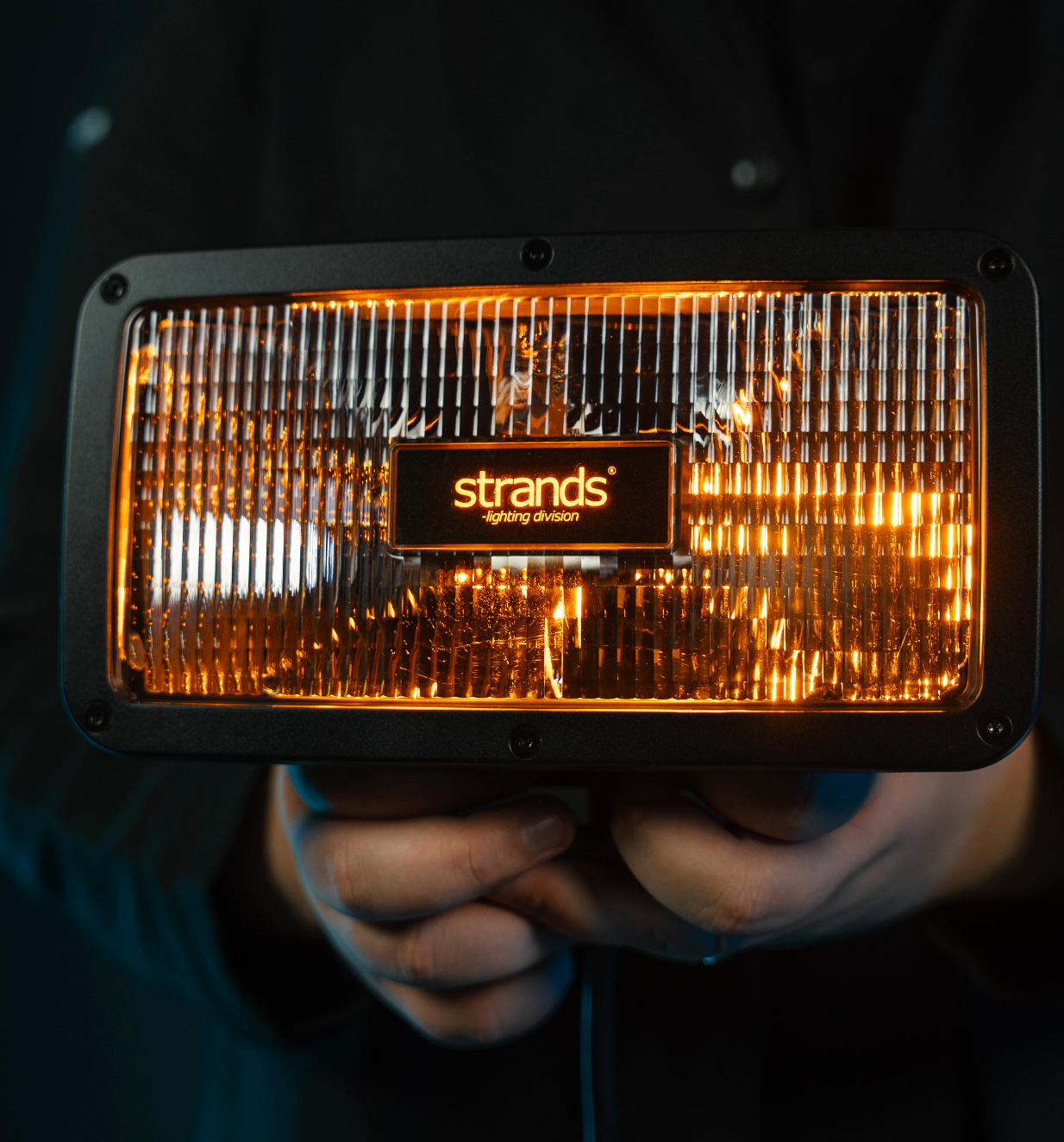

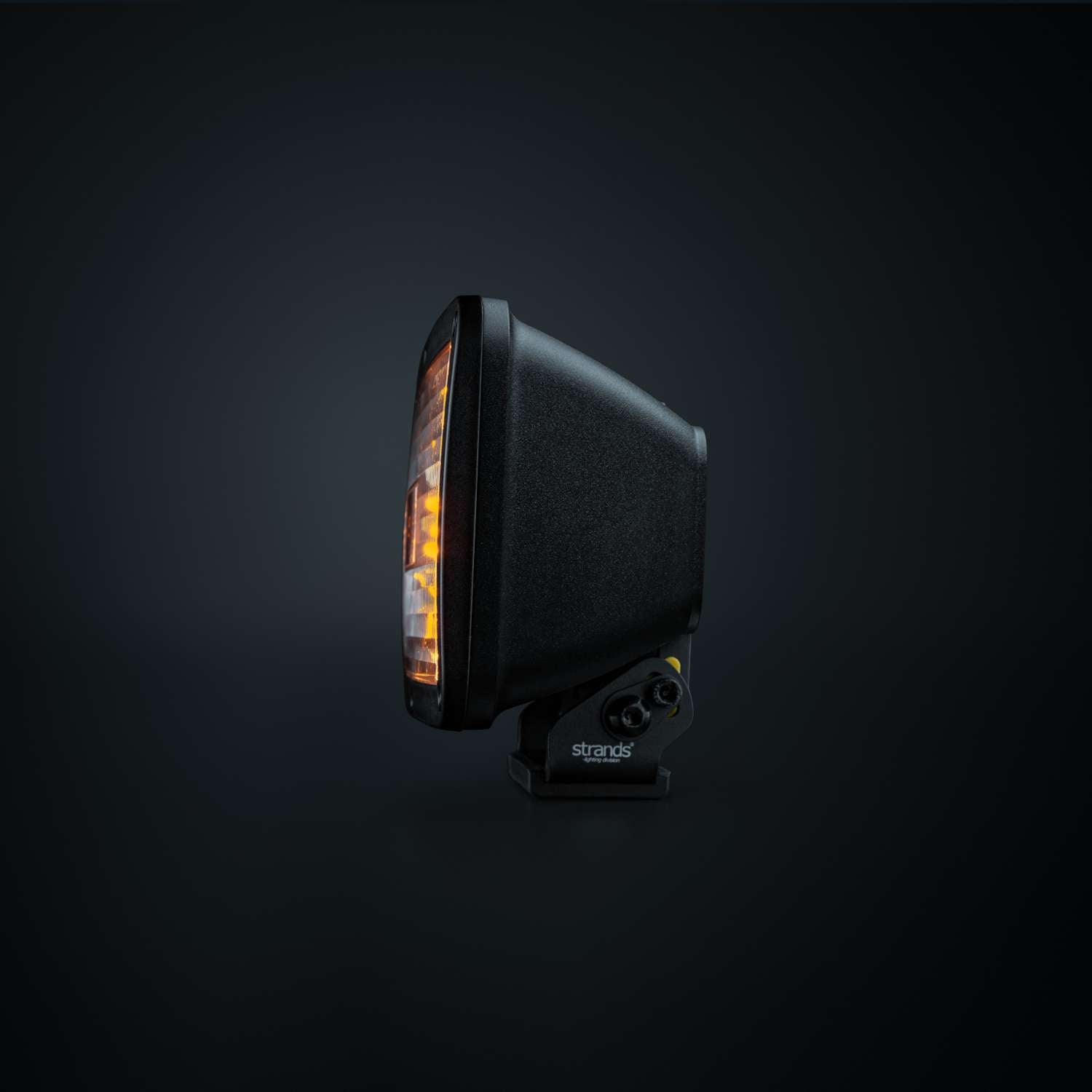

Warm white (3500 K) and amber position lights create a distinctive and original, old school bulb look. When activated, they produce a diffused glow through the textured lens.

Customising Your Lamp

If you want to modify your Rex, it’s easy to remove the frame and paint it in your desired color.

Installation

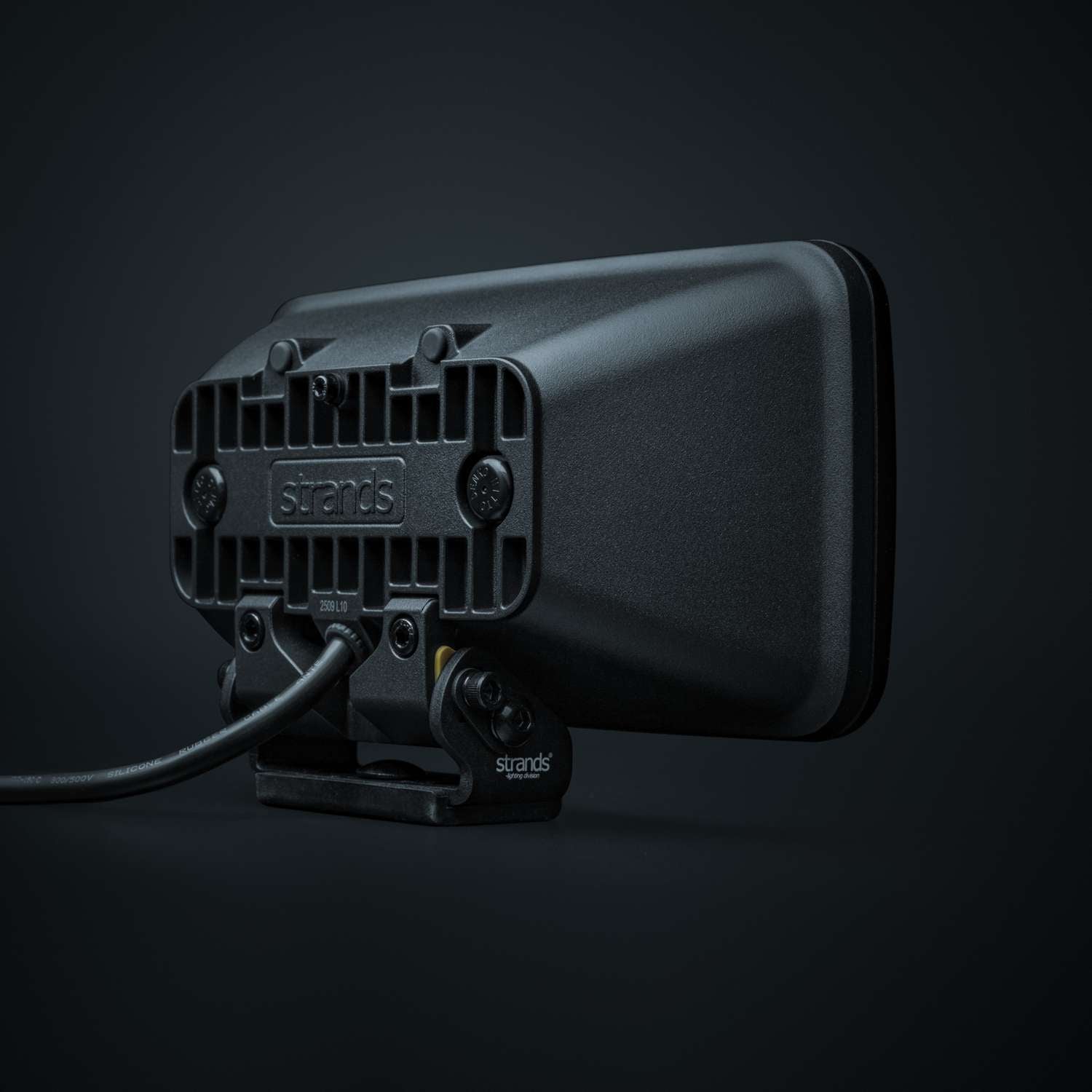

Installation is simple with the 2.5 m cable, and everything needed is included: bracket, bolts, nuts, washers, and silicone pad. It can be installed hanging or standing. It’s IP-rated IP68/69K and compatible with 10–36 V.

2 Light Modes:

1. E-Approved Mode: Road legal for European roads - 4600lm / 52W
2. XP Mode: Extra Bright mode when you want extra light - 9400lm / 140W

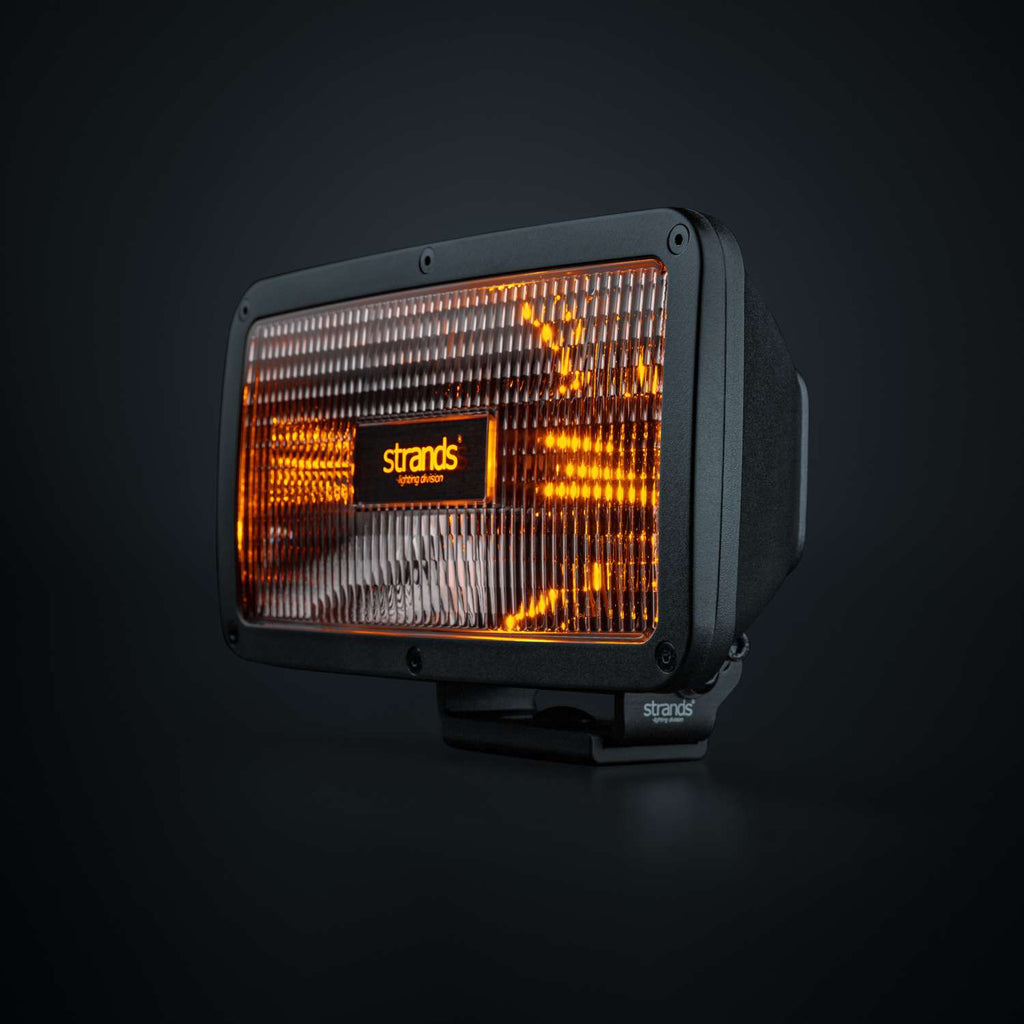

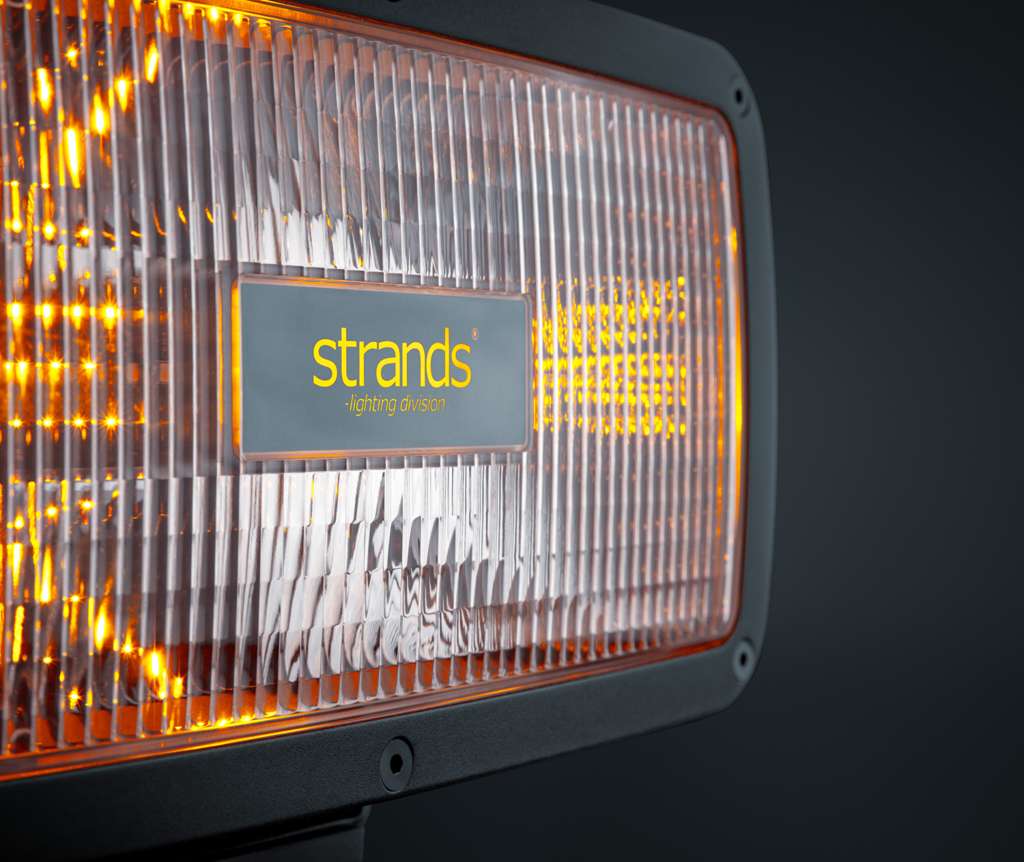

A dual-color position light can be set to white or amber - whatever you prefer - and creates a stunning old-school glow, just like a halogen bulb. The position light diodes are invisible when not used, so that you can enjoy the old-school design and expression of the lens.

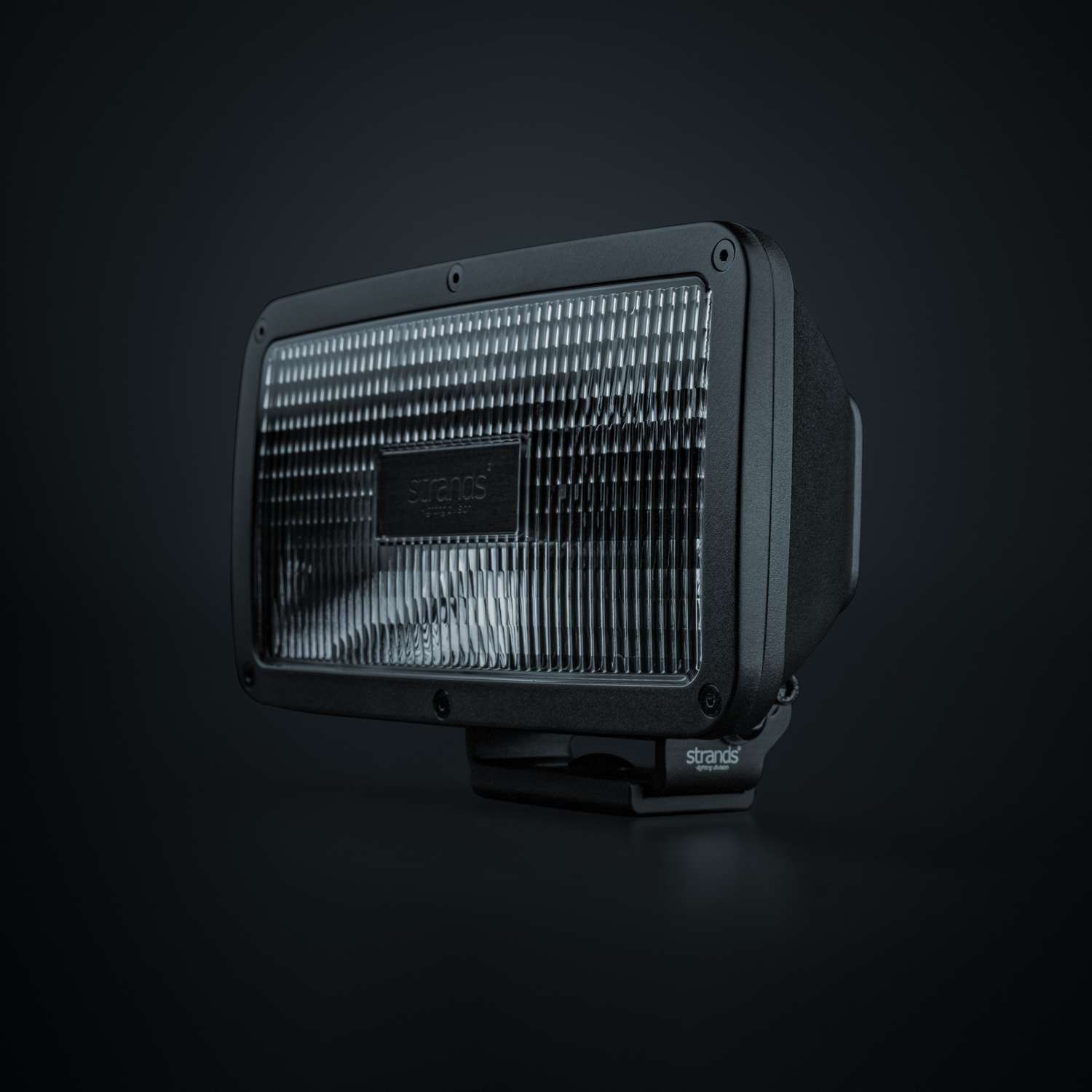

It’s inspired by the classic glass lenses but made from durable polycarbonate for modern quality. Thanks to the IP rating of IP68/69K, it can withstand both dirt and water. It’s covered by Strands’ 3-year warranty to guarantee a long lifespan.

Its durable materials and new powder coating make it a long-lived addition to any vehicle, with an IP rating of IP68/IP69K. Easier installation thanks to the generous 2.5 metres of cable.

Strands IZE OG Rex Driving Lamp Specifications:

⚙️ Specifications

• Voltage: 10–36 V DC
• Theoretical Effect: 150 W
• Power Consumption: 141.0 W
• Functions: High beam, warm white and amber position light
• Consumption (Specific Functions):
  • Xperience mode: 141 W
  • E-mode: 52 W
  • Warm white position light: 0.65 W
  • Amber position light: 0.65 W
• Theoretical Lumen Output: 12,000 lm
• Actual Lumen Output:
  • Xperience mode: 9,400 lm
  • E-mode: 4,600 lm

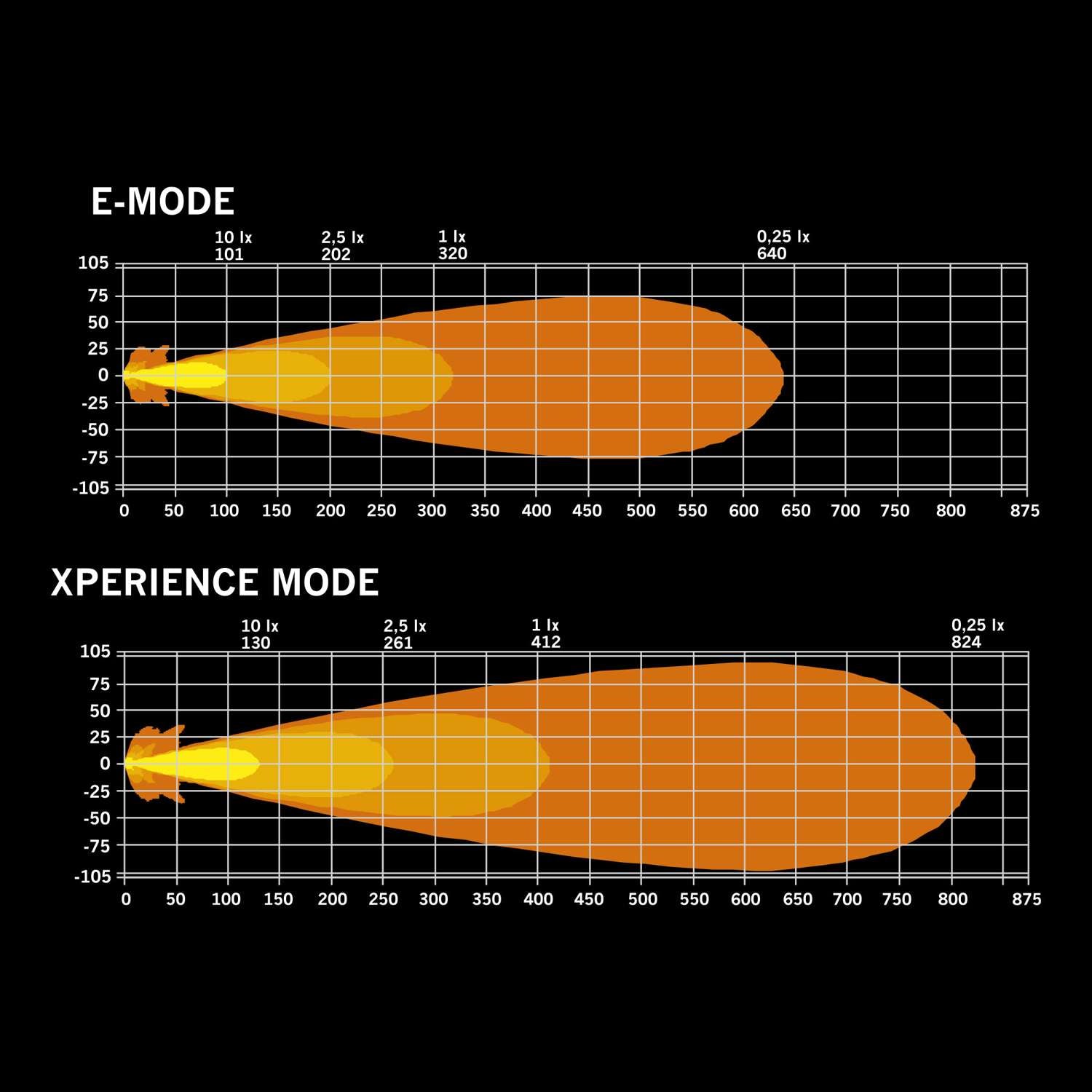

• 1 Lux @ Distance:
  • Xperience mode: 412 m
  • E-mode: 320 m
• Color Temperature: 4500 K
• Beam Pattern: Optimized beam
• Beam Angle: 25.6°

---

🔌 Electrical & Connection

• Connection Type: Cable
• Cable Length: 2500 mm

---

🎨 Design & Materials

• Housing Color: Black
• Lens Color: Clear
• LED Colors: Warm white, white, amber
• Bracket Material: Stainless steel
• Housing Material: Aluminium
• Lens Material: Polycarbonate

---

📏 Dimensions & Weight

• Length: 246 mm
• Depth: 90 mm
• Height: 133 mm
• Height (including bracket): 155 mm
• Weight: 1.98 kg

---

🌧️ Performance & Standards

• IP Rating: IP68 / IP69K
• Operating Temperature: –40 °C to +60 °C
• E-Approved: Yes
• Regulations: ECE R148, R149
• Reference Number: 20
• EMC Compliance: ECE R10

---

ℹ️ Additional Information

• Feature: Removable frame
