Strands HI-LO LED Lamp with High Beam, Low Beam & Indicator

StrandsSKU: 270717
filler

Side: Left
Price:
€196
Stock:
SOLD OUT

Description

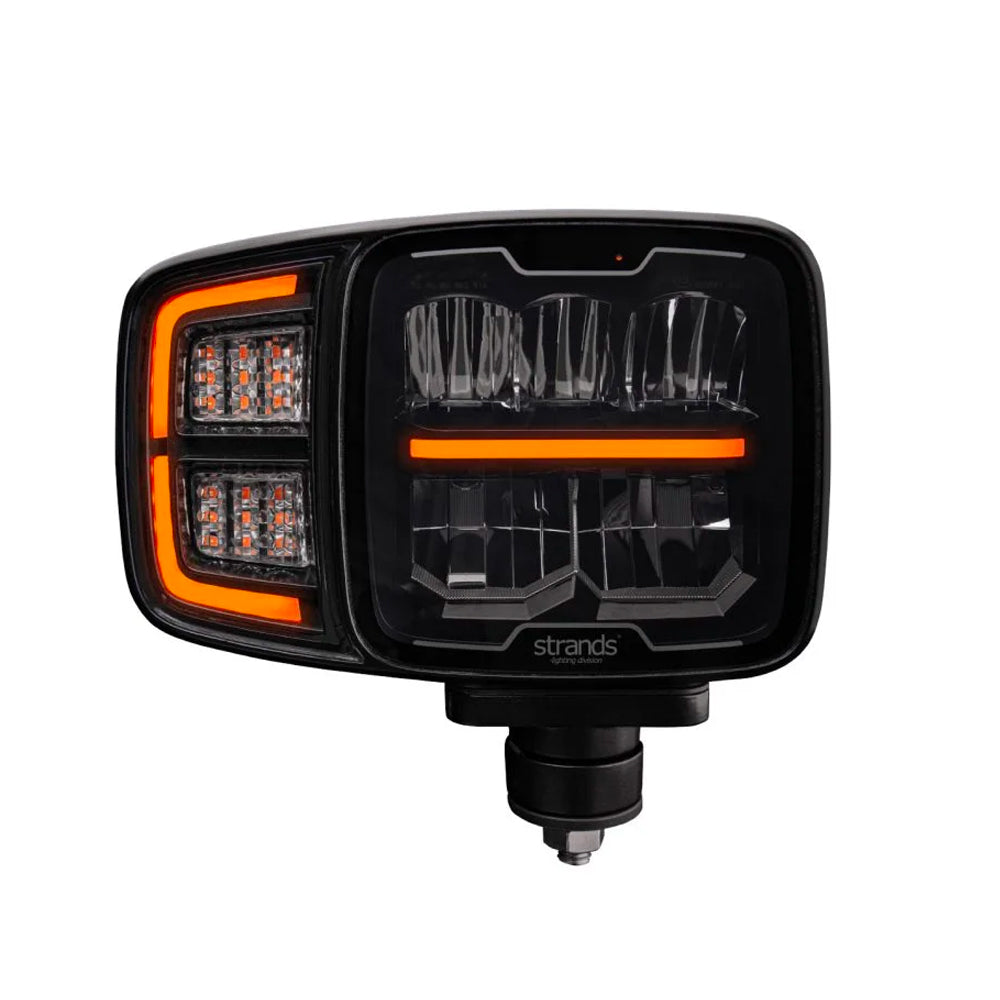

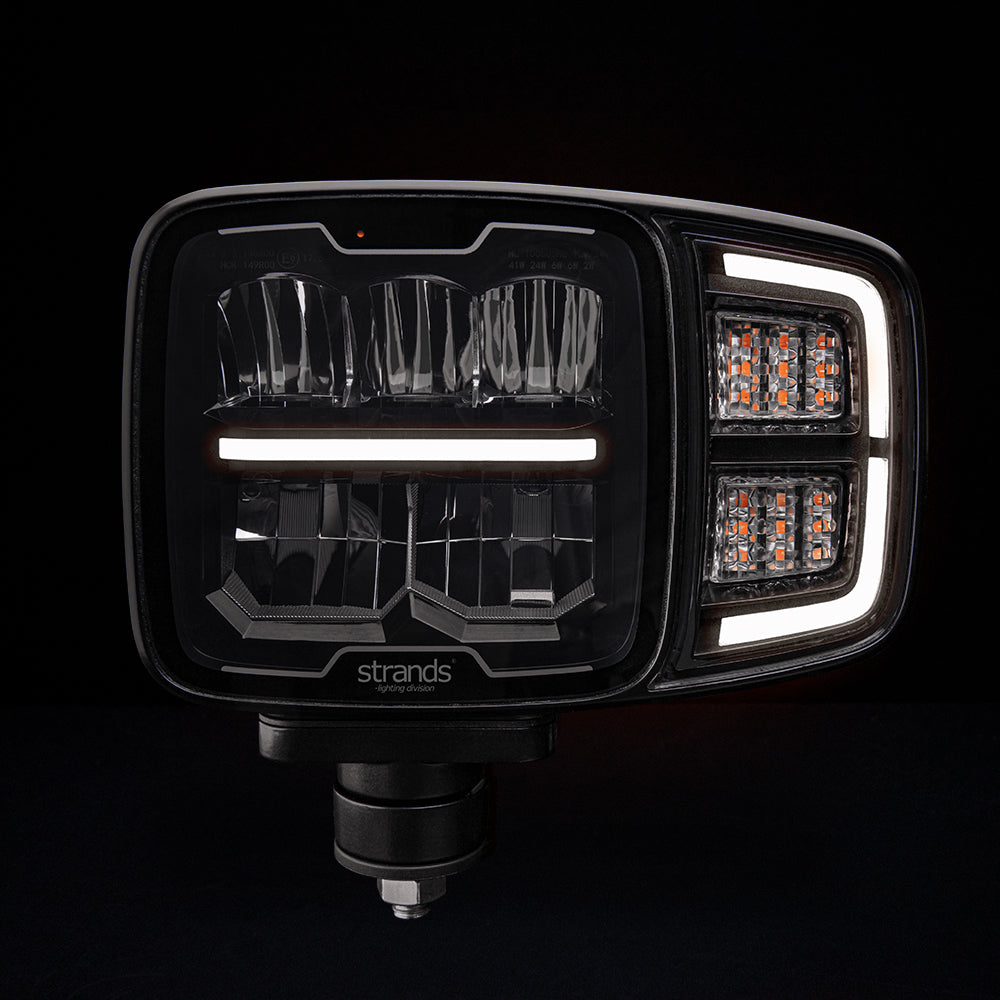

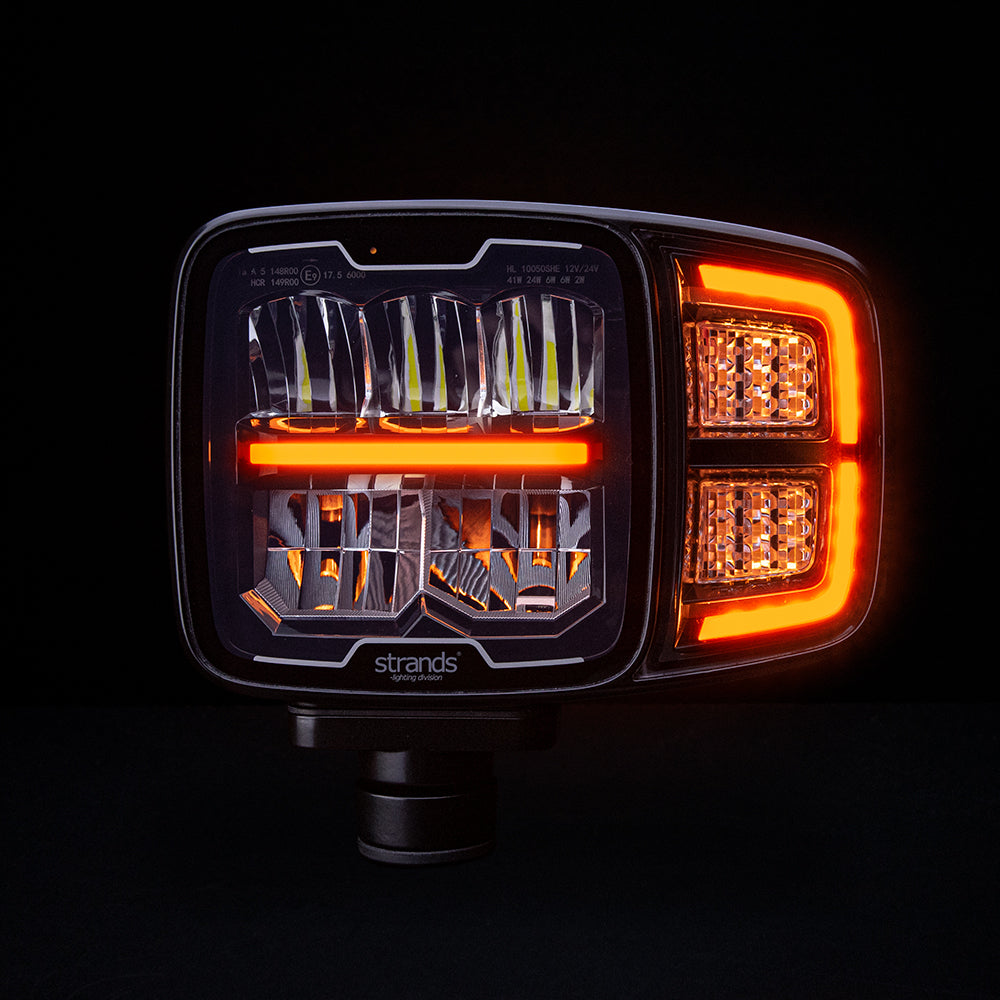

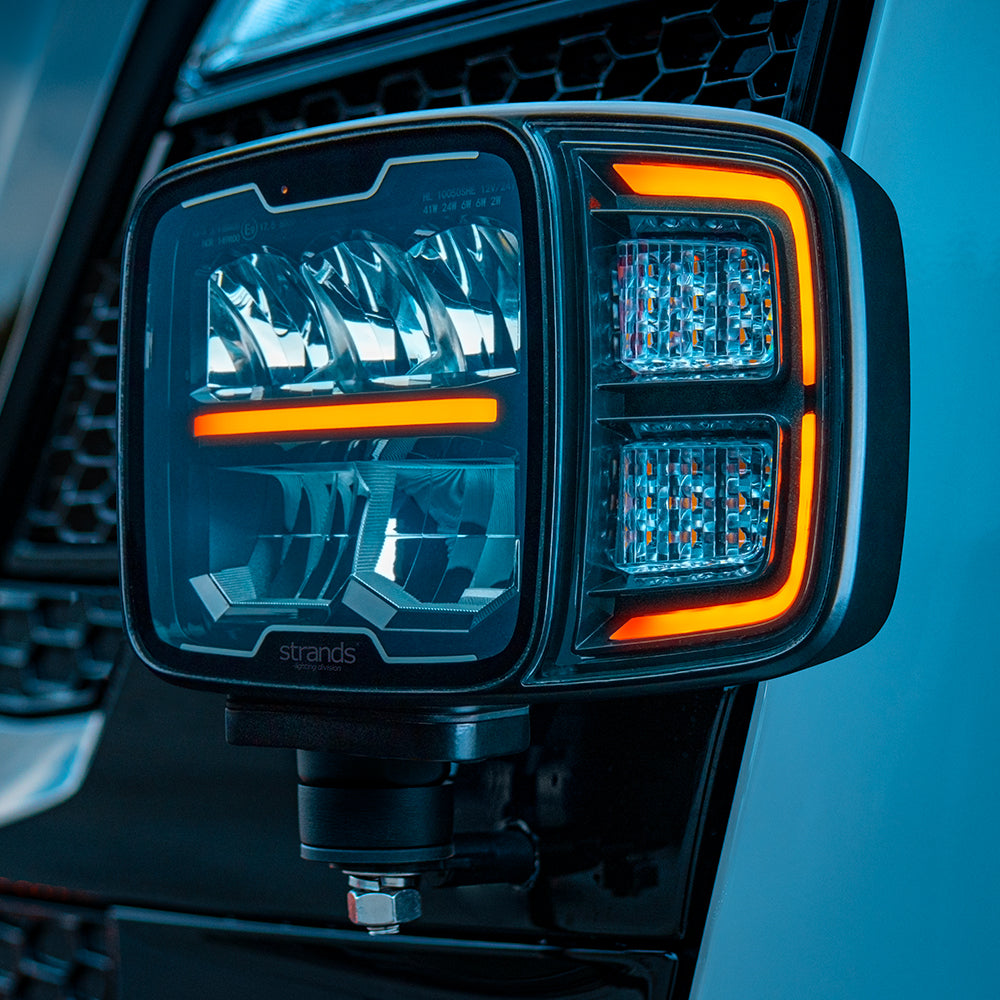

Strands HI-LO Snow Plough LED Lamp with High Beam, Dip Beam, Position Light, Heated Lens & Indicator on Front & Back of Lamp

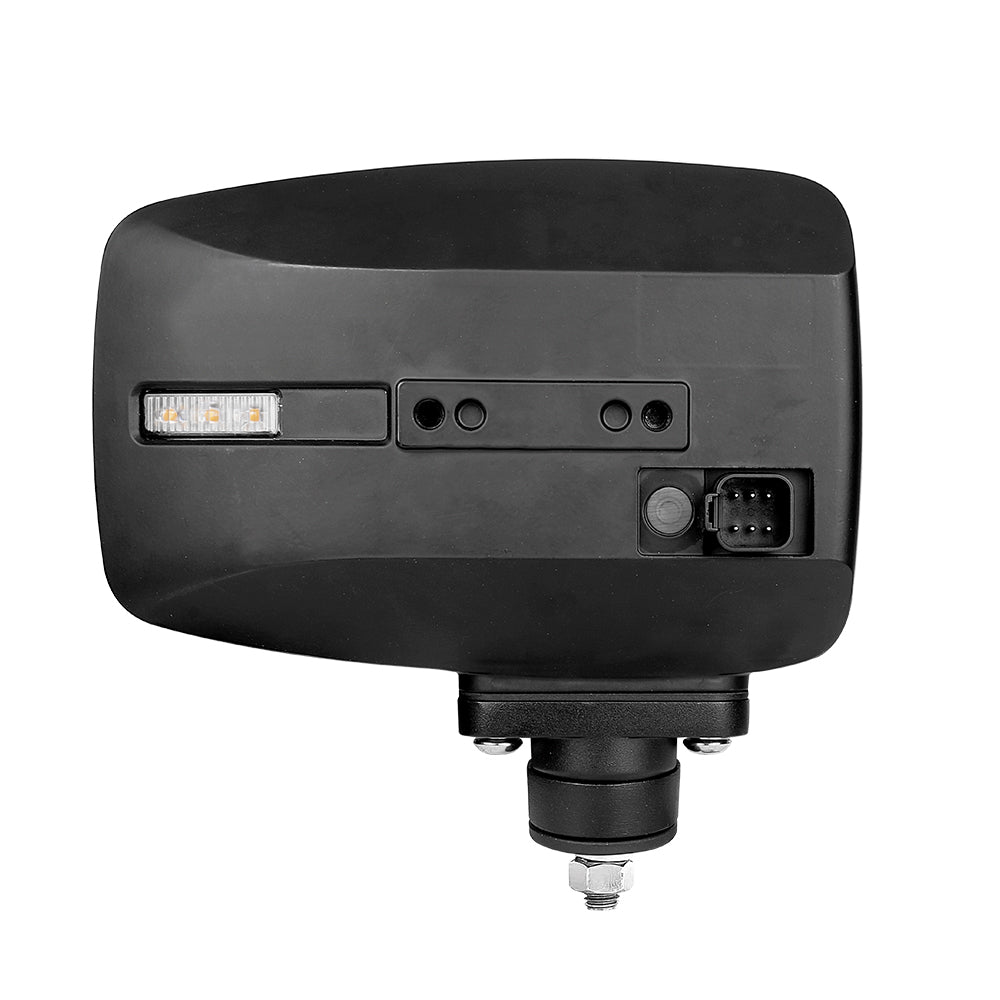

This HI-LO Light from Strands is packed full of great features for drivers of heavy plant machinery, tractors or trucks. This lamp is fully E Approved for use on European roads. The mounting bracket included can be fixed to the bottom of the lamp (pictured) or at the back of the lamp. Like all Strands Lights it comes with a 3 Year Warranty and is built to last. An incredible lighting upgrade for heavy vehicles this winter.

Features:

  • High Beam ( 5000 Raw Lumens)
  • Low Beam (2000 Raw Lumens)
  • Position Light (Set to White or Amber on installation)

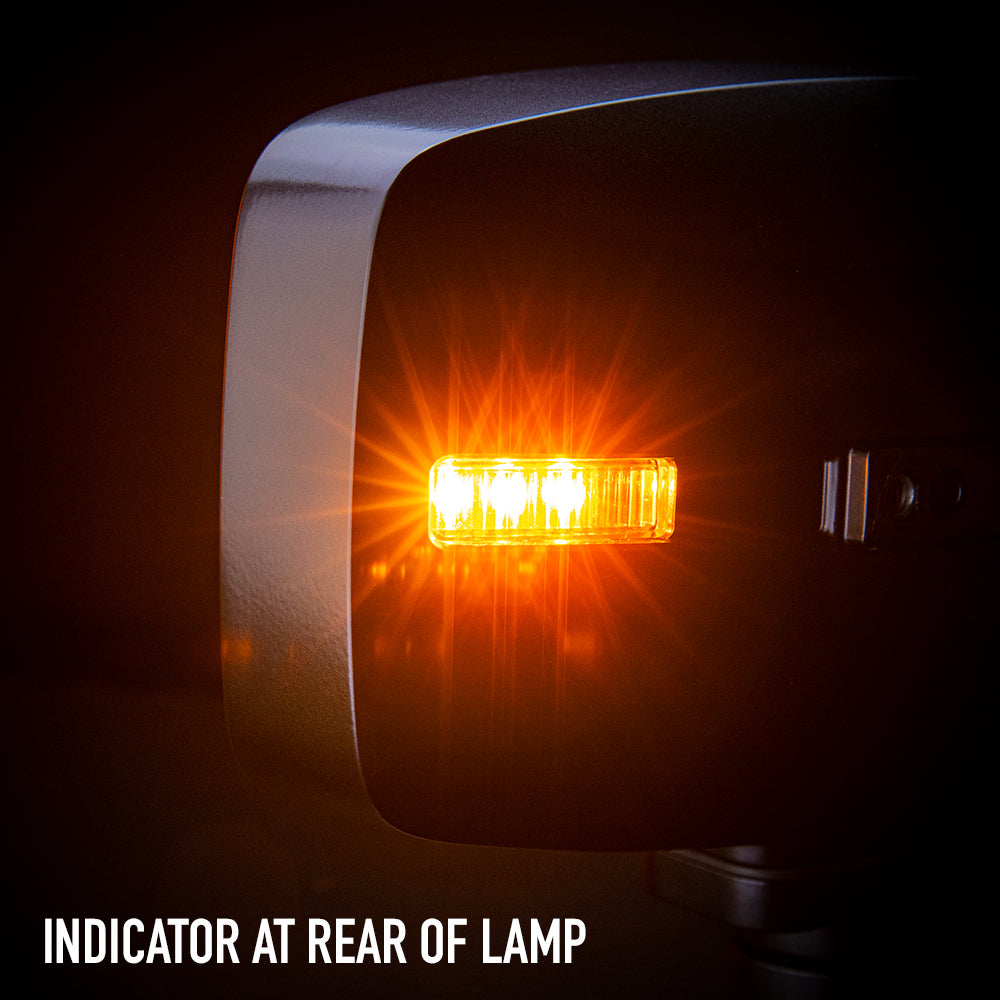

  • Indicator (Front & Rear of lamp)
  • Heated Lens (@ 5 Degrees Cel)

HI-LO-Strands Specifications:

  • PCS LED´s 5
  • Voltage (V DC) 10-32V DC
  • Theoretical effect (w) 12V 30W Low Beam
    60W High Beam
  • Theoretical effect (w) 24V 30W Low Beam
    60W High Beam
  • Consumption (w) 12V 24W Low Beam
    41W High Beam
  • Consumption (w) 24V 24W Low Beam
    41W High Beam
  • Consumption specific function (w) 12V High beam: 60W
    Low beam: 30W
    White position light: 2W
    Amber position light: 4W
    Front direction indicator: 6W
    Side direction indicator: 6W
  • Consumption specific function (w) 24V High beam: 60W
    Low beam: 30W
    White position light: 2W
    Amber position light: 4W
    Front direction indicator: 6W
    Side direction indicator: 6W
  • Functions High beam low beam white position light amber position light indicator
  • Theoretical lumen 5000 (high beam)
    2000 (low beam)
  • Actual lumen 2273 (high beam)
    876 (low beam)
  • 1 LUX @ m 275 (high beam)
    171 (low beam)
  • Kelvin 6000
  • IP-class 676869K
  • Colour housing Black
  • Colour lens Clear
  • Colour LED´s White
  • Beam pattern Combo
  • Position light Yes
  • Connection DT-6
  • Material bracket Die Cast Aluminum
  • Material housing/chassi Aluminum
  • Material lens Tempered glass

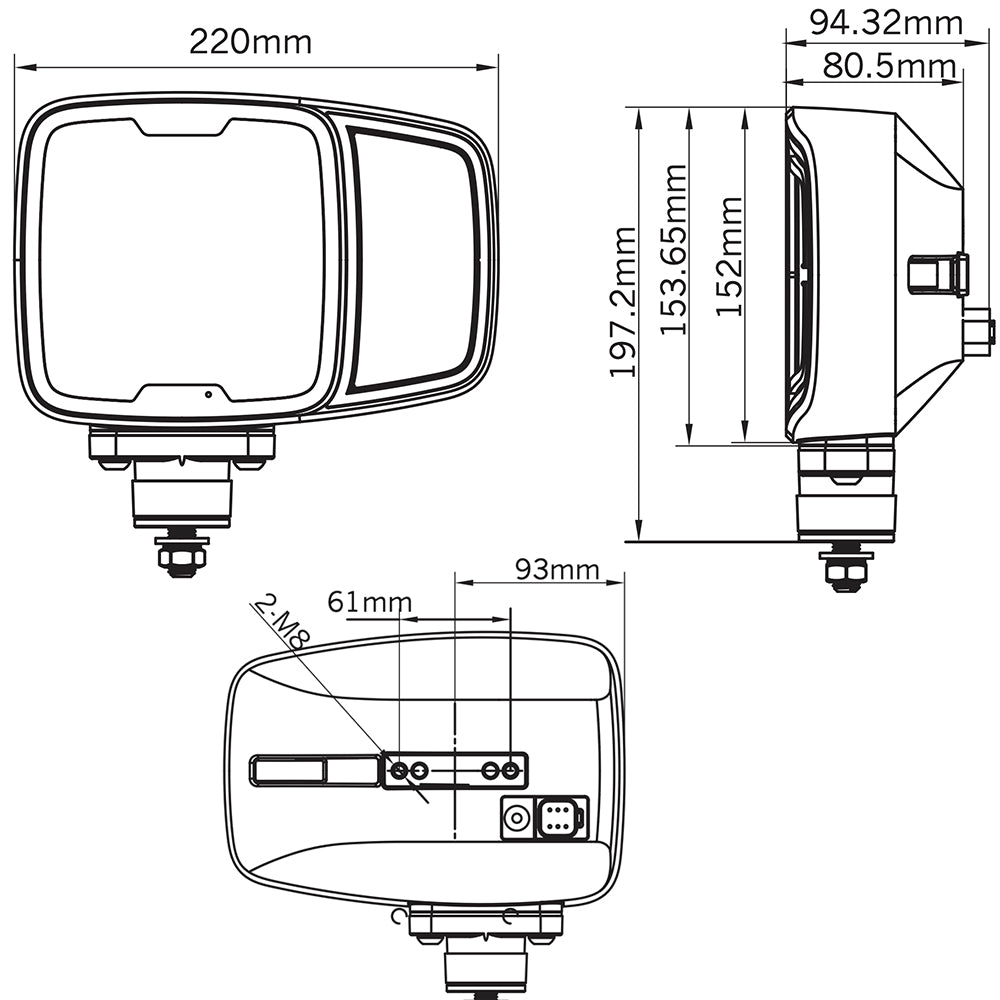

  • Length (mm) 220
  • Depth (mm) 80.5
  • Height (mm) 152
  • Height including bracket (mm) 197.2
  • Operating temperature -30°C – +65°C
  • ADR-approved No
  • E-approved  Yes
  • According to regulation R148R149
  • Reference number 17.5
  • EMC ECE R10
