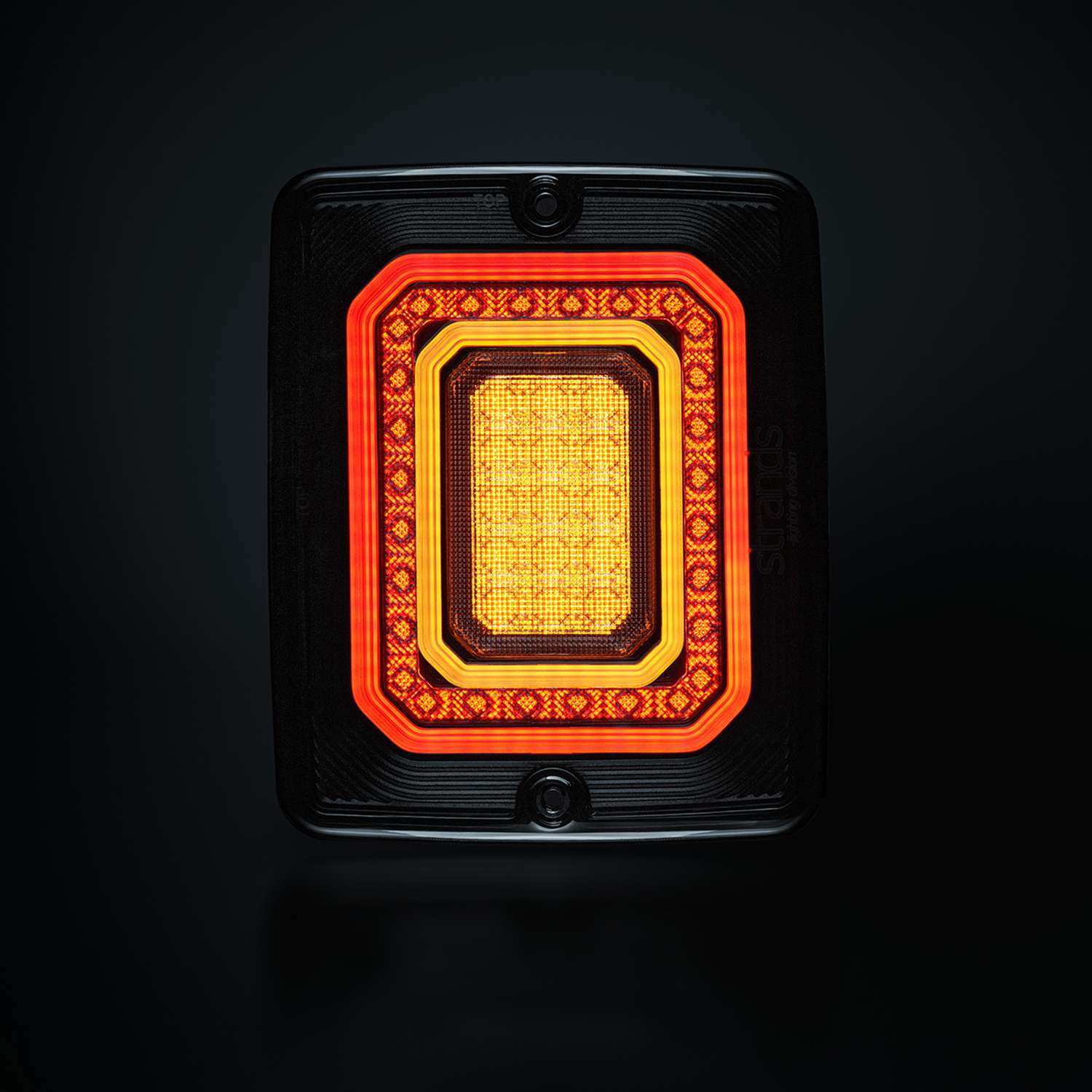

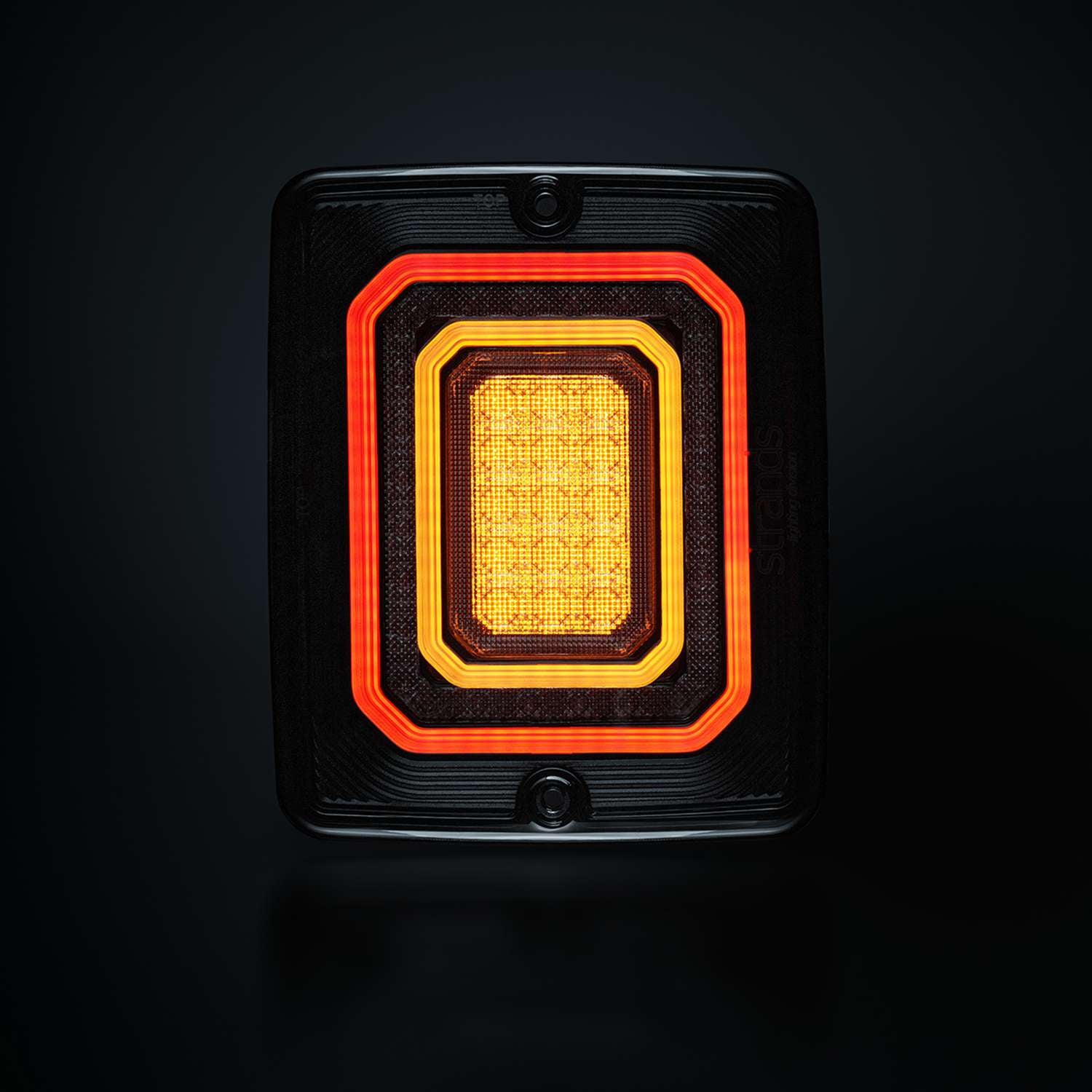

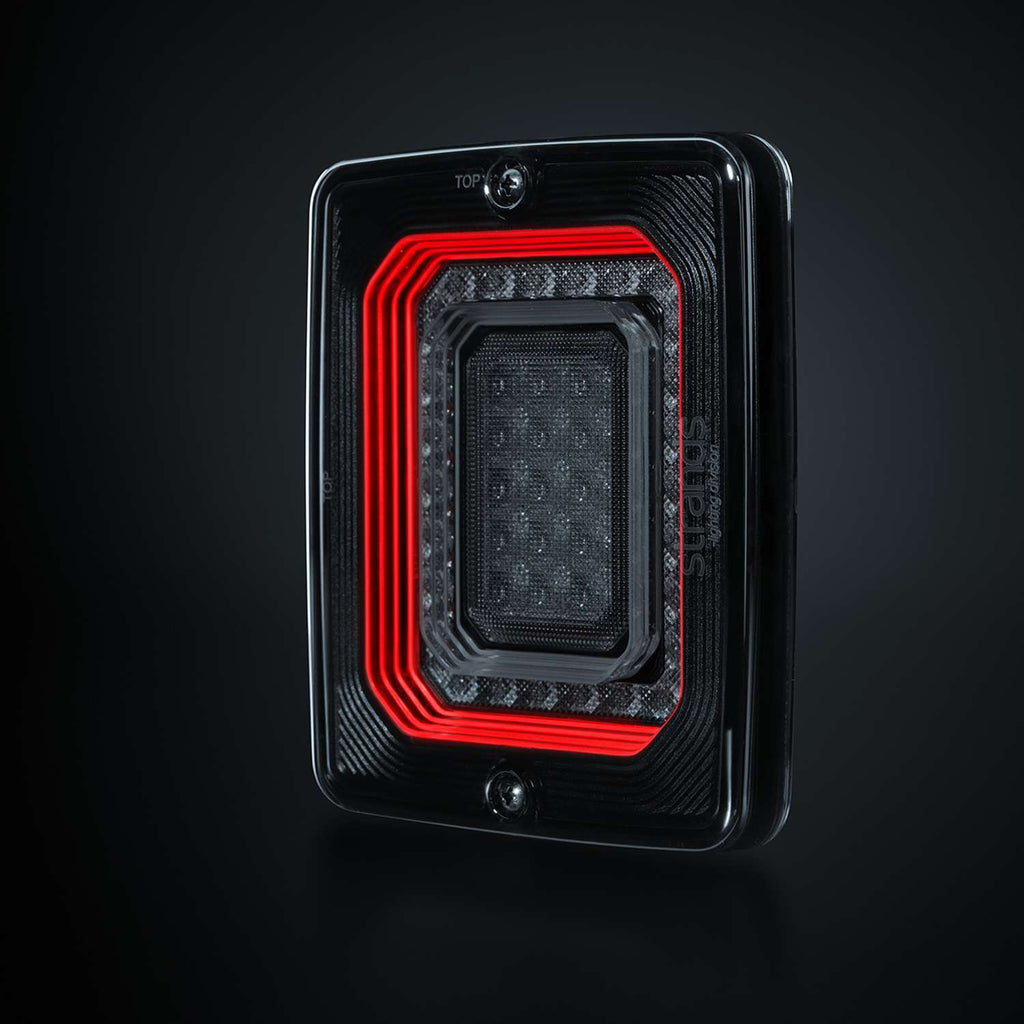

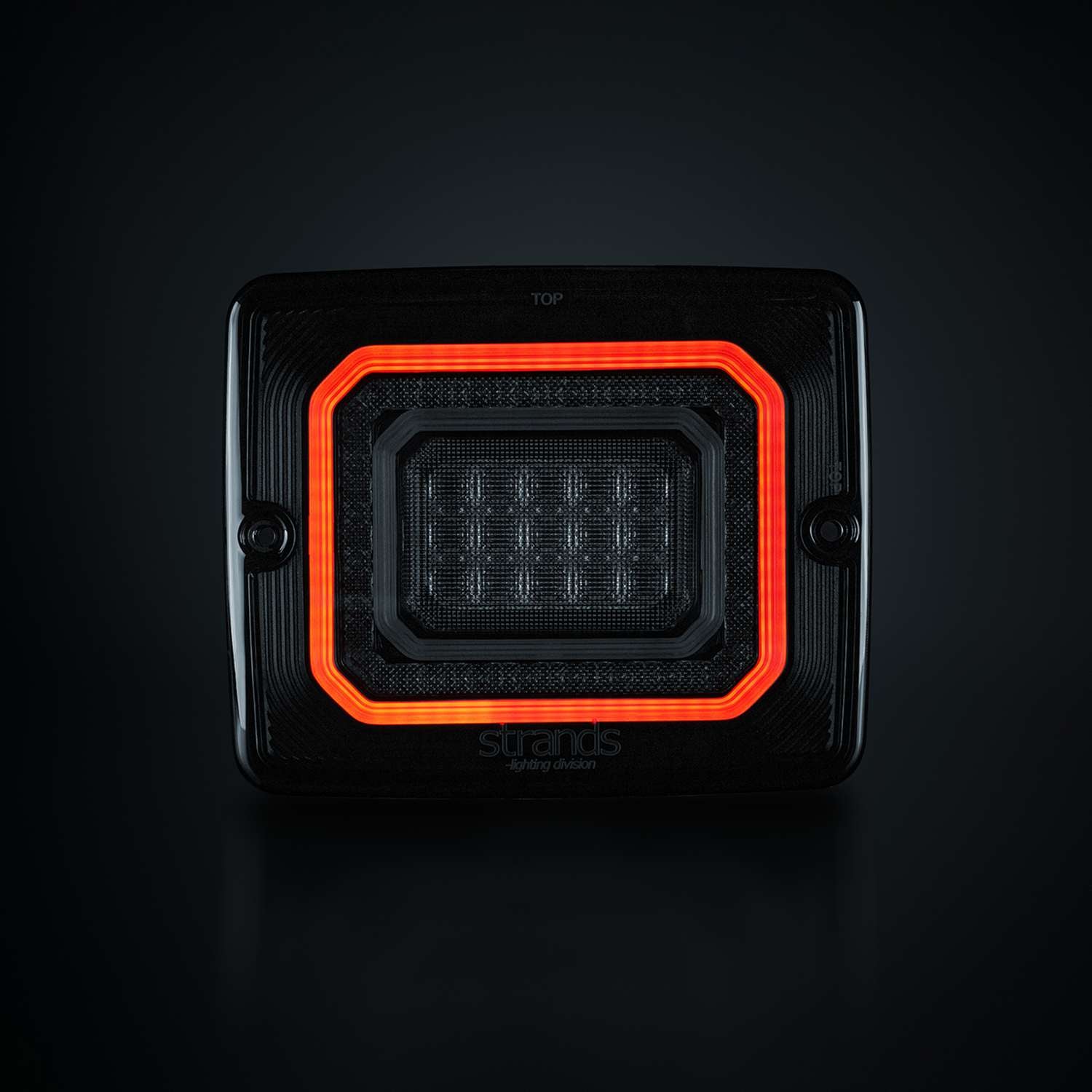

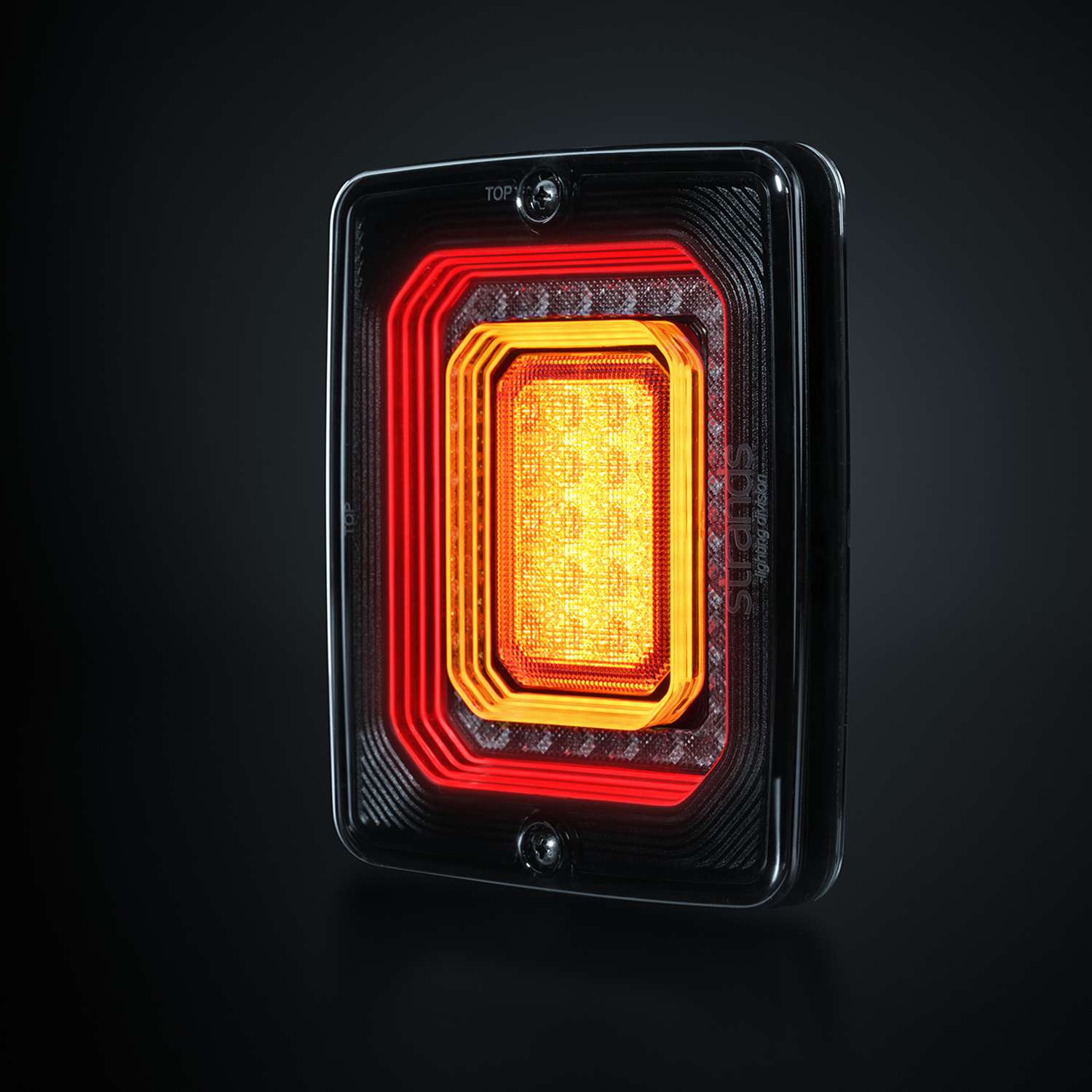

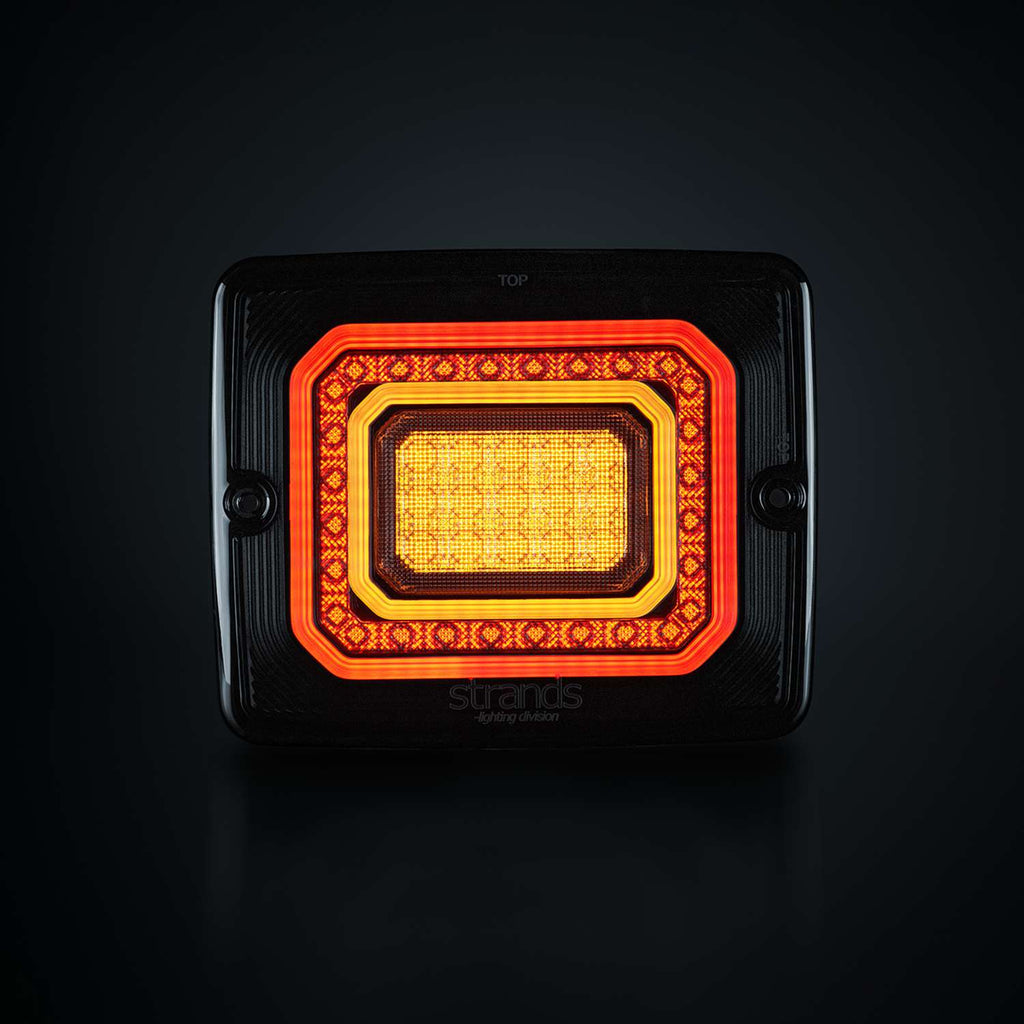

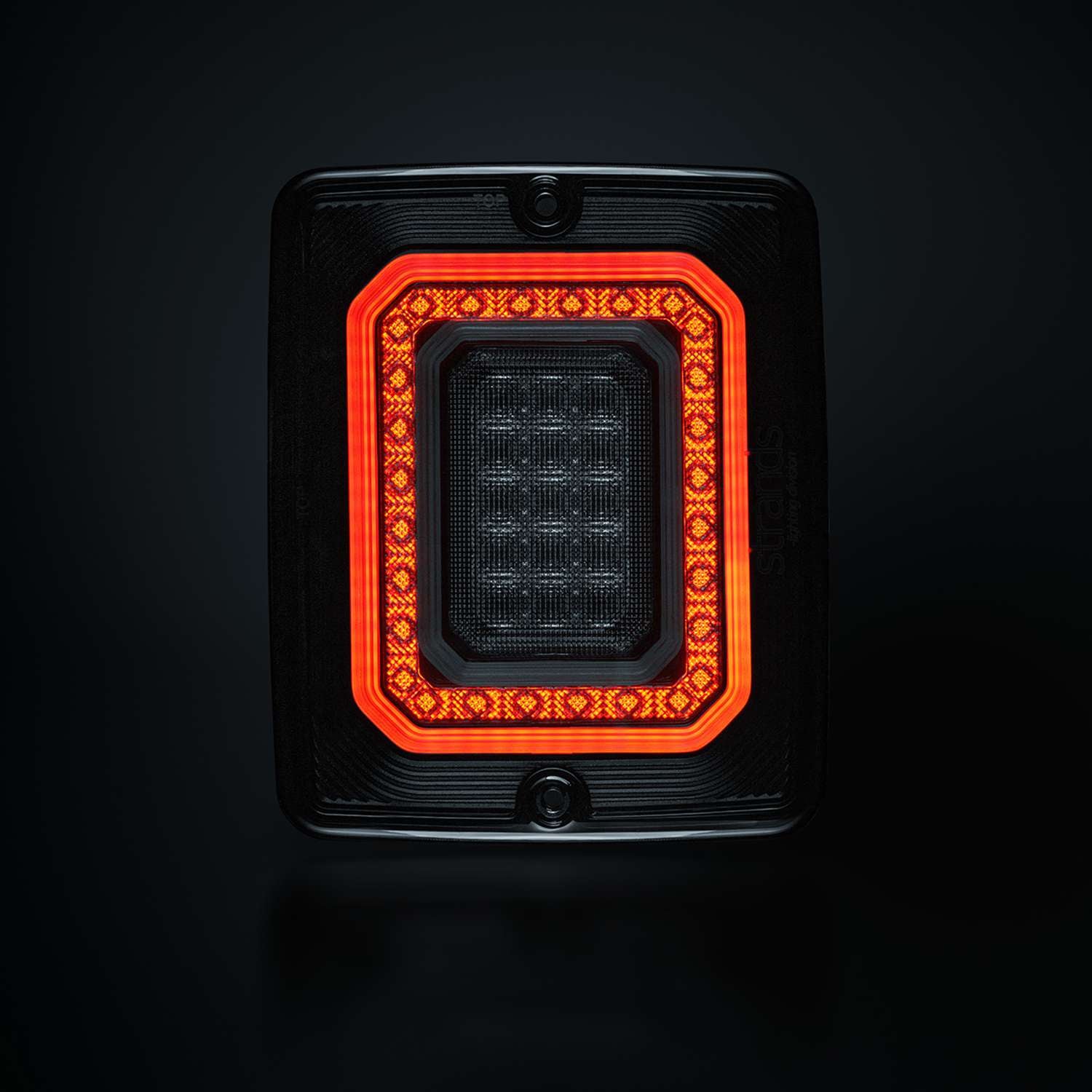

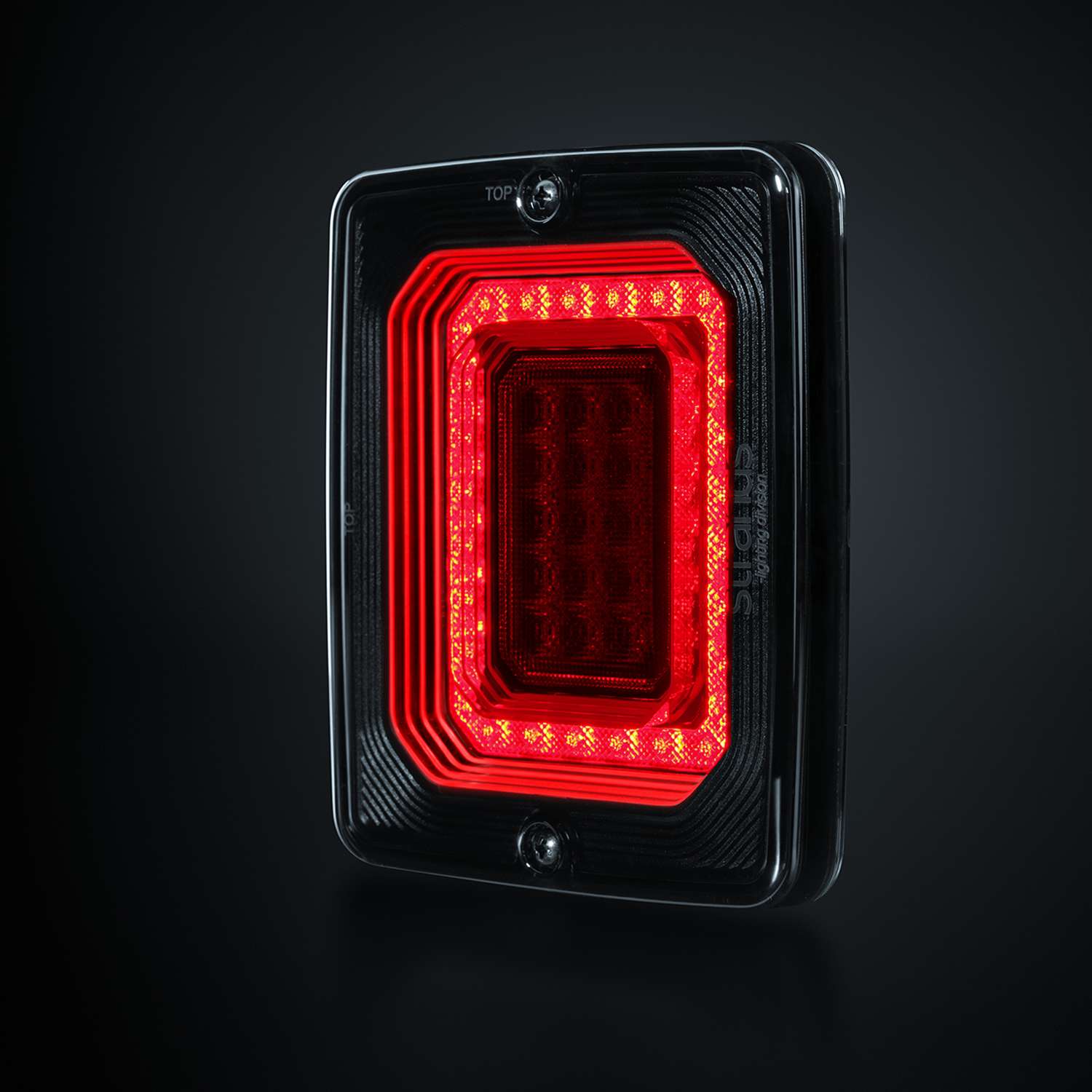

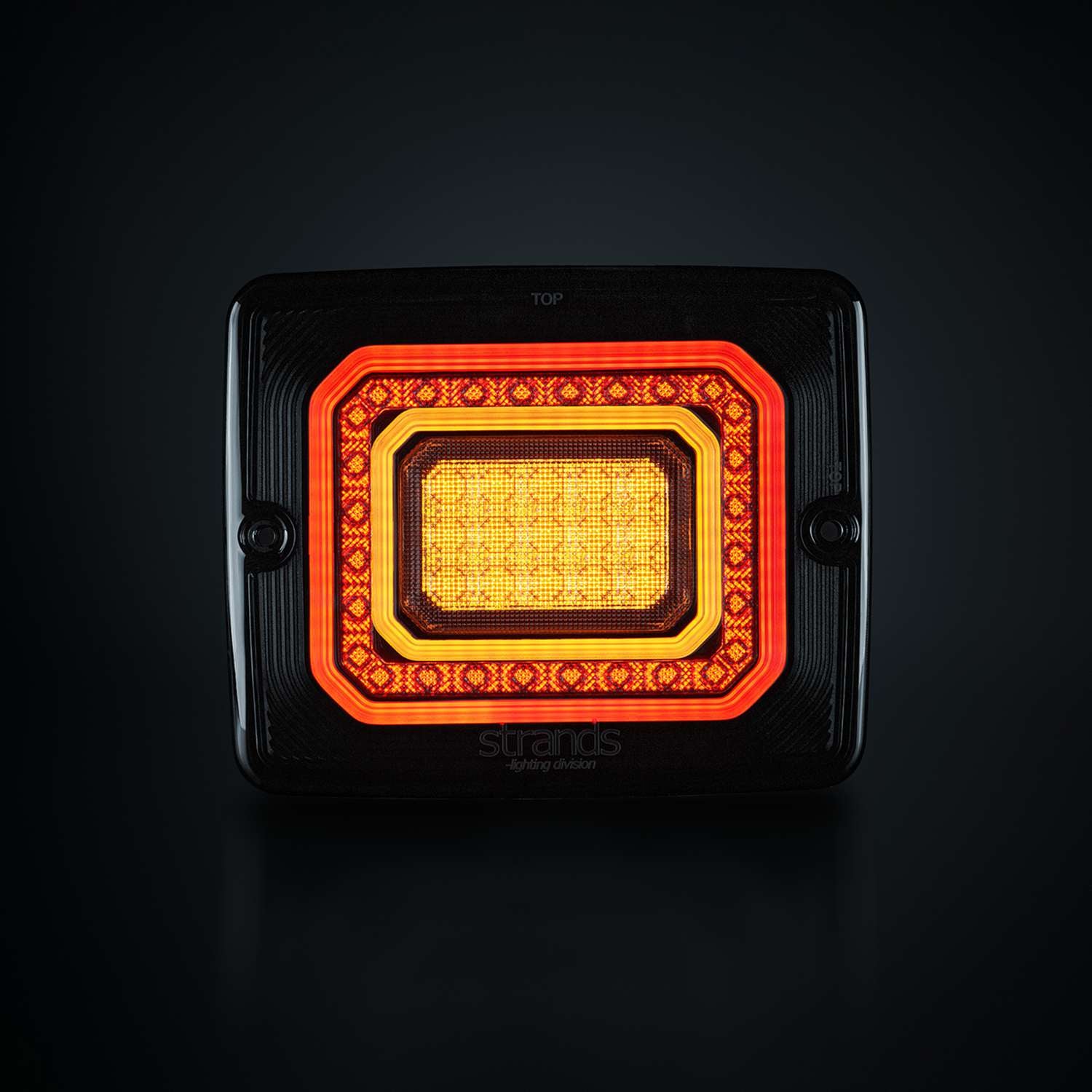

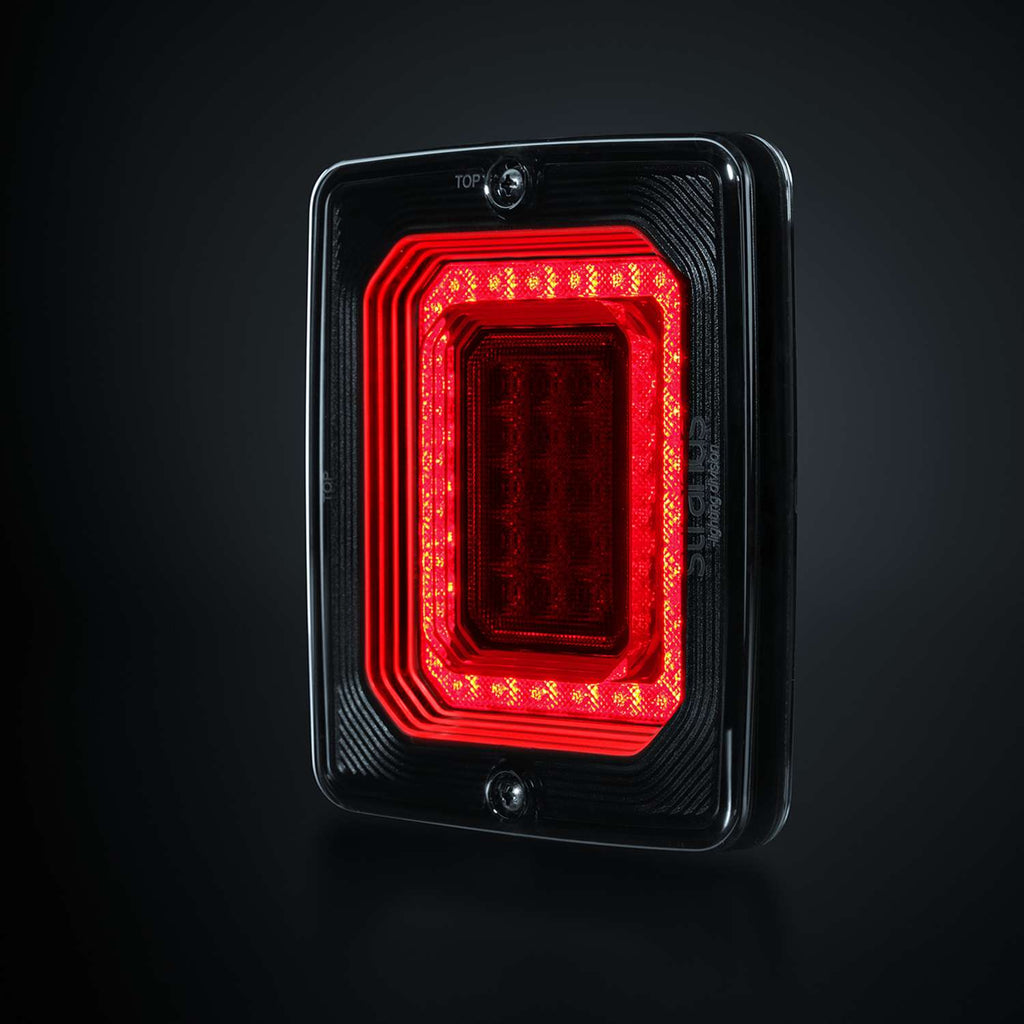

Strands FOR9T Illusion Brake, Tail & Indicator Light with Dark Lens

The Strands FOR9T Illusion Block Lamps have revolutionised truck styling across Europe. The classic rectangular block shape has been modernised to create a unique 3D style light with real depth. The Illusion features a dark lens and is E-approved R148 for both vertical and horizontal installation. Like all Strands products, the FOR9T Illusion Rear Truck Light range are built to last and come with the Strands 3 Year Warranty

Mounting the Strands IZE Rear Block Lights

New IZE Mounting Frames

The sleek new IZE Frames will also house these lamps. These mounting frames come in variations available here. IZE LED frames make installation easier and can be painted to match your style. Achieving a perfect light setup has never been simpler.

Oldschool Rubber Mounting Brackets

These lamps can be mounted in a Single Rubber Gasket or in a Double Rubber Gasket.

The lamps can also be mounted in older Hella Rubber Housings. These lamps are also pre-wired with 2.5 metre insulated cable. Do not cut this cable shorter than 500mm when wiring up these lights.

Strands IZE Tail, Brake & Indicator Light Specifications:

• Voltage: 10–40 V DC
• Power (theoretical): 20 W
• Power consumption: 15.5 W
• Functions: Tail, Brake, Indicator
• Power per function: Tail – 4.5 W / Brake – 5 W / Indicator – 6 W
• Connection: Cable
• Cable length: 2500 mm
• Housing color: Black
• Lens color: Dark
• LED color(s): Red / Amber
• Housing material: Polycarbonate
• Lens material: Polycarbonate
• Length: 113 mm
• Depth: 46 mm
• Height: 110 mm
• Center-to-center (CC): 115 mm
• Weight: 0.37 kg
• IP rating: IP67
• Operating temperature: –30°C to +65°C
• E-approved: Yes
• Regulation: ECE R148
• EMC compliance: ECE R10
