Strands FOR9T Dragon Drive 2.0 XP Mode

The FOR9T Dragon Drive combines cutting-edge design with powerful performance. Featuring 9300 lumens, 6500K color temperature, and a 586m range @ 1 lux, it delivers exceptional brightness. Built with high-quality aluminum and polycarbonate, it boasts an IP67 rating for durability in any condition.

Easy installation is ensured with a DT-4 connector and 150mm cable. With a sleek black design, white and amber position lights, and signature honeycomb reflector, it offers both style and high visibility. Backed by Strands Lighting Division’s 3-year warranty, Dragon Drive is your key to conquering the night.

• Voltage: 10-48V DC
• Theoretical Power: 144W
• Power Consumption: 142W
• Functions: High-beam, white position light, amber position light, logo light
• Consumption (Specific Functions):
  • White position light: 3.5W
  • Amber position light: 3.6W
• Luminous Output:
  • Theoretical Lumen: 14,000lm

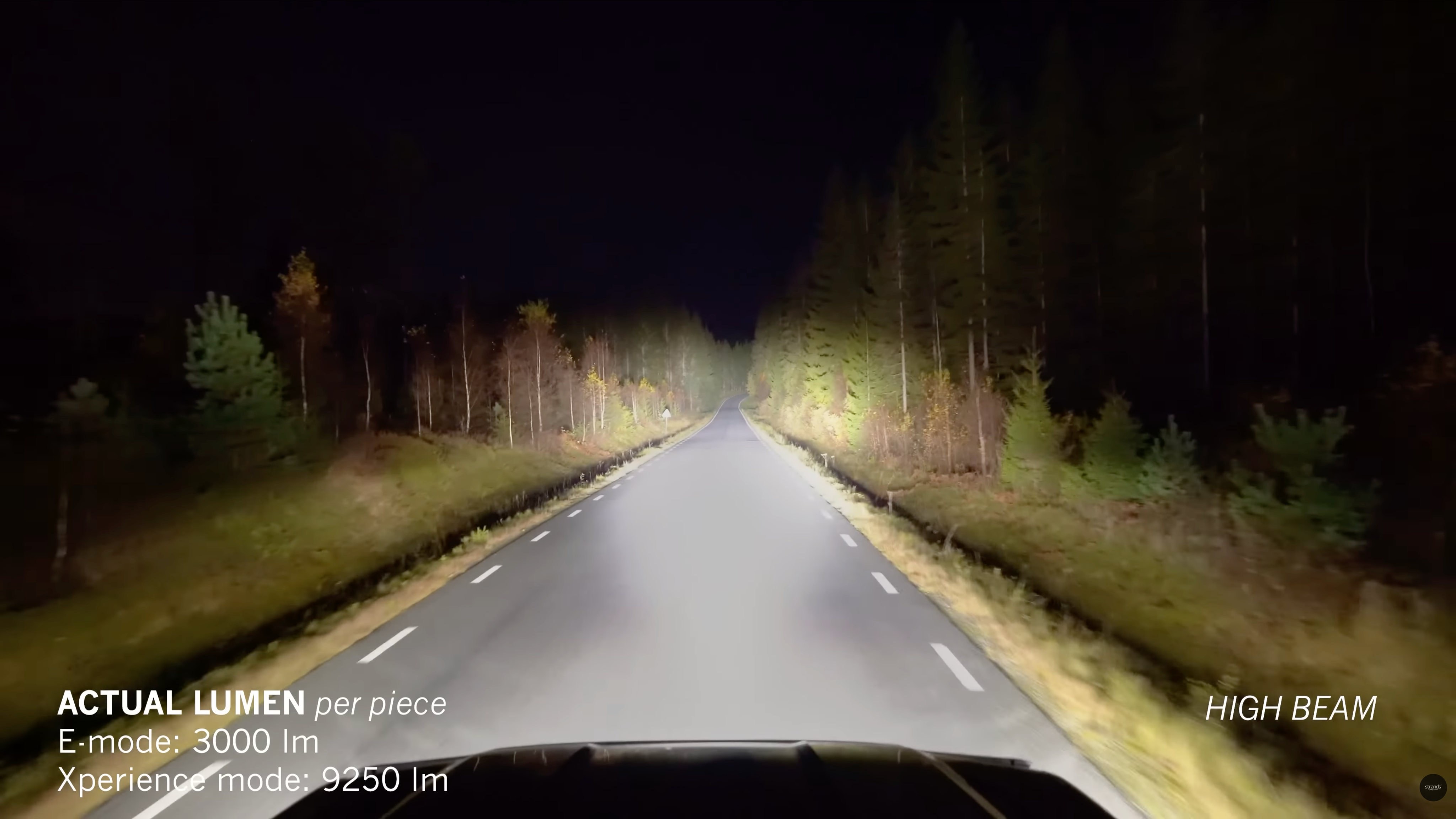

  • Actual Lumen: 9,300lm
• 1 Lux @: 604m
• Color Temperature: 6500K
• Beam Pattern: Extended beam
• Beam Angle: 17.4°
• Connection: DT-4PIN
• Cable Length: 150mm
• Housing Color: Black
• Lens Color: Dark
• LED Colors: White/Amber
• Materials:
  • Bracket: Stainless steel
  • Housing: Aluminium
  • Lens: Polycarbonate
• Dimensions & Weight:
  • Depth: 90mm
  • Height (Including Bracket): 226mm
  • Diameter: 220mm
  • Weight: 3.24kg
• IP Rating: IP67
• Operating Temperature: -40°C to +65°C
• E-Approved: No
• EMC Certification: ECE R10
