Strands Firefly LED Light Bars

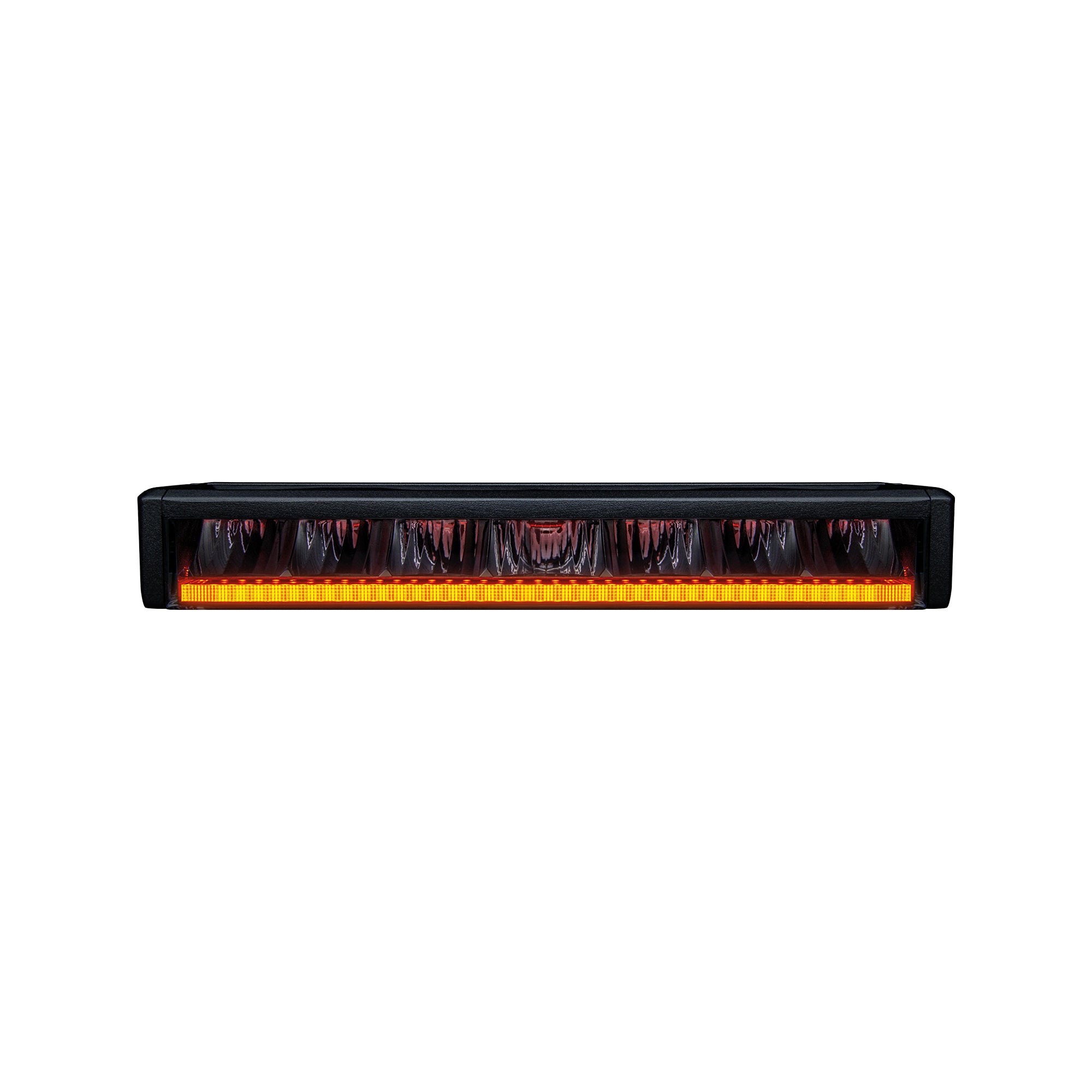

The Firefly LED bar 10" is a slim, single-row LED bar built for performance. At just 70 mm deep and 38.5 mm high, it delivers a sharp, wide beam of 5,010 actual lumens and 1 lux at 363 meters.

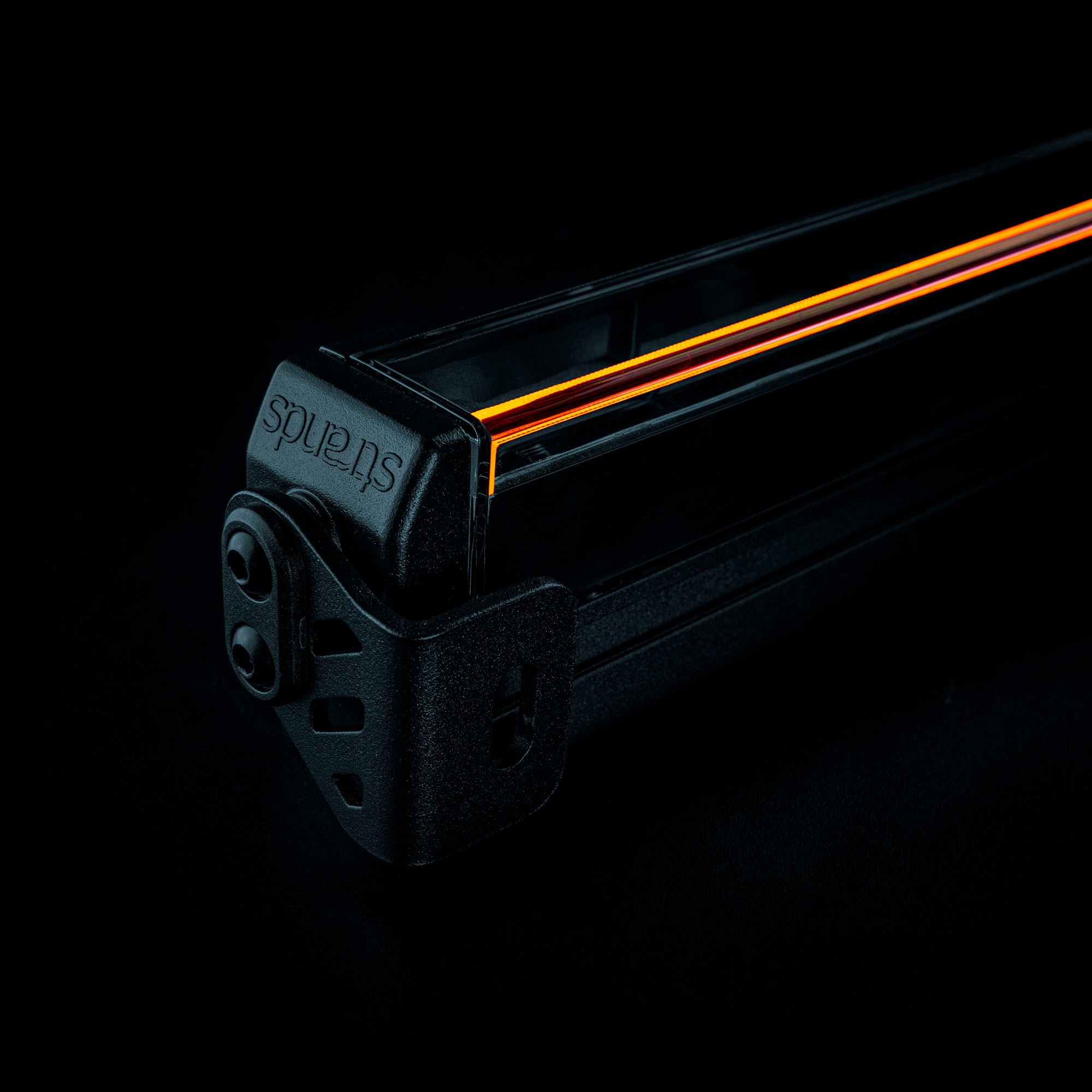

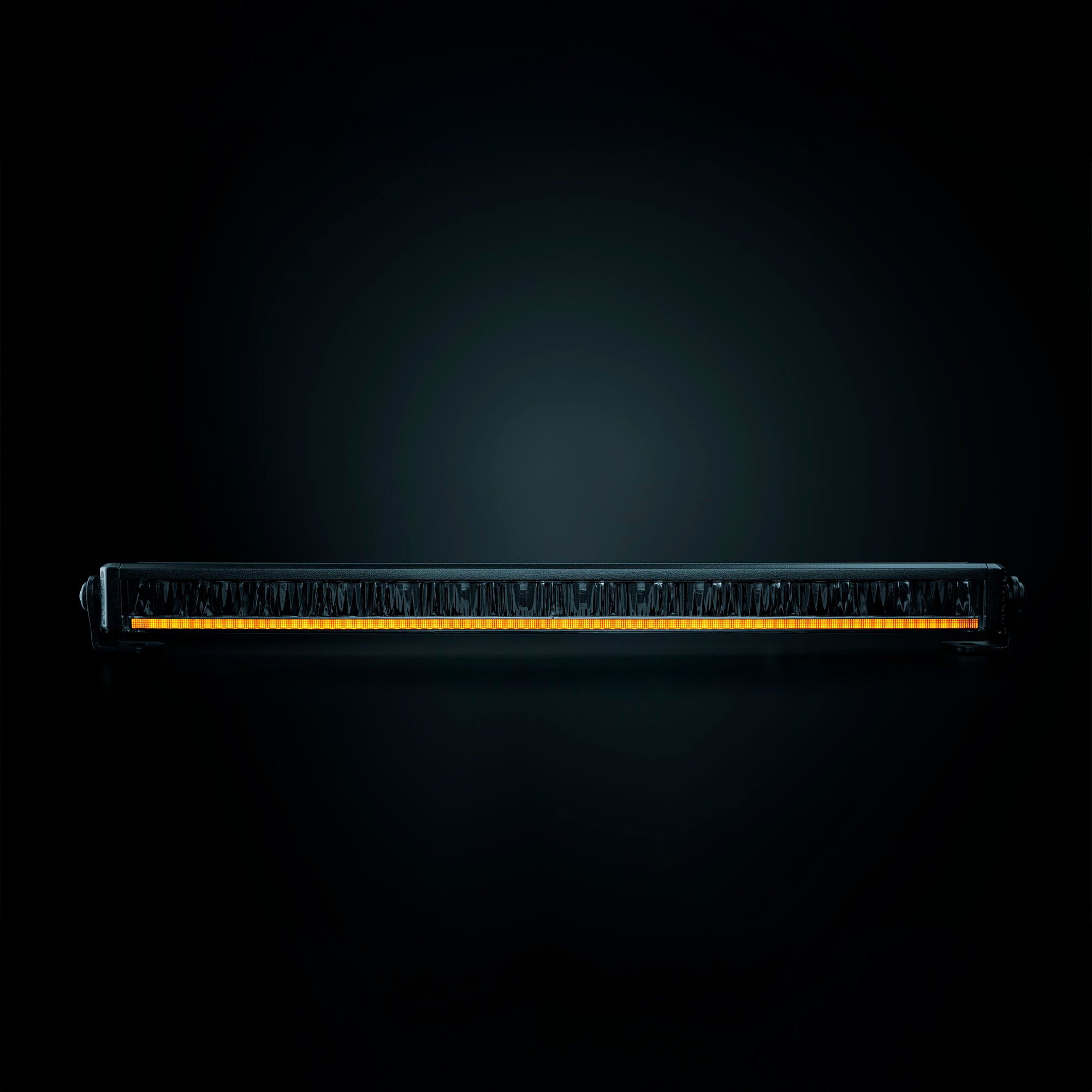

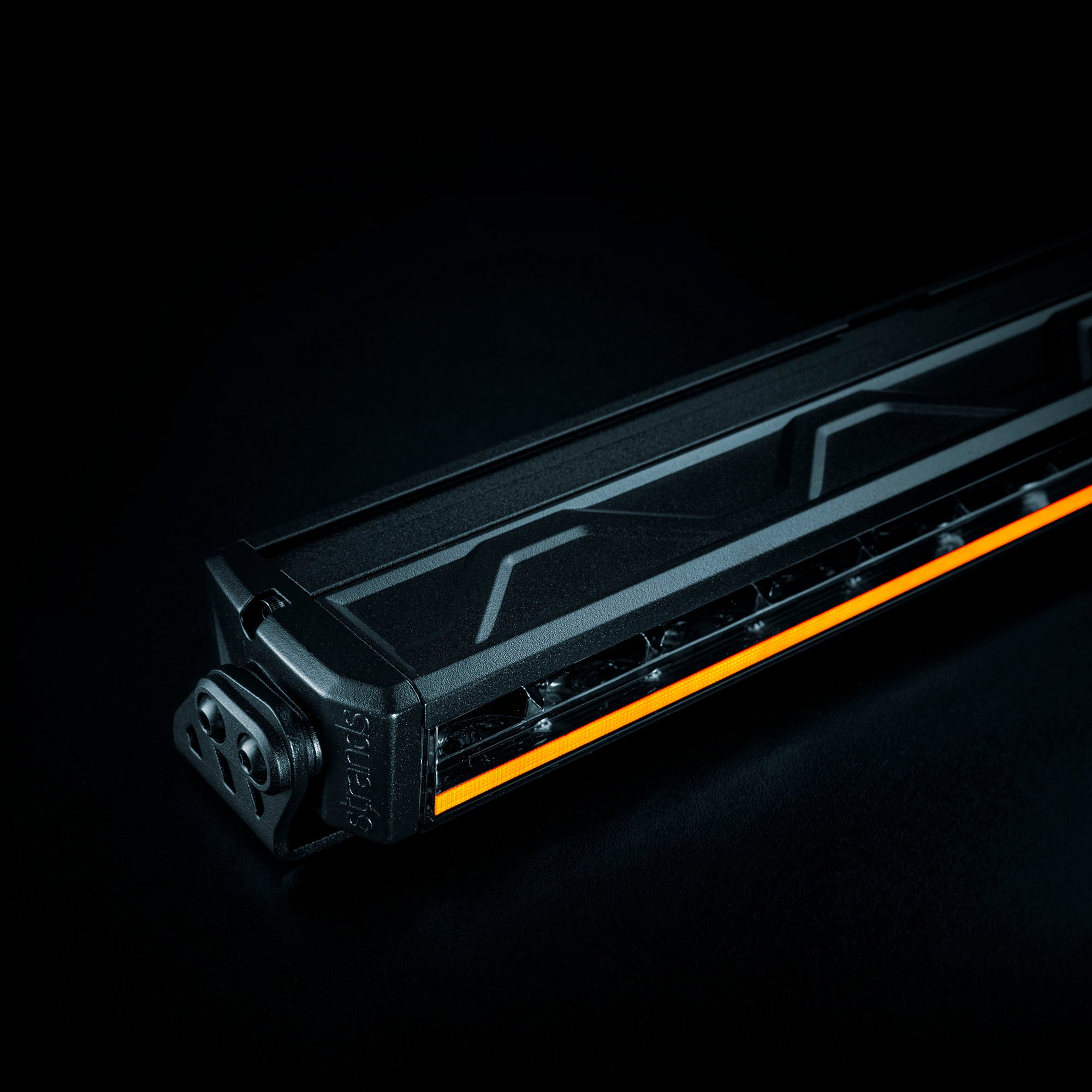

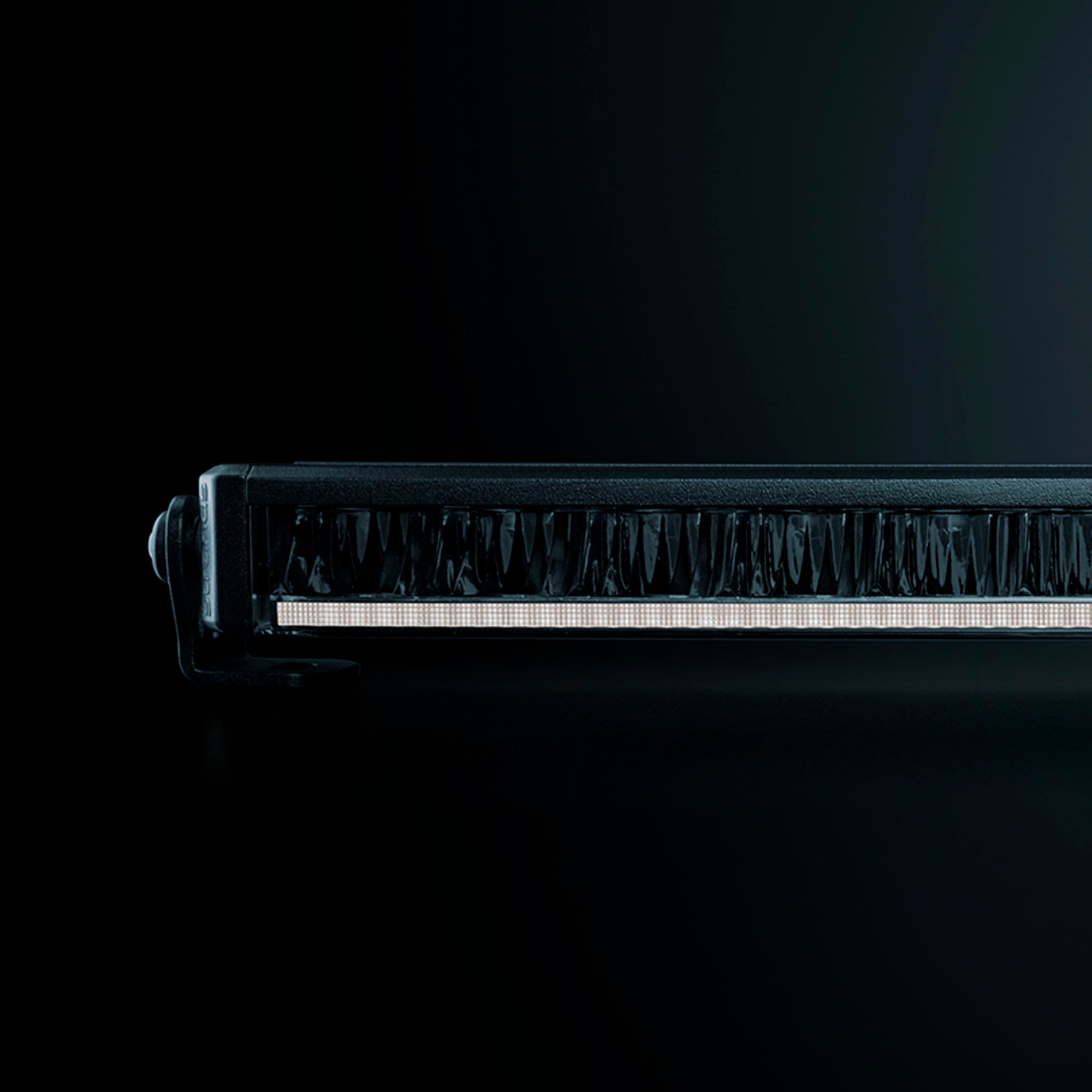

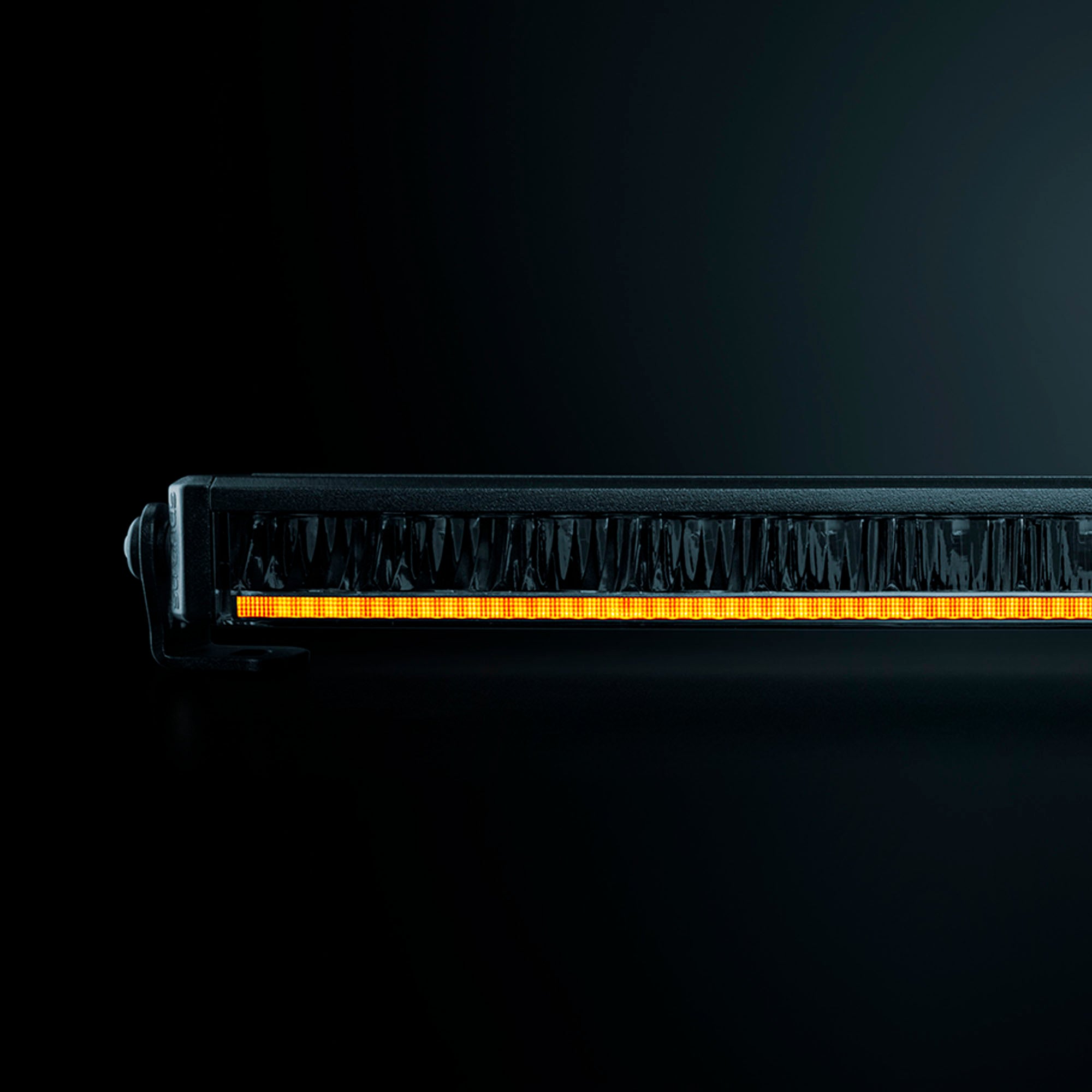

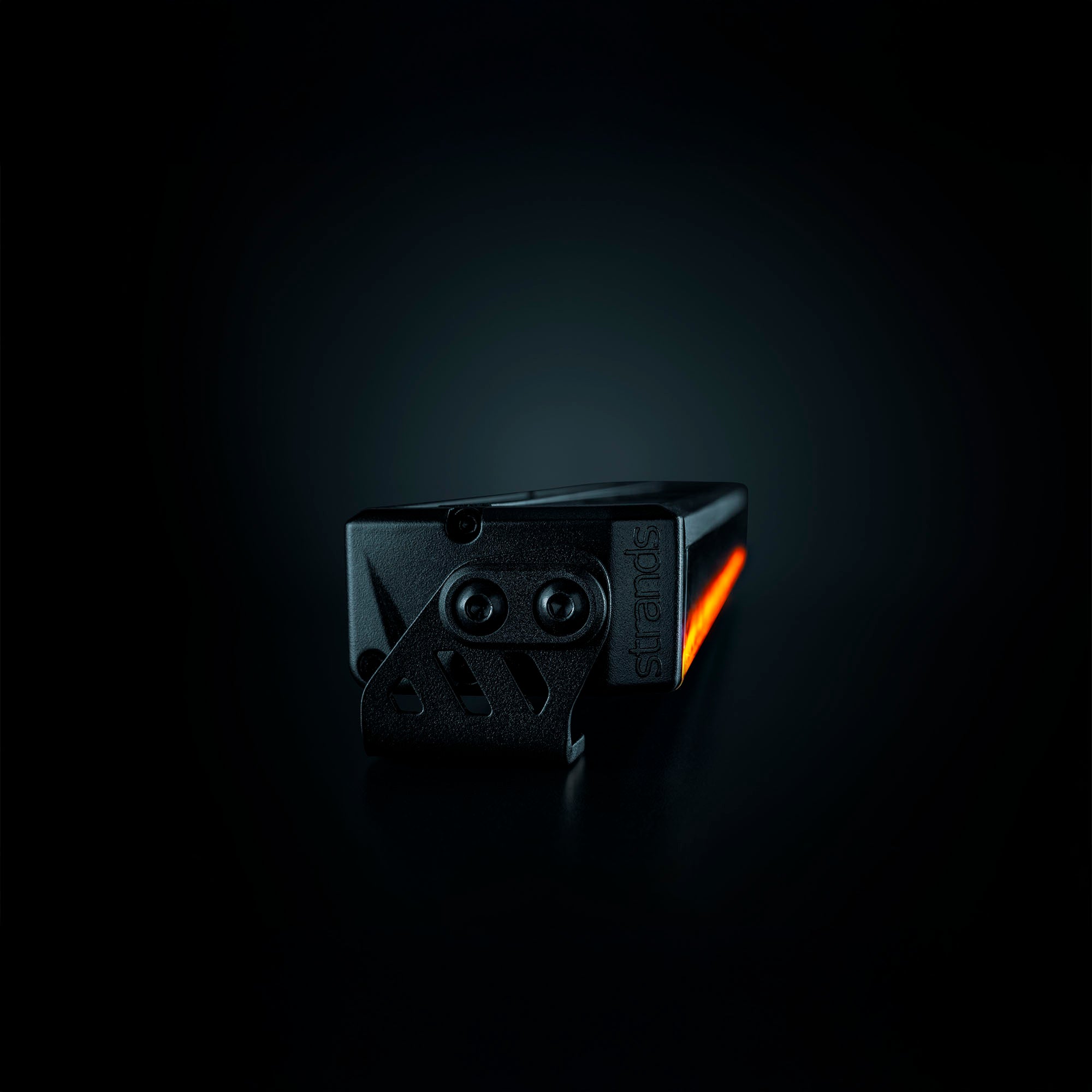

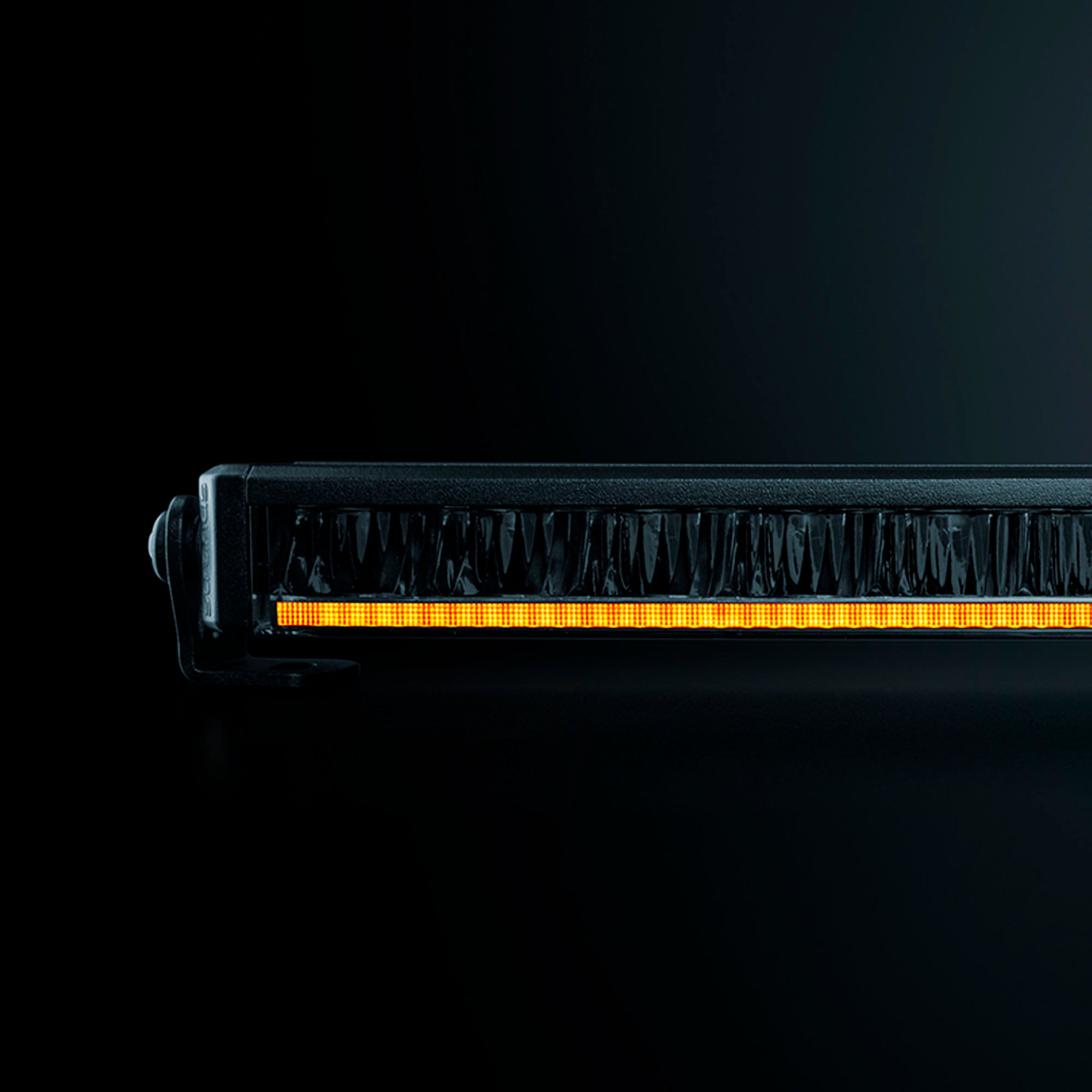

A dual-position light creates an amber glow beneath the LEDs for added visibility and style. The lens is made from unbreakable polycarbonate, and the unit is E-approved and waterproof to IP standard.
Two Mounting Options

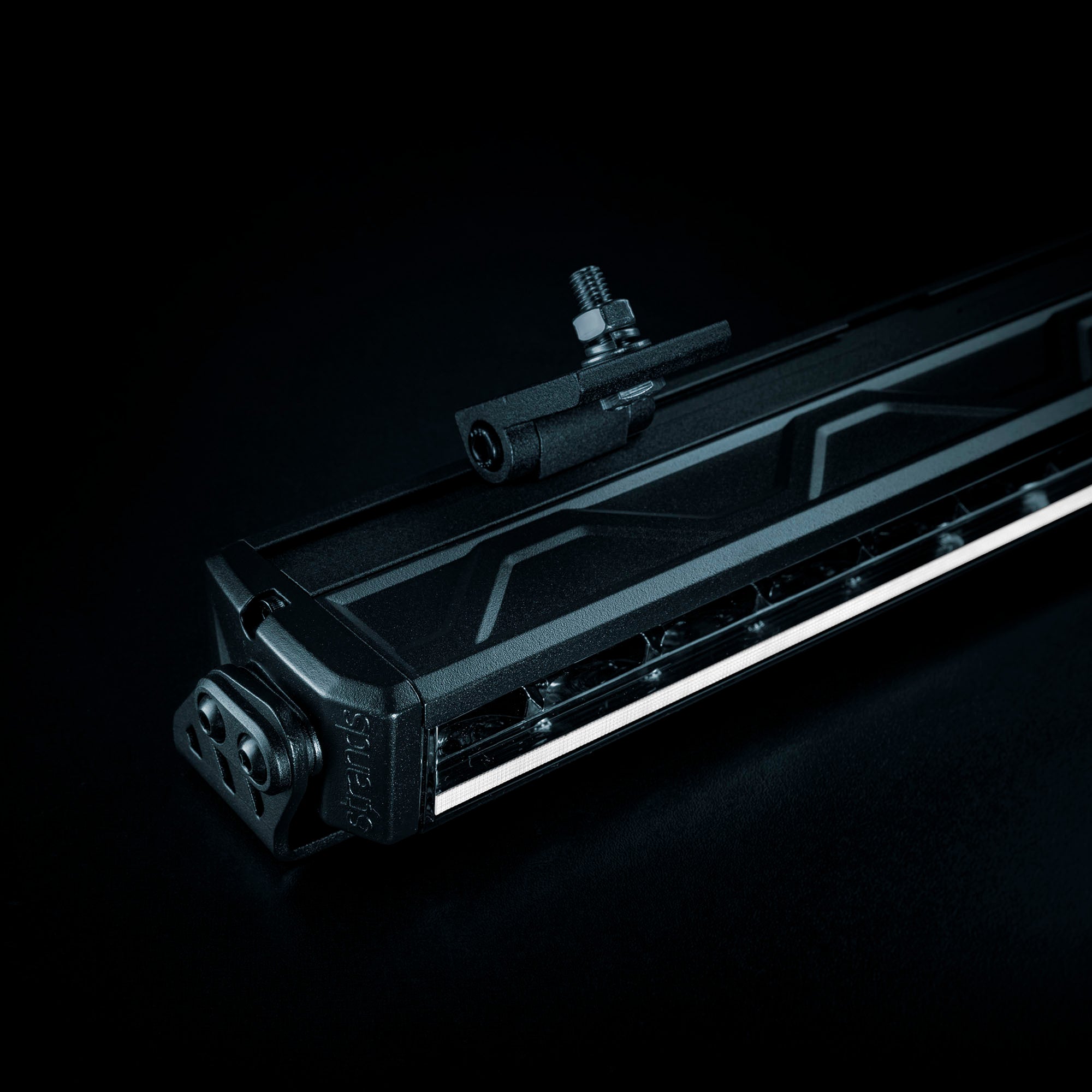

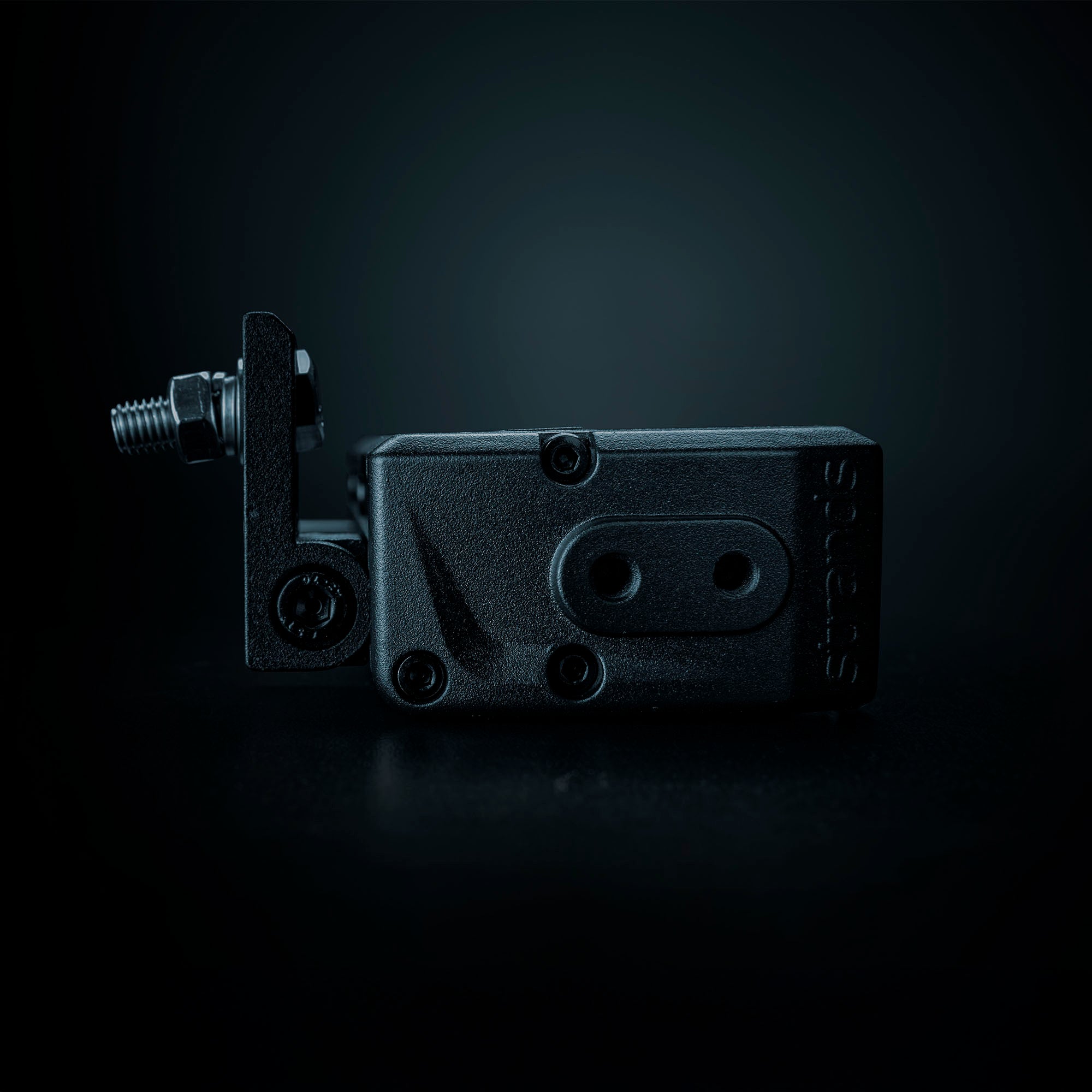

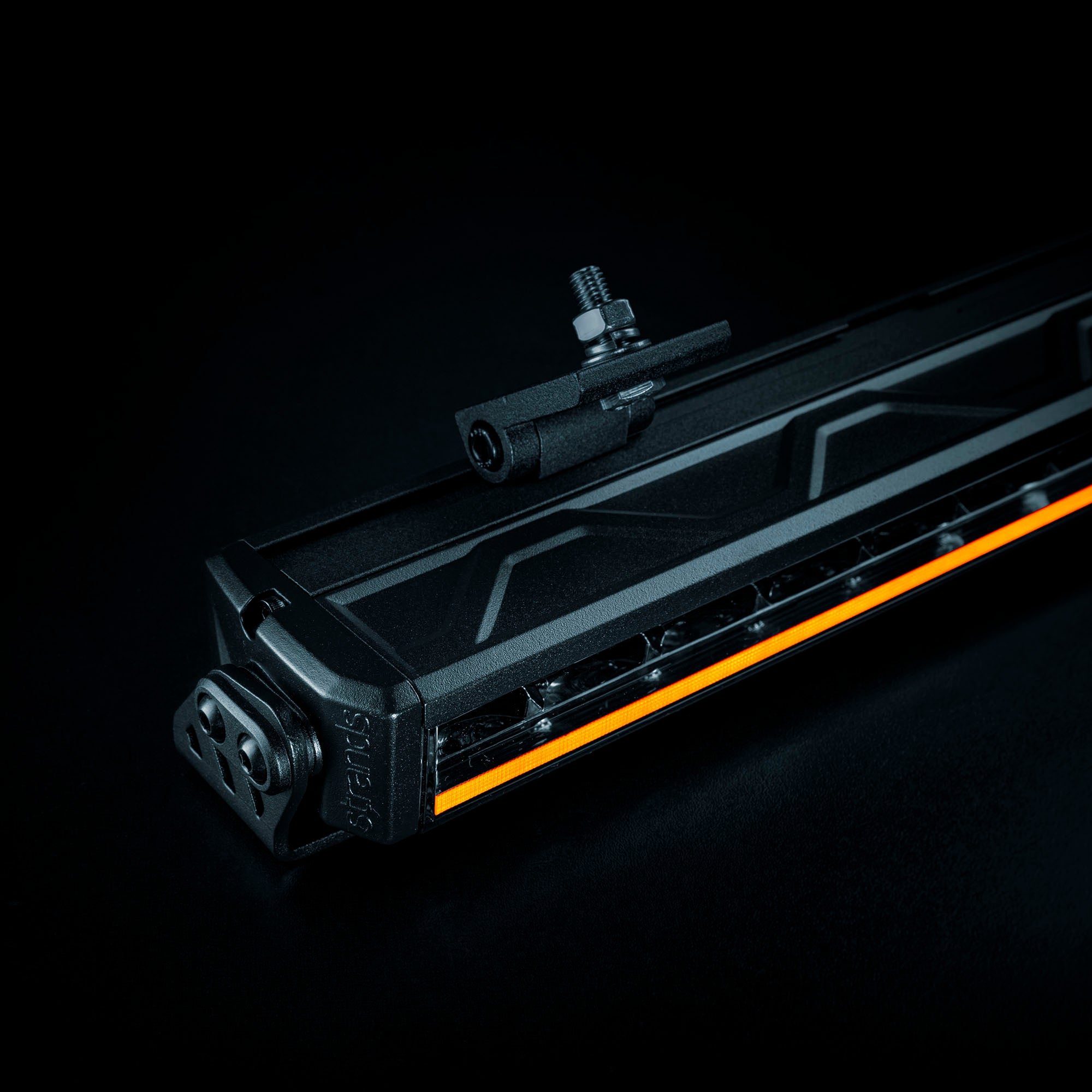

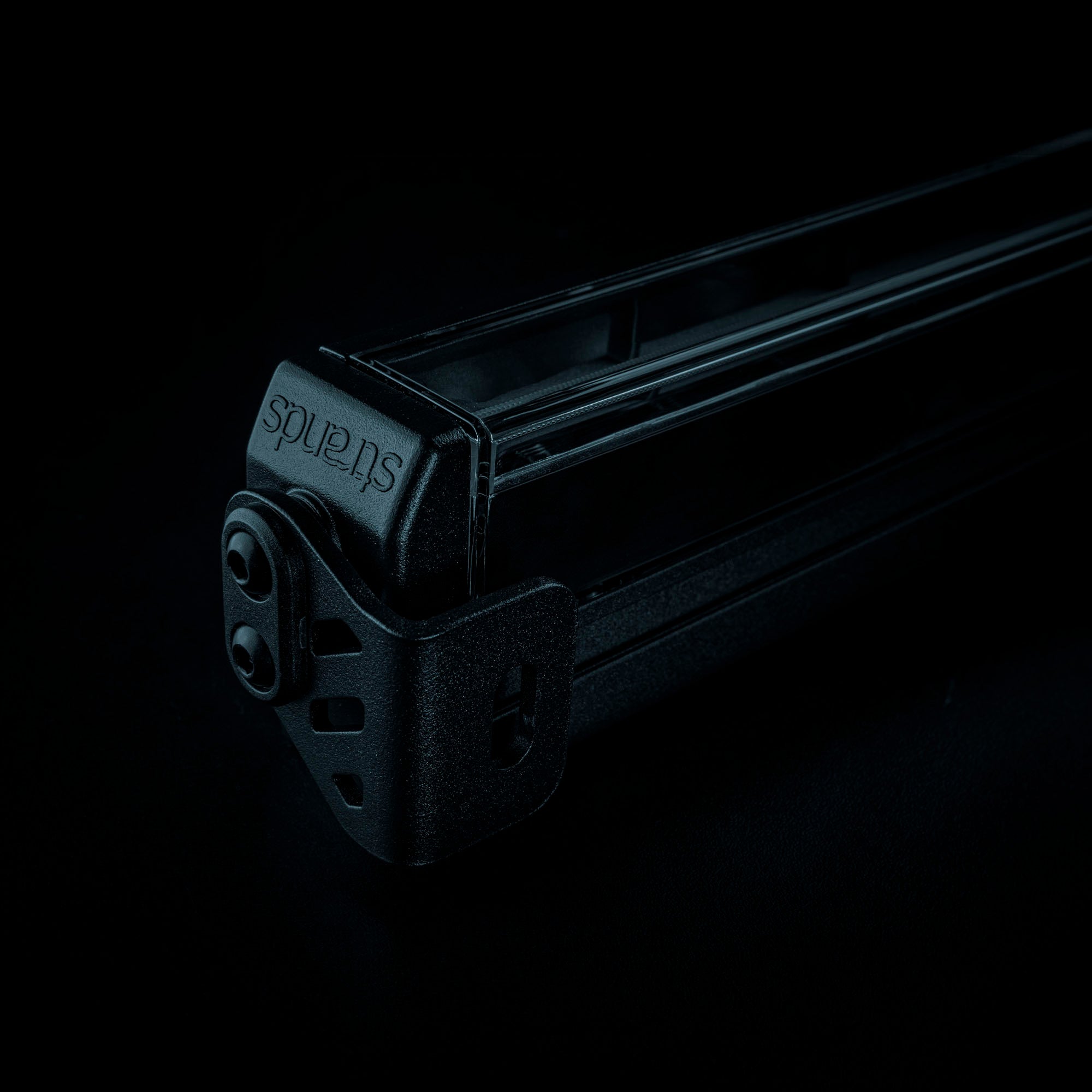

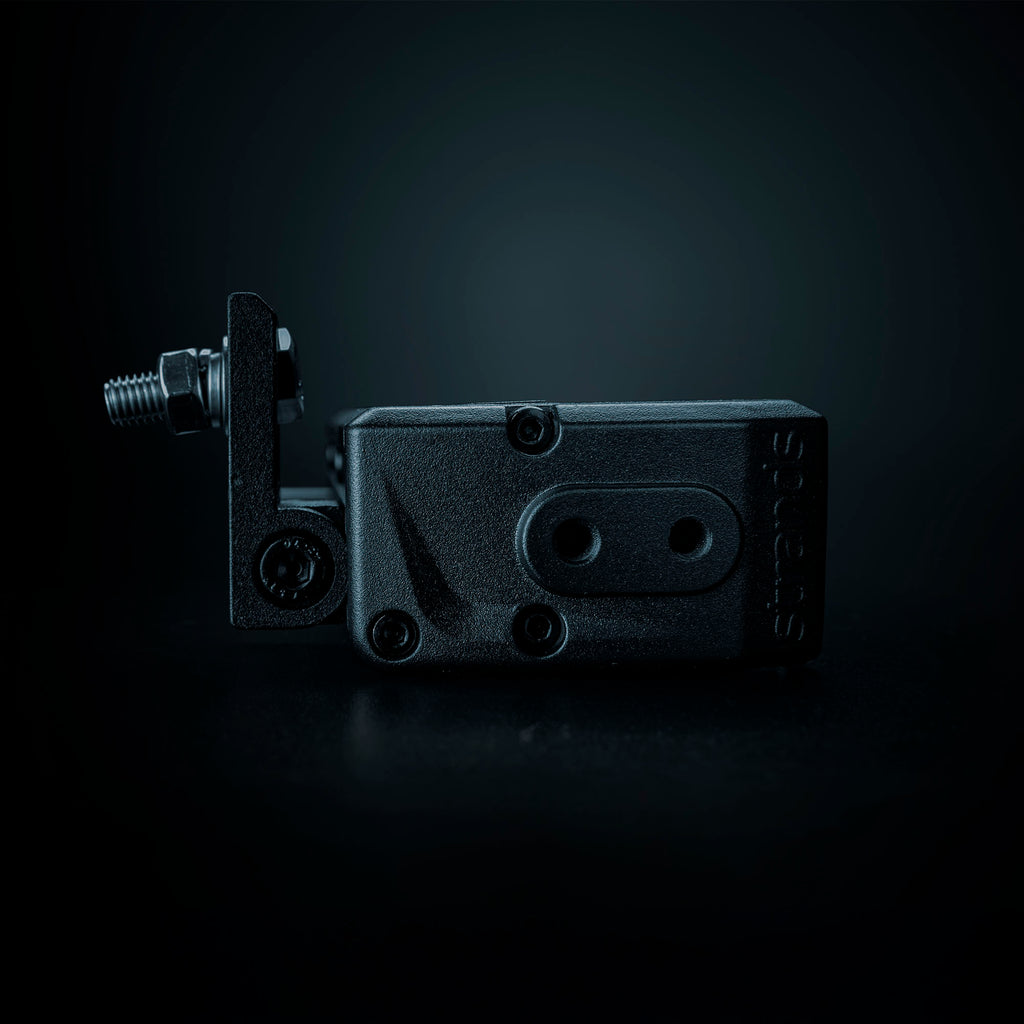

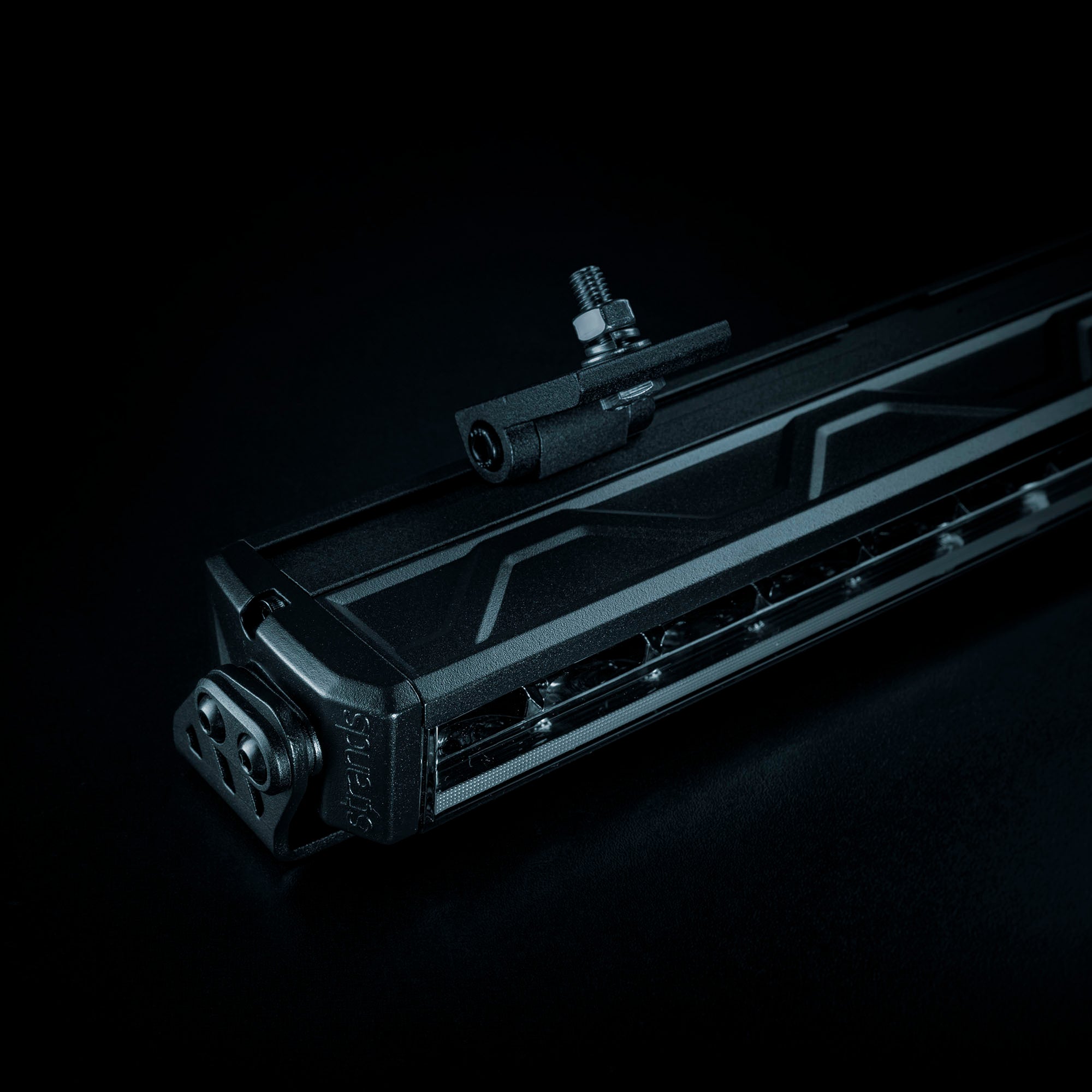

Installation offers two mounting options: side brackets for a stable, traditional setup, or adjustable brackets that mount on the side, top, or underside of the bar. It comes with brackets, screws, a 200 mm cable, and a DT-4 connector included.
Its compact size makes it well suited to pickups and light commercial vehicles.
| Spec |
10" |
20" |
| Voltage (DC) |
10-48V DC |
10-48V DC |
| Theoretical effect |
80W |
180W |
| Consumption |
72W |
160W |
| Functions |
Amber Pos. / White Pos. / Driving beam |
Amber Pos. / White Pos. / Driving beam |
| Consumption per function |
White 1W, Amber 1W, Driving 72W |
White 1W, Amber 1W, Driving 160W |
| Theoretical lumen |
6,200lm |
— |
| Actual lumen |
5,010lm |
10,670lm |
| 1 lux @ |
363m |
496m |
| Color temperature |
5700K |
5700K |
| Beam pattern |
Optimized beam |
Optimized beam |
| Beam angle |
26.1° |
26.6° |
| Connection |
DT-4PIN |
DT-4PIN |
| Cable length |
200mm |
200mm |
| Color housing |
Black |
Black |
| Color lens |
Clear |
Clear |
| Color LEDs |
White / Amber |
— |
| Bracket material |
Side: Stainless steel / Sliding: Aluminium |
Side: Stainless steel / Sliding: Aluminium |
| Housing material |
Aluminium |
Aluminium |
| Lens material |
Polycarbonate |
Polycarbonate |
| Length |
277mm |
515mm |
| Depth |
70mm |
70mm |
| Height |
38.5mm |
38.5mm |
| Height incl. bracket |
56mm |
56mm |
| Weight |
1.17kg |
1.98kg |
| CC |
249mm |
— |
| IP-class |
IP68 |
IP68 |
| Operating temperature |
-40 to +65°C |
-40 to +65°C |
| E-approved |
Yes |
Yes |
| ECE approval |
R10.06, R148, R149 |
R10.06, R148, R149 |
| Reference number |
25 |
50 |
| Size |
10" |
20" |
