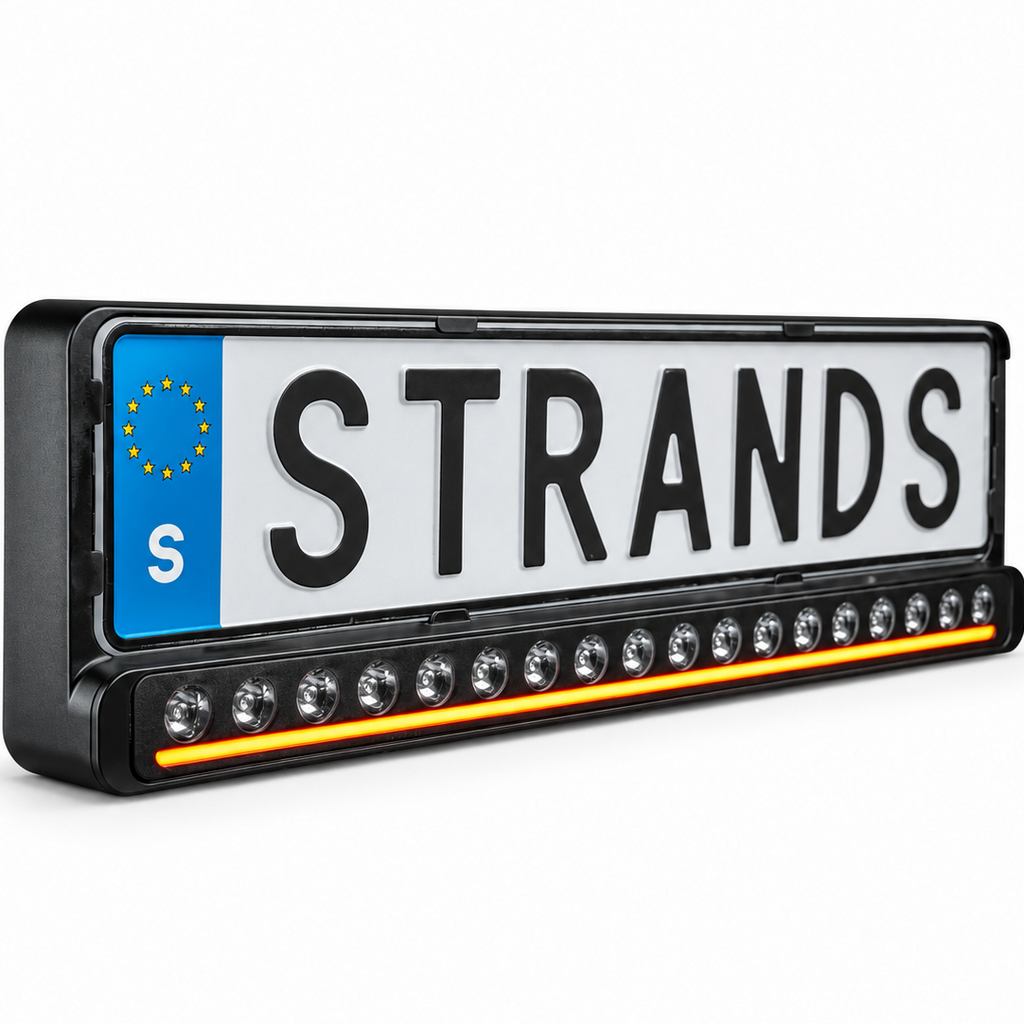

Strands D-Line License Plate LED Light Bar with 9600 Actual Lumens

The Nuuk D-Line 20” LED bar has an optimized beam with a range of more than 492 meters and 9600 actual lumens in Xperience mode (XP). The position light strip can be set to white or amber.

What is Xperience Mode?

Lights with Xperience Mode built in have two modes of operation:

• E-approved mode – Road-legal, high-performance lighting
  • The E-mode is E-approved R148/149 with reference number 20. Many drivers prefer this mode when driving in rainy or snowy weather, as it reduces the glare from water particles.
• XP Mode – Extreme brightness for off-road adventures
  • With Xperience mode, you’ll discover a powerful output ideal for the darkest nights.

The driver can easily switch between these modes by flashing the headlights three times.

It’s incredibly lightweight and slim, only 3,3 cm deep and 4,5 cm high, including the bracket. D-Line is an ideal addition to your built-in high beam. A standard high beam is usually quite broad, illuminating the sides of the road. With the D-Line, you’ll get more output in front for more range and better visibility. The result is a more comfortable, safer, and enjoyable driving experience.

Easy installation

The Nuuk D-Line has a slim black housing and lens, underlined by the glow of the white and amber position light. It’s easy to use, lightweight, has a built-in relay, and everything you need for installation is included.

This kit includes the Nuuk D-Line 20” LED bar (Part No. 809452) and the license plate bracket (Part No. 809450). It’s an easy and innovative way to install your LED bar. Fasten your LED bar into the bracket and replace your old license plate holder. The bracket has a slightly curved shape and follows the lines of your car. Thanks to the screw pattern you can attach it without unnecessary impact to your vehicle.

⭐Like all Strands products, this kit comes with a 3 Year Warranty⭐

Strands Nuuk D Line 20" Specifications:

• Voltage: 9–36V DC
• Theoretical Power: 124W
• Power Consumption:
  • E-mode: 32W
  • Xperience mode: 124W
• Functions: High beam, white & amber position light
• Specific Power Use:
  • White position light: 8.8W
  • Amber position light: 9W
• Theoretical Lumen Output: 11,000 lm
• Actual Lumen Output:
  • E-mode: 3,300 lm
  • Xperience mode: 9,600 lm
• 1 Lux Range:
  • E-mode: 291 m
  • Xperience mode: 492 m
• Colour Temperature: 5000K
• Beam Pattern: Optimized beam
• Beam Angle: 28.8°
• Connection: Cable
• Cable Length: 2500 mm
• Housing Colour: Black
• Lens Colour: Black
• Material - Bracket: Stainless steel
• Material - Housing/Chassis: Aluminium
• Material - Lens: Polycarbonate
• Dimensions:
  • Length: 513.5 mm
  • Depth: 32.8 mm
  • Height: 35.4 mm
  • Height incl. bracket: 44.5 mm
• Weight: 1.2 kg
• IP Rating: IP68 / IP69K
• Operating Temperature: -40°C to +60°C
• E-Approved: Yes
• Regulations: ECE R148, R149
• Reference Number: 20
• EMC Certification: ECE R10

• 2 × M4 screws with washers (for mounting LED bar)
• 4 × M6 adjustable screws
• 8 × M6 mounting screws
• 1 × 5mm spacer
• 1 × 8mm spacer
• 1 × number plate buckle
• 1 × extra buckle
