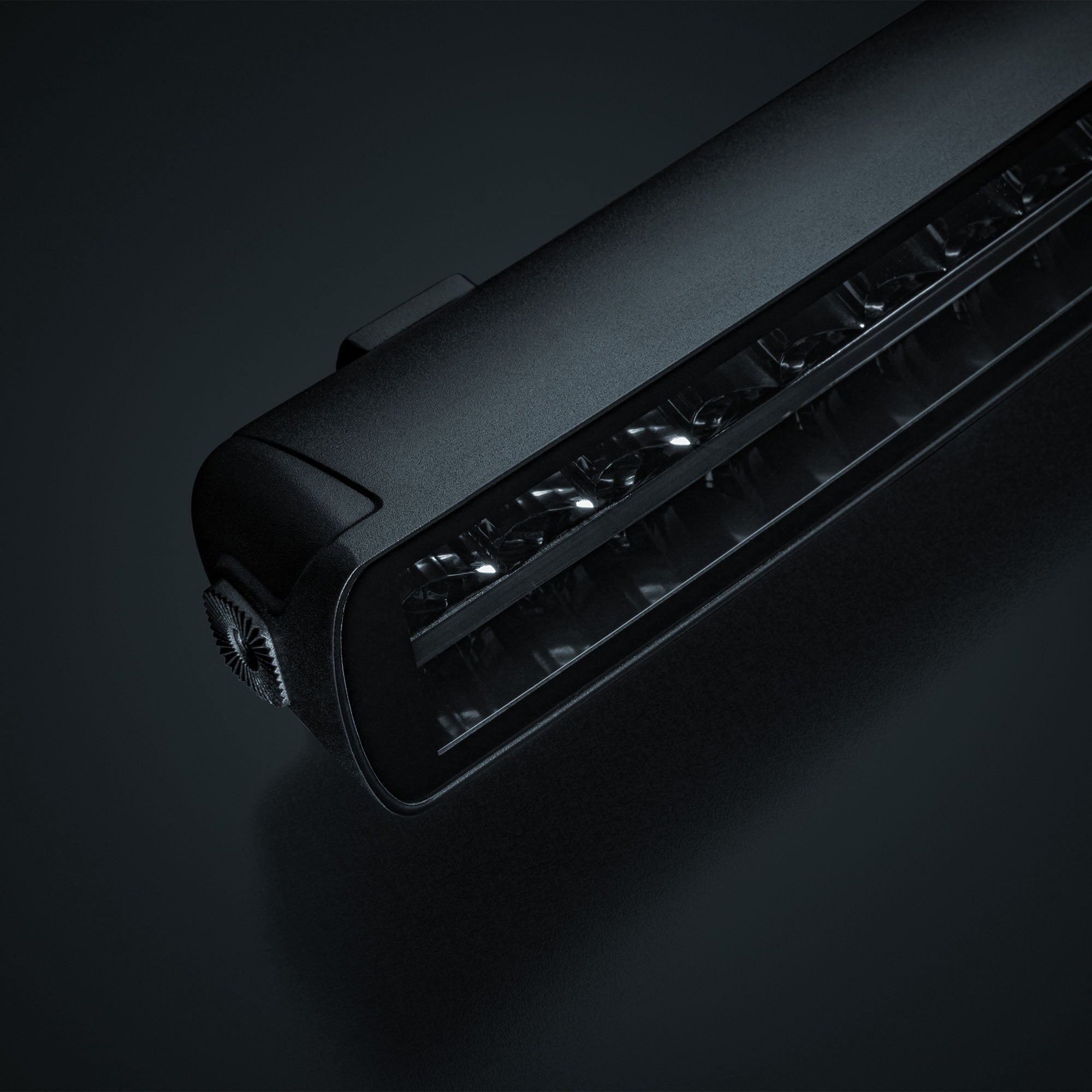

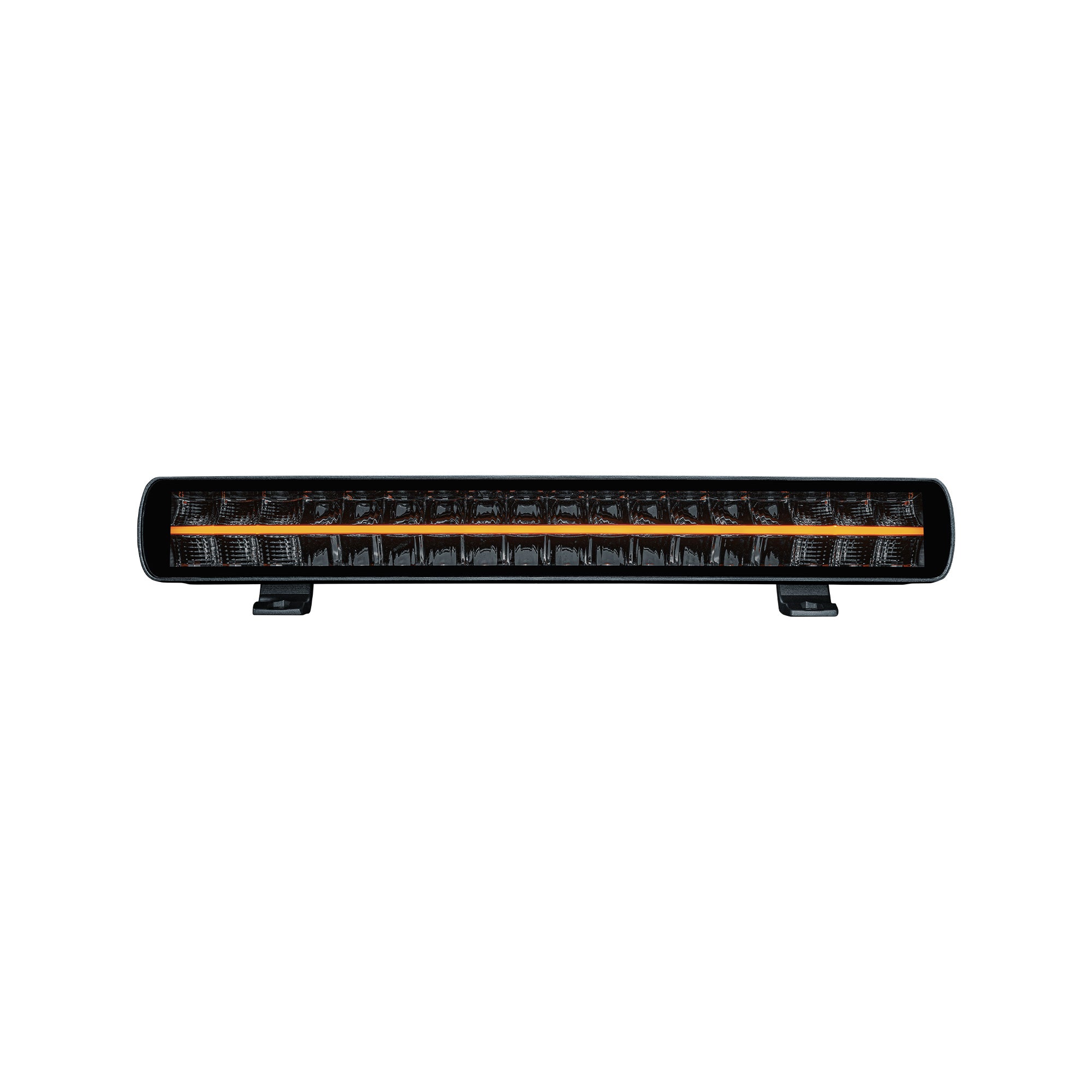

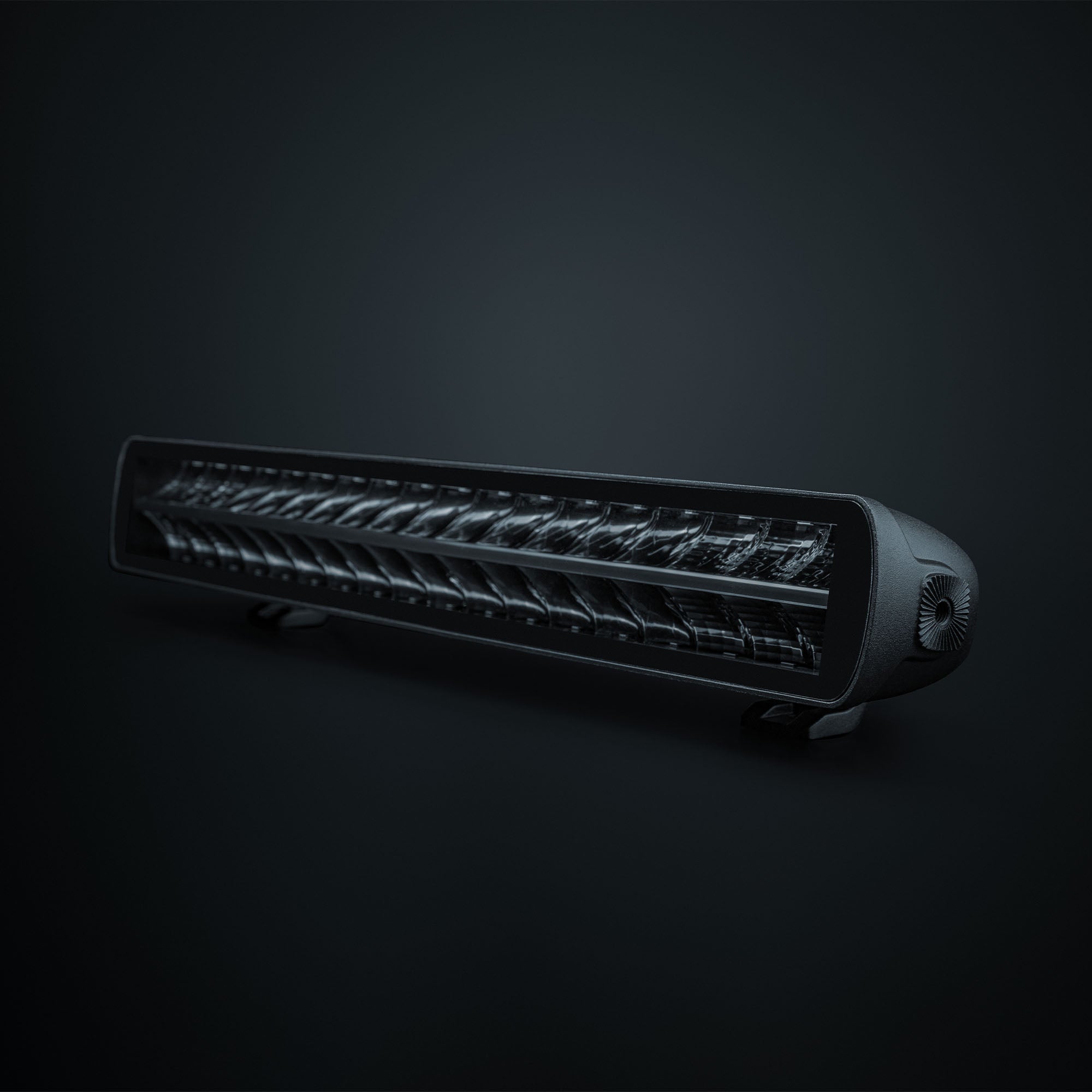

Strands Big Energy 20" Double Row LED Bar

The Strands Big Energy 20" Double Row LED Bar delivers uncompromising long-range performance with 25,500 actual lumens and a beam distance of up to 707 metres. Featuring Xperience and E-approved modes, plus white and amber position lights, it combines exceptional visibility with versatile functionality. Built with a robust aluminium housing, stainless-steel brackets and IP69K protection, it is designed to perform reliably in demanding conditions.

Designed to complement modern vehicles

The gently curved profile follows the natural contours of modern vehicle front ends, creating an integrated appearance without compromising performance. Built-in white and amber position lights allow you to customize the look to match your vehicle and personal preferences.

Position Light Options:

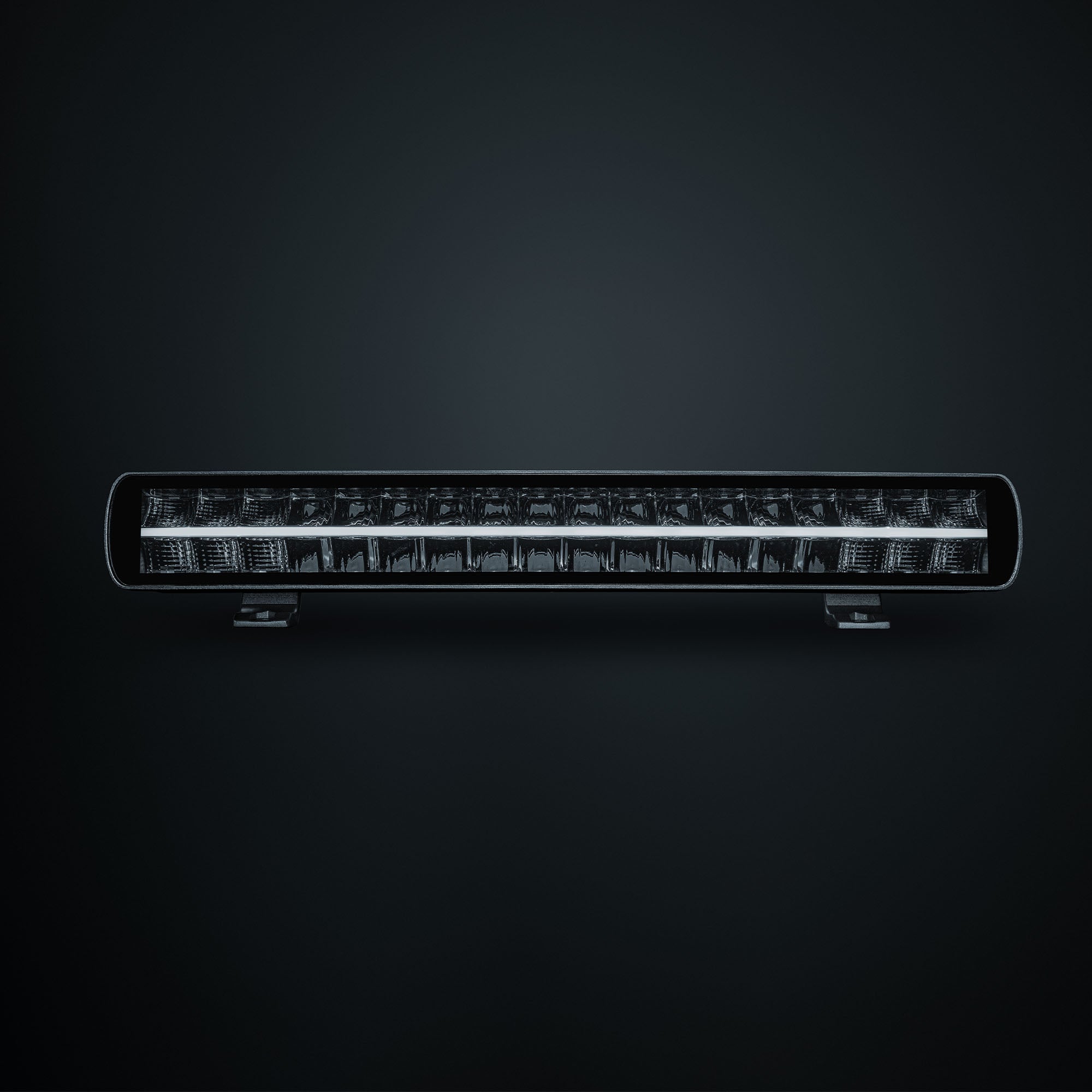

• White position light – Clean and modern appearance.

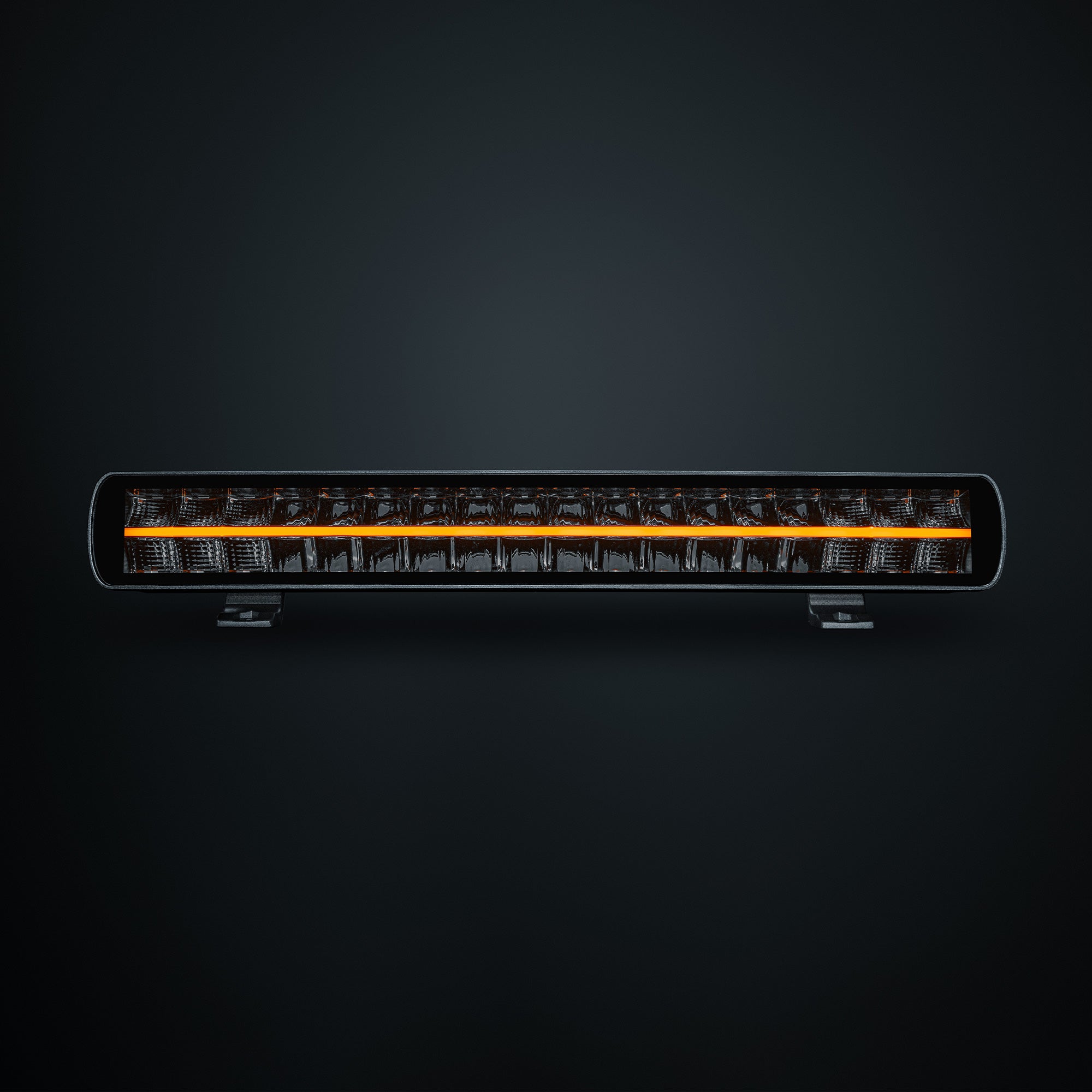

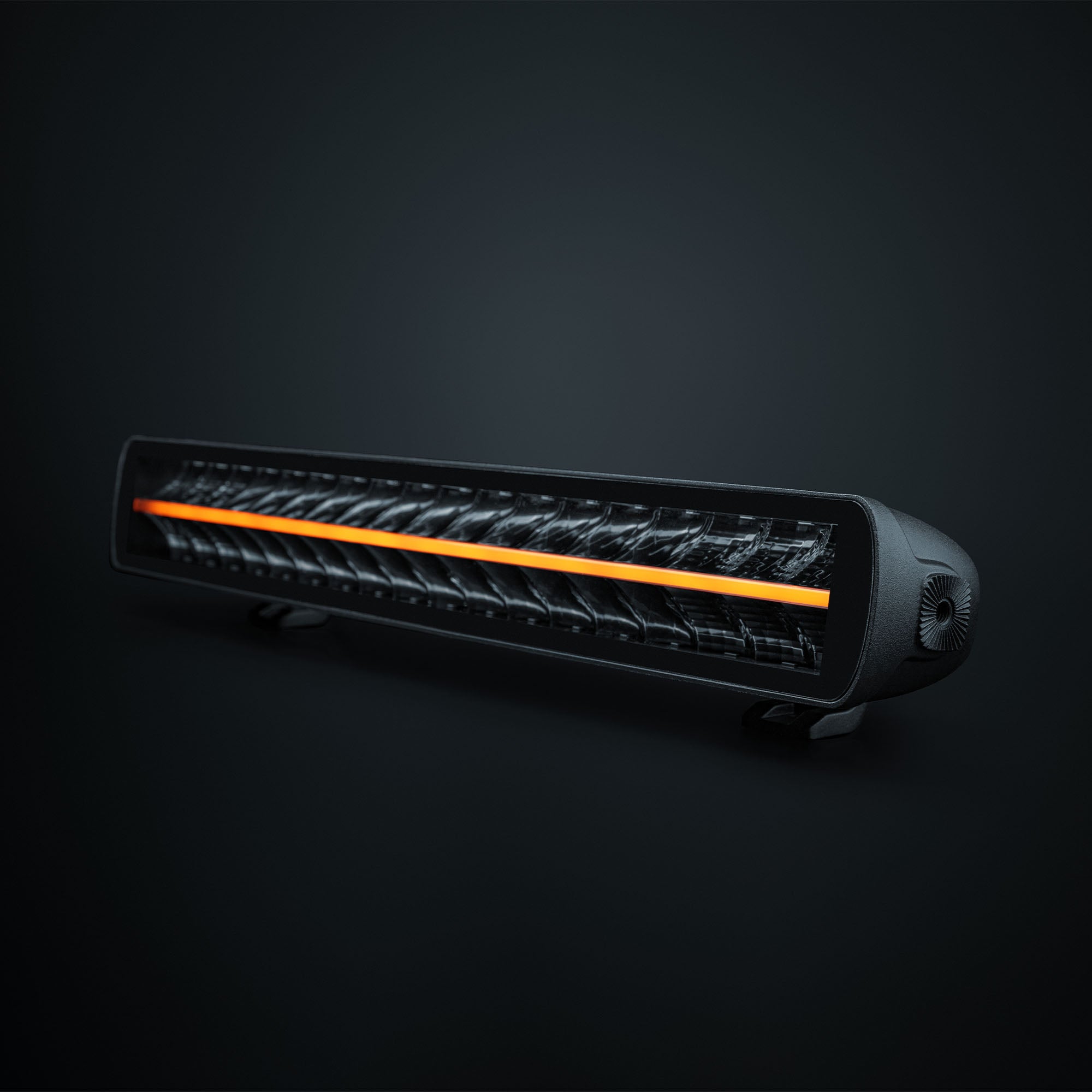

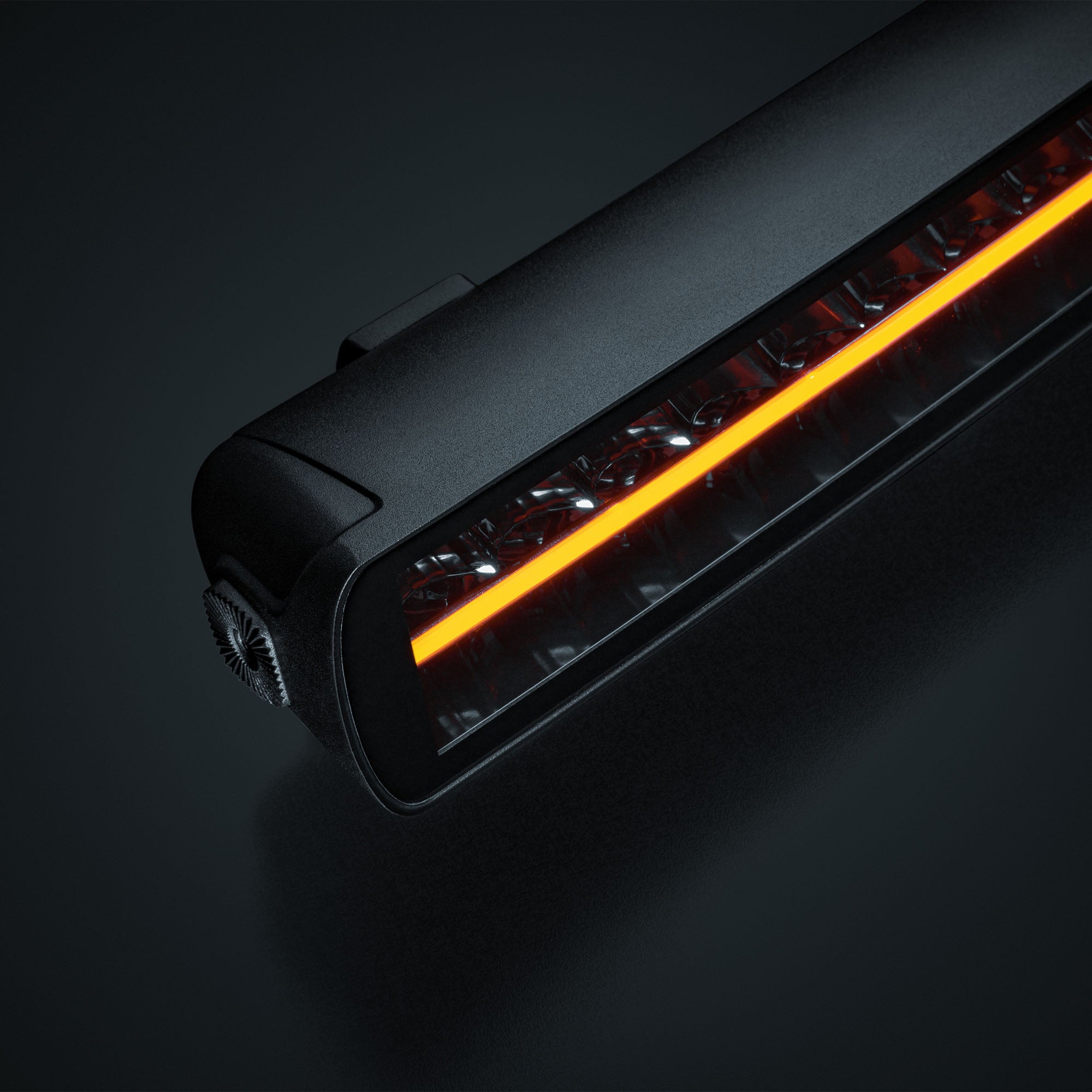

• Amber position light – Distinctive styling with enhanced visibility.

Easy Installation - Click Here For Wiring Manual

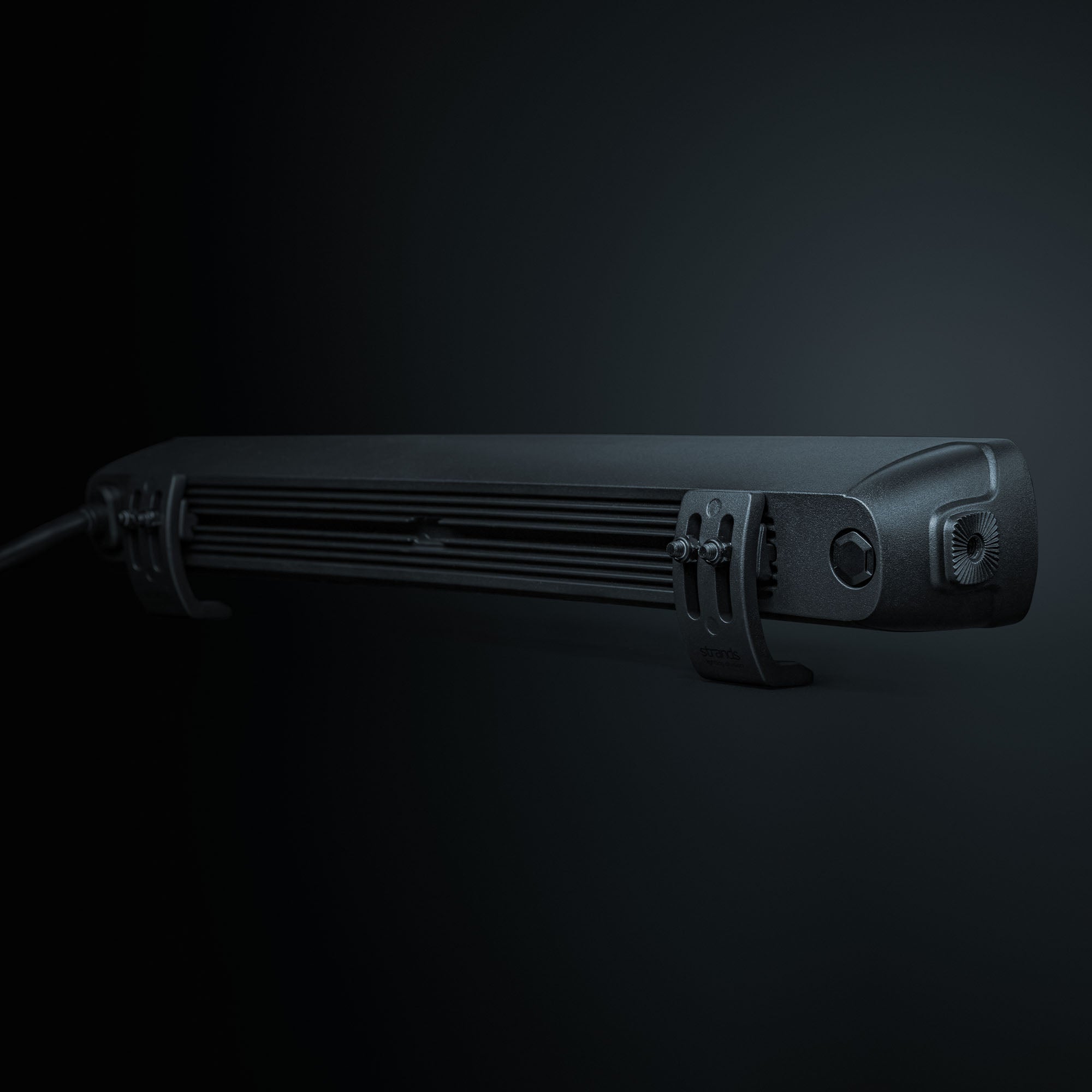

To reduce wiring complexity and speed up installation, the Big Energy LED Light Bar is equipped with an integrated relay. The package includes hanging brackets, mounting hardware, and installation accessories, making setup straightforward and secure.

A 2.5-metre cable is included for flexible installation. For seamless connection to an XBB system, the Strands Pro XBB Wiring Kit (Art. No. 907003) is recommended. The kit simplifies installation and includes a dedicated position light control button mounted in the engine compartment, allowing easy switching between the white and amber position light functions.

Built to Last

Constructed to withstand harsh weather, road debris, and demanding daily use, the Big Energy LED Light Bar features an IP69K rating, one of the highest levels of protection available against water and dust ingress. This ensures reliable performance in extreme operating conditions, whether on highways, work vehicles, or off-road adventures.

Warranty

For added peace of mind, the Big Energy LED Light Bar is backed by Strands' 3-year function warranty, ensuring dependable performance mile after mile.

Key Features

• 25,500 actual lumens: Exceptional light output for demanding driving conditions.
• 707 m beam distance: Long-range visibility at 1 lux.
• Xperience mode: Maximum light output with 287 W consumption.
• E-approved mode: Road-compliant lighting with reduced output for everyday driving.

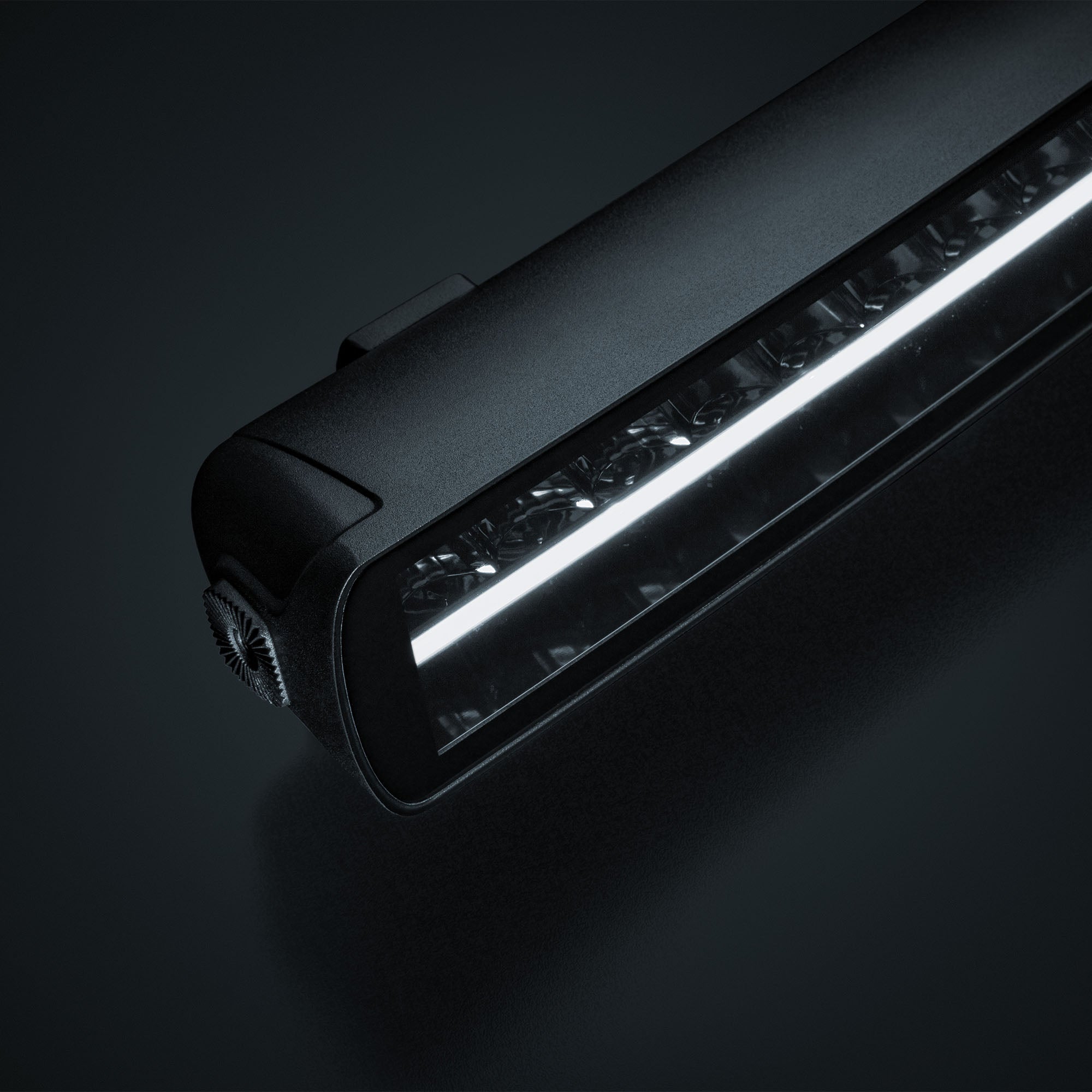

• White & amber position lights: Choose between a clean white or distinctive amber appearance.
• 5700 K colour temperature: Crisp, natural white light for excellent clarity and contrast.
• Long-distance beam: 20.3° beam angle for powerful forward illumination.
• ECE approved: R148, R149 and R10.07.
• Reference number 20: Approved reference marking for road use.
• IP69K protection: Designed to withstand demanding weather and environmental conditions.

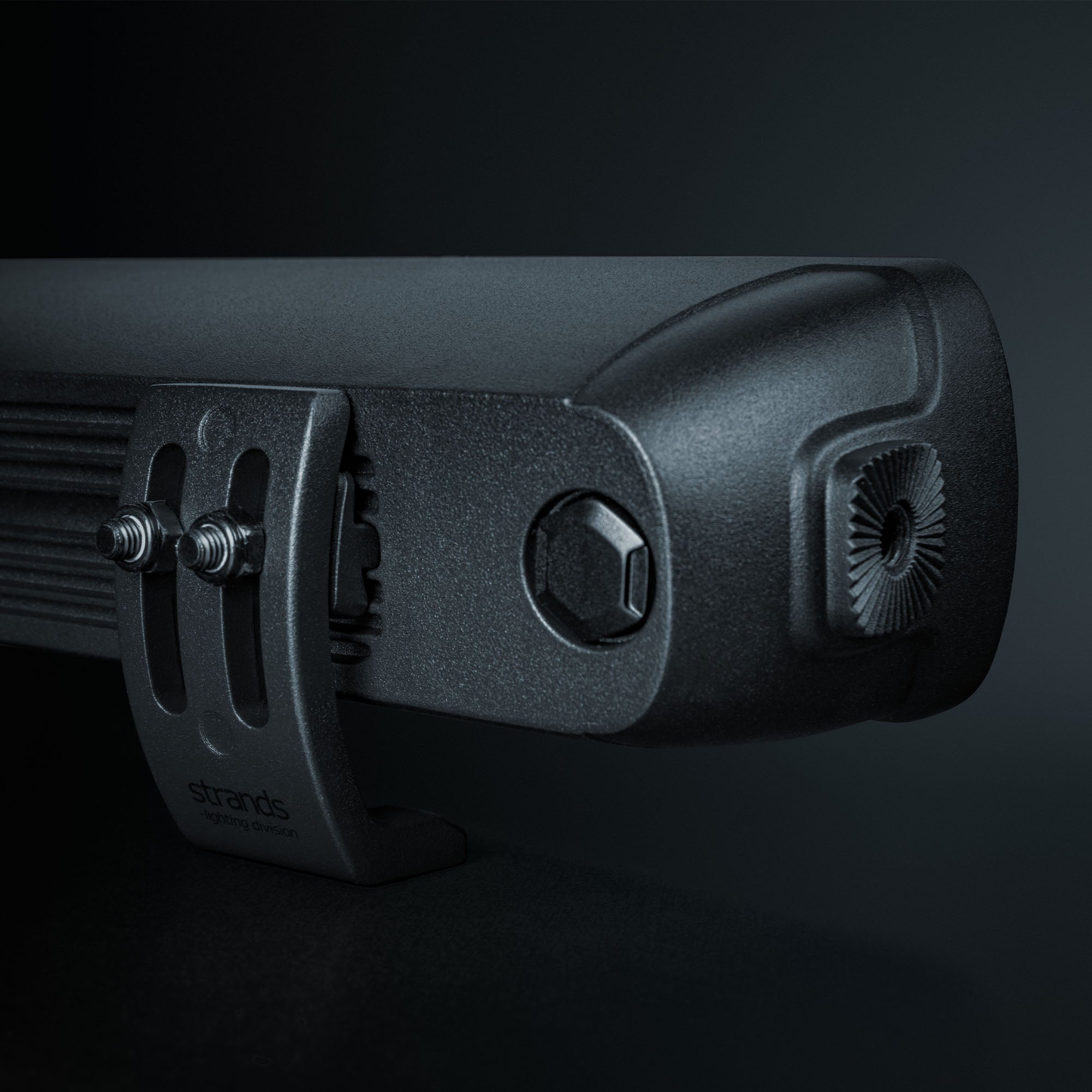

• Robust construction: Aluminium housing, polycarbonate lens and stainless-steel brackets.
• Integrated cable: Supplied with a 2500 mm cable for flexible installation.

Technical Specifications

• Voltage (DC): 9–16 V DC
• Theoretical effect: 300 W
• Consumption: 287 W
• Xperience mode: 287 W
• E-approved mode: 28 W
• Amber position light: 3.6 W
• White position light: 3.6 W
• Theoretical lumen: 30,000 lm
• Actual lumen: 25,500 lm
• 1 lux @: 707 m
• Colour temperature: 5700 K
• Beam pattern: Long-distance beam
• Beam angle: 20.3°
• Connection: Cable
• Cable length: 2500 mm
• Housing colour: Black
• Lens colour: Clear
• LED colours: White / Amber
• Bracket material: Stainless steel
• Housing/chassis material: Aluminium
• Lens material: Polycarbonate

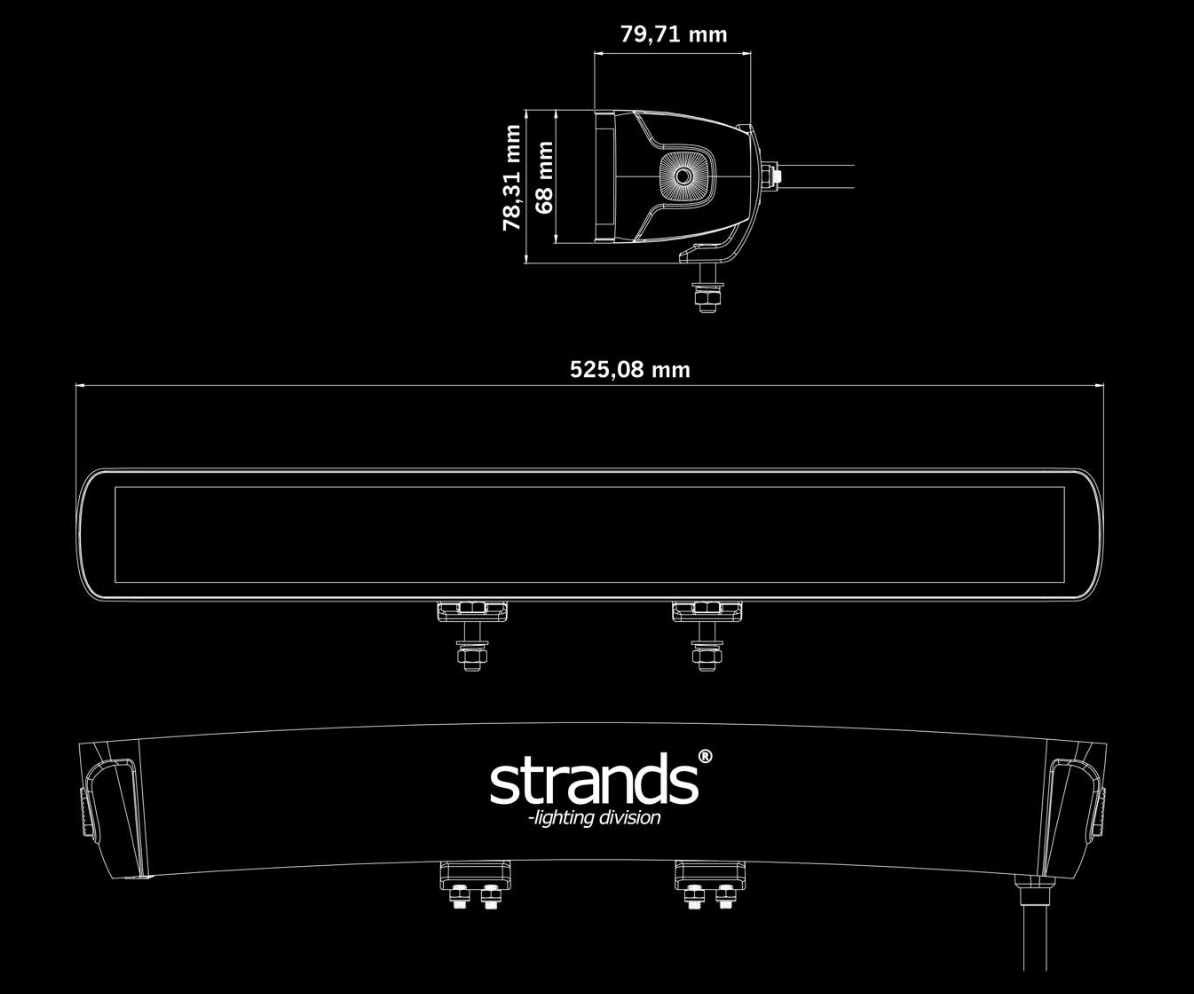

• Length: 525 mm
• Depth: 79.7 mm
• Height: 68 mm
• Height including bracket: 78.31 mm
• Weight: 2.7 kg
• IP class: IP69K
• Operating temperature: -35°C to +60°C
• E-approved: Yes
• ECE approval: R148 / R149 / R10.07
• Reference number: 20
