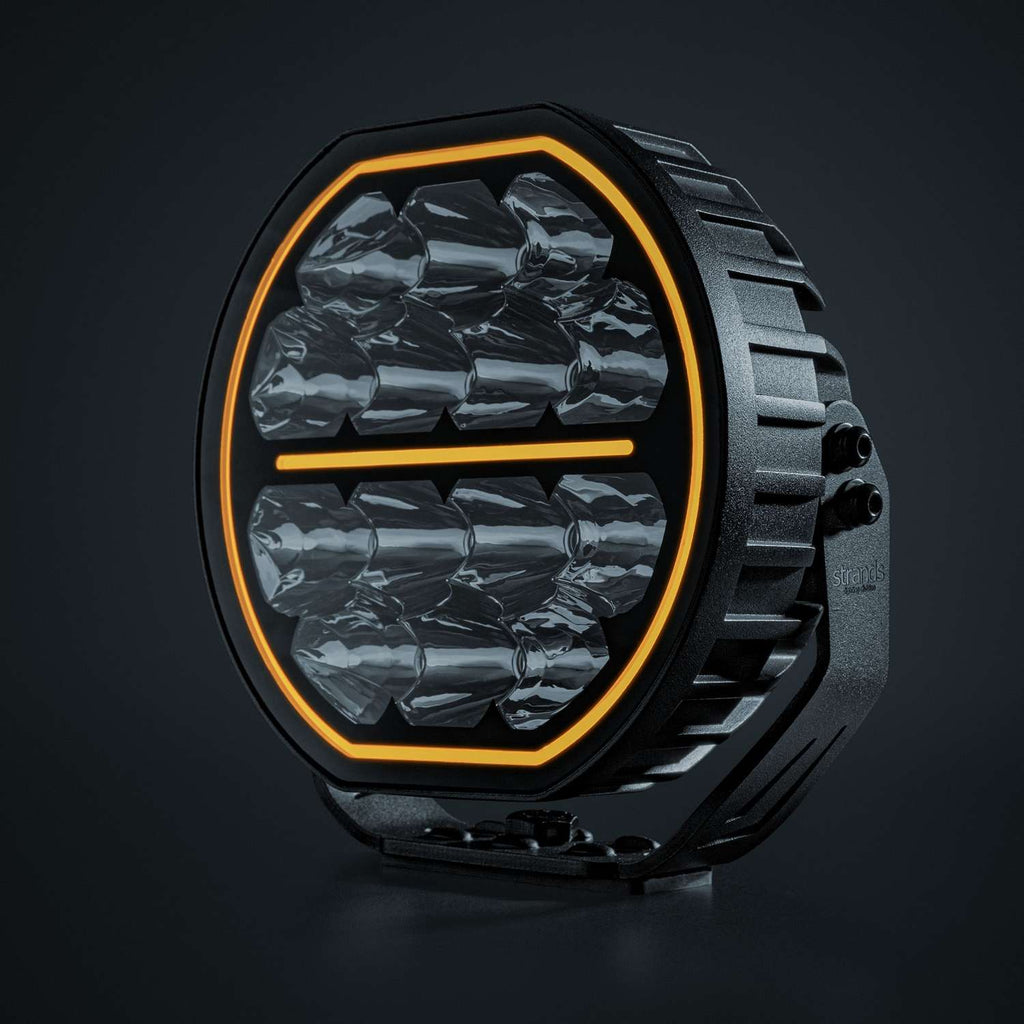

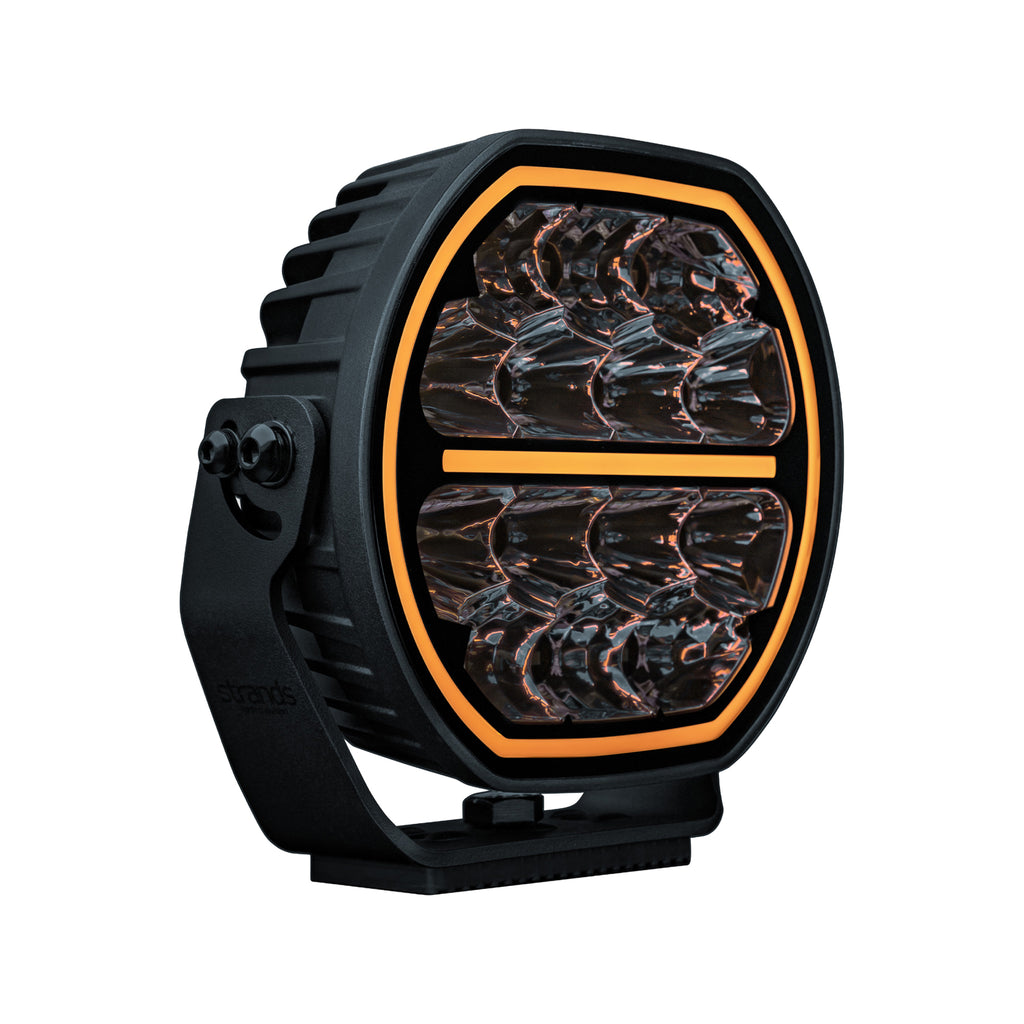

Strands 7" Big Energy 2.0 LED Driving Lamp

The new generation of Big Energy driving lights is here. With improved range and a new beam pattern, the Big Energy 2.0 is a perfect place to start exploring what a driving light can do for your driving experience.

With 9100 actual lumens and 600-meter range in Xperience mode, this 7” driving light packs a real punch. The E-mode is E-approved R148/149 with reference number 20. The light has white and amber position lights. It has a DT4 connector on the cable for easy wiring using the Strands Wiring Kits. The Big Energy 2.0 is fully waterproof and IP-rated IP69K and made from durable materials. It is also covered by Strands’ 3-year warranty.

Strands Big Energy 2.0 / 7 Inch Lamp Driving Light

Electrical Parameters

• Voltage (DC): 10–32 V DC
• Theoretical power: 105 W
• Power consumption: 98.0 W

Functions

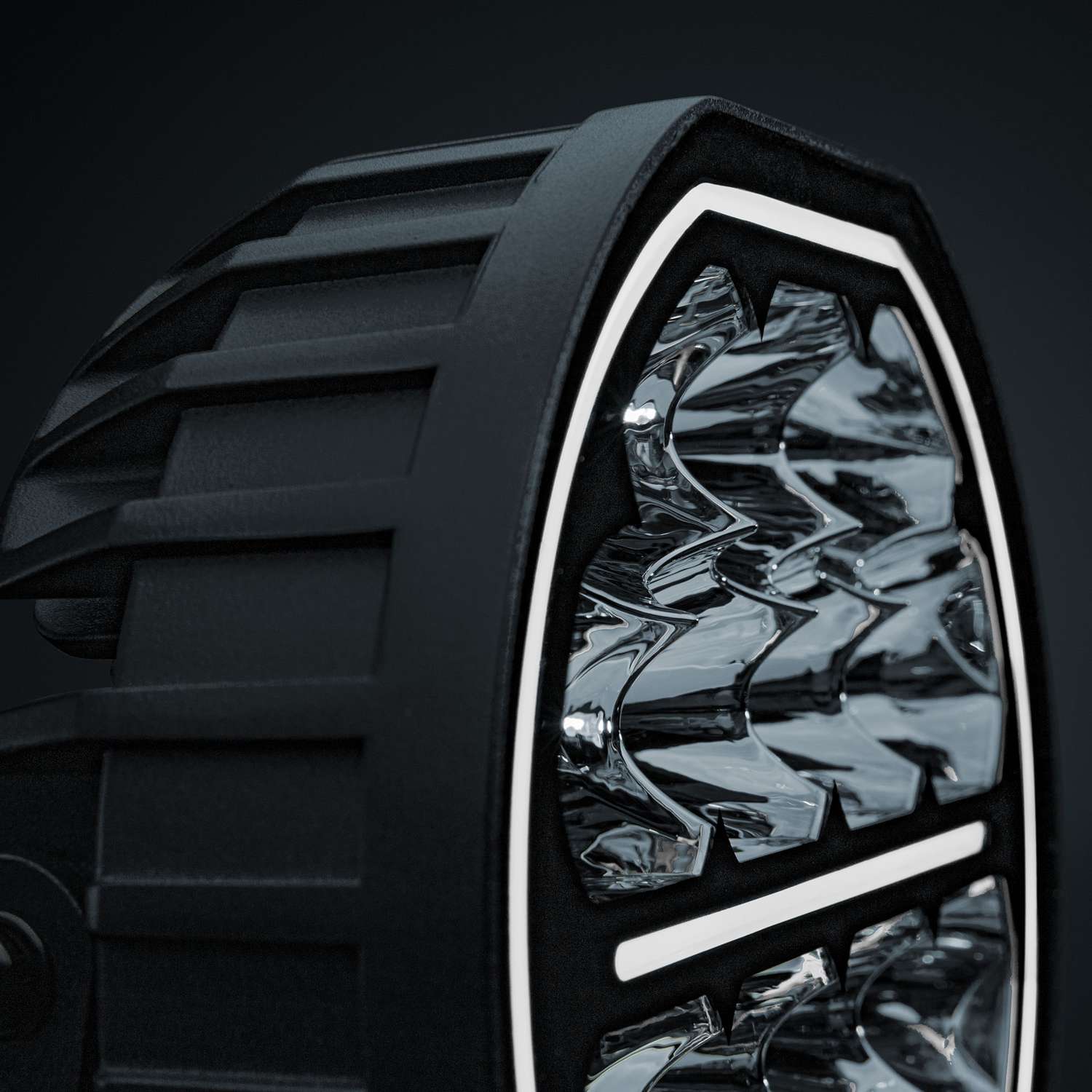

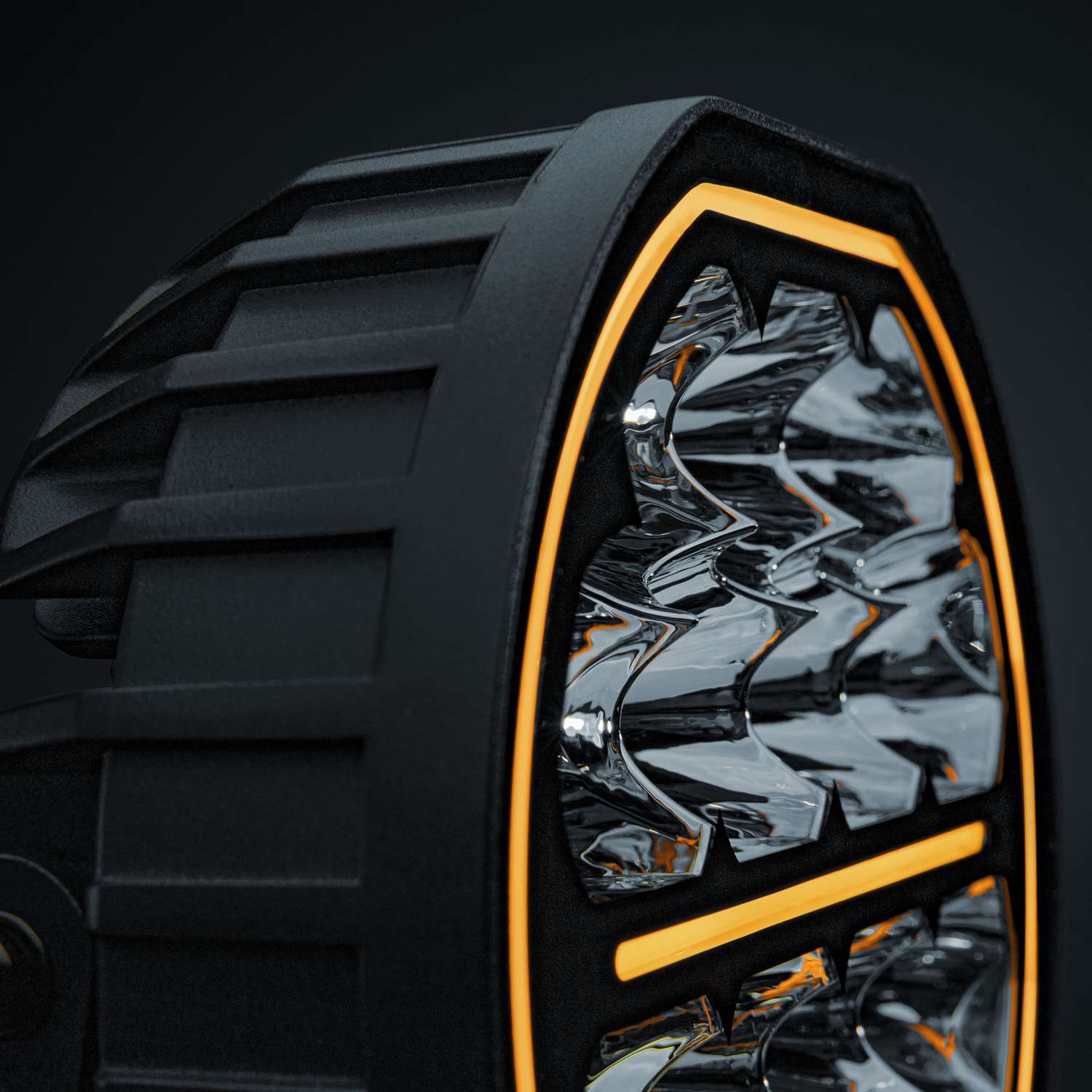

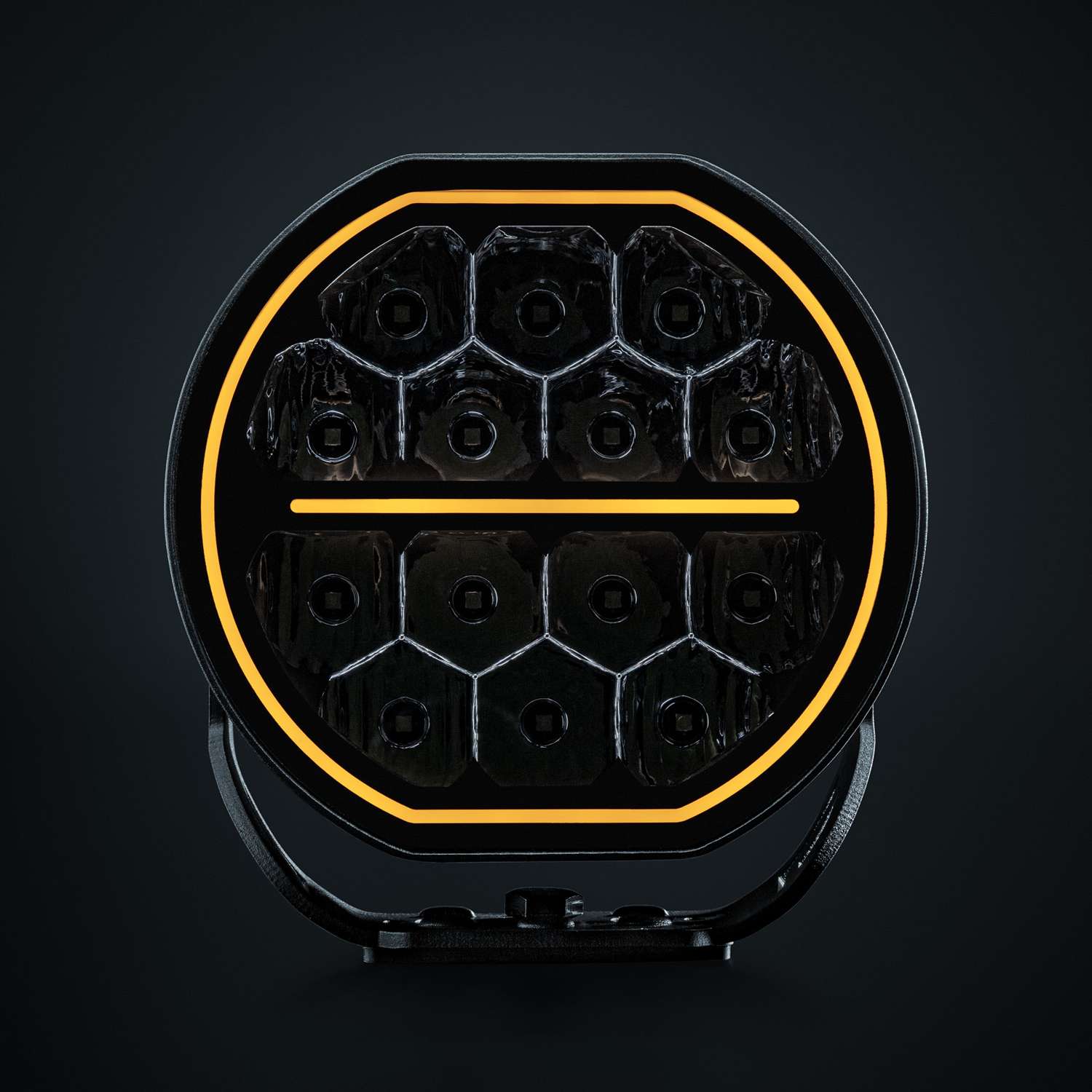

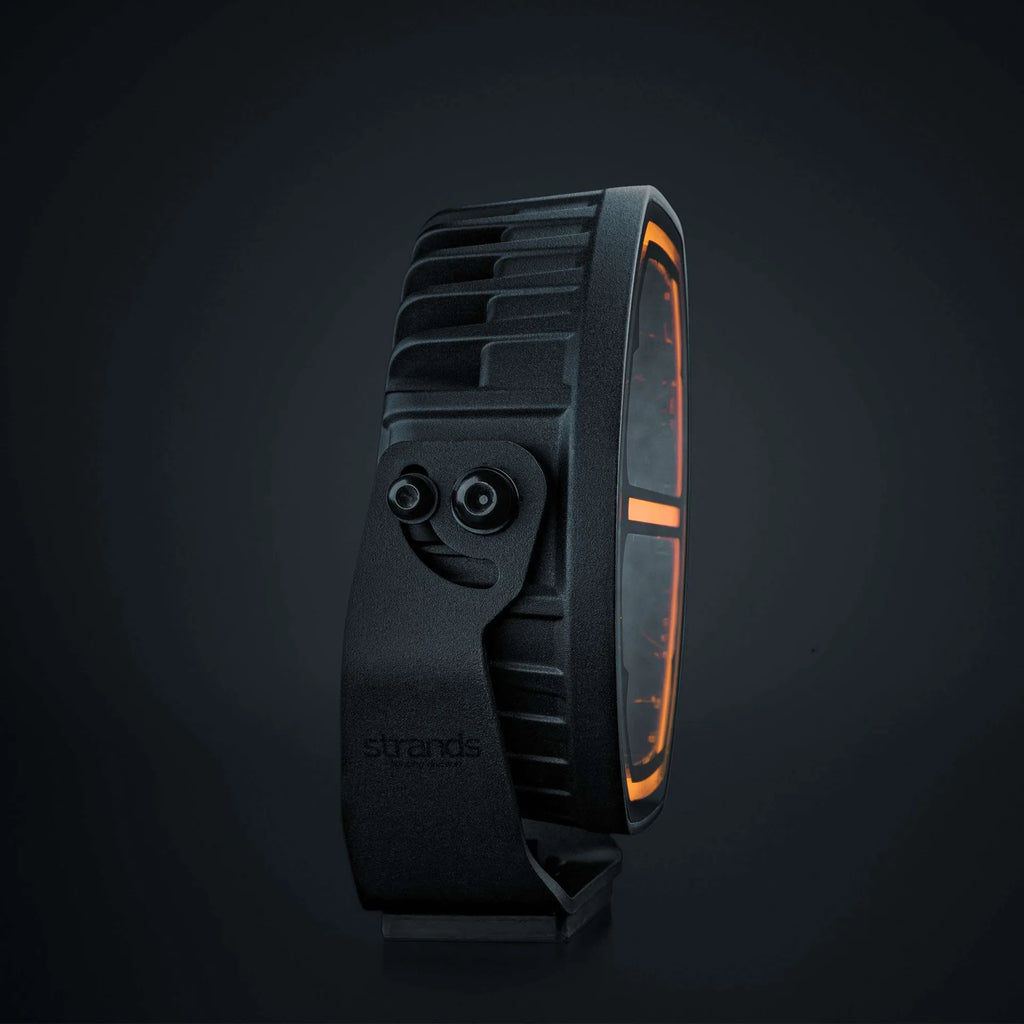

• Amber position light

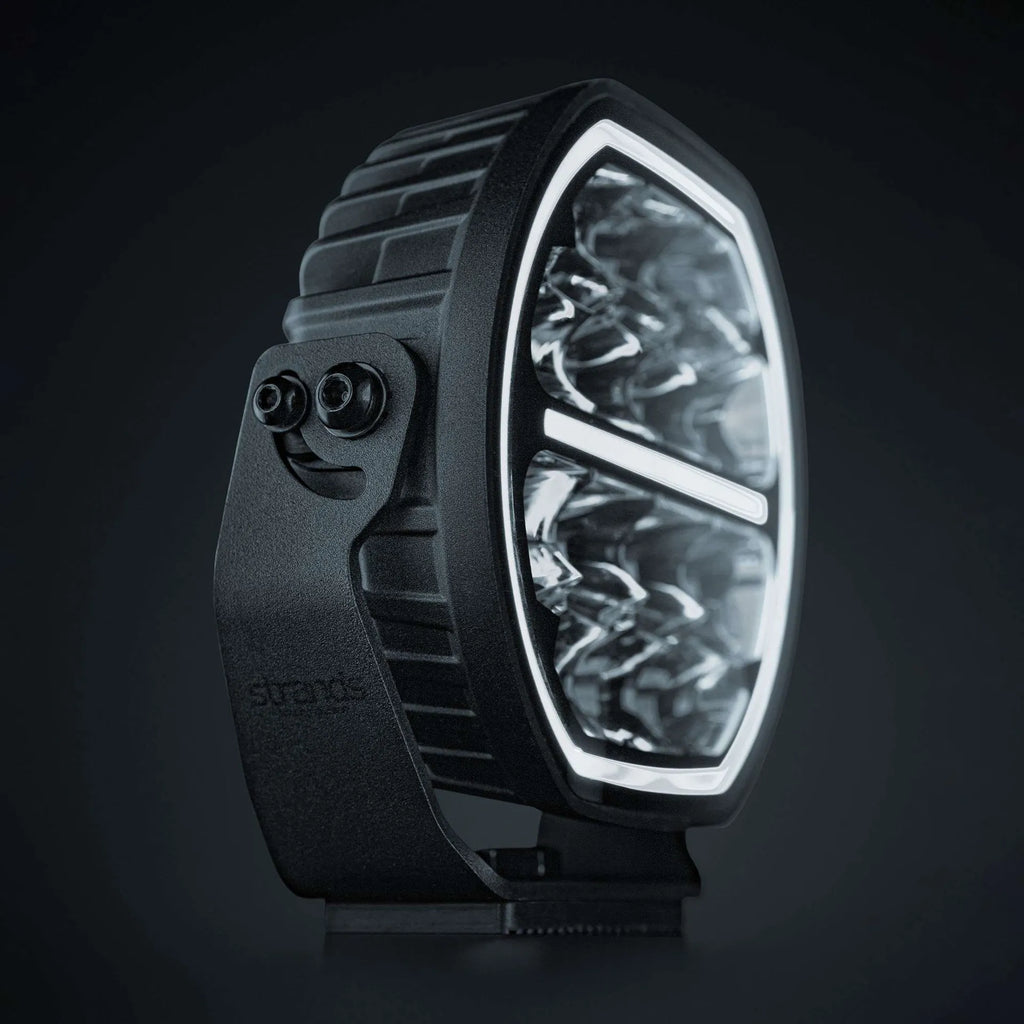

• White position light
• Driving beam

Power consumption by function:

• X-mode: 98 W
• E-mode: 24 W
• Amber position: 6.5 W
• White position: 6 W

Optical Specifications

• Theoretical luminous flux: 10,000 lm
• Actual luminous flux: 9,100 lm

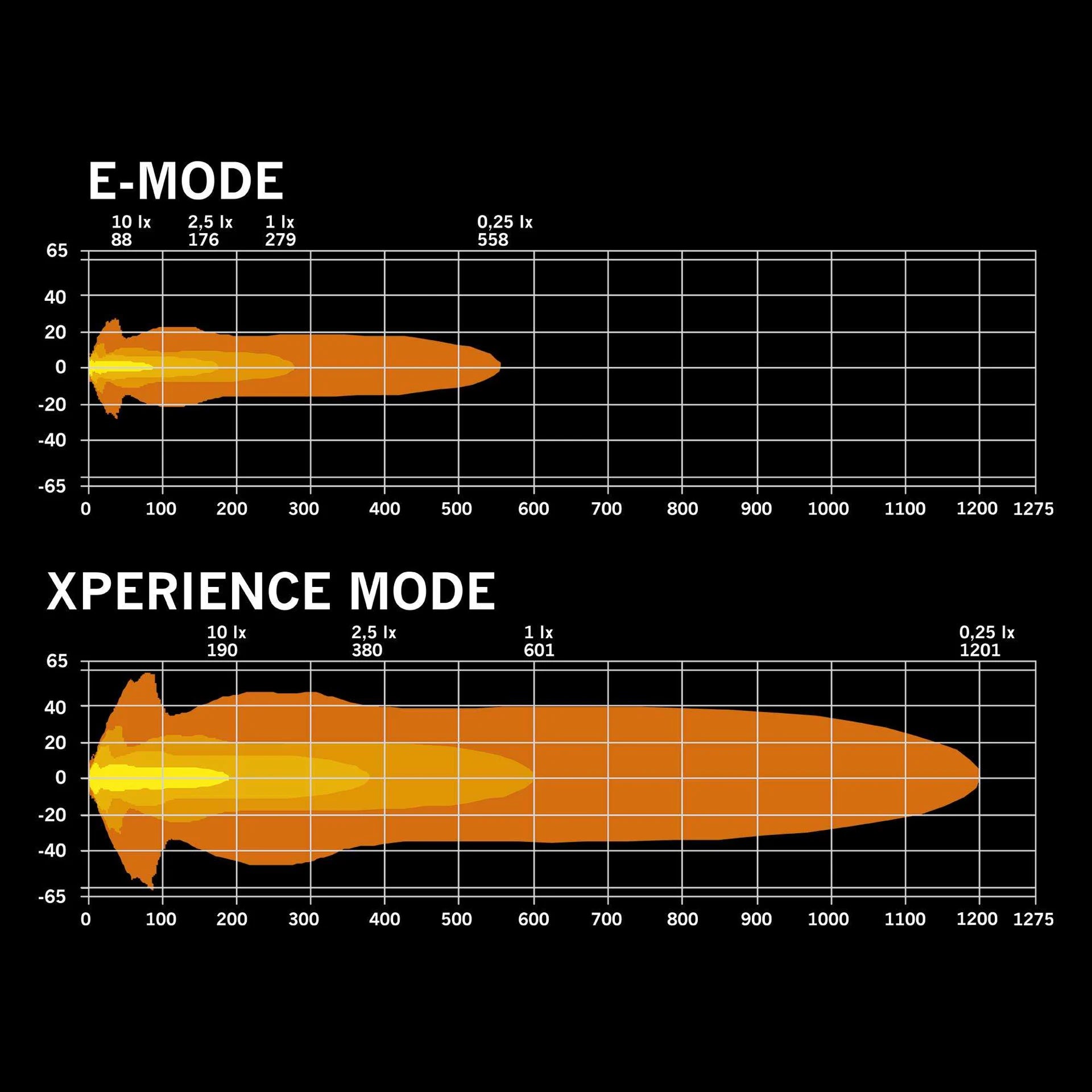

• 1 lux @: 601 m
• Color temperature: 5700 K
• Beam pattern: Extended Beam
• Beam angle: 11.7°

Construction & Materials

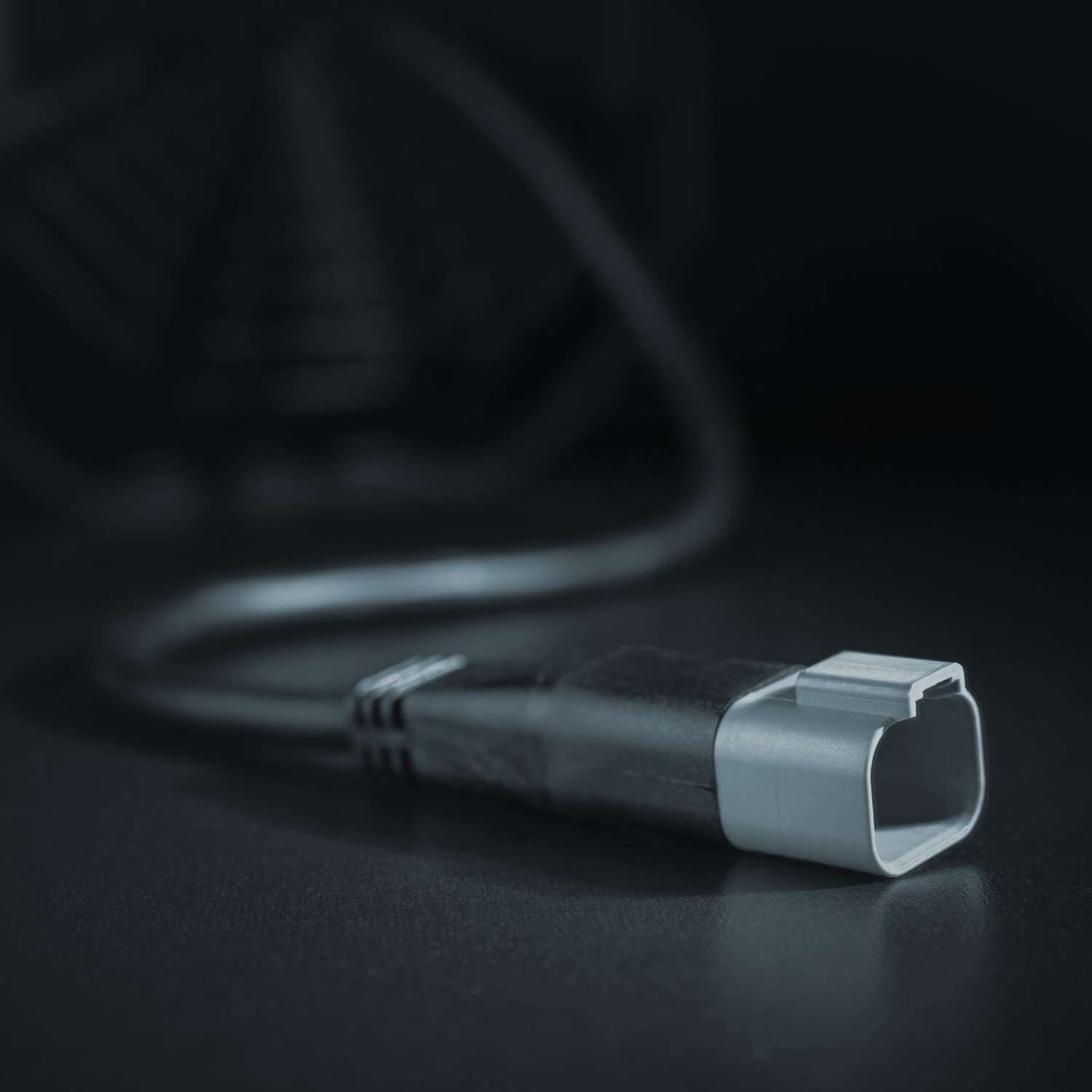

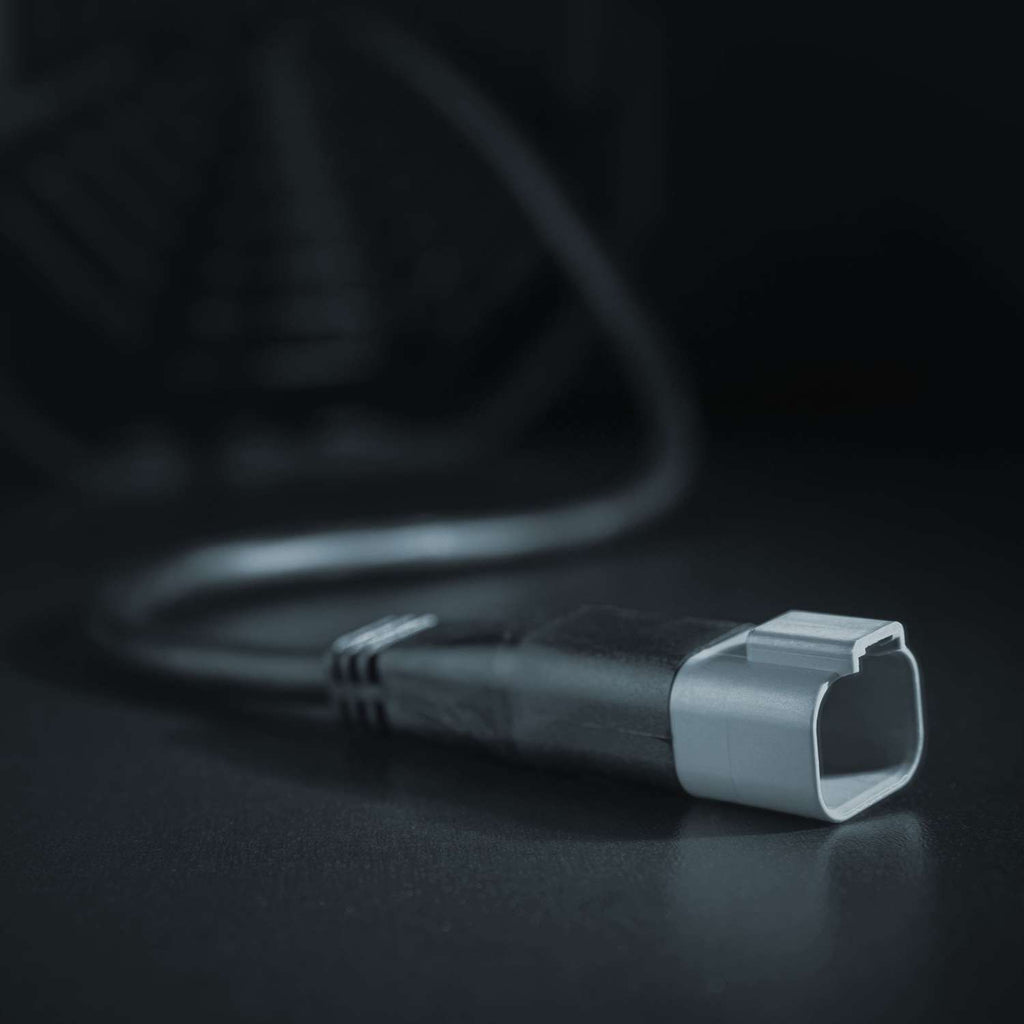

• Connection: DT-4PIN connector
• Cable length: 550 mm
• Housing color: Black
• Lens color: Clear
• LED colors: White / Amber

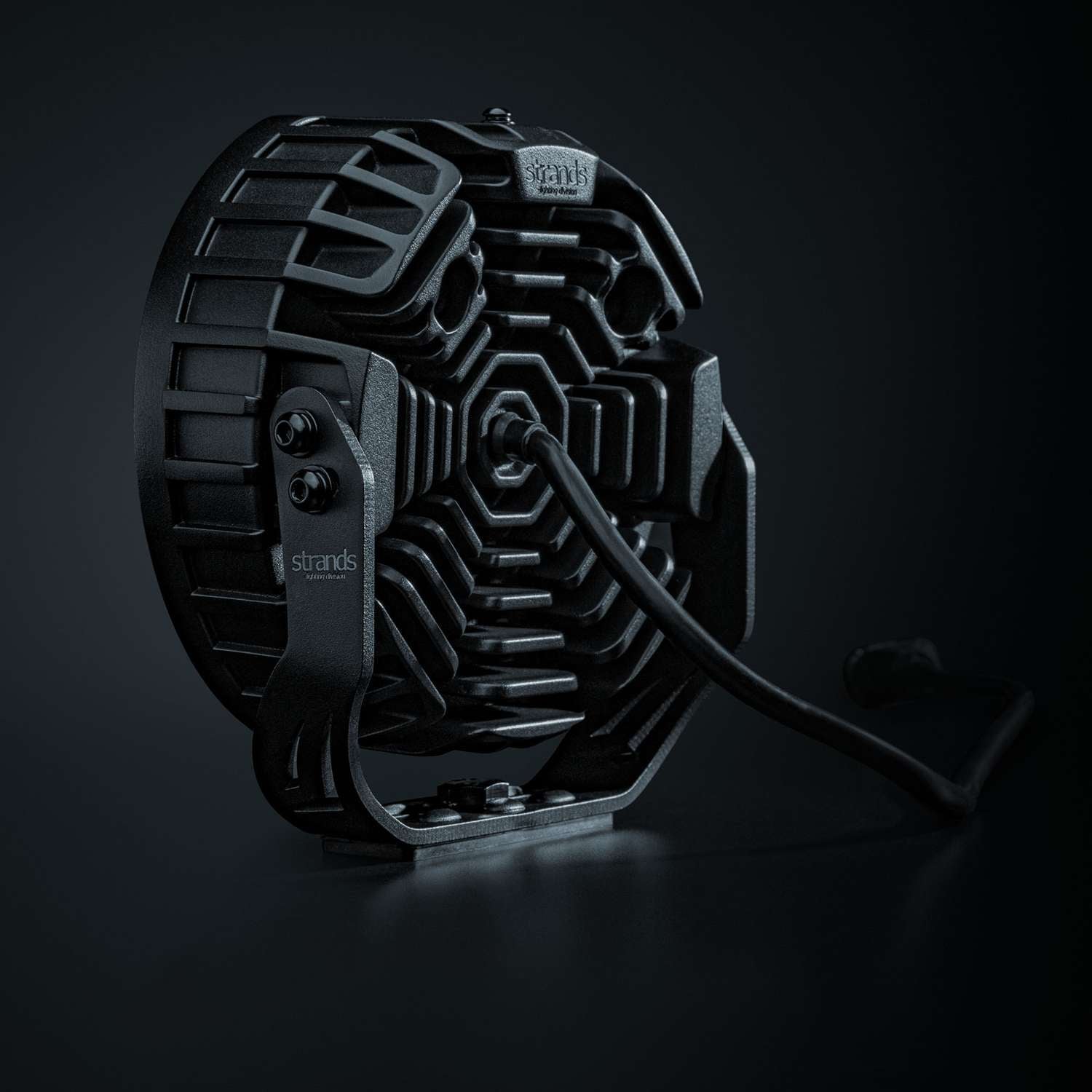

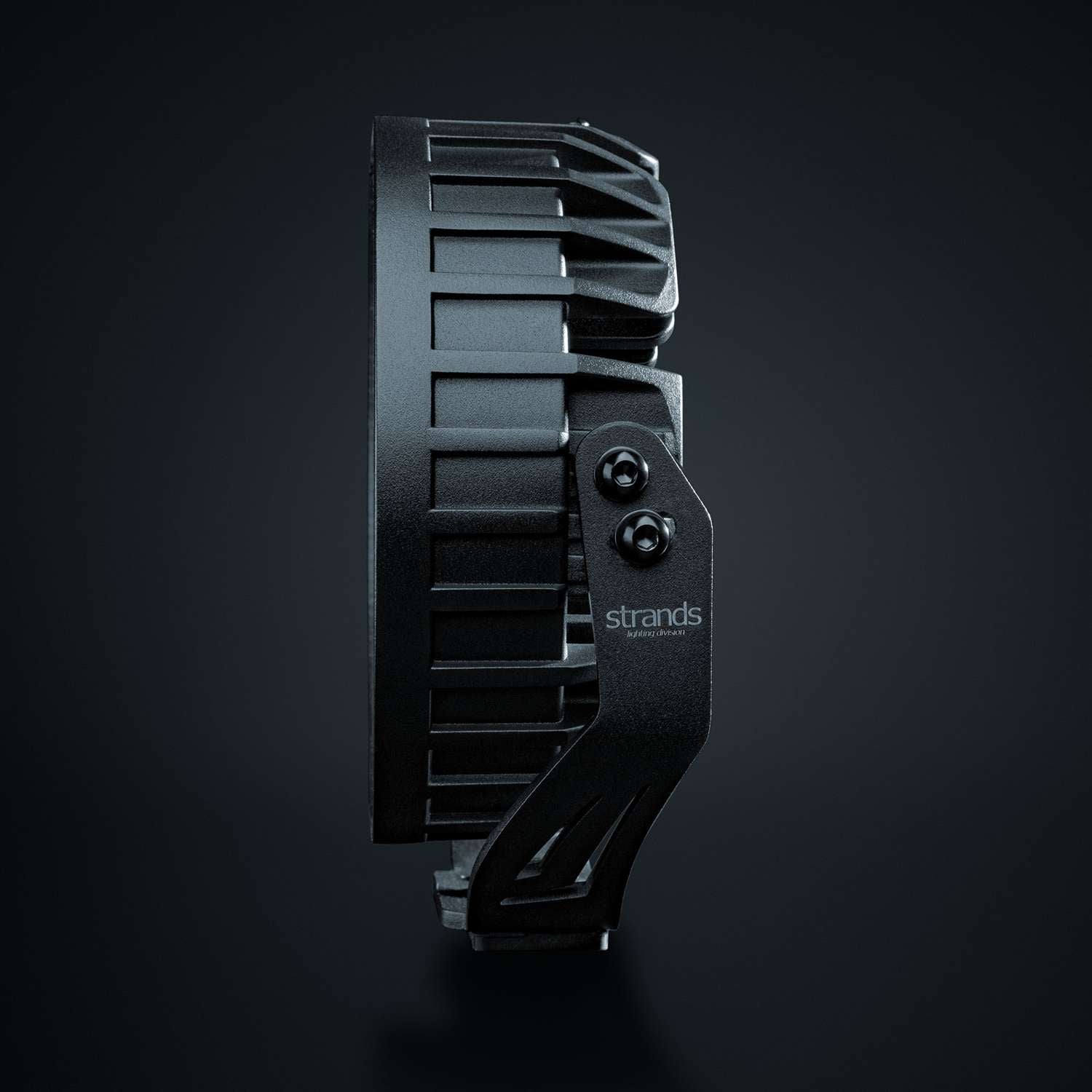

• Bracket material: Stainless steel
• Housing material: Aluminum
• Lens material: Polycarbonate

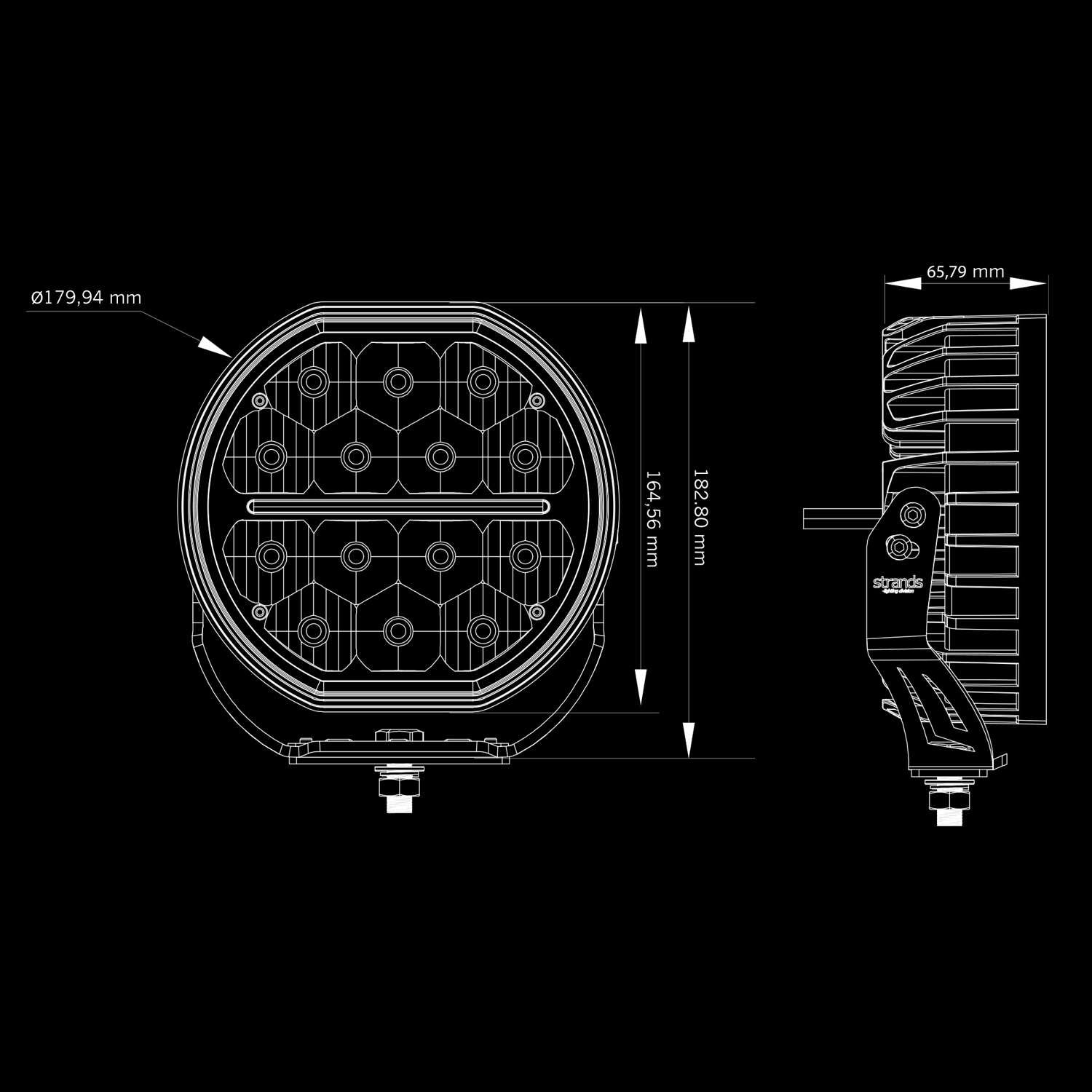

Dimensions & Weight

• Length: 176.7 mm
• Depth: 66.6 mm
• Height: 162.4 mm
• Height (including bracket): 184.6 mm
• Weight: 1.88 kg

Environmental & Compliance

• IP rating: IP69K
• Operating temperature: -40°C to +60°C
• E-approval: Yes
• ECE approvals: R10.06, R148, R149
