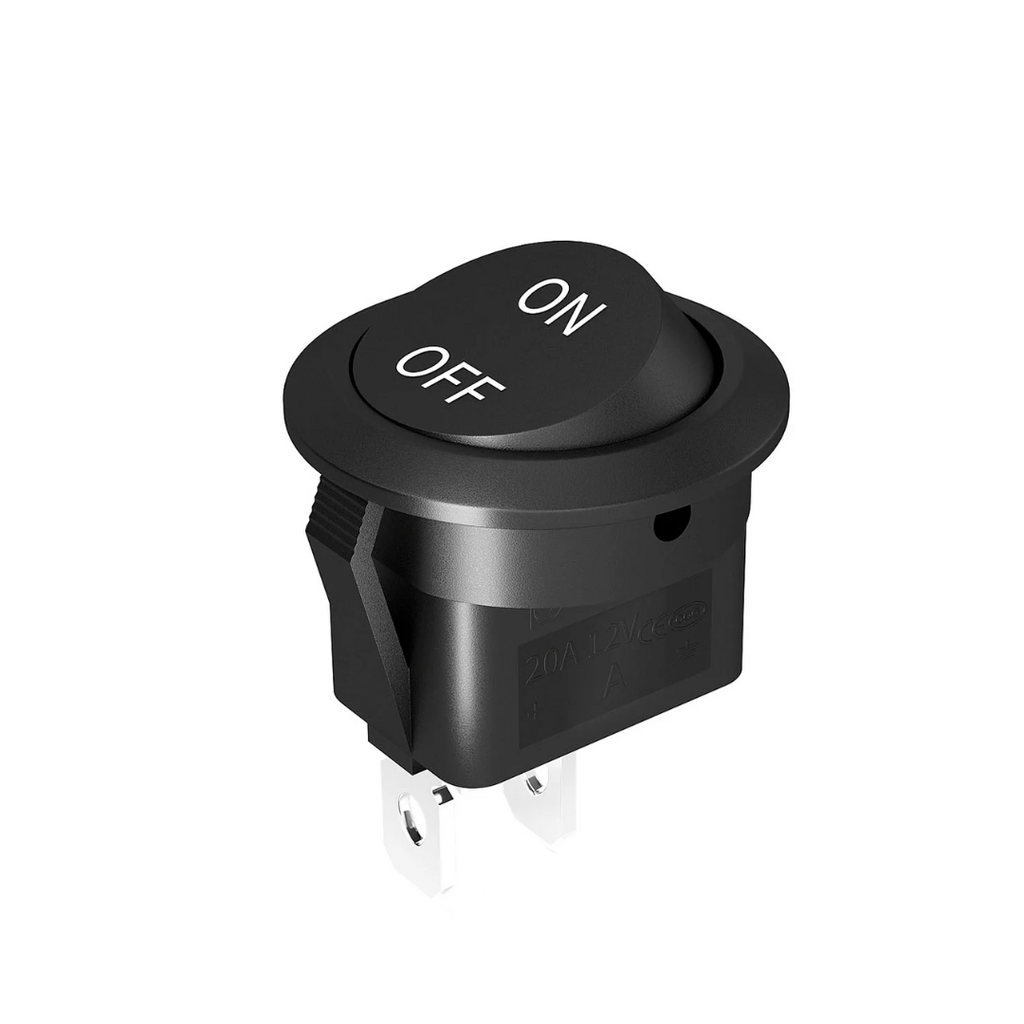

Round Rocker Switch – 12V SPST ON/OFF

This 12V 2-position SPST (Single Pole Single Throw) round rocker switch is designed for easy, reliable operation. When switched on, it stays in the “ON” position until manually turned off.

Key Features

• Rated current: 20 A (12V DC) / 10 A (125V AC) / 6 A (250V AC)
• Mounting hole size: 20 mm
• Contact type: SPST (ON–OFF)
• Terminal type: 2-pin quick-connect (4.8 × 0.8 mm)
• Connector type: Quick connect with press-release bulge for easy removal
• Wire length: 2 × 100 mm
• Wire size: 18 AWG
• Housing colour: Black

Construction & Performance

• Materials: High-quality plastic housing with copper terminals
• Properties: Excellent electrical conductivity, heat resistance, corrosion resistance, and waterproof design
• Labeling: Clearly stamped “ON/OFF” marking for easy identification (superior to standard “- / O” switches)
• Mounting compatibility: Fits standard 20 mm panel holes for quick installation
