Horpol Cube Block Lamp with Stop Tail & Indicator

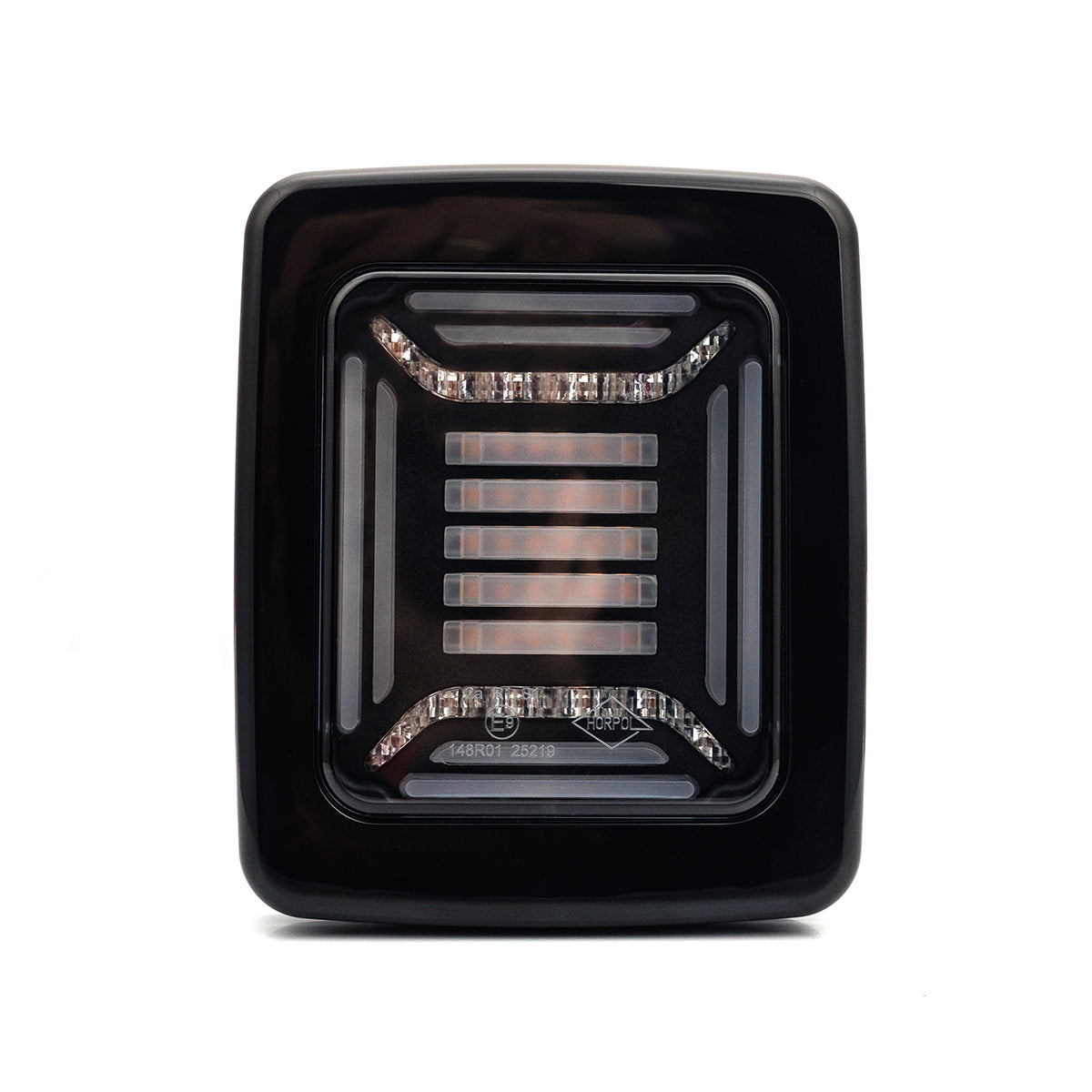

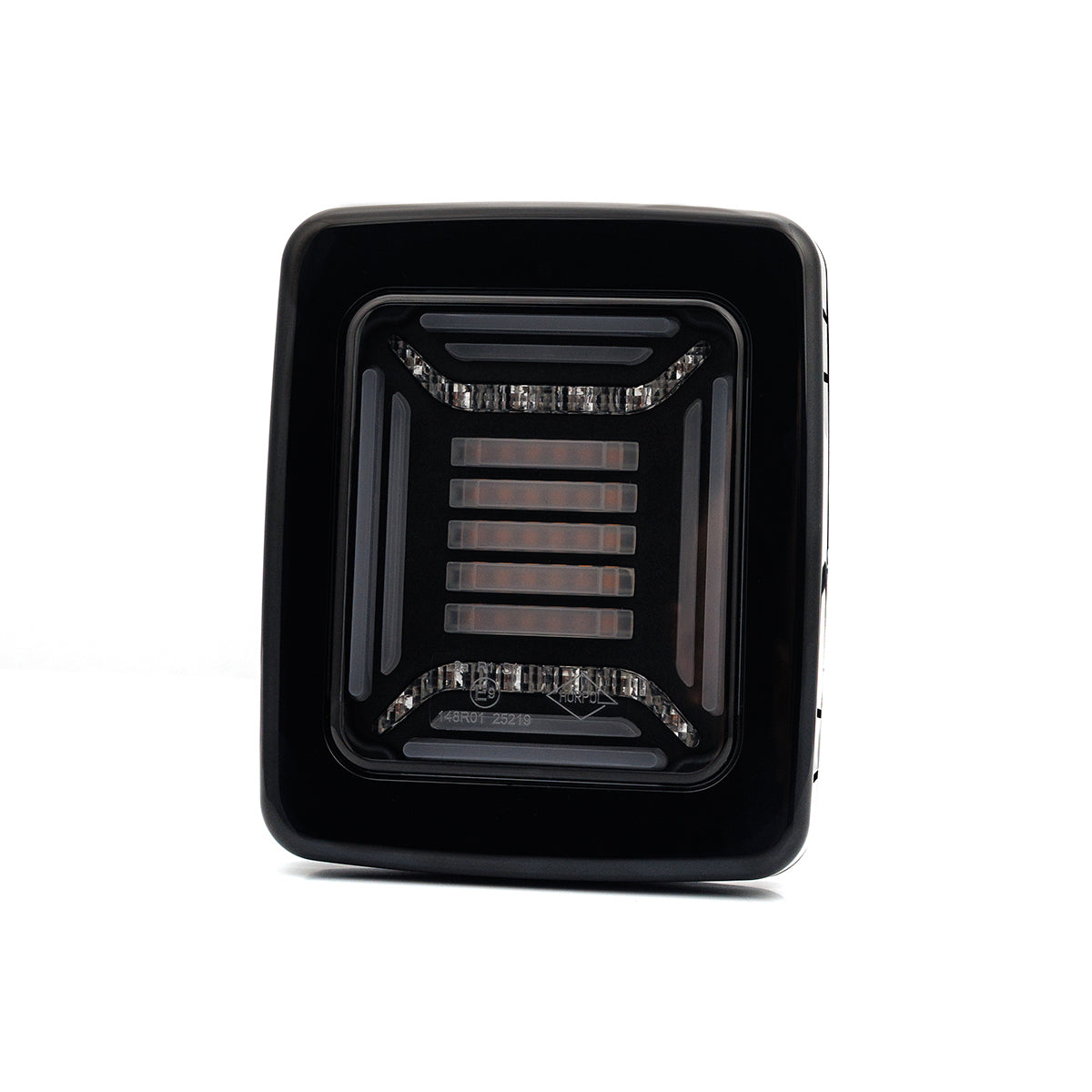

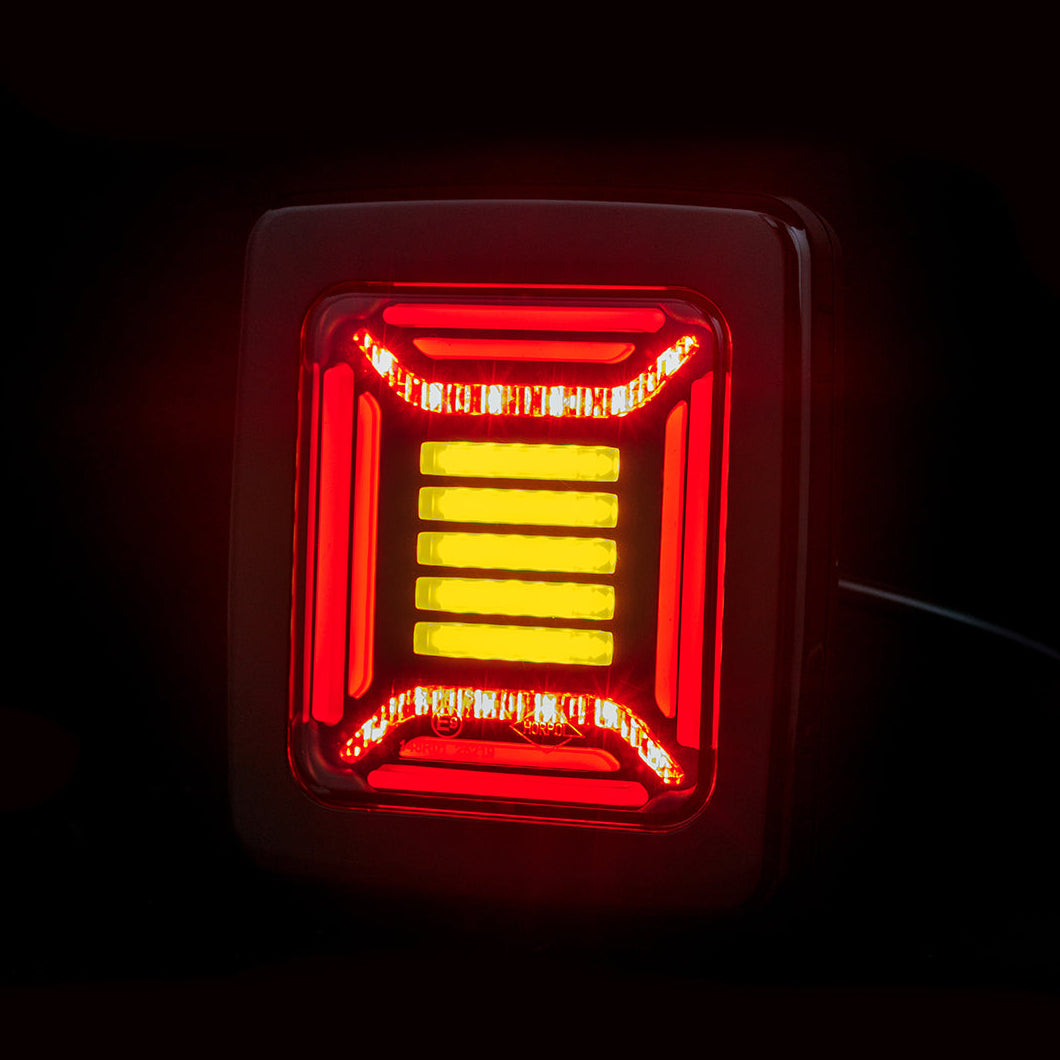

CUBE LZD 2877 LED Rear Combination Lamp

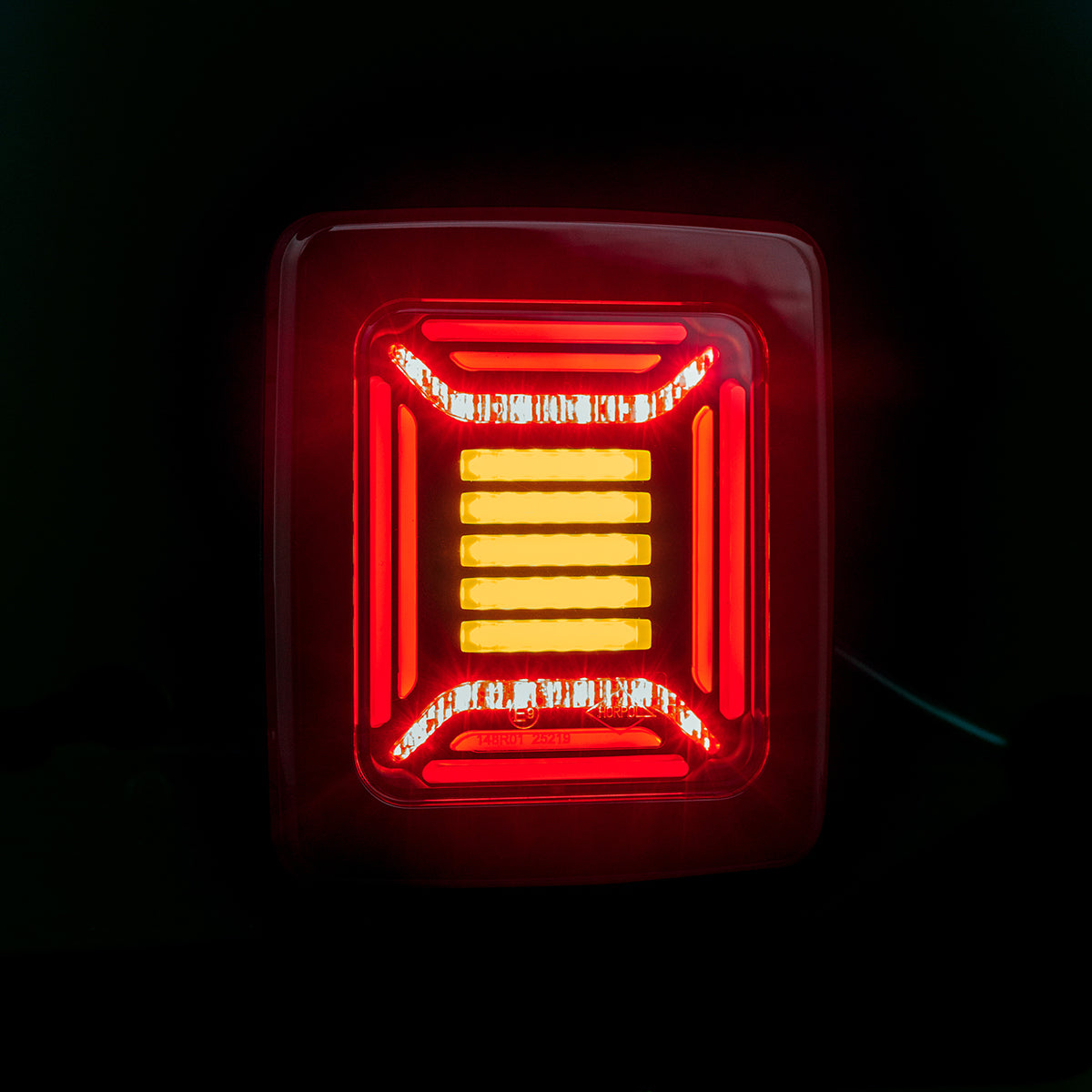

The CUBE LZD 2877 is a modern LED rear combination lamp designed to deliver outstanding visibility, durability, and style. Its distinctive light signature combines sharp angular lines with precision horizontal LED strips, creating a premium appearance that enhances the look of any commercial vehicle while ensuring excellent road presence.

Suitable for trailers, semi-trailers, trucks, agricultural machinery, and specialist vehicles, the lamp features a universal design that can be installed on either the left or right side and mounted horizontally or vertically. A slightly tinted lens provides a contemporary finish without compromising brightness, while the high-performance LED technology offers reliable signalling in all conditions.

Key Features

• Modern LED rear combination lamp with distinctive light signature
• Universal left or right-hand installation
• Suitable for horizontal or vertical mounting

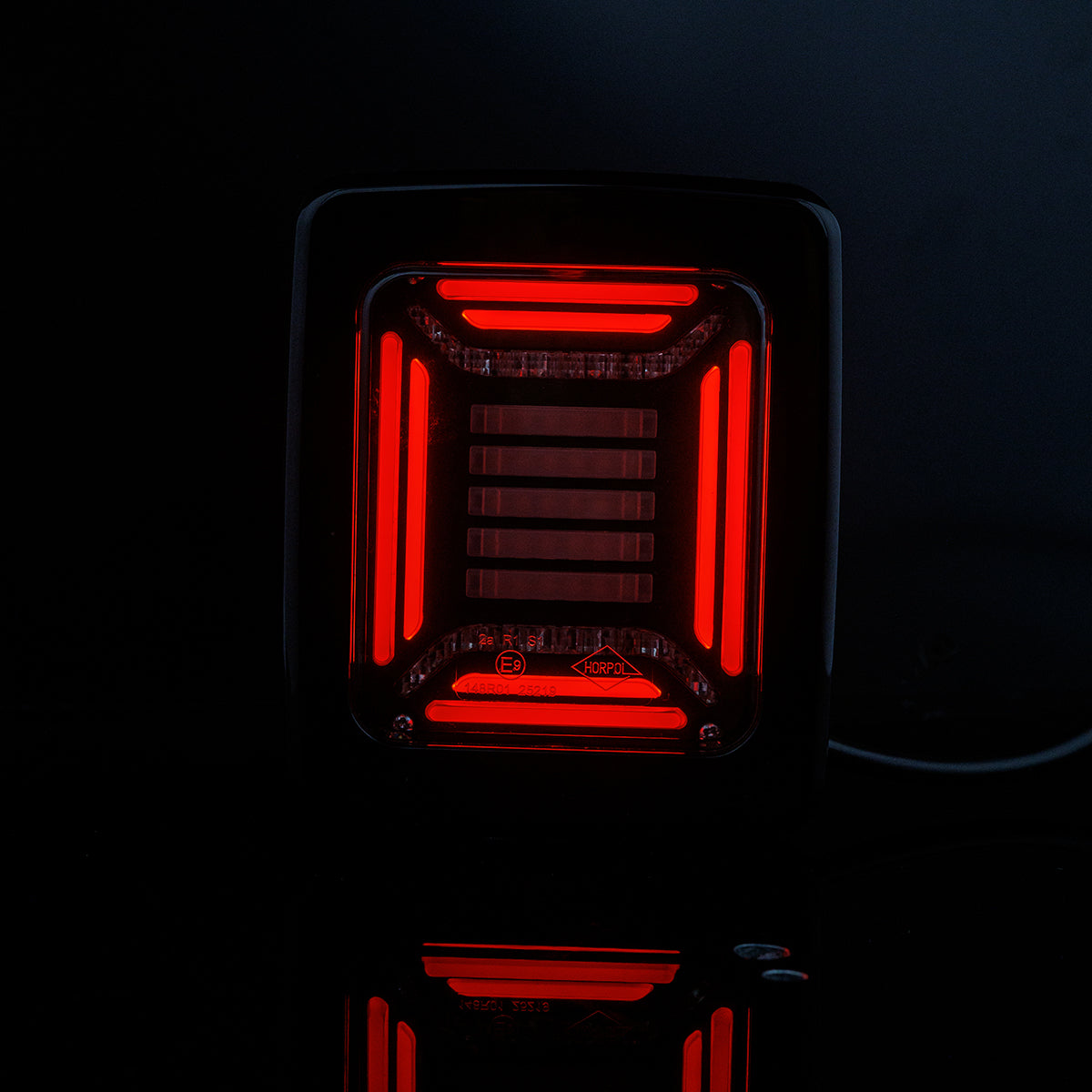

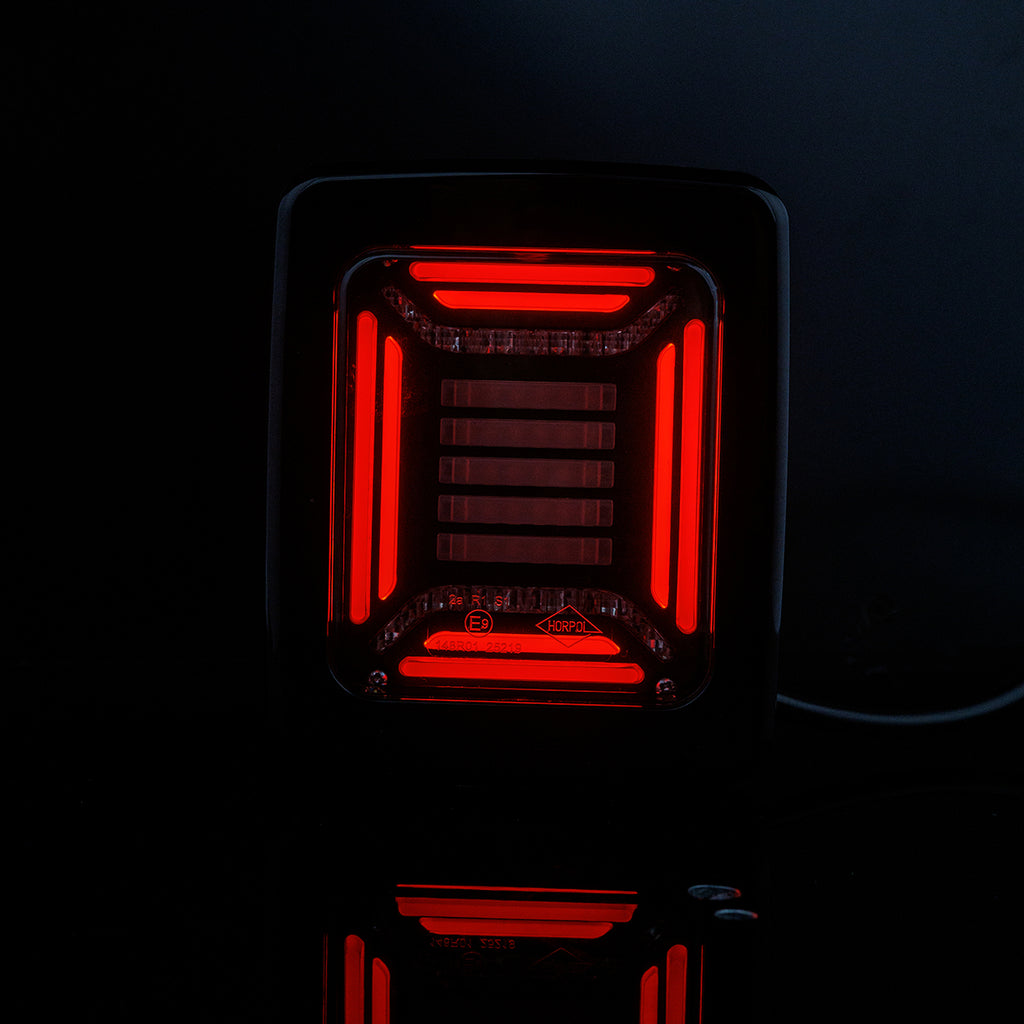

• Rear NEON position light

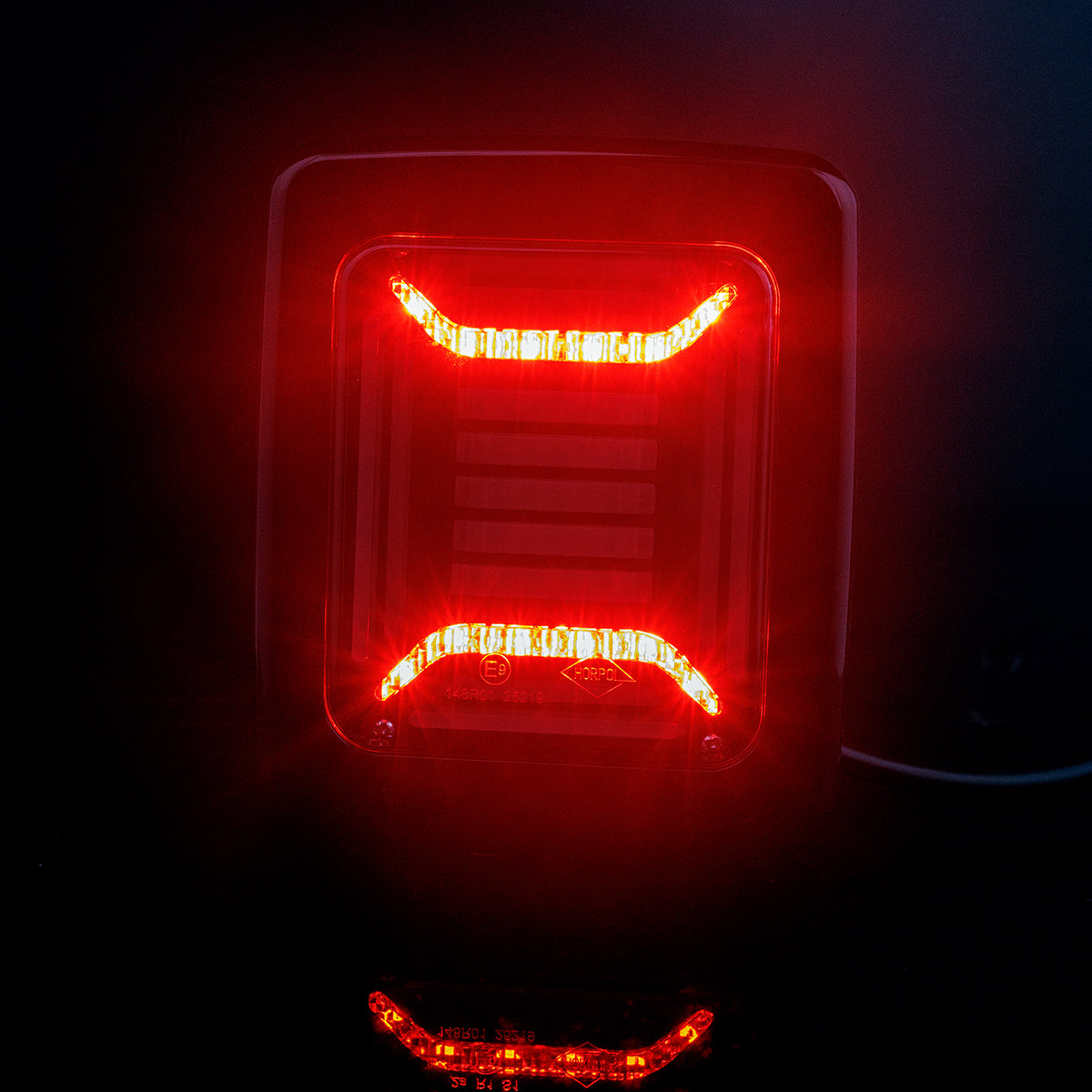

• Brake light

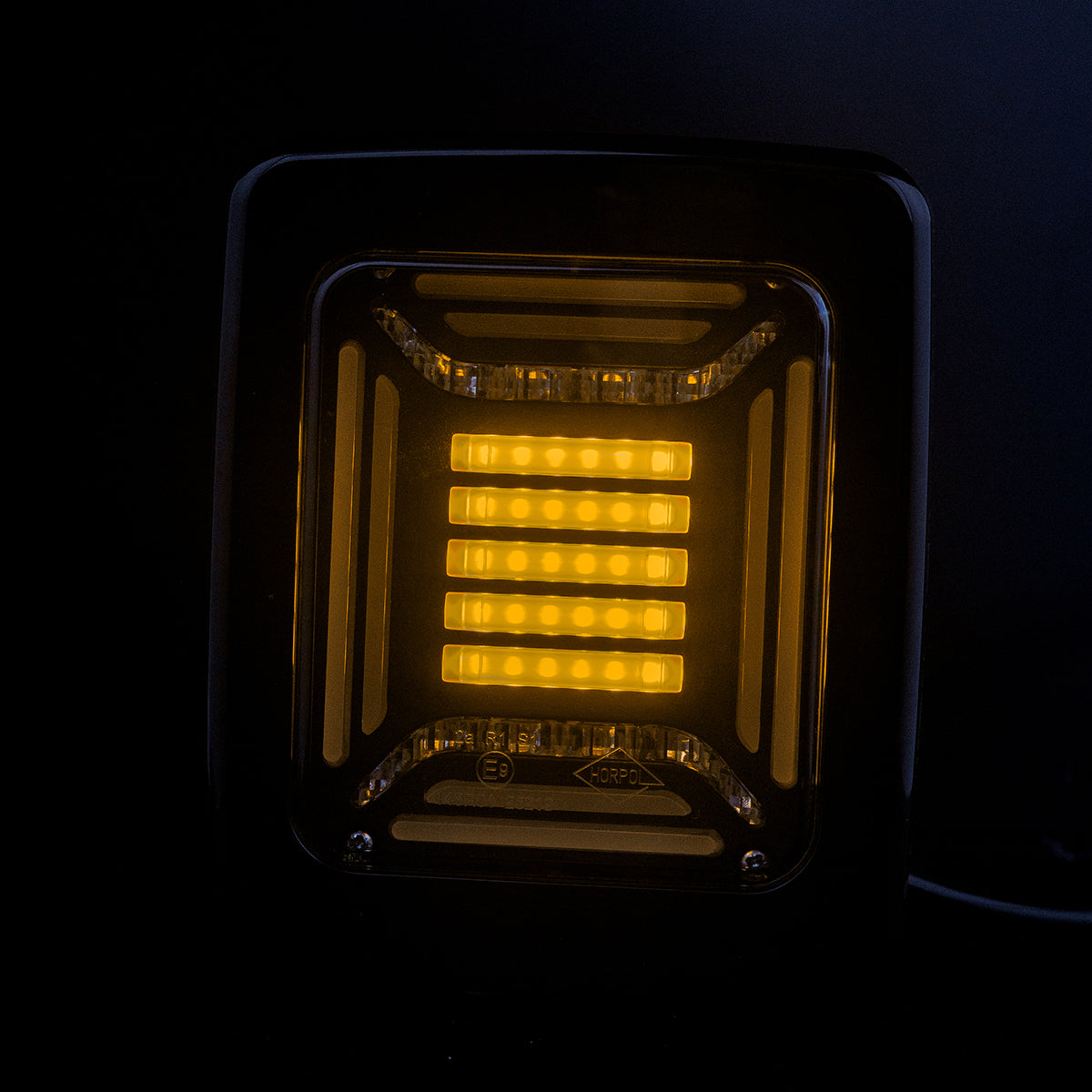

• Rear NEON indicator with optional sequential function
• Slightly tinted lens for a premium appearance
• Compatible with 12V and 24V electrical systems
• IP68 rated for complete dust and water protection
• EMC compliant with ECE R148 and R10 approvals
• Can be installed with or without the outer frame

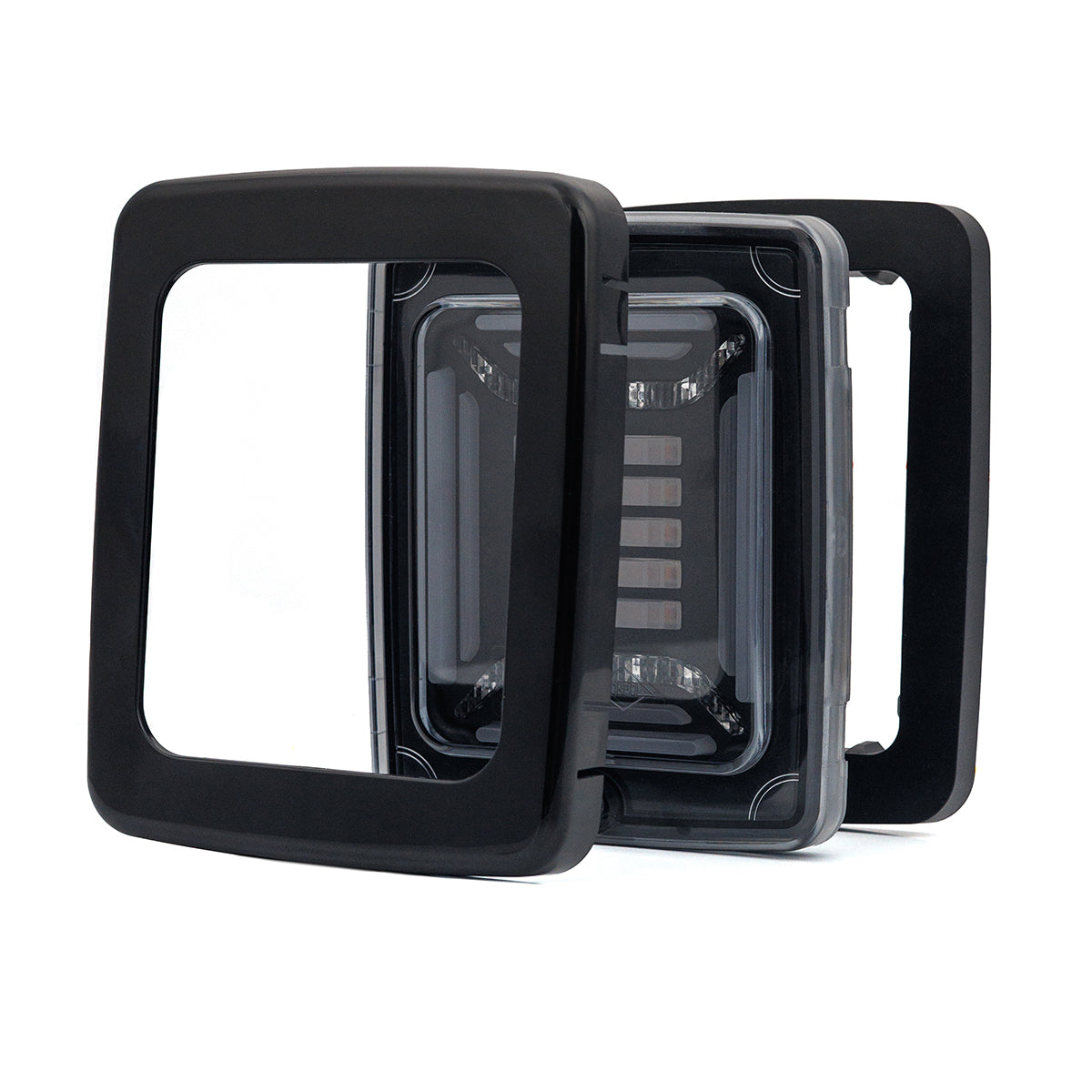

• Includes spacer frame for secure, flush installation

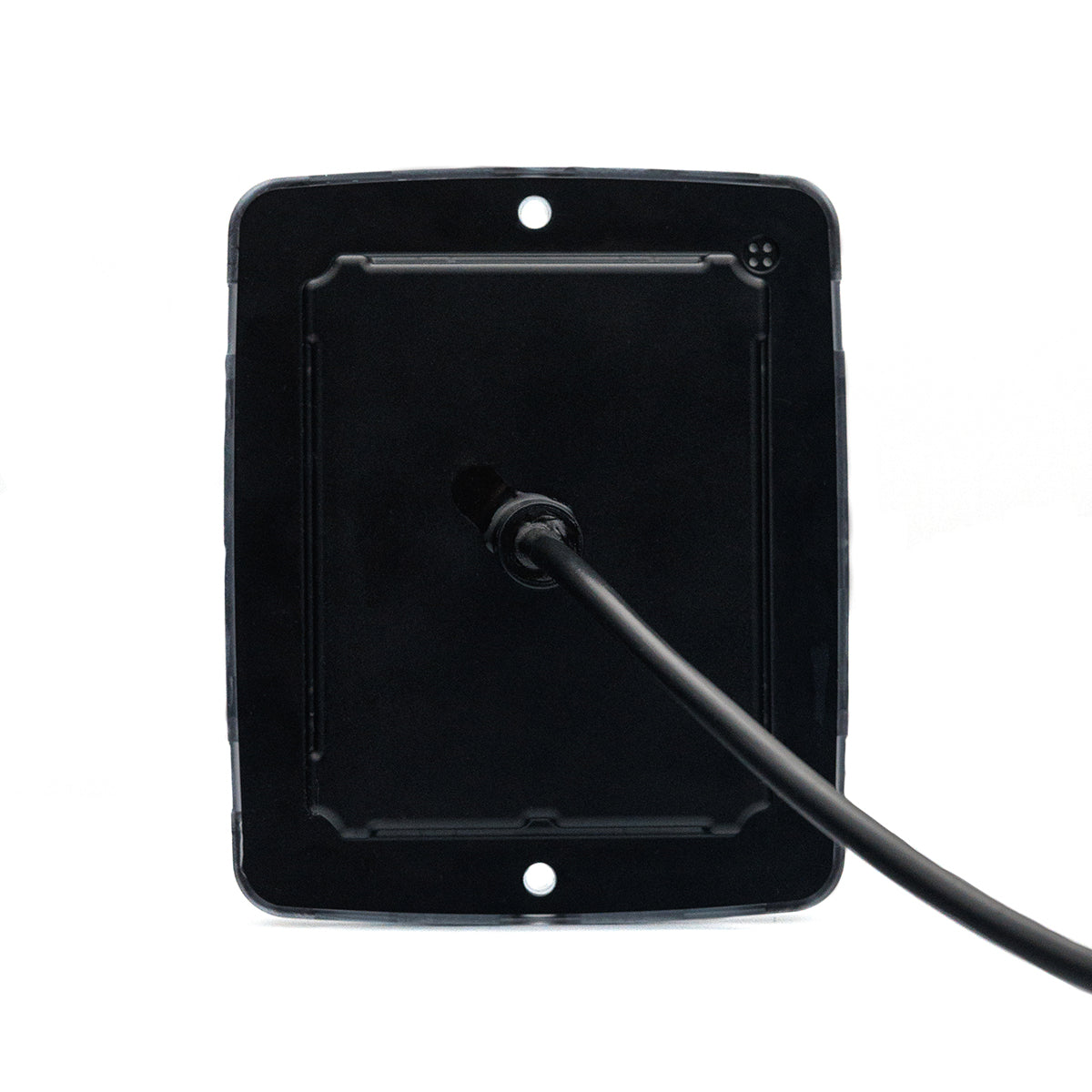

• 1-metre cable with colour-coded wiring for easy fitting
• Optional progressive indicator function when multiple lamps are installed
• Designed and manufactured in Poland by HORPOL

Wire Identification

• White: Ground
• Black: Position Light
• Red: Brake Light
• Yellow: Turn Signal
• Blue: Progressive Turn Signal Control (optional)

Technical Specifications

• Light Type: LED Rear Combination Lamp
• Light Group: HOR 164
• LED Quantity: 98
• Functions: Rear Position Light, Brake Light, Rear Direction Indicator
• Position Light Consumption: 1.3W / 1.8W
• Brake Light Consumption: 1.9W / 2.4W
• Indicator Consumption: 3.3W / 4.4W
• Supply Voltage: 12/24V
• Side: Universal
• Cable: 5 × 0.5mm²
• Cable Length: 1m
• Operating Temperature: -30°C to +50°C
• Ingress Protection: IP68
• Approvals: ECE R148 & R10

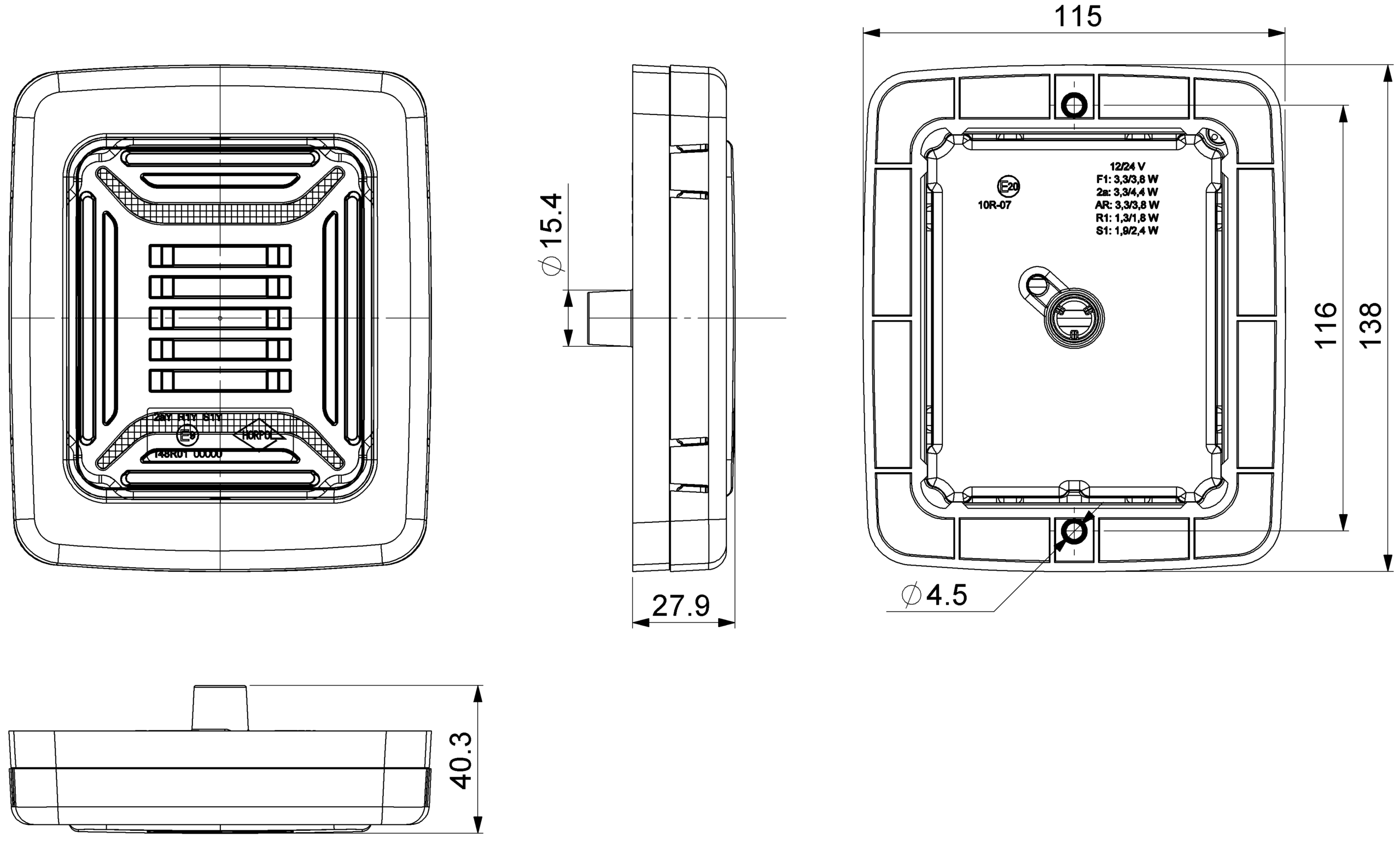

• Mounting: Horizontal or Vertical, with or without outer frame
