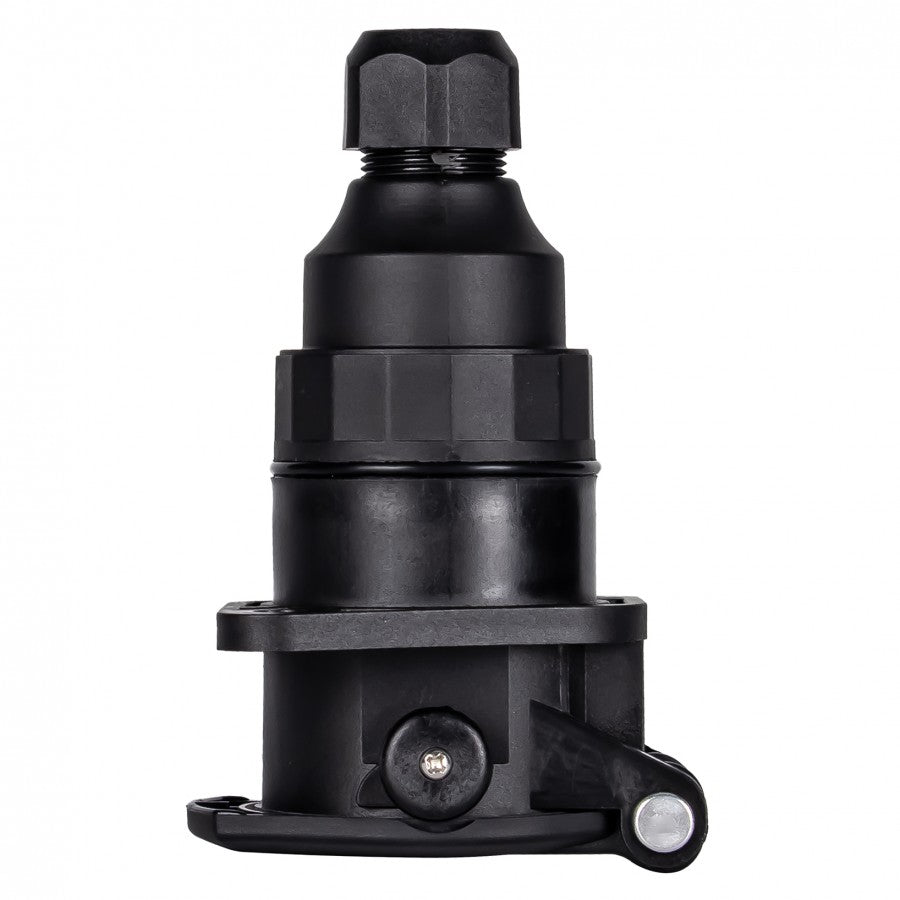

EBS Socket 7 Pin

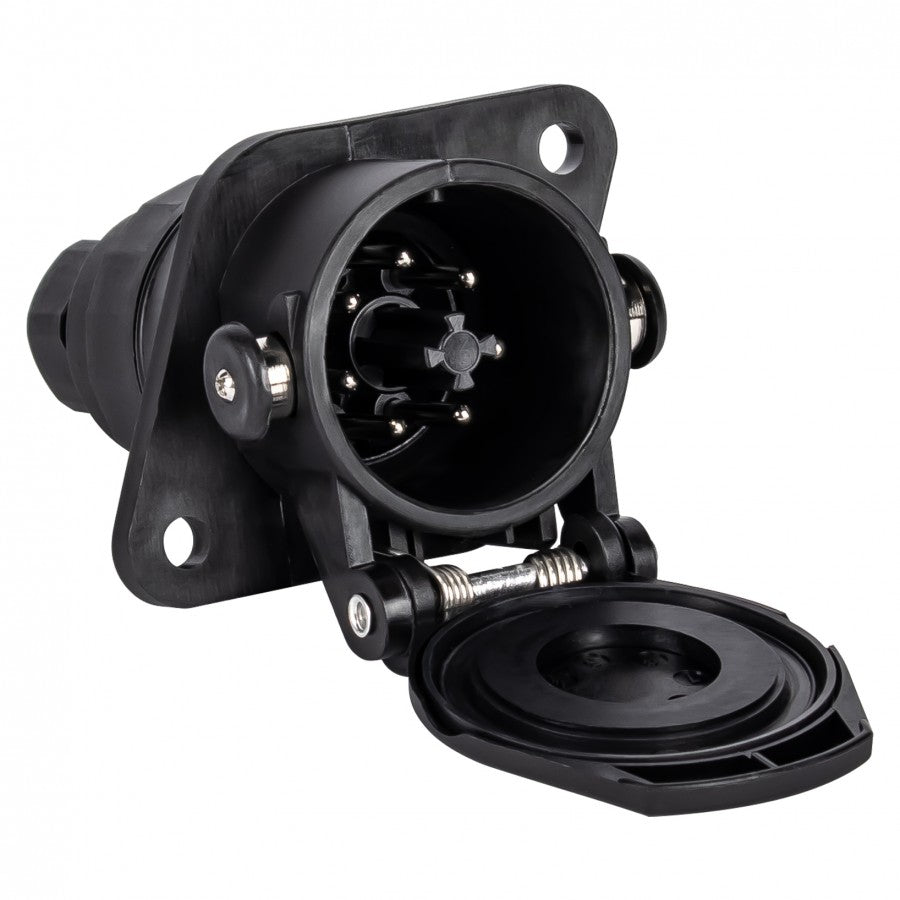

24V EBS screw-on socket is a reliable 7-pin connector used in EBS systems on trucks and trailers. It provides a stable and secure connection between the tractor and trailer, enabling proper communication between the braking and lighting systems. The weather-resistant plastic housing and screw-on construction facilitate installation and service.

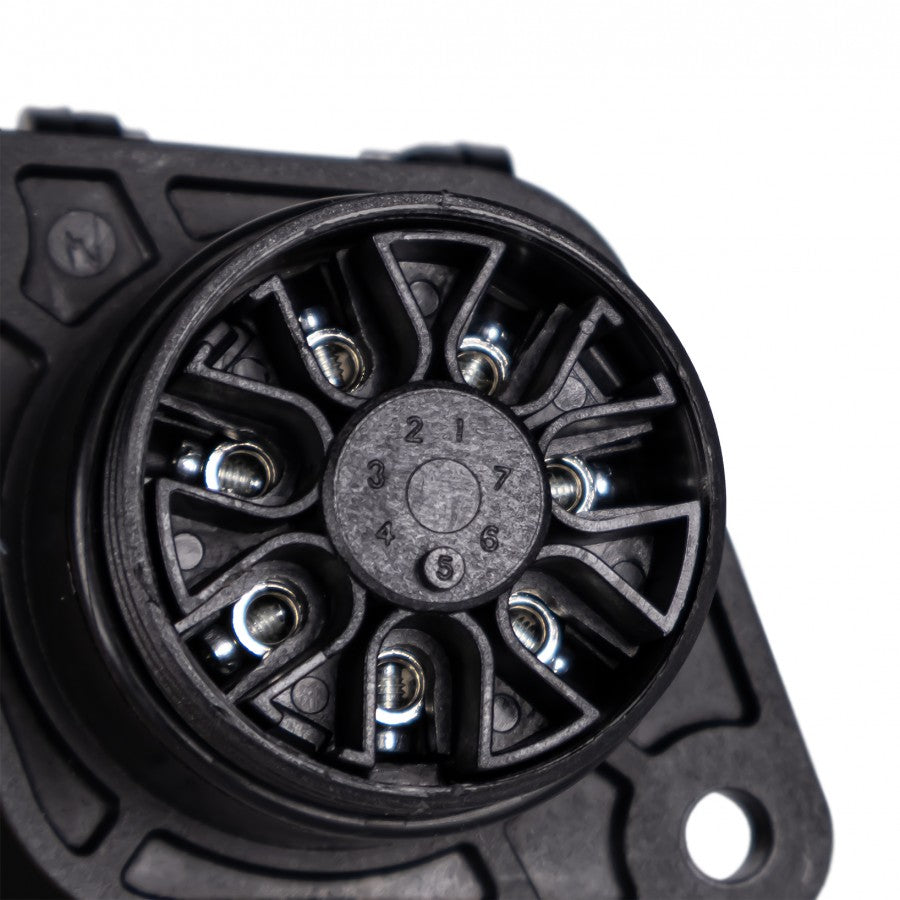

This product is designed for use with 24V systems, in accordance with European standards. Thanks to its precise workmanship and robust contacts, the connector guarantees durability and reliability even under intensive use. This solution is ideal for professional transport. Below are the pin functions:

• 1. +24V constant
• 2. +24V via ignition
• 3. Ground (pin 2)
• 4. Ground (pin 1)
• 5. ABS fault indication when voltage is below +5V
• 6. CAN_H
• 7. CAN_L

Product Features

• Compatible with EBS/ABS systems, enabling stable data and signal transmission.

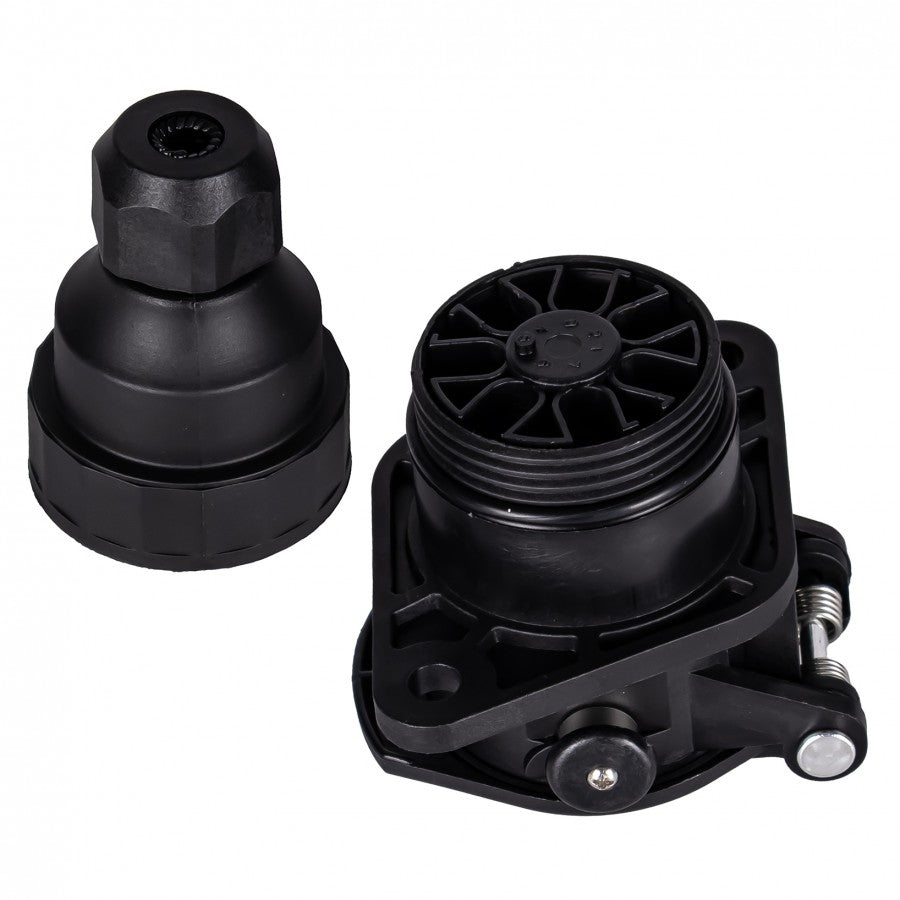

• The bolted design simplifies installation and ensures a secure fit to the vehicle.
• Resistance to external conditions increases durability in road applications.
• Provides a reliable electrical connection in a 24V system, supporting the safe operation of braking systems.
