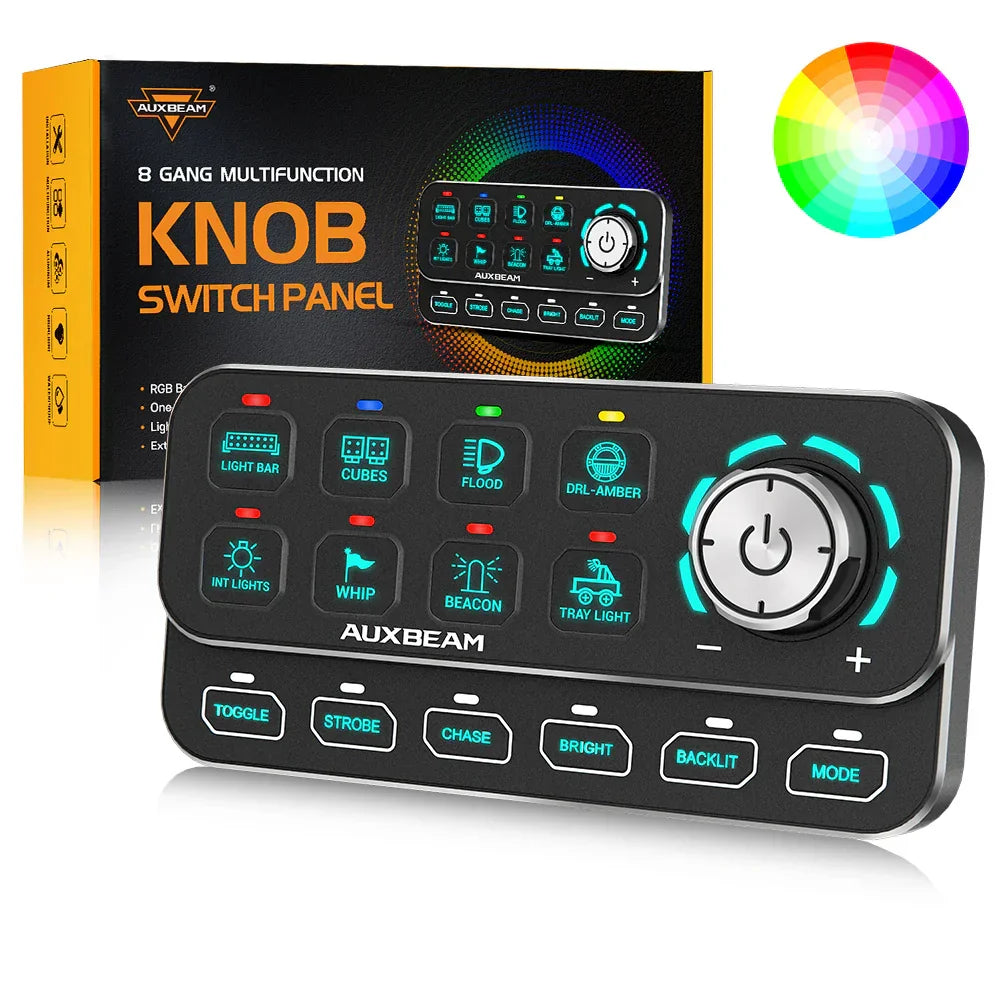

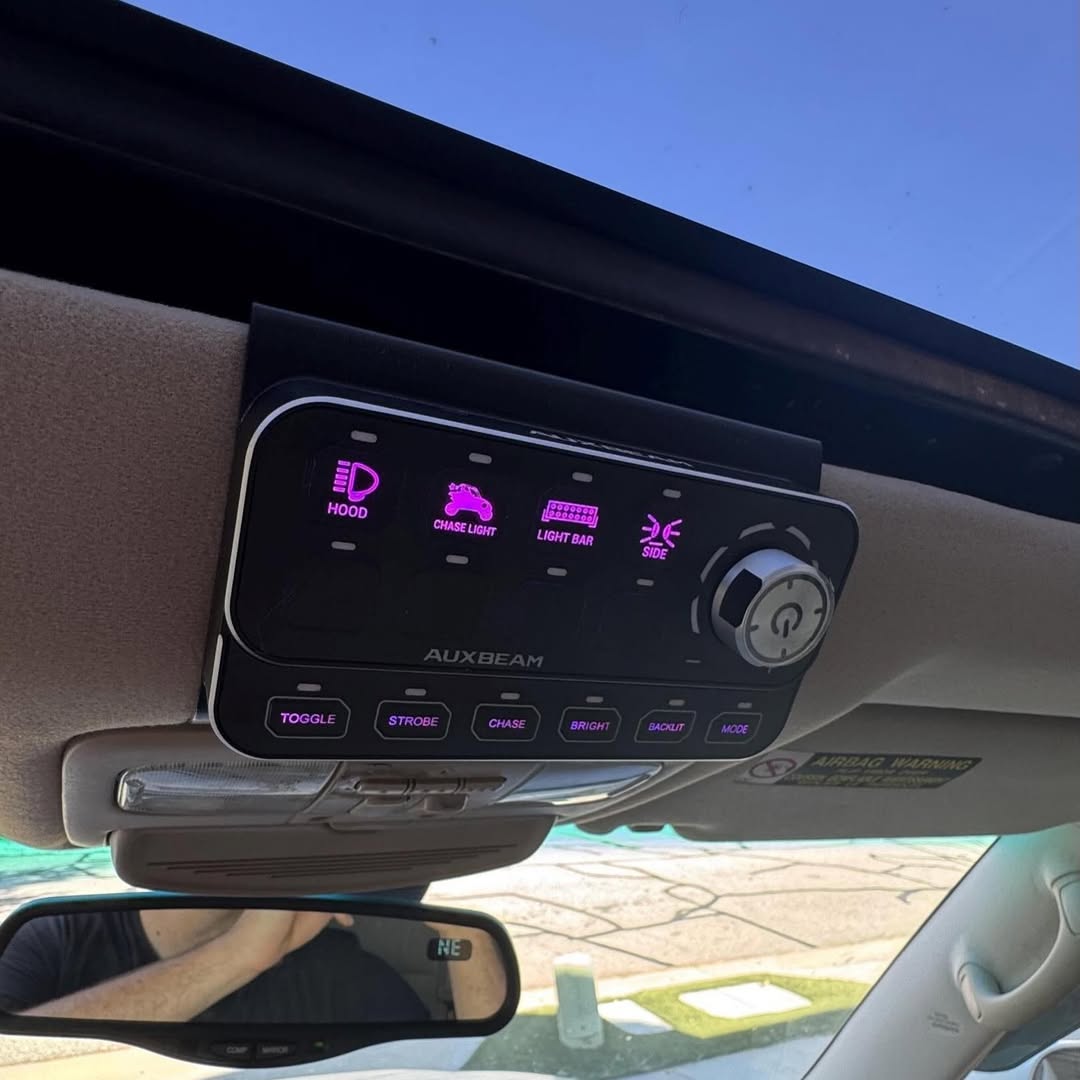

Auxbeam 8 Way Control Switch Panel with Knob - QP012186 KS-80

8-gang one-sided outlet switch panel

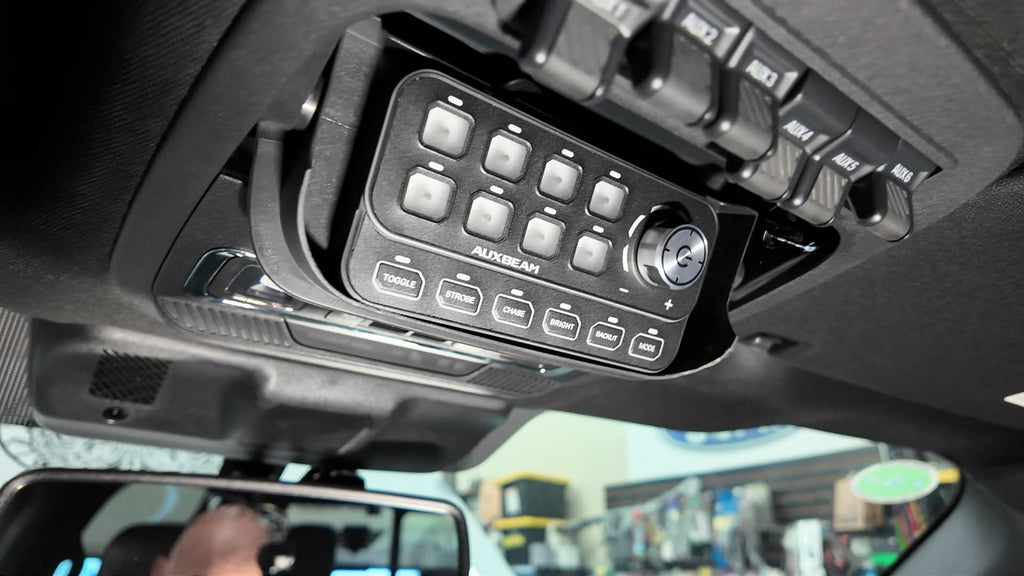

The Auxbeam switch panel is ideal for auto electrical lighting set-ups with various types of lighting and functions. This panel gives the user full control of lighting from inside the vehicle.

This newest model of auxbeam controller has an incredible range of lighting functions. This system has a chase function (have a "chase" sequence for up to 8 lights), a dim function (dim any lighting precisely etc with the control knob), strobe function (flash any lighting like a strobe)

Each button can be easily configured to make lights flash, turn on and off or momentarily turn on - whatever you need! Auxbeam panels work on 12 and 24V systems making it the ideal solution for cars, vans, tractors, trucks, boats and more!

What's in the box?

• KS-80 Switch Panel
• Circuit Control Box
• Mounting Brackets
• 10ft Wiring Harness (from control box to switch panel)
• 160 Stickers
• Waterproof cover for switch panel
• Micro 2 & Mini Fuse Taps
• 10mm2 Battery Cables
  • 1 x Black Cable (820mm)
  • 1 x Red Cable (820mm)
  • 1 x Red Cable (420mm)
• 100A Circuit Breaker
• Double Sided Sticky Tape
• Cable Ties and Screwdriver

3 Switch Modes

• Red – Toggle Mode
  • Constant ON/OFF operation
  • Ideal for driving lights, work lights tec.
• Blue – Momentary Mode
  • Device stays on only while the button is pressed
• Green – Pulsed Mode
  • Flashing ON/OFF mode
  • Continues until the switch is pressed again
• SOS Mode

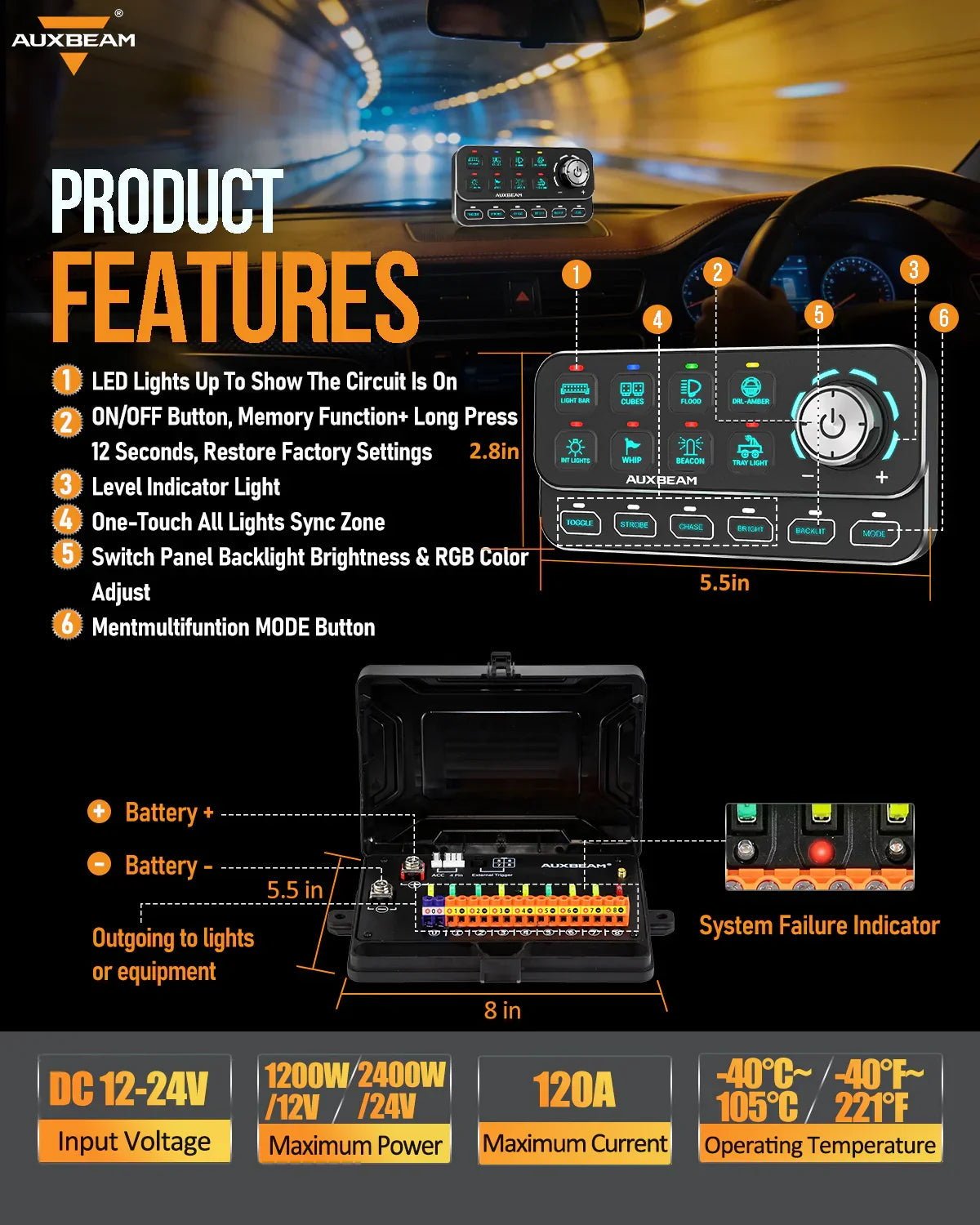

Technical Specifications:

• Voltage Input: DC 12-24V
• Max Current: 120A
• Rated Current: 100A
• Rated Voltage: 12V 20A / 24V 10A
• Max Power: 1200W/12V, 2400W/24V
• Waterproof Rating: IP65
• Operating Temperature: -40°C ~105℃/-40℉~221℉

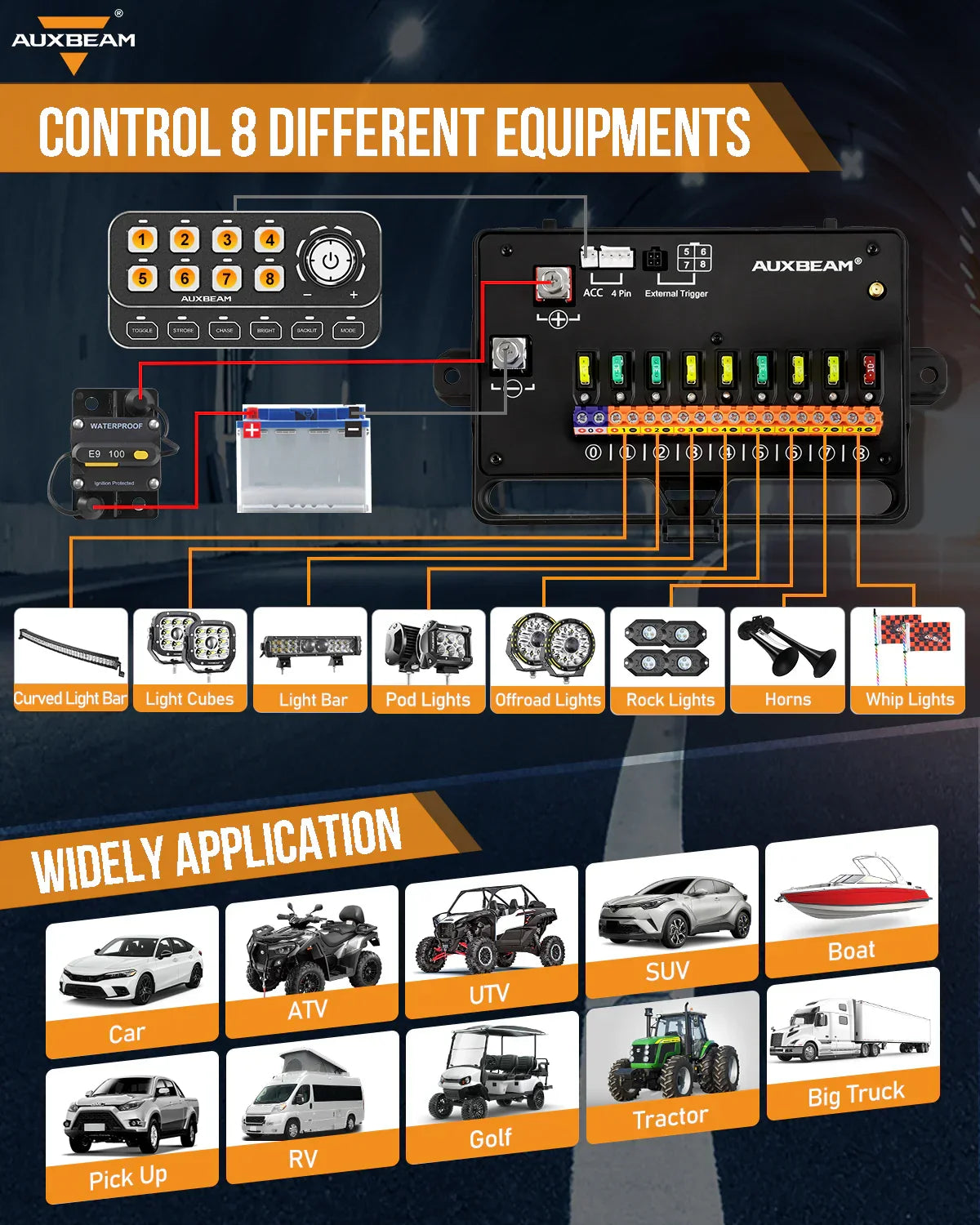

120A All-Solid-State Load System: Features a 3×30A + 4×20A + 1×10A output configuration , offering a total capacity of 120A.Built with high-performance solid-state relays, it ensures safe and reliable operation even at full load.

One-Touch All Lights Sync(Toggle/Strobe/Chase): Need instant full lighting in an emergency? Simply press the "Toggle" button, and all 8 connected devices will simultaneously activate in constant-on mode. Facing an emergency or needing powerful visual alerts? Tap the dedicated "Strobe" button, and all connected devices will immediately switch to high-visibility strobe mode. Want personalized lighting effects? Press the "Chase" button to flexibly configure 2 to 8 devices for dynamic chasing light effects.

Master Dimming: Whether it's precise dimming of individual work lights, synchronized management of multiple lighting systems, or fine control of fan speeds, it handles all with ease.

Four External Triggers: Enabling seamless automation with your vehicle's factory signals. It syncs with your high beams to enhance specific lighting, activates auxiliary lights in reverse, amplifies brake warnings, and synchronizes all lighting with hazard signals—delivering smarter, safer illumination in every scenario.

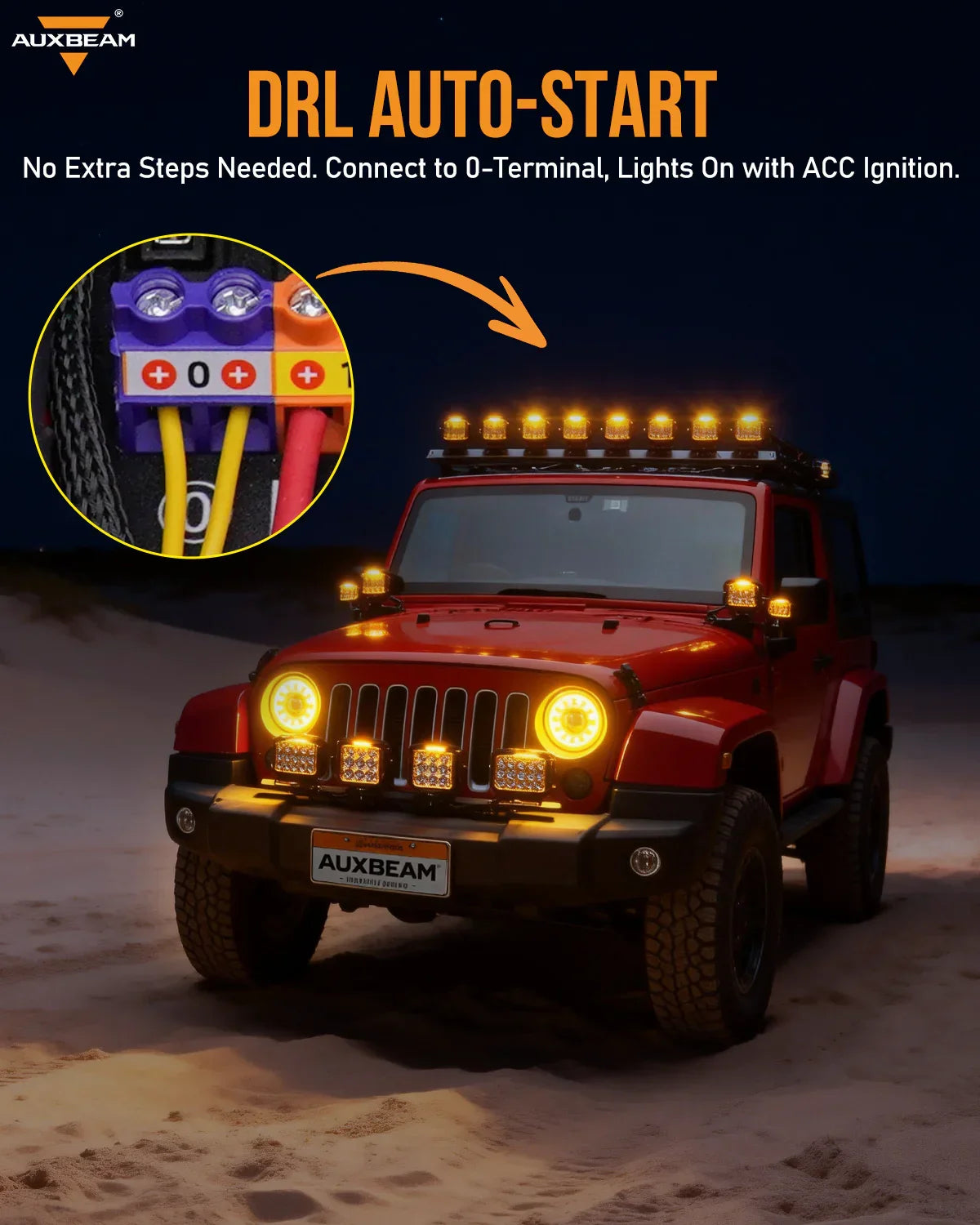

DRL Auto-Start: No Extra Steps Needed. Connect to 0-Terminal, Lights On with ACC Ignition.

Four Modes: Toggle · Momentary · Pulsed · SOS: Press once for stable constant light, twice for flexible momentary, three times for emergency strobe, and four times for standard SOS. No complicated setup required. Simply remember the intuitive button logic to meet all lighting needs for daily driving, temporary tasks, hazard warnings, and emergency rescues

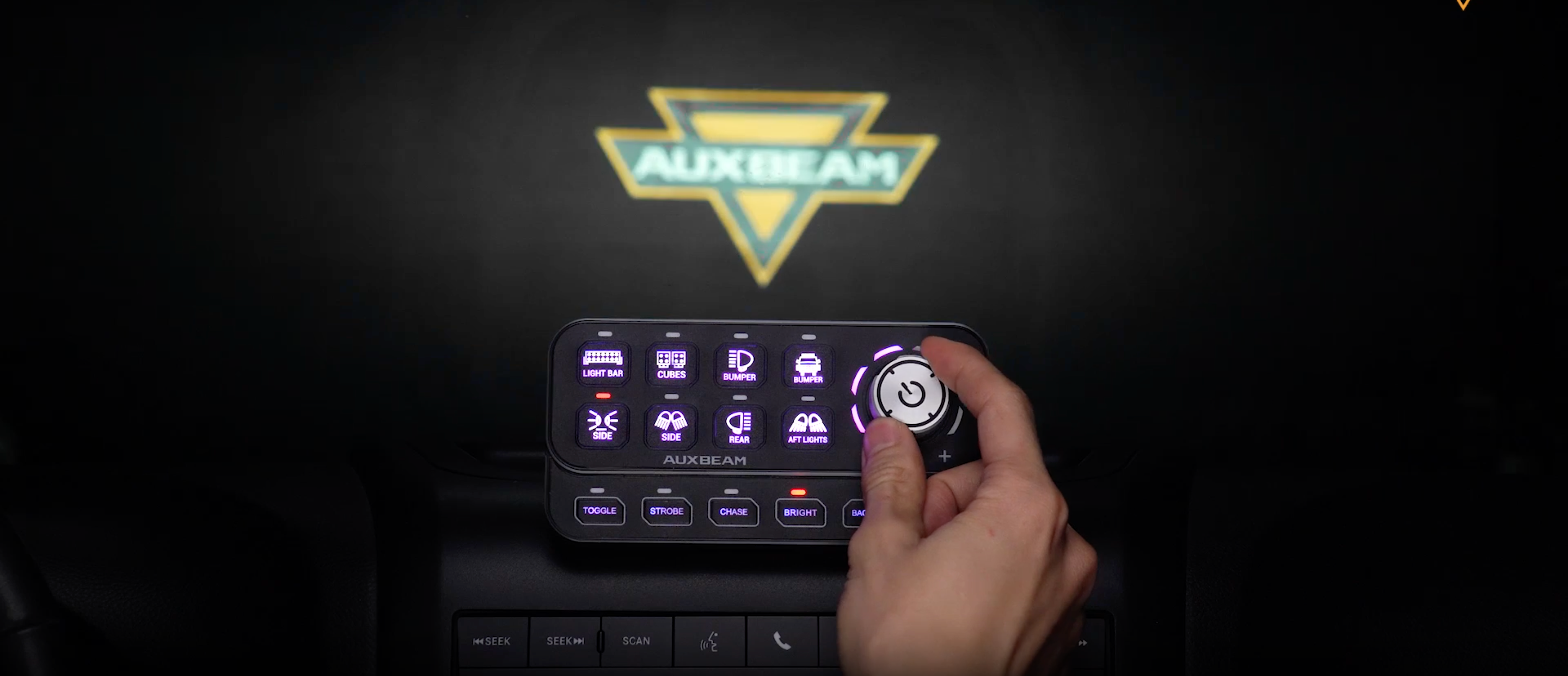

Colour Changing Panel: The rotary knob panel features adjustable RGB backlighting, allowing you to switch colors freely and control brightness to your preference. Your vehicle's ambiance is in your hands. Clear visibility and intuitive operation—day or night.

3-Year Warranty

Auxbeam’s Quality Promise: The Auxbeam KS-80 switch panel comes with a 3-year official warranty, backed by our professional support team. You’re not just buying a switch panel—you’re getting reliable, worry-free support throughout its life cycle.

Universal Fitment

Suitable for use with:

• Trucks
• Boats
• Cars
• Buses
• Off-road vehicles
• Marine applications
• ATV / UTV
• SUVs
• Side-by-Sides (SxS)
• Heavy-duty machinery

Features

• Supports DC 12V–24V input
• Thick heavy-duty cable construction
• Excellent protection against EMI and RF interference

No Wire Splicing Required

• Extends existing wiring easily
• Compatible with DC 12V–24V systems
• Works with:
  • Rear-view cameras
  • DVD players
  • TV boxes
  • CCTV systems
