24v 15 Pole Plug

24v, 15 Pin, Screwed plug

The W-15 plug is a solid and precisely made element connecting the tractor with the trailer, ensuring the correct operation of the lights and brake systems. It has been equipped with 15 pins and operates at 24V, which makes it compatible with most trucks and TIR sets. The metal hook and strong construction ensure a secure connection, resistant to mechanical damage and vibrations.

The black body fits standard sockets and easily integrates with the installation. Thanks to the precise pin layout, it supports both position and reversing lights, as well as CAN communication and power supply for ABS systems. The product is ideal for transport fleets and assembly workshops.

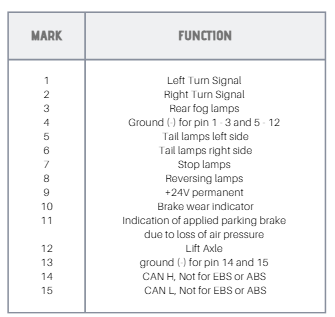

Functions:
Left turn signal
Right turn signal
P/M light
Ground for pins 1-3, 5-12
Left position
Right position
Stop
Reversing light
+24V constant
Air parking brake wear indicator
Lift axle
Ground for pins 14, 15
CAN R, not for EBS or ABS
CAN L, not for EBS or ABS
Product characteristics:

15-pin connector enables full communication between tractor and trailer.
24V voltage - standard for trucks and road sets.
Bolted housing and metal handle - secure mounting and shock resistance.
Supports CAN systems and power supply for ABS/EBS systems - modern compatibility.
Ergonomic design facilitates quick and safe installation.
Technical data
Voltage: 24V
Number of pins: 15
Dimensions of collective packaging: 350x280x330mm
Number in collective carton: 50pcs.
Weight: 282g
