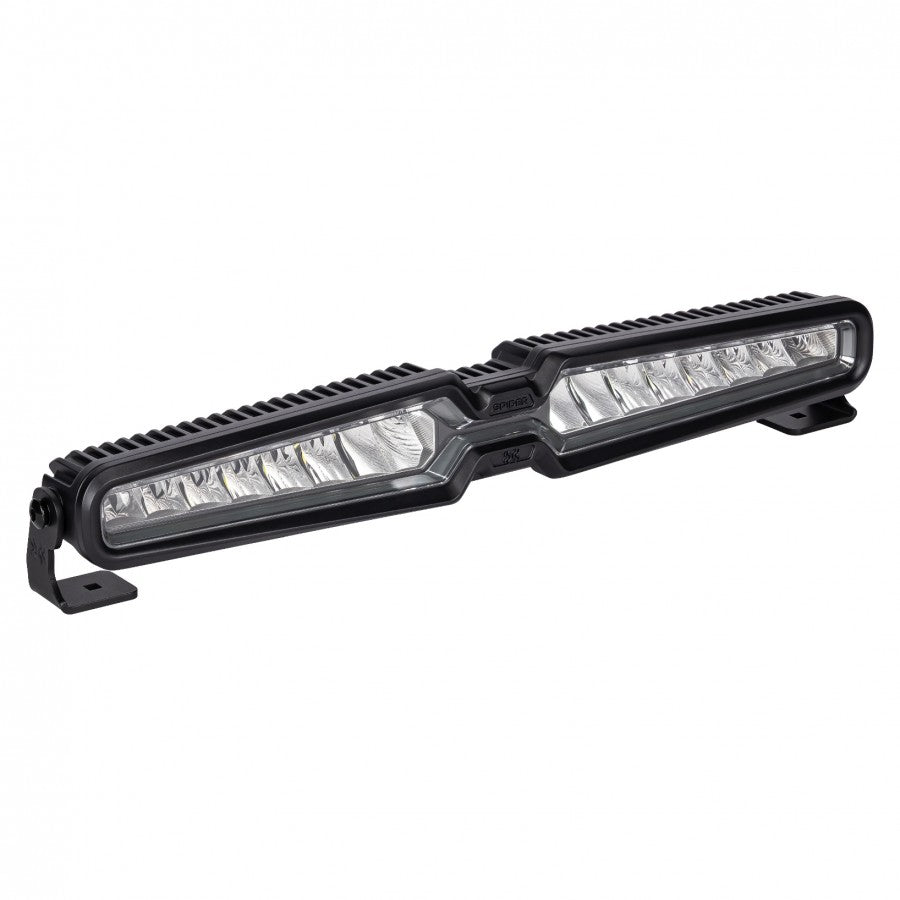

X-SPIDER NOXID L3445 LED Driving Light

The NOXID L3445 combines a high-beam driving light, white position light and amber warning light in one unit. It works with 12V and 24V vehicle systems and can be mounted using brackets at the rear or sides of the housing. A 5-year warranty is included.

Lighting functions

• Driving light: High-beam illumination with a luminous intensity of 215,000 cd and a reference number of 50.

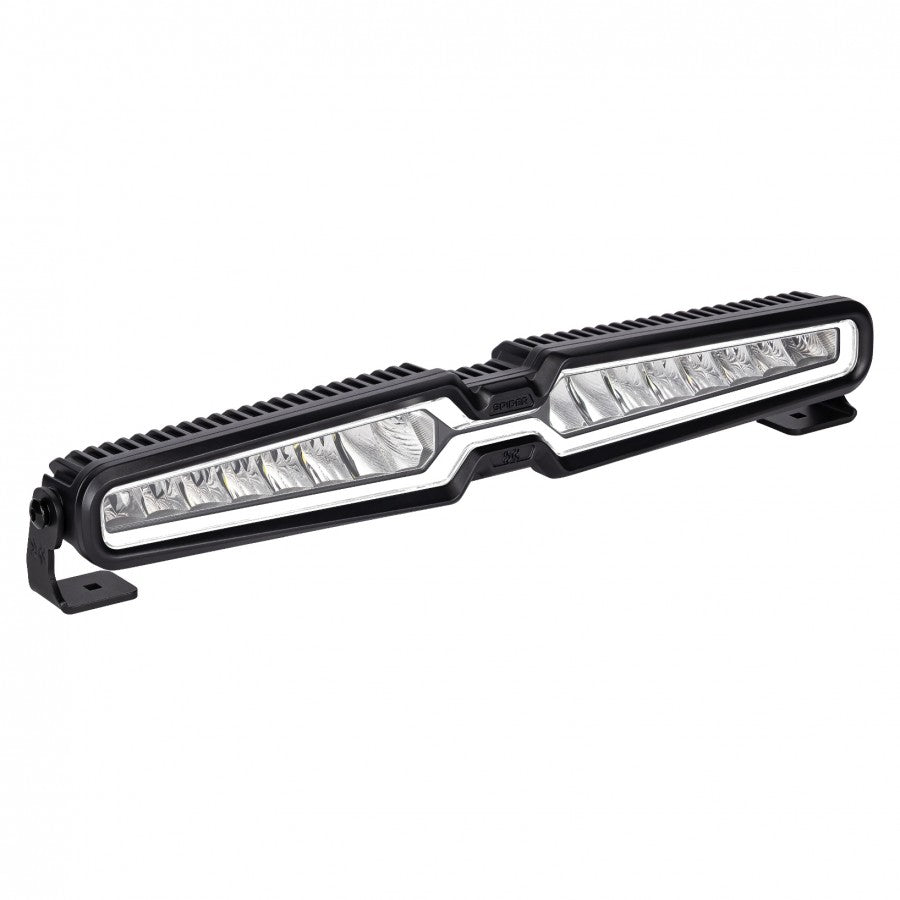

• White position light: Includes a “Hello Effect” welcome sequence when switched on.

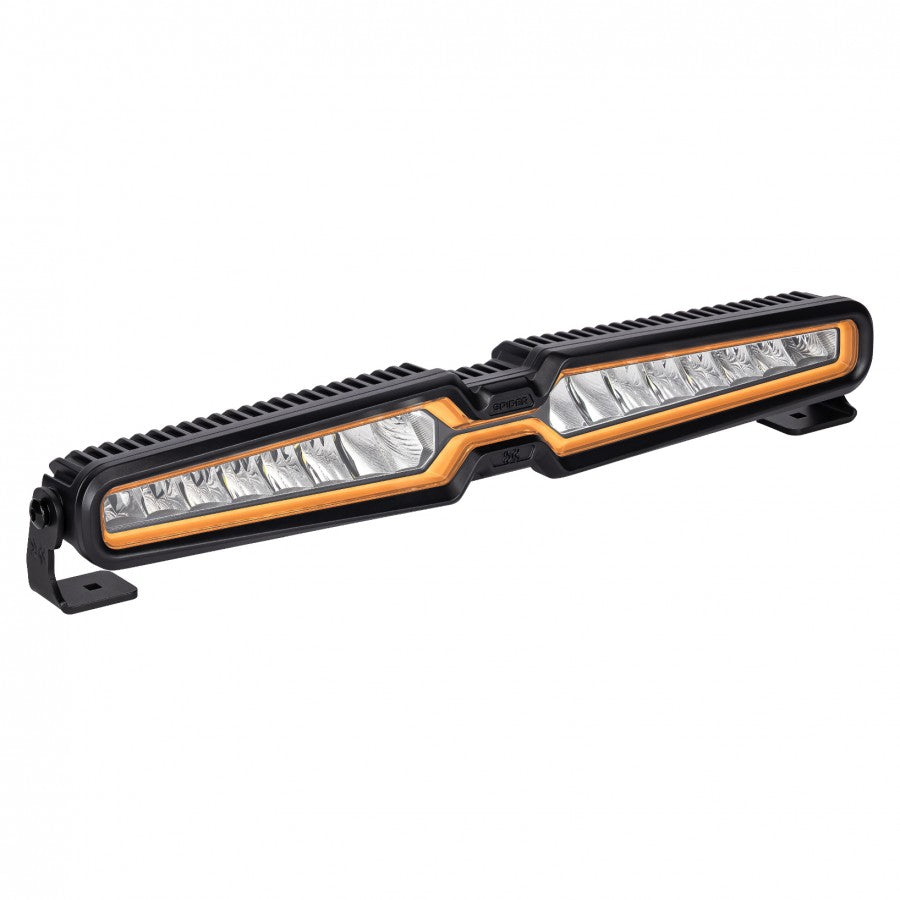

• Amber warning light: Offers single and double flash patterns.

Construction and mounting

The lamp has an aluminium housing, a polycarbonate lens and an IP69K protection rating. Rear and side mounting options provide flexibility during installation.

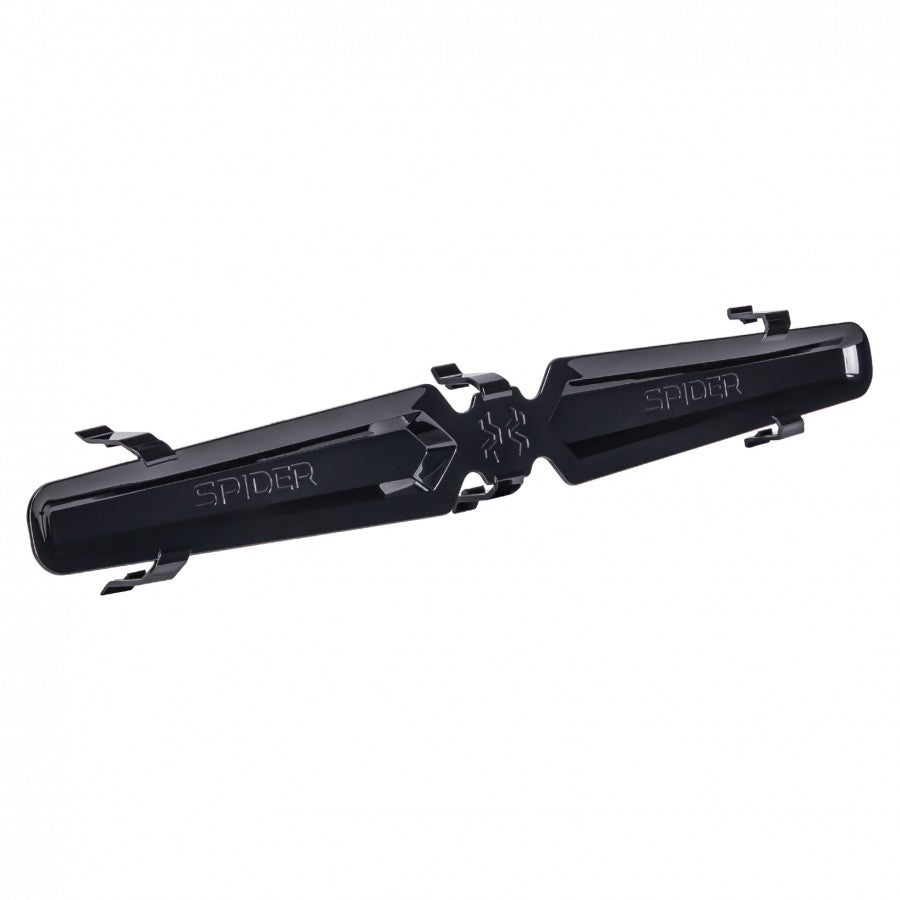

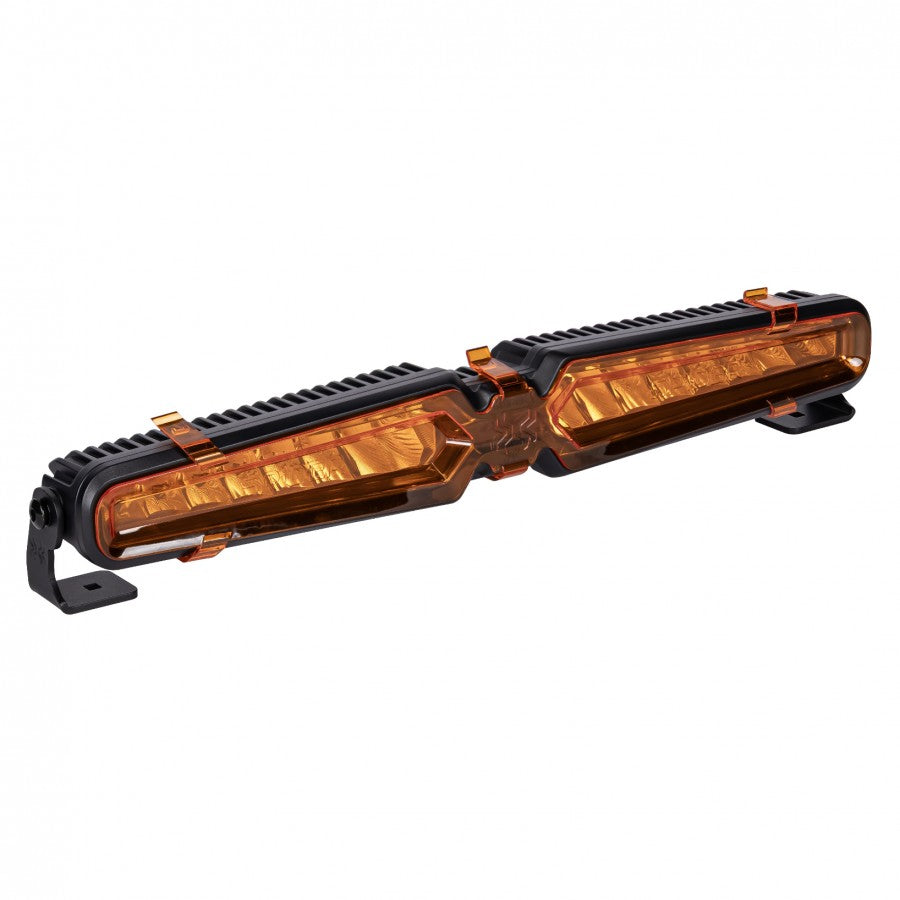

Two interchangeable clip-on covers—black and amber—are included to protect the lens and change the lamp’s appearance.

• Operating voltage: 12/24V
• Power consumption: 100W / 12W / 9W
• Functions: high-beam driving light, white position light with “Hello Effect”, amber warning light with single and double flash
• Luminous intensity: 215,000 cd
• Reference number: 50
• Approvals: R10, R65, R148, R149
• LED quantity: 114 + 16
• Protection rating: IP69K
• Cable: 50 cm + 50 cm, with DT connectors

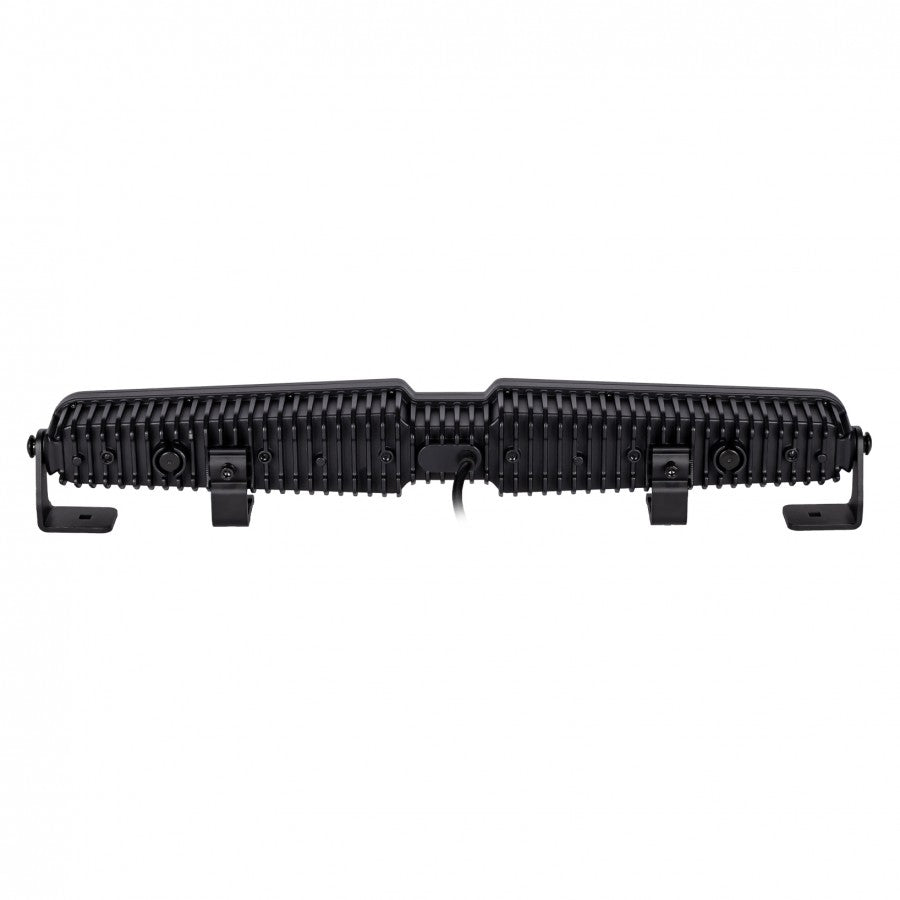

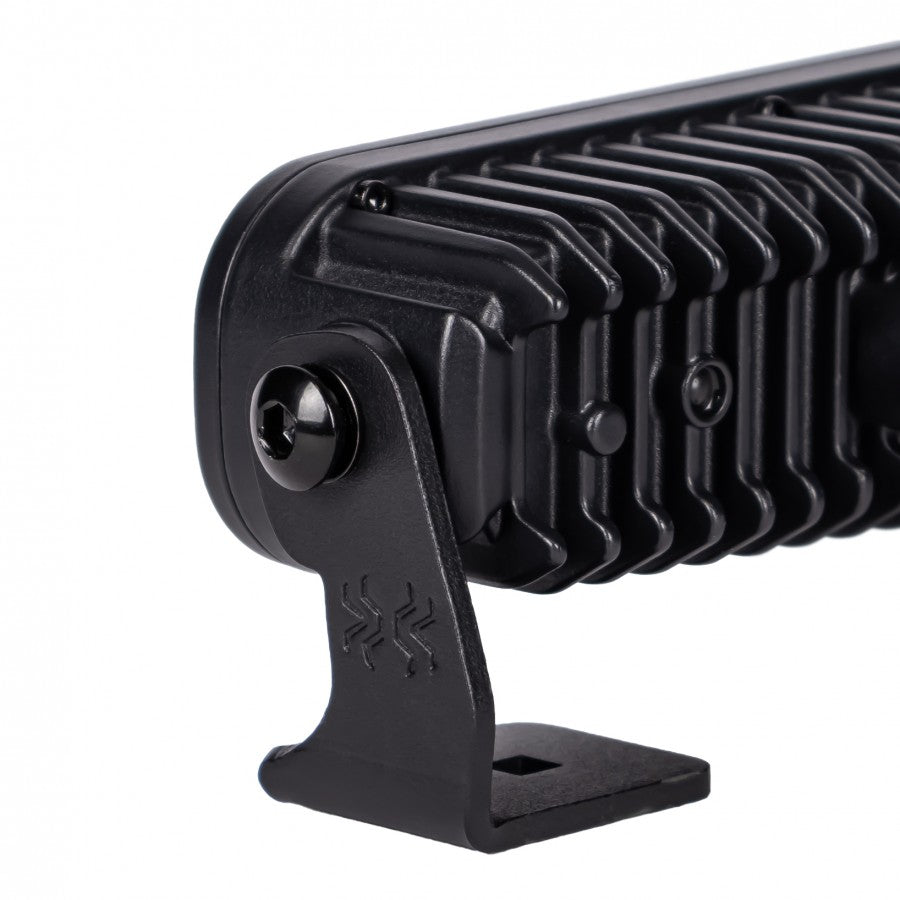

• Mounting: screw-mounted rear or side brackets
• Lens material: polycarbonate
• Housing material: aluminium
• Dimensions: 571 × 76.1 × 71.5 mm

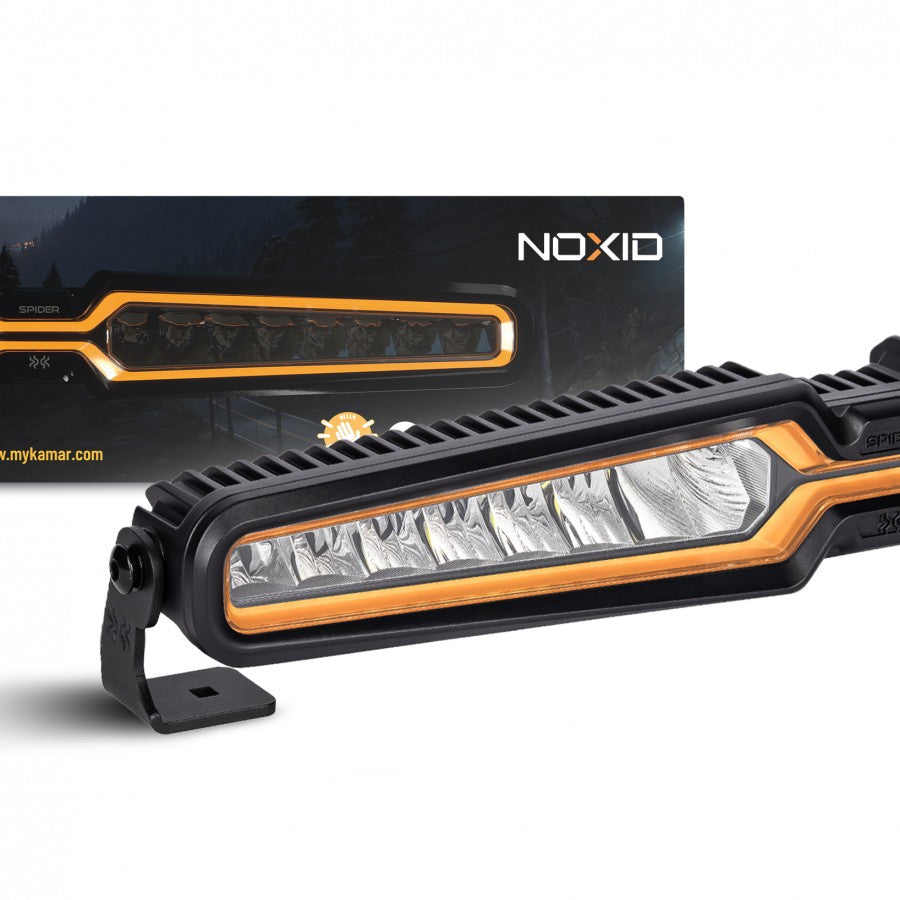

• Included covers: black and amber, interchangeable and clip-on
• Warranty: 5 years
