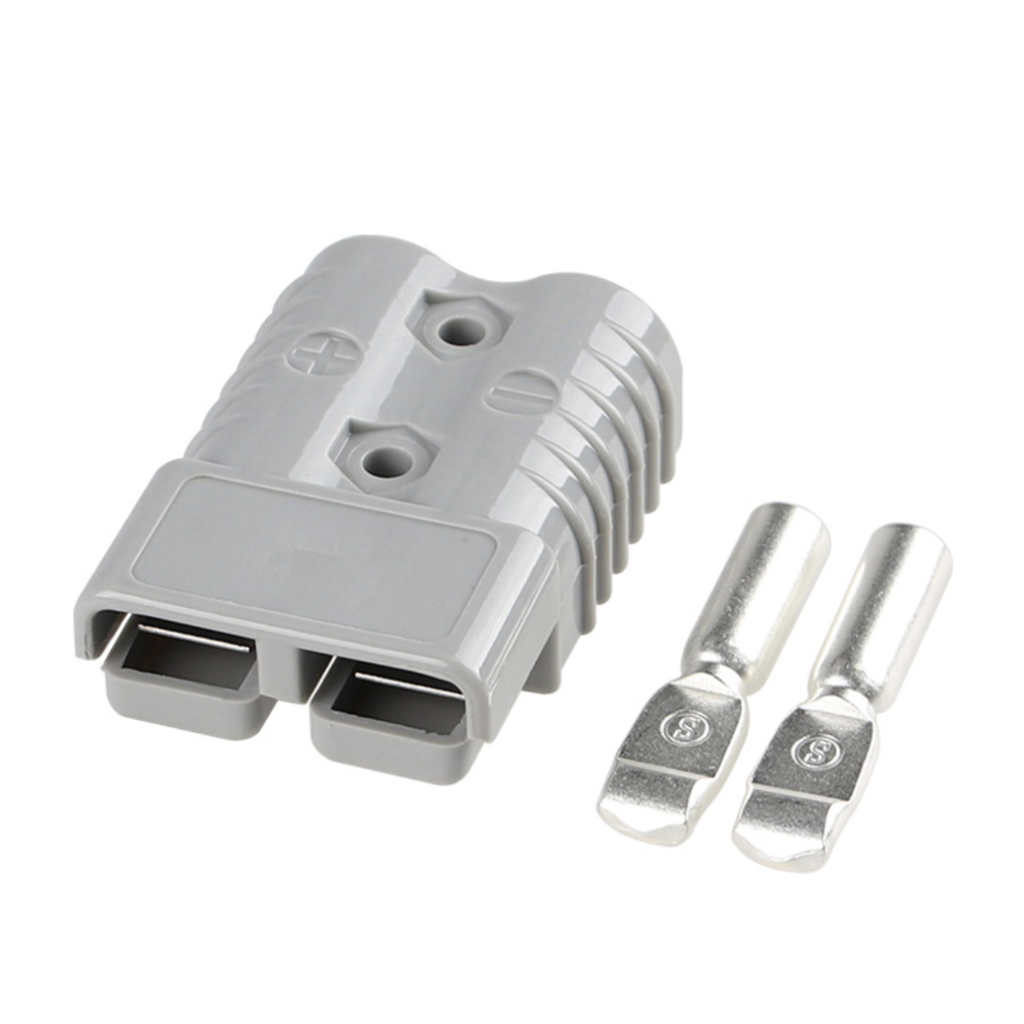

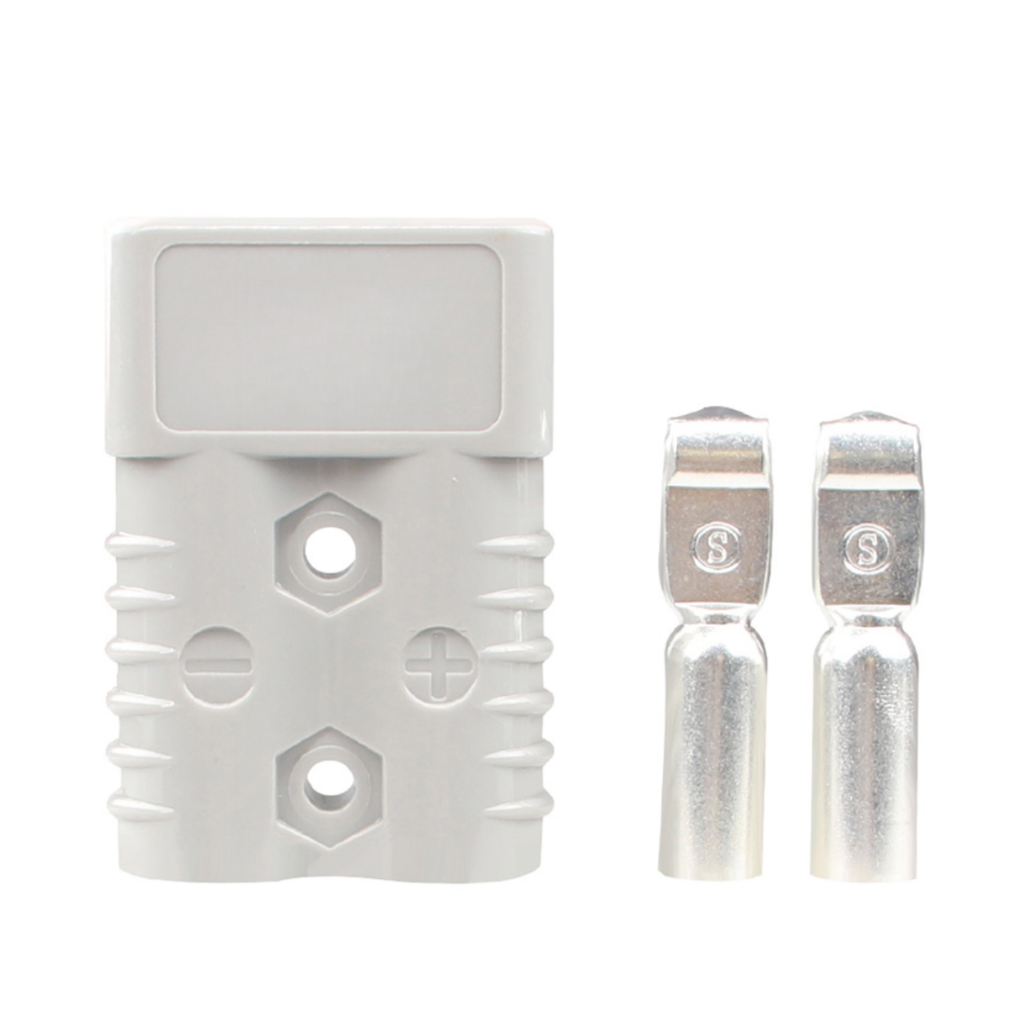

175A Anderson Style Grey Power Connector

This high-performance power connector is designed for reliable use in both AC and DC systems, these Anderson Style Connectors have a voltage rating of 600V and a maximum current rating of 175 Amps. The housing is manufactured with durable PC flame-retardant material (UL94 V-0 rated) and two silver-plated copper terminal lugs are included.

The connector supports high-frequency operation and is manufactured using a precision cold-pressing process to ensure a strong, stable connection and long service life.

Suitable for a broad range of industries, this connector is commonly used in power supply systems, forklift power systems, outdoor equipment, electric vehicles, energy storage solutions, solar systems, industrial machinery, and military applications.

175A Power Connector Specifications:

Electrical Parameters

• Rated current: 175 A
• Rated voltage: 600 V

Electrical Performance

• Insulation resistance: 5000 MΩ
• Flammability rating: UL94 V-0

Cable Compatibility

• Contact barrel wire size: 4/0 AWG – 1/0 AWG

Construction & Materials

• Shell color: Grey
• Terminal material: Red copper
• Manufacturing process: Precision punching

Environmental

• Operating temperature: -20°C to +125°C
