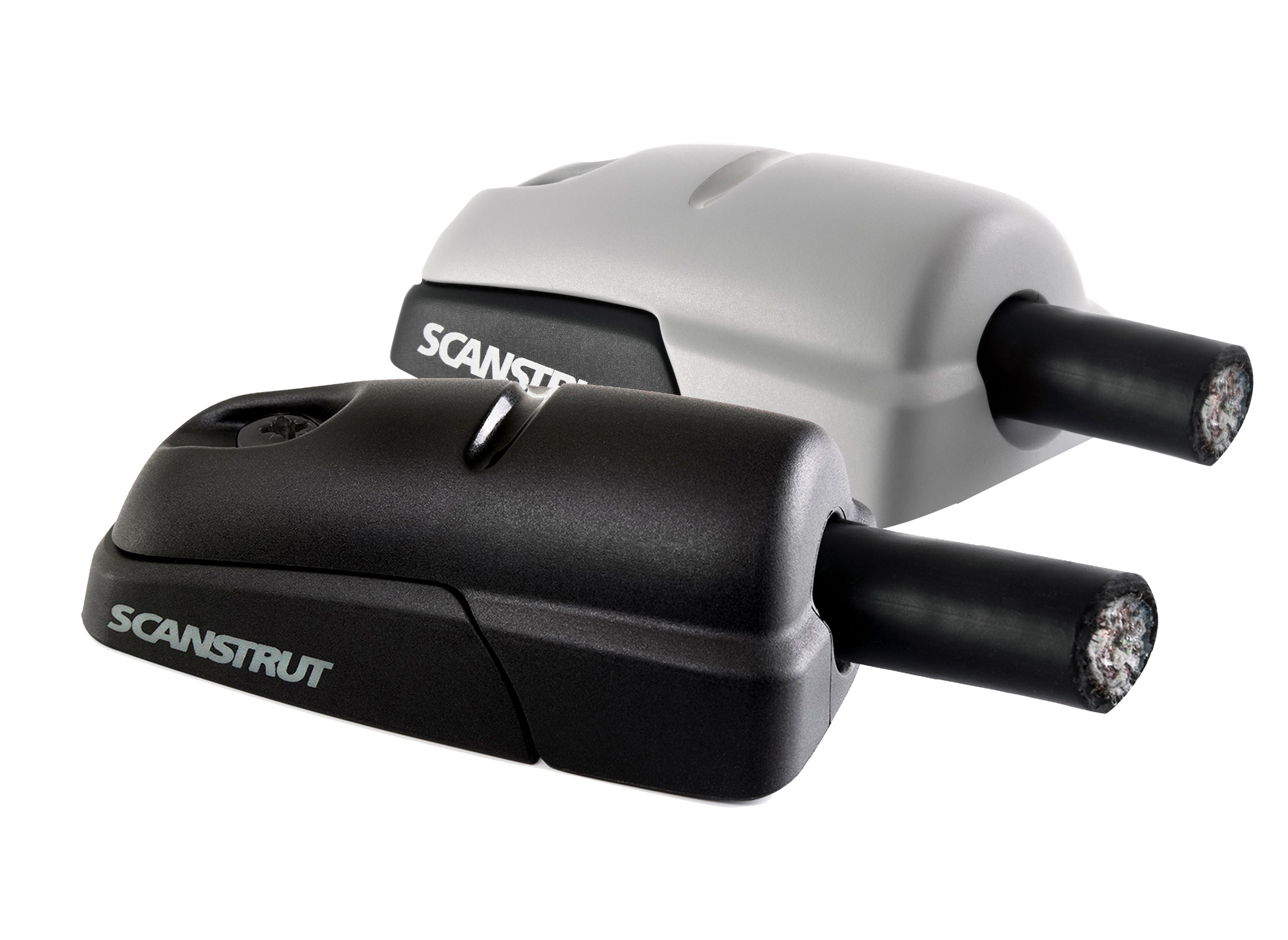

Scanstrut DS-HD10 Double Horizontal IP68 Waterproof Cable Seal in Black for Solar Panels and Automotive Wiring

This innovative double horizontal cable seal provides a sleek, low-profile solution for routing two cables from external to internal spaces, making it ideal for van roofs and similar installations. Designed for ease of use, it ensures a 100% watertight seal while maintaining a clean and professional finish.

Its compact design offers excellent protection against water ingress while delivering durability and simple installation across a wide range of applications. Suitable for two cables between 6 -10mm diameter (for reference, our 16mm² Battery Cable has a diameter of 8.85mm)

Key Features

IP68 watertight seal for maximum waterproof protection
Designed for two cables (6–10 mm diameter)
Compact, low-profile design for a clean finish
No sealant required on bungs for a tidy installation
Includes 316 stainless steel fixings and waterproof 3M gasket
UV-stable, impact-resistant construction for long-term durability
Ideal for van roofs, solar panels, light bars, and rooftop electronics

Design & Performance

Engineered for quick and reliable installation, this cable seal simplifies routing through both wood and metal surfaces, reducing fitting time while maintaining a secure seal. Its low-profile footprint ensures minimal visual impact while delivering best-in-class weather protection.

Technical Specifications

Construction & Materials

Material: High-impact plastic
Colour: Black

Cable Capacity

Cable diameter: 2 × 6–10 mm (0.23”–0.39”)

Dimensions

Length: 75.1 mm (2.95”)
Width: 66.5 mm (2.61”)
Height: 28.5 mm (1.12”)

Included

Bungs:
- 2 × 6 mm (0.24”)
- 2 × 7 mm (0.28”)
- 2 × 8 mm (0.31”)
- 2 × 9 mm (0.35”)
- 2 × 10 mm (0.39”)
- 2 × self-drill (blank)

>>> Click here for full installation manual <<<
